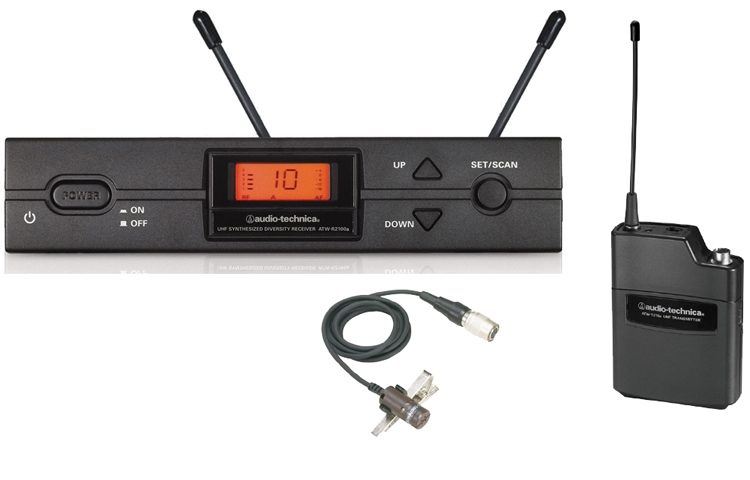

Audio Technica ATW-2110A/P Wireless Lavalier Mic System [Opened Box]

Audio Technica’s second generation of the well known 2000 Series now offers increased RF power on both the handheld and beltpack transmitters for increased link stability. Charging contacts on the transmitters allow easy operation with rechargeable batteries. The new ATW-R2100a receiver benefits from the latest Audio Technica 1/2 wave antenna technology (depends on the frequency range) to maximise range. The 12VDC bias voltage on both BNC antenna inputs allows operation with the ATW-B80 antenna booster or other active components. With this breakthrough series, Audio-Technica makes easy setup, automatic scanning and other advanced wireless features affordable as never before. Automatic frequency scanning – Standard on all 2000a Series wireless receivers – finds and sets the best available channel at the touch of a button. For those using multiple wireless systems simultaneously, the 2000a Series offers another ease-of-use feature: any of its 10 channels may be used together – eliminating confusing frequency groups and other frequency-coordinated problems.

Features

Automatic frequency scanning finds an open channel at the touch of a button
Up to 10 user selectable channels are available. Compatibility varies from country to country
True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
Tone Lock™ squelch function fights interference
Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering
Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
ATW-T220a Handheld Microphone/Transmitter features a PRO41 capsule for maximum feedback rejection and consistent sound


Specifications


Overall System

Operating Frequencies: UHF band
856.100 – 864.900 MHz (F Band)
606.500 – 629.900 MHz (U Band – ch.38)
721.500 – 746.375 MHz (G Band)
656.125 – 678.500 MHz (D Band)
487.125 – 506.500 MHz (I Band)
Number Of Channels: 10 total
Frequency Stability: ±0.005%, Phase Lock Loop frequency control
Modulation Mode: FM
Operating Range: 100 m (300’) typical
Operating Temperature Range: 41° F (5° C) to 113° F (45° C)
Frequency Response: 100 Hz to 15,000 Hz

Receiver Specifications

Receiving System: True diversity
Image Rejection: 55 dB nominal, 50 dB minimum
Signal-To-Noise Ratio: >100 dB at 40kHz deviation (A-weighted), maximum modulation 40 kHz
Total Harmonic Distortion: < 1% (at 1 kHz, ±20 kHz deviation)
Sensitivity: 20dBuV (S/N 60dB at 5 kHz deviation, IEC-weighted)
Audio Output: Unbalanced: 25mV (100k ohms load), 1/4" phone jack
Balanced: 50mV (Attenuator; 0dB)
12.5mV (Attenuator; -12dB) at 1 kHz ± 5kHz
deviation, 100k ohm load, XLRM-type
Antenna Input: BNC-type 50 Ohms – Bias voltage 12V DC, 60mA each
Dimensions: 210 mm x 44 mm x 162.2 mm (W x H x D)
Weight: 1.0kg (2.2 lbs)
Accessories Furnished: Two flexible UHF antennas, rack mount adapters, AC adapters
Optional System Accessory: AT8630 joining-plate kit, mounts two ATW-R2100a receivers in single 19" rack space

Body-Pack Transmitter

RF Power Output: High: 30mW; Low: 10mW, nominal
Spurious Emissions: According to National Regulations
Batteries: Two 1.5V AA alkaline or rechargeable AA NiMH (not included)
Current Consumption: 150 mA typical
Battery Life: Approximately 9 hours (low), 7 hours (high)
Dimensions: 66 mm x 92.3 mm x 22.5 mm (W x H x D)
Weight (Without Battery): 80 grams

AT829cW Microphone

The Audio-Technica AT829cW is a cardioid lavalier microphone terminated with a locking 4-pin connector. The microphone is intended for use with A-T UniPak body-pack wireless transmitters. The microphone cable measures 55" in length (1.4 m).

Miniature unobtrusive profile
Cardioid polar pattern rejects off-axis signal and feedback
55" cable terminated for use with UniPak transmitters
Transducer - Condenser
Polar Pattern - Cardioid
Cable - 55" (1.4m), terminated for use with UniPak transmitters
