The Ernie Ball VP Jr 250K is a compact, rugged passive volume pedal designed for guitars and other instruments with passive electronics.

Built around a 250k audio-taper potentiometer, the VP Jr provides smooth control over overall instrument level, making it ideal for volume swells, dynamic level changes and muting between songs.

Its compact aluminium chassis is approximately 22% smaller than Ernie Ball’s full-size volume pedal while retaining the familiar wide footplate and smooth mechanical sweep.

This Pre-Owned example is in Very Good condition.

AT A GLANCE

Detail	Specification
Brand	Ernie Ball
Model	VP Jr 250K
Model Number	P06180 / 6180
Type	Passive Volume Pedal
Potentiometer	250k Audio Taper
Taper	2 Selectable Sweep Rates
Tuner Output	Yes
Power Required	None
Condition	Very Good / Pre-Owned

PRE-OWNED CONDITION REPORT

This is a Pre-Owned Ernie Ball VP Jr 250K in Very Good condition.

The Very Good condition grade reflects a pedal showing light cosmetic signs of previous use consistent with careful ownership while remaining fully functional.

Please study the photographs carefully for the exact cosmetic condition of the footplate, enclosure, jacks and rubber grip surface.

KEY FEATURES

• Ernie Ball VP Jr 250K

• Model P06180 / 6180

• Designed for passive instruments

• 250k audio-taper potentiometer

• Smooth mechanical volume sweep

• Internal micro taper switch

• Two selectable volume-swell rates

• Input jack

• Output jack

• Dedicated tuner output

• Rugged aluminium construction

• Stainless steel pivot shaft

• Cable-driven pedal mechanism

• Approx. 22% smaller footprint than full-size Ernie Ball VP

• No battery required

• No power supply required

• Very Good Pre-Owned condition

WHY YOU’LL LOVE IT

The VP Jr is one of the most straightforward ways to add hands-free volume control to a guitar rig.

It can be used for:

• Smooth ambient volume swells

• Muting between songs

• Controlling overall stage level

• Fading parts in and out

• Cleaning up an overdriven amplifier

• Sending a constant signal to a tuner

Because it is completely passive, it requires no power connection and adds very little complexity to a pedalboard.

DETAILED FEATURES & BENEFITS

250K Potentiometer

The VP Jr uses a 250k audio-taper potentiometer.

This value is intended for the signal path of passive electric guitars and basses, helping retain a natural response from conventional passive pickups.

Smooth Foot Control

The broad footplate provides progressive control from minimum to maximum volume.

This makes it particularly effective for slow volume swells as well as quicker level adjustments.

Internal Taper Switch

A small switch underneath the footplate provides two different volume-swell curves.

This allows the player to choose between two response styles depending on how they prefer the pedal to react across its travel.

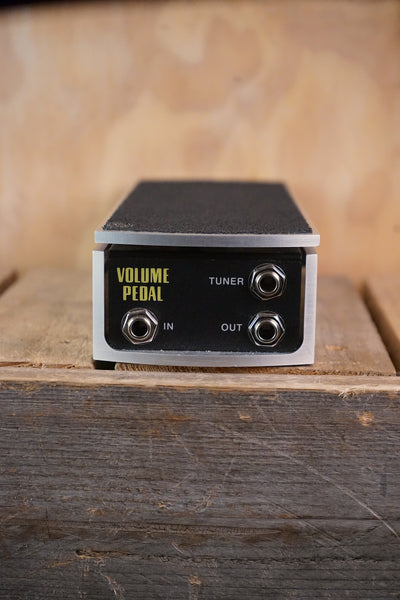

Dedicated Tuner Output

A separate tuner jack allows a tuner to receive the instrument signal independently of the main output.

This can be particularly useful for pedalboard layouts where the player wants continuous access to tuning.

Compact VP Jr Format

The VP Jr is approximately 22% smaller than Ernie Ball’s original full-size volume pedal.

It retains a substantial playing surface while saving useful pedalboard space.

Rugged Construction

The housing uses heavy-duty aluminium construction designed for repeated stage use.

The main pivot shaft is stainless steel and supported by nylon bushings for smooth movement.

WHO IS IT FOR?

The Ernie Ball VP Jr 250K is particularly well suited to:

• Electric guitarists

• Bassists with passive instruments

• Ambient players

• Shoegaze musicians

• Worship guitarists

• Pedal-steel-inspired players

• Live performers

• Studio musicians

• Players needing hands-free volume control

PLAYING STYLES & APPLICATIONS

The VP Jr works particularly well for:

• Volume swells

• Ambient guitar

• Clean textures

• Rock

• Blues

• Indie

• Shoegaze

• Live level control

• Silent tuning

• Studio performance

HOW IT COMPARES

VP Jr 250K vs VP Jr 25K

The 250K version is designed primarily for passive instrument signals.

The 25K version is intended for active instruments or buffered signals.

VP Jr vs Full-Size Ernie Ball Volume Pedal

The VP Jr offers the same basic volume-control concept in a footprint approximately 22% smaller than the original full-size model.

Passive Volume Pedal vs Powered Volume Pedal

The VP Jr does not contain an active buffer or amplification stage.

This means it requires no battery or external power supply.

PRODUCT SPECIFICATIONS

Specification	Details
Product Type	Volume Pedal
Brand	Ernie Ball
Model	VP Jr 250K
Product Code	P06180 / 6180
Signal Type	Passive
Potentiometer	250k Mono Audio Taper
Taper Selection	2-Position Internal Switch
Input	1/4" Jack
Output	1/4" Jack
Tuner Output	1/4" Jack
Approx. Length	10" / 254mm
Approx. Width	3.5" / 89mm
Approx. Height	2.4–2.5" / 60–64mm
Approx. Weight	2.25 lbs / 1.02kg
Construction	Aluminium
Electronics	Passive
Power Requirement	None
Condition	Very Good / Pre-Owned

POWER REQUIREMENTS

None.

The Ernie Ball VP Jr 250K is a fully passive volume pedal and requires:

• No battery

• No external power supply

• No mains connection

FAIR DEAL MUSIC EXPERT VERDICT ★★★★★

Best suited for: Players wanting a simple, rugged and smooth volume pedal for passive guitars or basses.

Customers usually upgrade from: Basic plastic volume pedals, entry-level expression-style controllers and compact passive volume pedals.

Most commonly paired with: Electric guitars, tuners, delay, reverb, overdrive and ambient pedalboards.

Our tip: For atmospheric swells, place the VP Jr before delay and reverb so the effects continue to trail after you reduce the dry signal.

Showroom feedback: The VP Jr remains popular because it is simple, solid and predictable. The broad footplate makes smooth swells easy, while the smaller footprint is noticeably easier to accommodate than Ernie Ball’s full-size pedal.

WHY BUY PRE-OWNED FROM FAIR DEAL MUSIC?

Buying a Pre-Owned Ernie Ball VP Jr 250K offers a cost-effective way to add reliable hands-free volume control to a pedalboard.

This example is in Very Good condition.

Fair Deal Music has decades of experience buying, selling and part-exchanging pedals and Pre-Owned musical equipment.

WHY BUY FROM FAIR DEAL MUSIC?

When you buy from Fair Deal Music, you're choosing one of the UK's most established, independent family run music retailers since 1987.

Fair Deal Music combines a large Birmingham showroom with nationwide ecommerce and knowledgeable musician-led advice.

Customers benefit from:

• Family-run independent retailer established in 1987

• Birmingham's largest independent music store

• 6,000+ Trustpilot reviews

• Knowledgeable musician-led advice

• Extensive experience with pedals and effects

• Large Birmingham showroom

• Secure online ordering

• Fast UK delivery

• Friendly customer support

• Part-exchange and trade-in service

TRADE IN. TRADE UP. SAVE MORE.

Your current pedal or other musical equipment could help towards the cost of this Ernie Ball VP Jr.

Fair Deal Music buys and part-exchanges pedals, guitars, basses, amplifiers, keyboards and a wide range of musical equipment.

Contact our team for a no-obligation valuation.

PART EXCHANGE / TRADE-IN

If you already own pedals or other musical equipment you are considering replacing, Fair Deal Music can assess them for part exchange.

Trading in can remove the inconvenience of selling privately while allowing the value of your existing equipment to go directly towards your next purchase.

FREQUENTLY ASKED QUESTIONS

Is this Ernie Ball VP Jr used?

Yes. This is a Pre-Owned Ernie Ball VP Jr 250K in Very Good condition.

Is this the 250K version?

Yes. This listing refers to the standard VP Jr 250K / P06180.

What instruments is the 250K version designed for?

Primarily guitars and basses with passive electronics.

Does it have a tuner output?

Yes.

What does the taper switch do?

It provides two different volume-swell response curves.

Does it need a battery?

No.

Does it need a power supply?

No.

Is it an expression pedal?

No. It is designed as an audio volume pedal rather than a conventional TRS expression controller.

What condition is it in?

It is in Very Good condition.

Can it be used for volume swells?

Yes. Smooth volume swells are one of its main applications.

Can I part-exchange another pedal against it?

Yes. Fair Deal Music considers pedals and a wide range of other musical equipment for part exchange.
