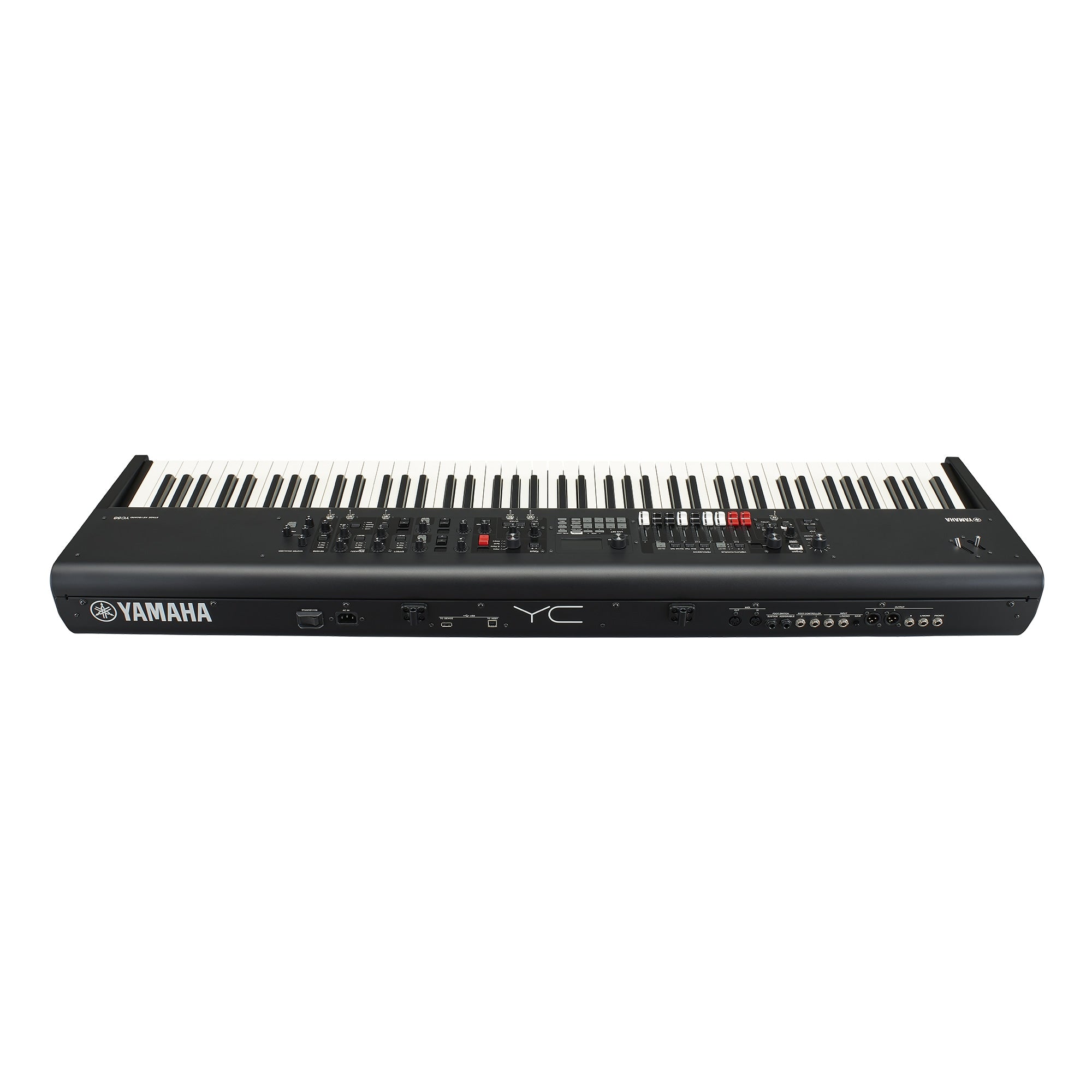

Yamaha YC88 Stage Piano with Organ Drawbars

A modern stage piano with vintage qualities. The Yamaha YC88 digital stage piano with drawbars combines authentic performance with high-quality organ and piano modelling for the stage. Yamaha's first keyboard with drawbars, the YC88 meticulously emulates the unique circuitry and playing feel of popular drawbar controls. In comparison to the YC61, the 73 and 88 models feature a natural wood hammer-action keybed, providing an fluid playing experience.

The YC88 also places a range of other authentic sounds, including concert grand and electric pianos at the fingertips of the performer. To achieve this, the YC88 relies on a newly designed sound engine utilising Virtual Circuitry Modelling technology. This expertly captures and recreates the behaviour of transformers and resistors in tonewheel and drawbar circuits.

The authenticity doesn't stop there, with a newly designed, 88-key waterfall keyboard providing the perfect platform to create expressive organ performances. With authentic drawbar mechanics and ultimate portability, the YC88 is the stage instrument for demanding organ and keyboard players. The digital organ comes complete with the official soft case for the YC88, with built-in wheels for easy transportation.

Highlights

• 88-key digital stage piano with drawbars
• Intuitive control surface
• Natural wood hammer action keybed
• Detailed organ, piano and synthesizer sounds
• Nine drawbars offering haptic feedback
• LED indicators of active instrument setup
• Virtual Circuitry Modelling technology
• Complete with FC3A foot pedal for added expression
• Lightweight design built for live performance

Specifications

• Control interface:
  • Number of keys: 88
  • Type: Semi-weighted waterfall keyboard, initial touch
• Voices
  • Tone generating technology: VCM Organ, AWM2, FM
  • Number of polyphony (Max.): [VCM Organ + AWM2]:128 *total of VCM Organ and AWM2, [FM]:128
  • Number of live set sound: 160 (preset live set sounds:80)
  • Number of voices: 145 (organ:6 / keys:139)
• Effects:
  • Effects: 32 types
  • Insertion effect: organ 1 systems (pre drive) / Key A 2 systems (1: 32 types, 2: 32 types) / Key B 2 systems (1: 32 types, 2: 32 types)
  • Speaker/amp: 6 types (rotary speaker: 2 types, amp: 4 types)
  • Reverb: 1 type
  • Master EQ: 3 band (with sweepable Mid)
• Connectivity:
  • Line out: OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks, UNBALANCED)
  • Headphones: [PHONES] (6.3 mm, standard stereo phone jack)
  • Foot Controller: FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE]
  • MIDI: MIDI [IN]/[OUT]
  • USB: USB [TO HOST]/[TO DEVICE]
  • AUX: INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)
  • Other: [AC IN]
• Display: full dot LCD (128 x 64 dots)
• Additional package contents: owner’s manual x 1, power cord x 1
