Adam Audio D3V Desktop Studio Monitor System, Black

The ADAM Audio D3V is a compact, fully active desktop monitoring system designed to bring accurate studio-quality sound to smaller workspaces. Combining ADAM Audio’s hand-folded D-ART tweeter technology with 3.5-inch aluminium woofers and dual-sided passive radiators, the D3V delivers impressive clarity, controlled bass and detailed stereo imaging from an exceptionally compact enclosure.

Designed for music production, content creation, songwriting, gaming and high-quality everyday listening, the D3V can connect directly to a computer, tablet or compatible mobile device through USB-C. Balanced ¼-inch TRS inputs also make it easy to connect the monitors to an audio interface, mixer, keyboard or other studio equipment.

With 240 watts of total peak amplification, DSP-powered room adaptation controls, a convenient front-panel headphone output and flexible mounting options, the D3V offers a complete desktop monitoring solution without requiring a separate amplifier.

Quick Product Summary

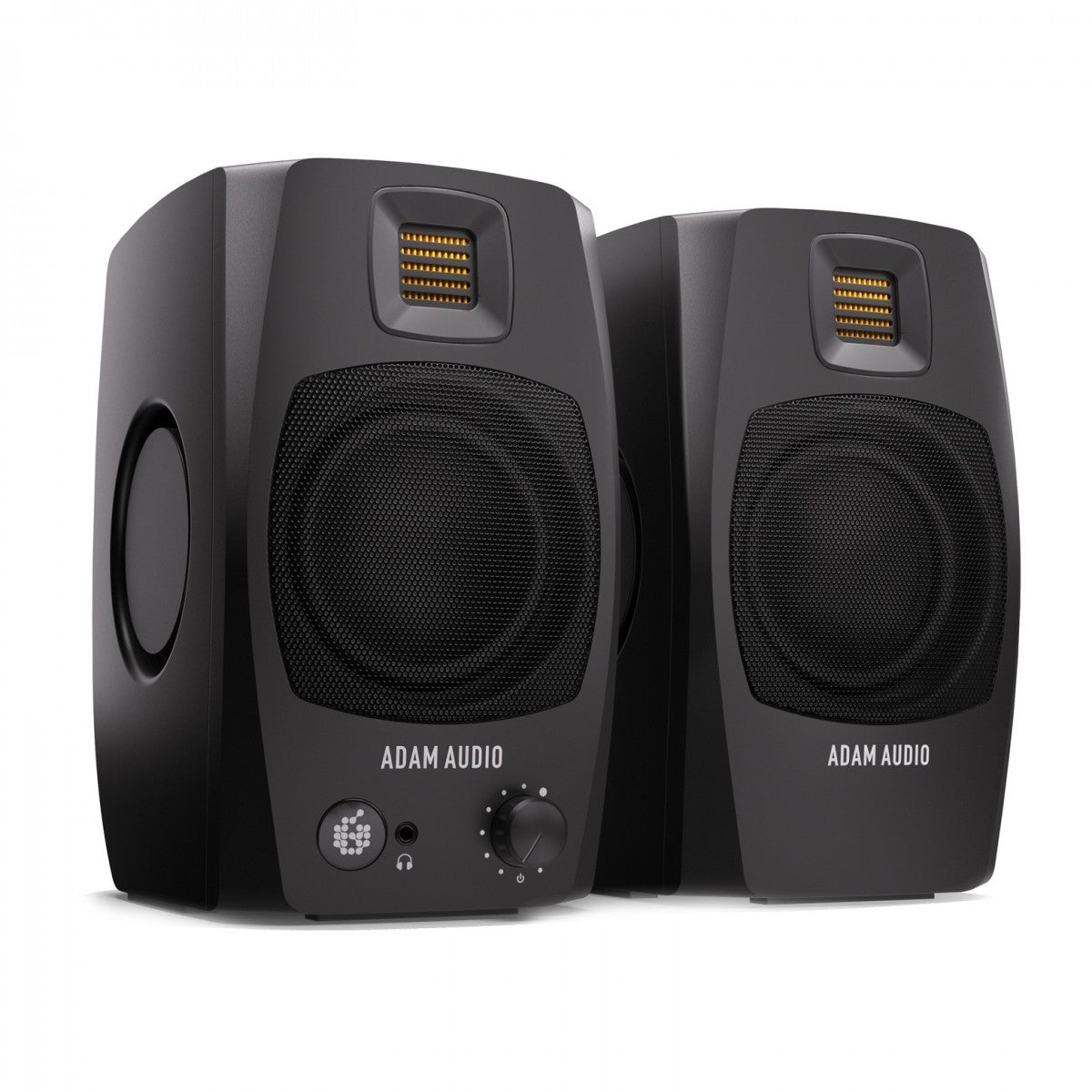

The ADAM Audio D3V is a pair of compact active studio monitors created for producers, musicians and content creators working in bedrooms, home studios and desktop production environments.

Its hand-folded D-ART tweeters reproduce high frequencies with excellent detail, while 3.5-inch aluminium woofers and dual passive radiators extend the low-frequency response down to 45 Hz. USB-C connectivity allows direct digital playback from compatible computers and mobile devices, while balanced analogue inputs support conventional studio setups.

At A Glance

Feature	Details
Brand	ADAM Audio
Model	D3V
Product Type	Active desktop studio monitor system
Configuration	Matched stereo pair
Woofer Size	3.5-inch aluminium woofer in each monitor
Tweeter Type	Hand-folded D-ART tweeter
Passive Radiators	Two 3.5-inch passive radiators per monitor
Total Peak Amplification	240 watts
Frequency Response	45 Hz–23.2 kHz at -6 dB
Maximum Peak SPL	97 dB SPL per monitor at 1 metre
Digital Input	USB-C
Analogue Inputs	Two balanced ¼-inch TRS inputs
Headphone Output	Front-panel 3.5 mm stereo output
Room Adjustment	DSP-powered room adaptation controls
Mounting Options	Desktop, included angled feet or 3/8-inch threaded stand mounting
Available Finishes	Black or White
Main Appeal	Accurate ADAM Audio monitoring in a compact desktop format
Best For	Home studios, music production, content creation, editing and high-quality listening
Skill Level	Beginner, intermediate and professional creators

Why Choose the ADAM Audio D3V?

Genuine ADAM Audio Monitoring Technology

The D3V brings technologies associated with ADAM Audio’s larger professional studio monitors into a compact desktop system.

Its D-ART tweeters are designed to reproduce high-frequency detail with precision while maintaining a smooth, non-fatiguing character. This helps reveal vocal details, reverb tails, stereo effects and subtle changes during mixing without creating an excessively harsh listening experience.

Hand-Folded D-ART Tweeters

Each monitor features a 1.5-inch D-ART tweeter based on ADAM Audio’s Accelerating Ribbon Technology.

Rather than moving backwards and forwards like a conventional dome tweeter, the folded diaphragm moves air through a series of precision folds. This design provides fast transient response, wide dispersion and detailed high-frequency reproduction.

The generous 120-degree horizontal and vertical dispersion helps create a broad and consistent listening area around the desktop.

Compact Aluminium Woofers

A purpose-designed 3.5-inch aluminium woofer is fitted to each speaker. Aluminium provides an effective balance between low weight and rigidity, allowing the driver to respond quickly while resisting unwanted cone deformation.

The result is controlled low-mid reproduction, clear vocal presentation and enough impact for nearfield music production, video editing and everyday listening.

Extended Bass from Dual Passive Radiators

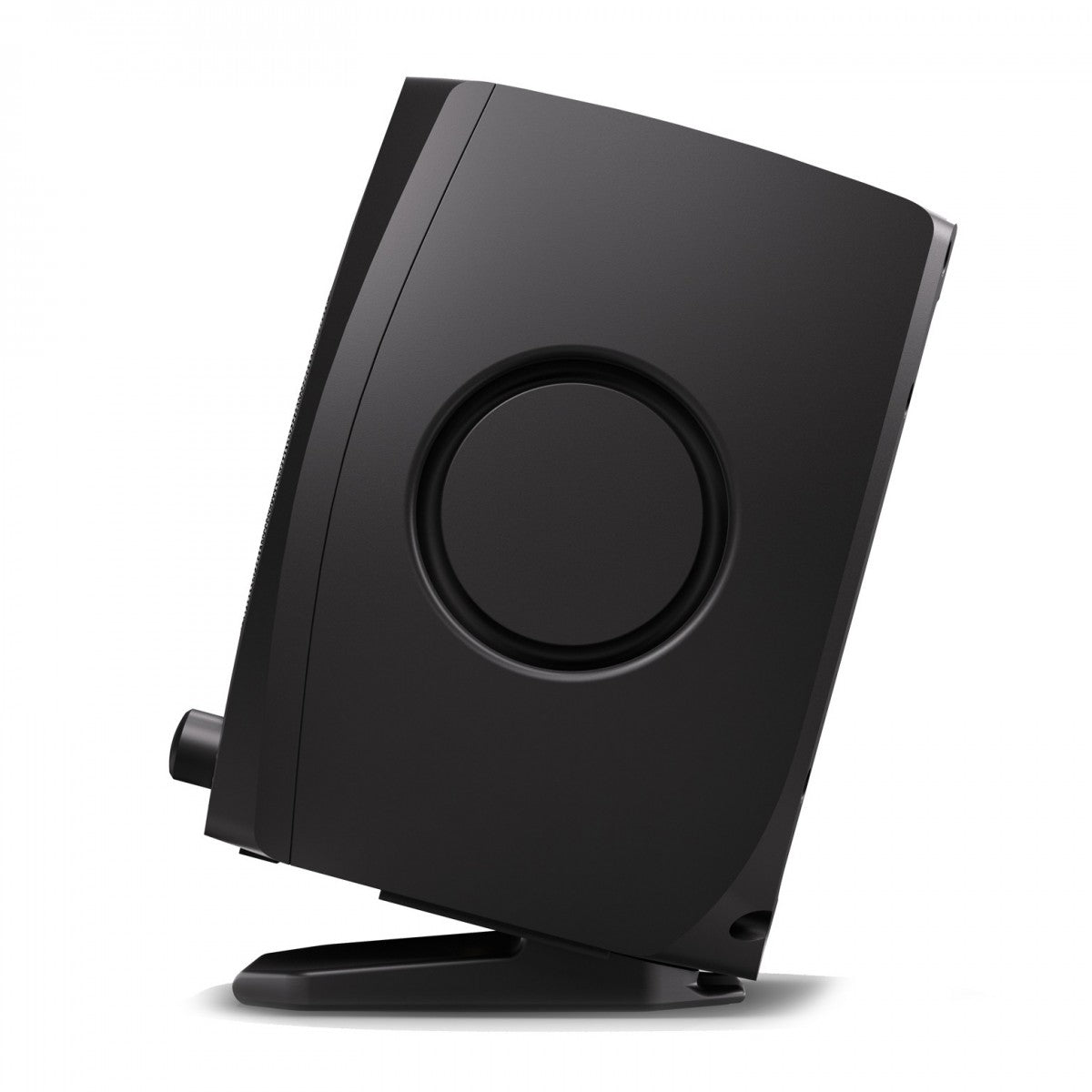

Each D3V cabinet incorporates two 3.5-inch passive radiators positioned on opposite sides of the enclosure.

These radiators strengthen the low-frequency performance without requiring a conventional bass-reflex port. This allows the compact monitors to reach down to 45 Hz while maintaining a controlled response suitable for close-range desktop monitoring.

240 Watts of Peak System Amplification

The D3V system provides 240 watts of total peak amplification across its four active drivers.

Each woofer receives up to 80 watts of peak power, while each tweeter receives up to 40 watts. This dedicated active amplification helps provide consistent driver control, strong transient response and up to 97 dB peak SPL per monitor at one metre.

Direct USB-C Connectivity

The built-in USB-C audio connection allows the D3V to operate as a digital output device when connected to a compatible computer, tablet or mobile device.

This means users can achieve high-quality playback without requiring a separate audio interface for listening. A USB-C to USB-C cable and USB-A adaptor are supplied, making the system compatible with a wide range of modern and traditional computer connections.

Balanced Analogue Inputs

Two ¼-inch TRS inputs provide balanced analogue connectivity for professional studio equipment.

The D3V can be connected to:

• Audio interfaces
• Mixing consoles
• Monitor controllers
• Keyboards and synthesisers
• Electronic instruments
• DJ equipment
• Other suitable line-level audio sources

Balanced connections help reduce the risk of unwanted hum and interference, particularly when longer cables are used.

DSP Room Adaptation

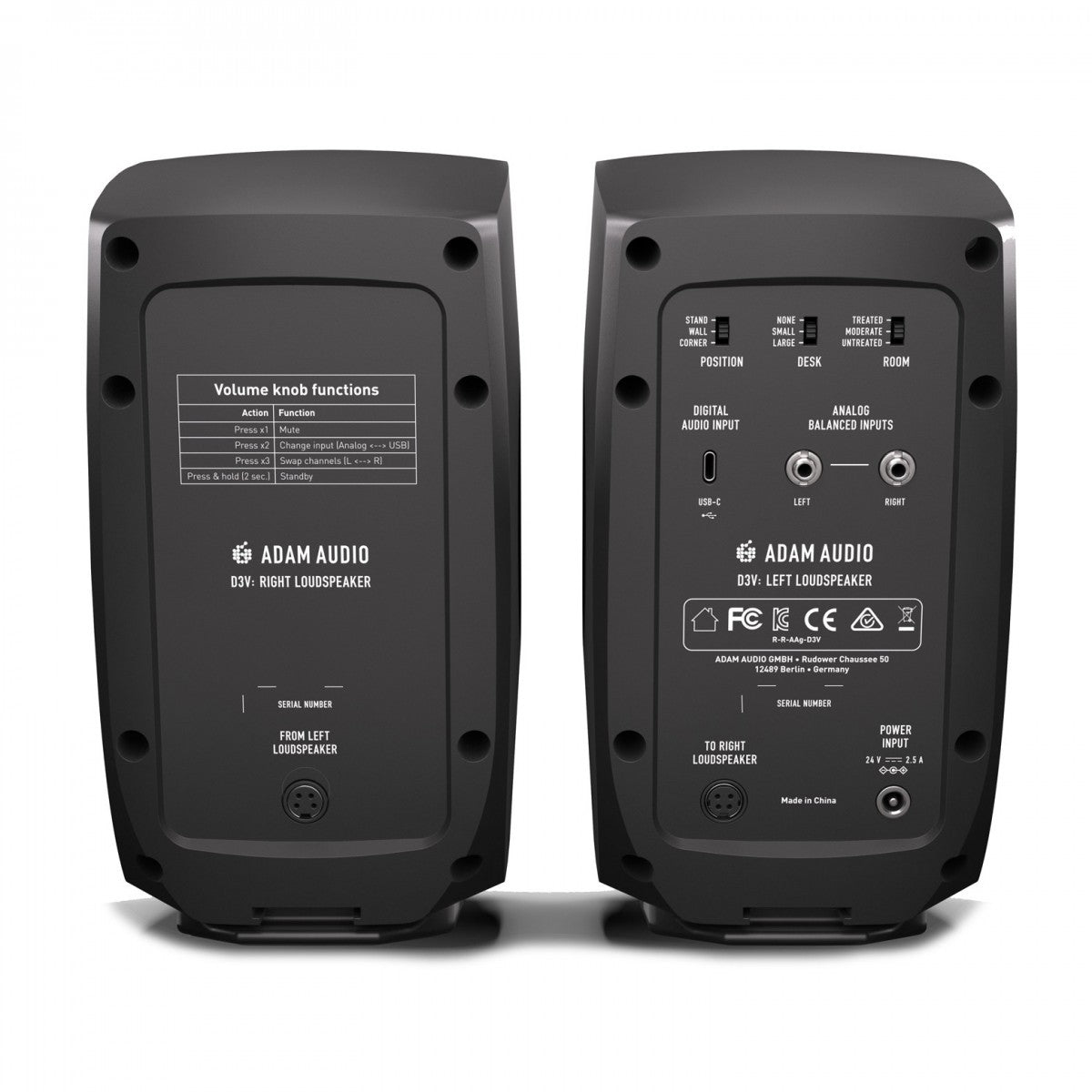

Rear-panel DSP switches allow the frequency response to be adjusted according to the position of the monitors and the acoustic character of the room.

Three separate controls address:

• Speaker position and bass response
• Desktop reflections through the low-mid and midrange
• Room brightness and high-frequency response

These adjustments help the D3V provide a more balanced listening experience when placed close to walls, directly on a desk or inside a lively room.

Simple Front-Panel Control

A multifunction rotary control on the front of the primary monitor provides convenient access to everyday functions.

The control can be used to:

• Adjust monitor volume
• Adjust headphone volume
• Mute and unmute the system
• Switch between analogue and USB-C inputs
• Place the monitors into standby
• Swap the left and right channels

The channel-swap function allows the primary speaker to be positioned on either side of the desk, keeping the volume control and headphone connection where they are most convenient.

Integrated Headphone Output

A 3.5 mm headphone socket is positioned on the front panel for quick private monitoring.

Connecting headphones automatically mutes the loudspeaker drivers, allowing the same central volume control to be used for headphone listening without rewiring the studio setup.

Flexible Desktop Positioning

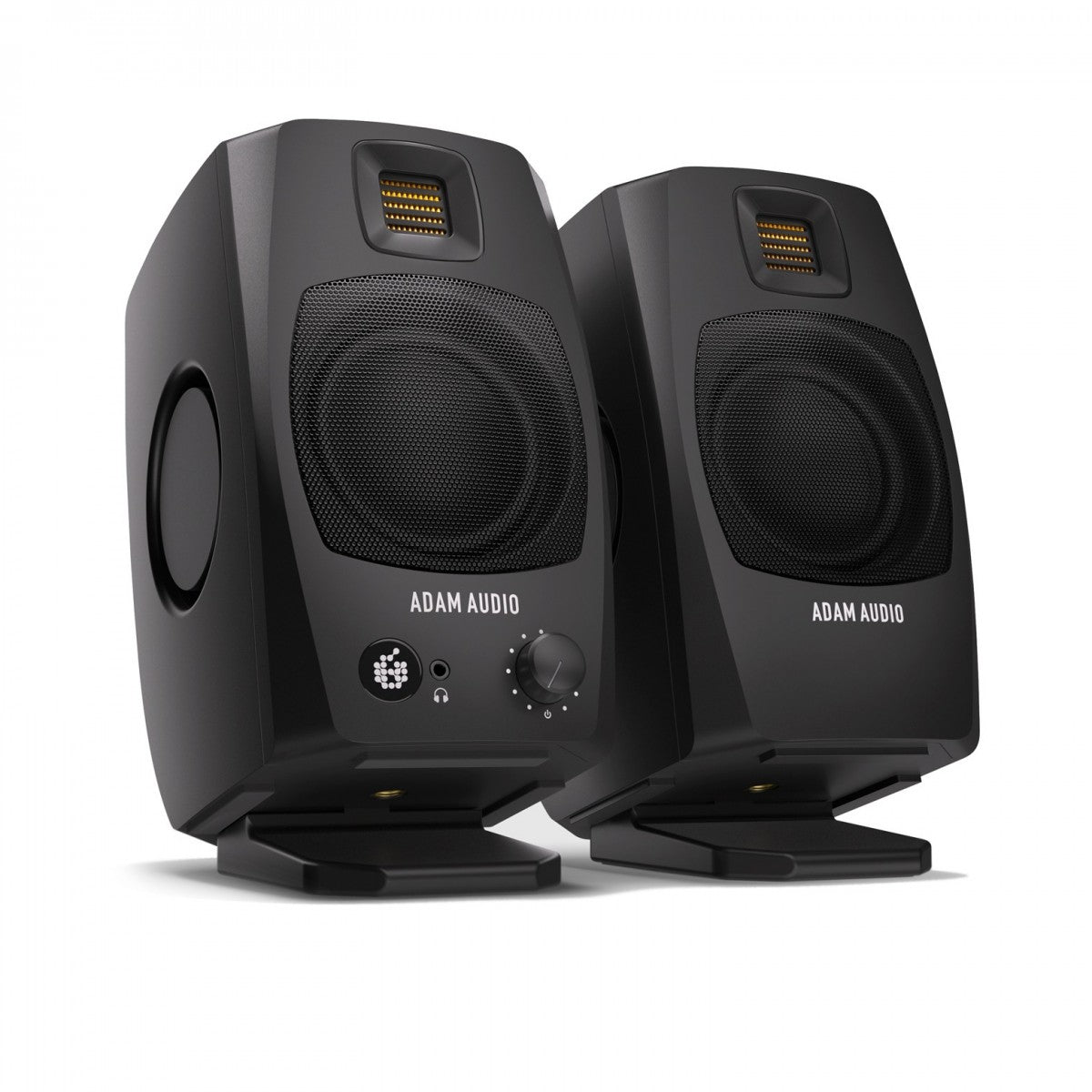

The D3V monitors can be positioned directly on a desktop using the supplied adhesive pads or tilted upwards by 15 degrees using the included detachable feet.

Each cabinet also includes a 3/8-inch threaded mounting point, allowing the speakers to be fitted to compatible microphone or monitor stands. Raising the monitors away from the desk can reduce reflections and help align the tweeters more accurately with the listener’s ears.

Why Choose Compact Active Studio Monitors?

Compact active monitors are designed for close-range listening in environments where larger loudspeakers may be impractical.

Because the amplifier is built into the monitoring system, there is no need to purchase or accommodate a separate power amplifier. The amplifier and drivers are also designed to work together, providing predictable performance and reducing the complexity of the setup.

A compact nearfield system such as the D3V is particularly useful for:

• Bedroom studios
• Small production rooms
• Laptop-based recording setups
• Desktop video editing
• Podcast production
• Gaming and streaming
• Keyboard and synthesiser monitoring
• High-quality computer audio
• Mobile production systems
• Secondary studio monitoring

Nearfield positioning allows the listener to hear a greater proportion of the direct sound from the speakers and less of the room’s reflections. This can provide a clearer and more consistent listening experience in untreated or multipurpose rooms.

Who Is the ADAM Audio D3V For?

Home Studio Producers

The accurate stereo imaging, detailed tweeters and room adaptation controls make the D3V well suited to recording, arranging and mixing in smaller home studios.

Songwriters and Musicians

The system can connect directly to a computer through USB-C or receive analogue audio from an interface, mixer, keyboard or other compatible equipment.

Content Creators

Video editors, podcasters and online creators can benefit from clear dialogue reproduction, detailed stereo placement and a compact footprint that leaves more space around the computer display.

Electronic Musicians

Balanced analogue inputs allow synthesisers, drum machines and production equipment to be connected through an interface or suitable line-level output.

Mobile and Laptop-Based Producers

The compact dimensions and straightforward cabling make the D3V easier to move and install than a conventional pair of larger studio monitors.

Music Enthusiasts

The D3V is also suitable for listeners seeking accurate, detailed desktop playback for music, films and gaming rather than the exaggerated sound associated with many standard computer speakers.

Students and Developing Producers

Direct USB-C connectivity reduces the amount of additional equipment needed to build an effective production setup, making the D3V an excellent starting point for recording and music technology students.

What’s Included?

• ADAM Audio D3V primary active loudspeaker
• ADAM Audio D3V secondary loudspeaker
• Two detachable 15-degree monitor feet
• Six adhesive isolation pads
• 2-metre speaker connection cable
• USB-C to USB-C cable
• USB-C to USB-A adaptor
• External power supply
• Mains power cable
• Quick-start guide



Technical Specifications

System

Specification	Details
System Type	Fully active two-way desktop monitoring system
Configuration	Primary and secondary stereo monitor pair
Cabinet Design	Dual passive radiator
Cabinet Material	PC-ABS
Display	Front-panel multicolour LED
Internal Sample Rate	48 kHz
Analogue Conversion	24-bit through TRS inputs
USB Audio Bit Depth	16-bit
Crossover Frequency	4 kHz

Drivers

Specification	Details
Woofer Size	3.5 inches per monitor
Woofer Material	Single-piece aluminium
Woofer Voice Coil	1 inch / 25 mm
Tweeter Type	D-ART folded-ribbon tweeter
Tweeter Equivalent Diameter	1.9 inches / 48 mm
Tweeter Dispersion	120° horizontal and 120° vertical
Passive Radiators	Two 3.5-inch passive radiators per monitor

Amplification

Specification	Details
Amplifier Type	PWM
Woofer Peak Power	2 x 80 watts
Woofer RMS Power	2 x 70 watts
Tweeter Peak Power	2 x 40 watts
Tweeter RMS Power	2 x 30 watts
Total Peak Amplification	240 watts
Total RMS Amplification	200 watts

Acoustic Performance

Specification	Details
Frequency Response at -3 dB	48 Hz–22.6 kHz
Frequency Response at -6 dB	45 Hz–23.2 kHz
Maximum Peak SPL per Monitor	97 dB SPL at 1 metre
Maximum IEC-Weighted Peak SPL	98 dB SPL
Input Sensitivity	0 dBu produces 88 dB SPL at 1 metre with level set to 0 dB

Connections

Specification	Details
Analogue Inputs	Two ¼-inch TRS inputs
Analogue Input Impedance	47 kΩ
Maximum Analogue Input Level	+9 dBu
Digital Input	USB-C
USB Audio Standard	Class-compliant USB 1.1
Headphone Output	3.5 mm TRS stereo mini-jack
Headphone Output Impedance	32 ohms
Speaker Connection	Supplied four-conductor connection cable

Controls

Specification	Details
Main Level Control	Front-panel multifunction rotary knob
Level Range	-∞ dB to +6 dB
Input Selection	Analogue or USB-C
Additional Functions	Mute, standby, input selection, channel swap and firmware mode
Position Adjustment	0, -3 or -6 dB
Desk Adjustment	Three selectable settings
Room Acoustics Adjustment	0, -1.5 or -3 dB
Automatic Standby	Activates after approximately 20 minutes without an input signal

Dimensions and Weight

Specification	Details
Height Without Feet	200 mm
Height with Angled Feet	240 mm
Width	115 mm
Depth	150 mm
Total Weight Without Feet	3.58 kg

Mounting

Specification	Details
Desktop Positioning	Flat or tilted upwards by 15 degrees
Threaded Mounting Point	3/8-inch thread beneath each cabinet
Compatible Stands	Suitable 3/8-inch threaded microphone or speaker stands
5/8-inch Stand Compatibility	Requires a suitable thread adaptor

Power Requirements

The ADAM Audio D3V uses the supplied external power supply and accepts an AC input voltage of 100–240 V at 50/60 Hz.

Operating State	Power Consumption
Maximum	60 watts
Idle	5 watts
Sleep	0.3 watts

Only the primary monitor connects directly to the power supply. The secondary monitor receives its audio and power connection through the supplied linking cable.

ADAM Audio D3V Compared with Other Studio Monitors

Compared with Conventional Computer Speakers

The D3V is designed for accurate monitoring rather than heavily enhanced entertainment playback. It provides balanced inputs, room adaptation controls, professional driver technology and a more revealing stereo image than most conventional multimedia speakers.

Compared with Larger Studio Monitors

Larger monitors can generally reproduce deeper bass at higher listening levels, making them better suited to bigger rooms and bass-heavy professional production.

The D3V requires significantly less desk space and is optimised for close-range listening. Its passive radiator system provides impressive low-frequency extension for its size, making it a practical choice when larger cabinets would dominate the workspace.

Compared with Passive Speakers

The amplification is already built into the D3V system, so no separate amplifier is needed. This simplifies setup and ensures that the amplification has been matched specifically to the drivers.

Compared with the ADAM Audio T5V

The T5V uses a larger five-inch woofer and is better suited to users who need greater low-frequency output and higher sound levels in a conventional studio setup.

The D3V is considerably more compact and adds direct USB-C connectivity, front-mounted volume control and a headphone output, making it better suited to desktop production and everyday computer use.

Compared with Headphone-Only Monitoring

Headphones remain useful for detailed editing and working quietly, but monitors provide a more natural stereo image and allow the listener to judge how a mix interacts within a physical listening space.

The D3V’s integrated headphone output makes it easy to switch between both approaches.

Frequently Asked Questions

Are the ADAM Audio D3V monitors sold as a pair?

Yes. The D3V is a complete stereo monitoring system consisting of one primary active loudspeaker and one connected secondary loudspeaker.

Do I need an audio interface?

Not necessarily. The D3V can connect directly to a compatible computer, tablet or mobile device through USB-C.

An audio interface can still be used when recording microphones or instruments, or when balanced analogue monitor outputs are preferred.

Can I connect the D3V to a television?

This depends on the audio outputs provided by the television. A compatible USB audio connection or suitable analogue converter may be required because the D3V does not include HDMI, optical or Bluetooth connectivity.

Does the D3V include Bluetooth?

No. Audio is connected through USB-C or the balanced analogue TRS inputs. Wired connections avoid Bluetooth compression and latency, making them more suitable for monitoring, recording and video editing.

Can I connect an instrument directly?

An electronic instrument with a suitable line-level output can be connected to the analogue inputs. Guitars, basses and microphones normally require an audio interface, mixer, preamp or appropriate signal-processing device.

Are the monitors suitable for mixing?

Yes. The D3V is designed to provide detailed, balanced nearfield monitoring for home production, editing and mixing.

As with any compact monitor, users working extensively with very low bass frequencies may benefit from checking mixes through high-quality headphones, a larger monitoring system or a compatible subwoofer.

How should the D3V monitors be positioned?

Place the monitors at a similar distance from each other and from the listening position, forming an approximate equilateral triangle. The tweeters should be positioned close to ear height and directed towards the listener.

The supplied angled feet can be used when the monitors sit below ear level.

Can the volume control be placed on the right-hand side?

Yes. The channel-swap function allows the primary monitor to be positioned on either side of the desk without reversing the stereo image.

Can headphones remain connected while using the speakers?

Connecting headphones automatically mutes the speaker drivers. Remove the headphone plug to return audio playback to the monitors.

Do the monitors enter standby automatically?

Yes. The D3V can enter standby after approximately 20 minutes without an input signal. Automatic standby can also be disabled when required.

Are the D3V monitors suitable for wall mounting?

They include 3/8-inch threaded mounting points intended for compatible stands. Any alternative mounting solution must safely support the monitors and use the correct thread and load rating.

Can a subwoofer be added?

A subwoofer can be incorporated through a suitable audio interface, monitor controller or subwoofer with the necessary input and output connections. The D3V does not include a dedicated subwoofer output.

Fair Deal Music Verdict

★★★★★ 5/5

The ADAM Audio D3V is an outstanding compact monitoring system for creators who want genuine studio accuracy without filling their workspace with large speakers and additional equipment.

Its D-ART tweeters deliver the detailed, open high-frequency response associated with ADAM Audio, while the aluminium woofers and dual passive radiators produce surprisingly confident low-end performance for such small cabinets. Direct USB-C connectivity, balanced inputs, DSP room adjustment and a front-mounted headphone connection make the D3V exceptionally easy to integrate into a modern desktop setup.

For bedroom producers, songwriters, students, video editors and anyone upgrading from conventional computer speakers, the D3V offers an impressive combination of sound quality, flexibility and compact design.

Why Buy From Fair Deal Music?

Choosing Fair Deal Music means buying from a passionate team of musicians who genuinely understand the products we sell. Whether you're purchasing your first instrument, upgrading your current setup or searching for something special, we're here to help you make the right choice with friendly advice and expert support.

When you shop with Fair Deal Music, you can buy with confidence thanks to:

• Expert advice from knowledgeable musicians
• Carefully checked new, used, pre-owned and ex-display equipment
• Competitive prices on leading music brands
• Secure UK-wide delivery
• Flexible finance options available, subject to status
• Friendly support before and after your purchase
• A trusted independent UK music retailer with decades of experience

Trade In. Trade Up. Save More.

Thinking about upgrading? Your next piece of gear could cost less than you think.

We're always happy to consider part exchanges and trade-ins on a wide range of musical instruments and equipment. Whether you're looking to move on a guitar, amplifier, keyboard, drum kit, studio equipment or another piece of gear, our team can provide a straightforward, no-obligation valuation.

Simply get in touch with details and photographs of your equipment, and we'll help you explore your options. It's an easy way to unlock the value of your current gear and put it towards something new.
