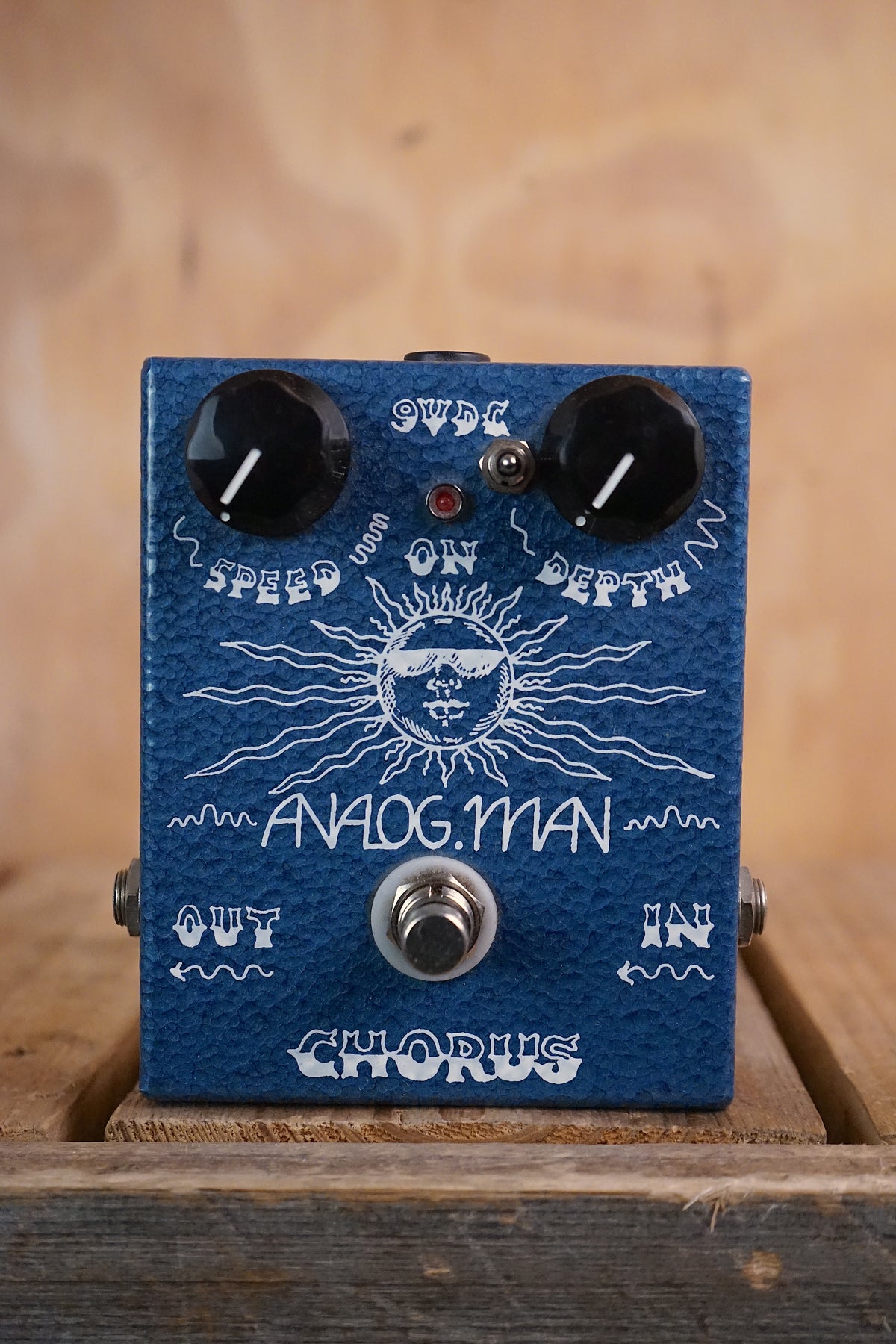

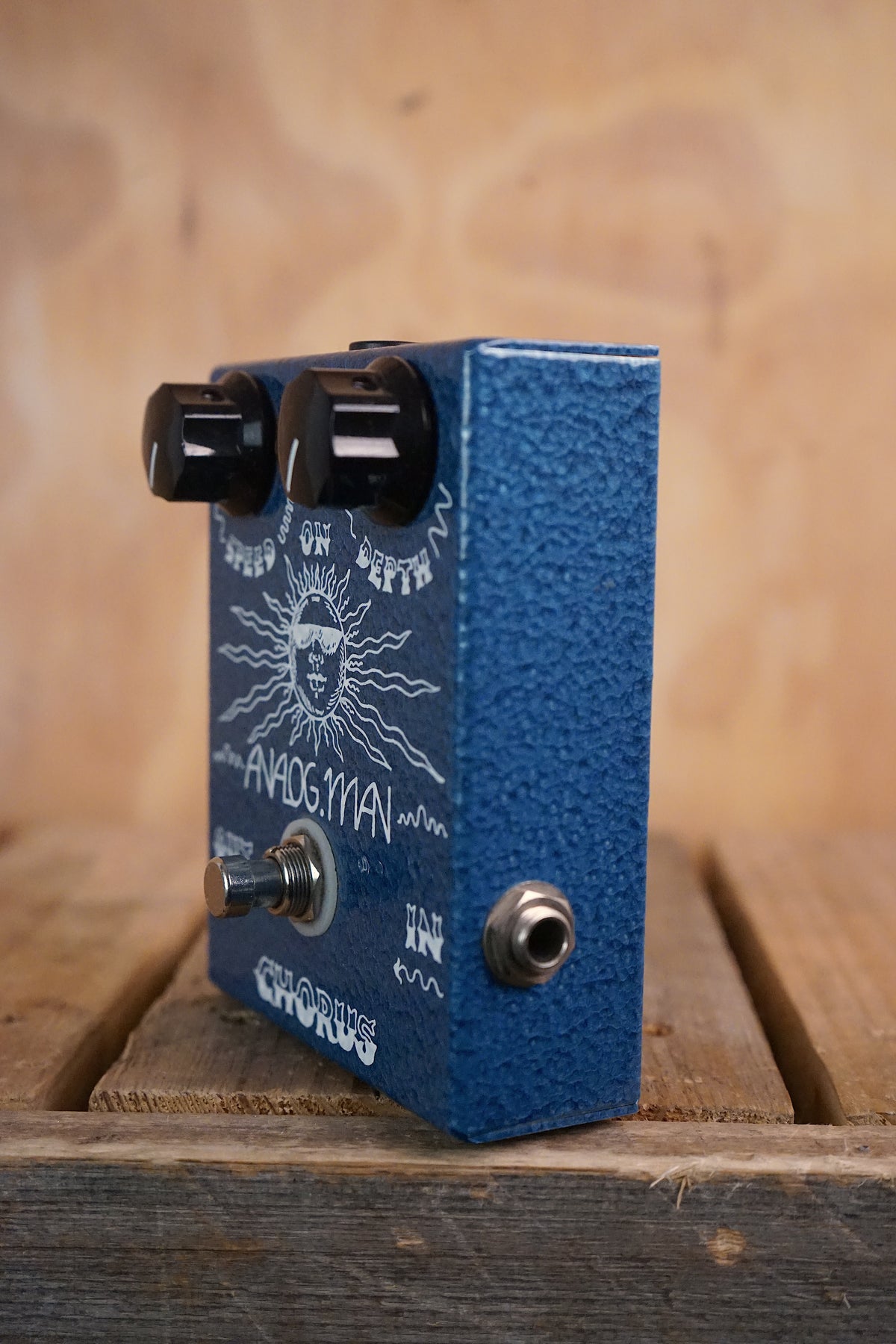

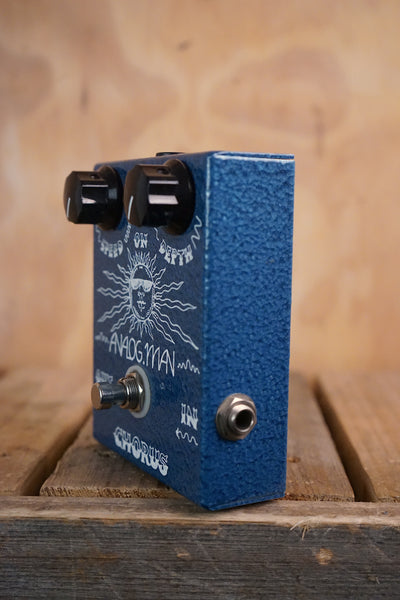

The Analog Man Chorus is a highly regarded analogue chorus pedal designed for players who want rich, organic modulation with the warmth and depth associated with classic bucket-brigade chorus circuits.

Built around an NOS Panasonic MN3007 bucket-brigade chip, the Analog Man Chorus delivers lush modulation without relying on digital processing. Its simple Speed and Depth controls make it easy to move from subtle widening and gentle shimmer through to deeper, more pronounced modulation.

This Pre-Owned example is in Very Good condition.

AT A GLANCE

Detail	Specification
Brand	Analog Man
Model	Chorus
Type	Analogue Chorus Pedal
Controls	Speed, Depth
Bypass	True Bypass
Condition	Very Good / Pre-Owned

PRE-OWNED CONDITION REPORT

This is a Pre-Owned Analog Man Chorus in Very Good condition.

The Very Good condition grade reflects a pedal that has been well looked after overall while showing the light signs of previous use expected from a Pre-Owned effects pedal.

KEY FEATURES

• 100% analogue chorus

• NOS Panasonic MN3007 bucket-brigade chip

• Classic time-delay based chorus circuit

• Speed control

• Depth control

• True bypass switching

• LED status indicator

• Low current draw

• 9V DC centre-negative power

• Can operate at higher voltages for increased headroom

• Rugged powder-coated enclosure

• Hand-assembled in the USA

• Very Good Pre-Owned condition

WHY YOU'LL LOVE IT

The Analog Man Chorus is all about rich, musical modulation without unnecessary complexity. The analogue circuit produces a smooth, dimensional chorus that works equally well for subtle clean enhancement and more obvious vintage-style movement.

Its two-control layout also makes it very easy to use. Speed controls how quickly the modulation moves, while Depth determines how pronounced the effect becomes, allowing a wide range of useful chorus sounds without menu diving or multiple modes.

DETAILED FEATURES & BENEFITS

NOS MN3007 Bucket-Brigade Circuit

At the heart of the Analog Man Chorus is an NOS Panasonic MN3007 bucket-brigade chip, giving the pedal the warm, organic modulation character associated with classic analogue chorus designs.

Speed Control

The Speed control adjusts the rate of the modulation from slow, gentle movement through to much faster rotary-style sounds, making the pedal suitable for both subtle enhancement and more dramatic effects.

Depth Control

The Depth control determines how strongly the delay time is modulated. Lower settings add width and movement without dominating the dry signal, while higher settings create deeper and more obvious chorus textures.

True Bypass

The pedal uses true bypass switching, allowing the guitar signal to pass through without the chorus circuit affecting the tone when the pedal is switched off.

Low Current Draw

The all-analogue design has a very low current requirement compared with many digital pedals, making it especially easy to integrate into a larger pedalboard power setup.

Higher-Voltage Operation

The mono Analog Man Chorus can operate above standard 9V power, with higher voltage providing additional headroom. This can be useful for players using stronger pickup outputs or looking for greater dynamic range.

Hand-Assembled Construction

Analog Man pedals are hand-assembled in the USA using high-quality components and robust circuit boards, contributing to the brand's strong reputation among boutique pedal users.

WHO IS IT FOR?

The Analog Man Chorus is particularly well suited to players who prefer analogue modulation, vintage-style tones and simple hands-on controls.

It works especially well for clean guitar, indie, alternative, classic rock, funk, pop and ambient styles, but can also sound excellent before or after drive pedals depending on the desired effect.

PLAYING STYLES & APPLICATIONS

The pedal works particularly well for clean arpeggios, rhythm guitar, funk, indie, alternative, ambient textures, classic rock and 1980s-inspired modulation sounds.

At subtle settings it can add width and movement without sounding obviously effected, while deeper settings produce more pronounced swirling and shimmering textures.

HOW IT COMPARES

Analog Man Chorus vs Digital Chorus

Digital chorus pedals often provide more modes and deeper programmability, while the Analog Man Chorus focuses on a simpler all-analogue signal path with classic bucket-brigade character.

Analog Man Chorus vs Basic Analogue Chorus

Many simple analogue chorus pedals use similar general principles, but the Analog Man Chorus adds boutique construction, the NOS MN3007 chip and carefully refined circuitry aimed at preserving clarity and dynamic range.

Analog Man Chorus vs Bi-Chorus

The standard Analog Man Chorus uses one set of Speed and Depth controls, while the Bi-Chorus provides two independently adjustable Speed and Depth settings that can be switched between.

PRODUCT SPECIFICATIONS

Specification	Details
Product Type	Analogue Chorus Effects Pedal
Brand	Analog Man
Model	Chorus
Circuit Type	Analogue Bucket Brigade
BBD Chip	NOS Panasonic MN3007
Controls	Speed, Depth
Bypass	True Bypass
Status Indicator	LED
Input	1x 1/4"
Output	1x 1/4"
Power	9V DC Centre Negative
Maximum Voltage	Up to 18V
Recommended Higher Voltage	Approx. 15V
Current Draw	Under 10mA
Battery Operation	Yes
Country of Assembly	USA
Condition	Very Good / Pre-Owned

POWER REQUIREMENTS

The Analog Man Chorus can be powered from a 9V DC centre-negative Boss-style power supply or a 9V battery.

The mono version can also operate at higher voltages up to 18V, with around 15V recommended by Analog Man for increased headroom.

FAIR DEAL MUSIC EXPERT VERDICT ★★★★★

Best suited for: Players looking for a premium analogue chorus with simple controls, vintage-style modulation and boutique build quality.

Customers usually upgrade from: Entry-level chorus pedals, multi-effects units and digital modulation pedals.

Most commonly paired with: Clean valve amps, overdrive pedals, delay and reverb effects, and both single-coil and humbucker-equipped guitars.

Our tip: Start with the Depth around the middle and the Speed low, then increase the Speed gradually. The Analog Man Chorus sounds especially good when used subtly to add width rather than as an obviously heavy effect.

Showroom feedback: The Analog Man Chorus is a strong choice for players who want classic analogue modulation without excessive controls or digital complexity.

WHY BUY PRE-OWNED FROM FAIR DEAL MUSIC?

Buying a Pre-Owned Analog Man Chorus can be a great way to access a boutique analogue effects pedal at a more attractive price.

This example is in Very Good condition, making it a strong option for players looking for a quality working pedal rather than a display-only piece.

Fair Deal Music has decades of experience buying, selling and part-exchanging effects pedals, guitars, amplifiers and other musical equipment.

WHY BUY FROM FAIR DEAL MUSIC?

When you buy from Fair Deal Music, you're choosing one of the UK's most established, independent family run music retailers since 1987.

Fair Deal Music combines a large Birmingham showroom with nationwide ecommerce and knowledgeable musician-led advice, helping customers choose equipment that genuinely suits their playing style and requirements.

Customers benefit from:

• Family-run independent retailer established in 1987

• Birmingham's largest independent music store

• 6,000+ Trustpilot reviews

• Knowledgeable musician-led advice

• Extensive experience with new and Pre-Owned effects pedals

• Large Birmingham showroom

• Secure online ordering

• Fast UK delivery

• Friendly customer support

• Part-exchange and trade-in service

Trade In. Trade Up. Save More.

Your current pedal, amplifier, guitar or other musical equipment could help towards the cost of this Analog Man Chorus.

Fair Deal Music buys and part-exchanges effects, guitars, basses, amplifiers, keyboards and a wide range of other musical equipment.

Contact our team for a no-obligation valuation.

PART EXCHANGE / TRADE-IN

If you already own effects pedals or other equipment that you are considering replacing, Fair Deal Music can assess them for part exchange against this Analog Man Chorus.

Trading in can remove the inconvenience of selling privately while allowing the value of your existing equipment to go directly towards your next purchase.

Trade In. Trade Up. Save More.

Contact Fair Deal Music for a no-obligation valuation.

FREQUENTLY ASKED QUESTIONS

Is this Analog Man Chorus used?

Yes. This is a Pre-Owned Analog Man Chorus in Very Good condition.

Is the Analog Man Chorus analogue?

Yes. It is a 100% analogue chorus pedal.

What chip does it use?

It uses an NOS Panasonic MN3007 bucket-brigade chip.

What controls does it have?

The standard version uses Speed and Depth controls.

What does the Speed control do?

It adjusts how quickly the chorus modulation moves.

What does the Depth control do?

It adjusts how strong and pronounced the modulation sounds.

Is it true bypass?

Yes. The Analog Man Chorus uses true bypass switching.

Does it have an LED?

Yes. An LED shows when the effect is active.

What power supply does it need?

It works with a 9V DC centre-negative Boss-style power supply.

Can it run at higher voltage?

Yes. The mono version can operate up to 18V, with higher voltage providing additional headroom.

Can it run from a battery?

Yes. It can also be powered from a 9V battery.

Does it use much current?

No. Current draw is under 10mA.

Is this the Bi-Chorus?

No. This listing is for the standard Analog Man Chorus with one set of Speed and Depth controls.

Is it good for clean sounds?

Yes. It works particularly well for clean rhythm, arpeggios and ambient textures.

Can it be used with distortion?

Yes. It can be used before or after drive pedals depending on the desired sound.

What condition is this pedal in?

This example is in Very Good condition.

Where is it made?

Analog Man Chorus pedals are hand-assembled in the USA.
