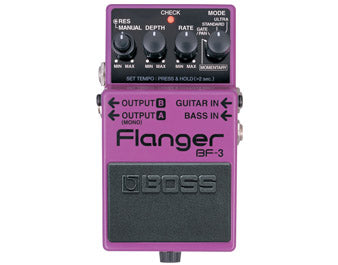

Boss BF-3 Flanger Pedal

Building on the 20-year legacy of the famous Boss BF-2, the BF-3 flanger pedal gives guitarists and bassists an updated version of the classic Boss flanger with the thickest stereo flanging sounds ever. Two new modes (Ultra and Gate/Pan) create stereo flanging with incredible depth--even Slicer-type effects and sounds that seem to "swirl" around the listener. An instant classic.

• Boss' best flanging effects in a compact pedal
• New Ultra and Gate/Pan modes for ultra-fat flanging and futuristic slicer-type sounds, respectively
• Momentary mode turns flanging on instantly
• Tap tempo adjustable via pedal
• Independent Guitar and Bass inputs and stereo outputs
• Boss 5-year warranty

Boss BF3 Specifications

Nominal Input Level
-20 dBu

Input Impedance
1 M ohms

Nominal Output Level
-20 dBu

Output Impedance
1 k ohms

Recommended Load Impedance
10 k ohms or greater

Delay Time
0.3 mS to 14.4 ms (GUITAR IN), 0.3 ms to 6.3 ms (BASS IN)

LFO Speed
100 mS to 18 S

Residual Noise
-95 dBu (IHF-A Typ.)

Controls
Pedal Switch, MANUAL Knob, RES (resonance) Knob, DEPTH Knob, RATE Knob, MODE Knob

Indicator
CHECK Indicator (Serves also as tempo and battery check indicator)

Connectors
GUITAR IN Jack, BASS IN Jack, OUTPUT A (MONO) Jack, OUTPUT B Jack, AC adaptor Jack (DC 9 V)

Power Supply
DC 9 V: Dry battery (9 V type), AC Adaptor (PSA-series: optional)

Current Draw
40 mA (DC 9 V)

Accessory
Dry battery (9 V type) S-006P/9 V (6F22/9 V)
Owner's Manual

Option
AC Adaptor: PSA-Series

Size and Weight ( incl. battery )

Width
73 mm
2-7/8 inches

Depth
129 mm
5-1/8 inches

Height
59 mm
2-3/8 inches

Weight
0.4 kg
