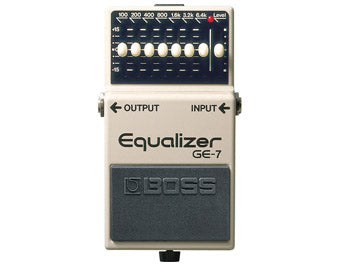

The GE-7 Equalizer pedal features seven EQ bands with boost/cut ranges of +/- 15dB each band, perfect for guitar tones, and frequency ranges of 100Hz to 6.4kHz. Particularly when linked after a distortion effect, this allows you to fully control your sound and get rid of undesired feedback.

• Compact EQ pedal with 7 bands of adjustable EQ sliders
• Allows for boost/cut of up to +/- 15dB per band
• Perfect as a "boost" pedal for solos, creating an alternate sound, or for eliminating feedback
• Boss 5-year warranty

Specifications:

General

• Nominal Input Level: -20 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 k ohm
• Recommended Load Impedance: 10 k ohms or Greater
• Bypass: Buffered bypass
• Controls: Level, Equalizer, Pedal Switch
• Indicator: CHECK Indicator
• Connectors: 1/4'’ Input Jack, 1/4'’ Output Jack, DC in Jack
• Power Supply: DC 9V

  • Dry Battery 6F22 (9 V) Type (Carbon)
  • Dry Battery 6LR61 (9 V) Type (Alkaline)
  • AC Adaptor (PSA Series: Sold Separately)
• Current Draw: 30 mA (DC 9 V)
• Expected Battery Life Under Continuous Use:
  • Carbon: Approx. 9 Hours
  • Alkaline: Approx. 19.5 Hours
• Accessories: Owner's Manual, Leaflets, Alkaline Dry Battery 006P/9V (9V, 6LR61)

Dimensions

• Width: 2.875’’ (73 mm)
• Depth: 5.125’’ (129 mm)
• Height: 2.375’’ (59 mm)
• Weight: 0.4kg (15 oz)
