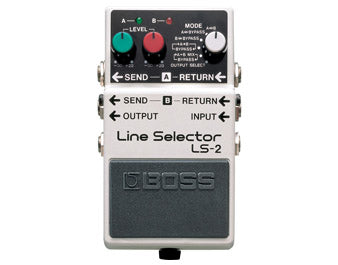

Boss LS-2 Line Selector Pedal

• Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
• Provides two line loops with Level control and six looping modes
• Can supply power to several BOSS compact pedals when used with an AC adaptor
• The ideal power supply and master switching unit for multiple effects setups
• Boss 5-year warranty

SIMPLIFIES YOUR SETUP

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.

Specifications:

General

• Nominal Input Level: -20 dBu
• Input Impedance: 1 Mohm
• Nominal Output Level: -20 dBu
• Output Impedance: 1 kohm
• Recommended Load Impedance: 10 kohms or Greater
• Bypass: Buffered
• Controls: Mode Selector Switch, Level Knobs A/B, Pedal Switch
• Indicator: Line Indicator A/B
• Connectors: 1/4'’ Input Jack, 1/4'’ Output Jack, 1/4'’ Send Jacks (A/B), 1/4'’ Return Jacks (A/B), DC in Jack
• Power Supply:
  • Carbon-Zinc Battery (9 V, 6F22) or Alkaline Battery (9 V, 6LR61)
  • AC Adaptor (PSA Series: Sold Separately)
• Current Draw: 25 mA
• Expected Battery Life Under Continuous Use:
  • Carbon: Approx. 14 Hours
  • Alkaline: Approx. 30.5 Hours
• Accessories: Owner's Manual, Leaflets, Carbon-Zinc Battery (9V, 6F22)

Dimensions

• Width: 2.875’’ (73 mm)
• Depth: 5.125’’ (129 mm)
• Height: 2.375’’ (59 mm)
• Weight: 0.41kg (15 oz)
