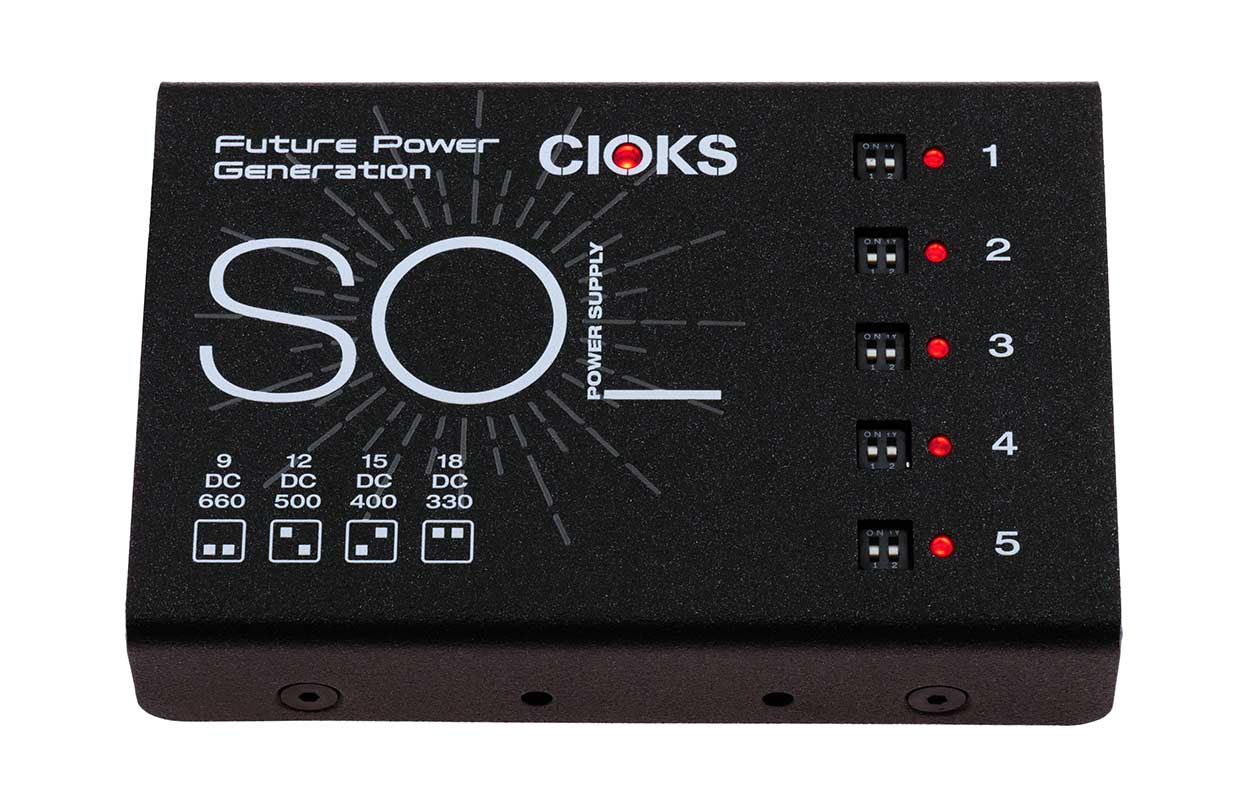

Cioks Sol Power Supply
The CIOKS SOL is a compact isolated pedalboard power supply designed for guitarists, bassists, pedalboard builders and gigging musicians who need clean, reliable power for a small to medium-sized effects setup. It combines five fully isolated high-current DC outputs, selectable voltages, ultra-low noise performance and a slim pedalboard-friendly design in one professional mains-powered unit.
Built for players who want serious power without the size of a larger supply, the SOL offers five isolated outputs, each switchable between 9V, 12V, 15V and 18V. At 9V, each output can deliver up to 660mA, making it suitable for many modern digital pedals, compact multi-effects, delays, reverbs, loopers and traditional analogue pedals.
It follows the same practical product-led approach as the CIOKS DC7 listing, focusing on clean power, low noise, simple setup and a professional pedalboard workflow.
Why Choose the CIOKS SOL?
The CIOKS SOL is designed to give smaller pedalboards the same kind of professional power quality normally associated with larger touring rigs. Poor pedal power can cause hum, buzz, instability and unreliable performance, especially when mixing analogue pedals with high-current digital effects.
Five isolated DC outputs help reduce unwanted noise and ground loop problems. This is particularly useful if your board includes gain pedals, modulation, delay, reverb, tuners, loopers or digital pedals that all need dependable power from one central source.
Each output is highly flexible. Every outlet can be set to 9V, 12V, 15V or 18V, giving you more control than a basic fixed-voltage power supply. This allows the SOL to support a wide range of pedal types, from standard 9V stompboxes to pedals that can benefit from higher-voltage operation.
The compact format is one of its biggest strengths. CIOKS describes the SOL as its smallest fully integrated mains-powered switch-mode power supply, giving players a no-wall-wart solution for smaller but demanding boards.
The slim 25.4mm profile makes it ideal for mounting underneath modern pedalboards. It includes mounting hardware for Pedaltrain and Temple Audio boards, and is also compatible with CIOKS GRIP v2.0 for drill-free mounting on compatible Pedaltrain boards.
With a total maximum output of 30W, the SOL provides impressive power for its size. This makes it a strong choice for players who do not need the seven outputs and expansion features of the DC7, but still want professional isolated power with enough current for demanding pedals.
Comparison Against Popular Alternatives
| Product | Best For | Key Difference |
|---|---|---|
| CIOKS SOL | Small to medium pedalboards needing professional isolated power | Five isolated outputs, selectable voltages, 30W total power and slim 1" profile |
| CIOKS DC7 | Larger professional boards and expandable setups | Offers seven isolated outputs, USB power and 24V expansion output, while SOL is more compact and streamlined |
| CIOKS 4 Expander | Adding extra outputs to a compatible CIOKS supply | Works as an expansion unit, while SOL is a standalone mains-powered supply |
| CIOKS Crux | Powering very high-current digital processors | Designed for demanding add-on power needs, while SOL is a compact main supply for smaller boards |
| Basic Daisy Chain Power Supply | Very small budget pedal setups | More affordable, but without the isolation, voltage flexibility and low-noise performance of the SOL |
The CIOKS SOL is especially strong if you want a compact, professional power supply for a smaller pedalboard without sacrificing isolation, current capacity or voltage flexibility.
Who Is It For?
The CIOKS SOL is ideal for guitarists and bassists building a small to medium-sized pedalboard for live performance, studio recording, worship, theatre work, rehearsals or home use. It is particularly useful for players using a mix of analogue pedals and modern digital effects.
Beginners building their first serious pedalboard will appreciate the clean, reliable power and simple layout. Intermediate and advanced players will benefit from the isolated outputs, selectable voltages, slim profile and high-current capability.
It is also a strong option for pedalboard builders who need a compact mains-powered supply that can fit under a board neatly and power a range of common pedal combinations.
Why Choose an Isolated Pedalboard Power Supply?
An isolated pedalboard power supply is one of the most useful upgrades you can make to a pedalboard. While basic daisy chains can work for simple setups, they can introduce noise and reliability issues as more pedals are added.
The CIOKS SOL gives each output its own isolated supply, helping reduce hum, interference and power-related problems. This is especially important when mixing overdrive pedals, modulation pedals, digital delays, reverbs and loopers on the same board.
For live players, clean isolated power means more confidence on stage. For recording players, it helps keep the signal path quieter. For pedalboard builders, it gives a reliable foundation that can support a professional setup without taking up much space.
Story & Context
CIOKS is a Danish company that has specialised in pedal power supplies since 1991, building a strong reputation with guitarists, bassists and professional pedalboard builders. The SOL is part of CIOKS’ Future Power Generation range and provides five isolated high-current outlets for effects pedals.
The SOL is designed as a compact alternative to larger professional supplies such as the DC7. It keeps the same core idea of flexible, high-current isolated power, but packages it into a smaller, no-frills format for players who want maximum performance from a smaller pedalboard.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | CIOKS SOL |
| Product Type | Compact isolated pedalboard power supply |
| Outputs | 5 isolated DC outlets |
| Output Voltage Options | 9V, 12V, 15V or 18V selectable per outlet |
| Output Current at 9V | 660mA per outlet |
| Output Current at 12V | 500mA per outlet |
| Output Current at 15V | 400mA per outlet |
| Output Current at 18V | 330mA per outlet |
| Power Per Outlet | 6W |
| Total Power Output | Up to 30W |
| Noise Performance | Ultra-low noise with multistage filtering |
| Power Type | Mains-powered switch-mode supply |
| Mains Input | 100–240V AC universal input |
| Profile | Approx. 25.4mm / 1" |
| Dimensions | Approx. 130mm x 88mm x 25.4mm |
| Weight | Approx. 410g |
| Mounting | Mounting hardware included for Pedaltrain and Temple Audio boards |
| GRIP Compatibility | Compatible with CIOKS GRIP v2.0 for drill-free Pedaltrain mounting |

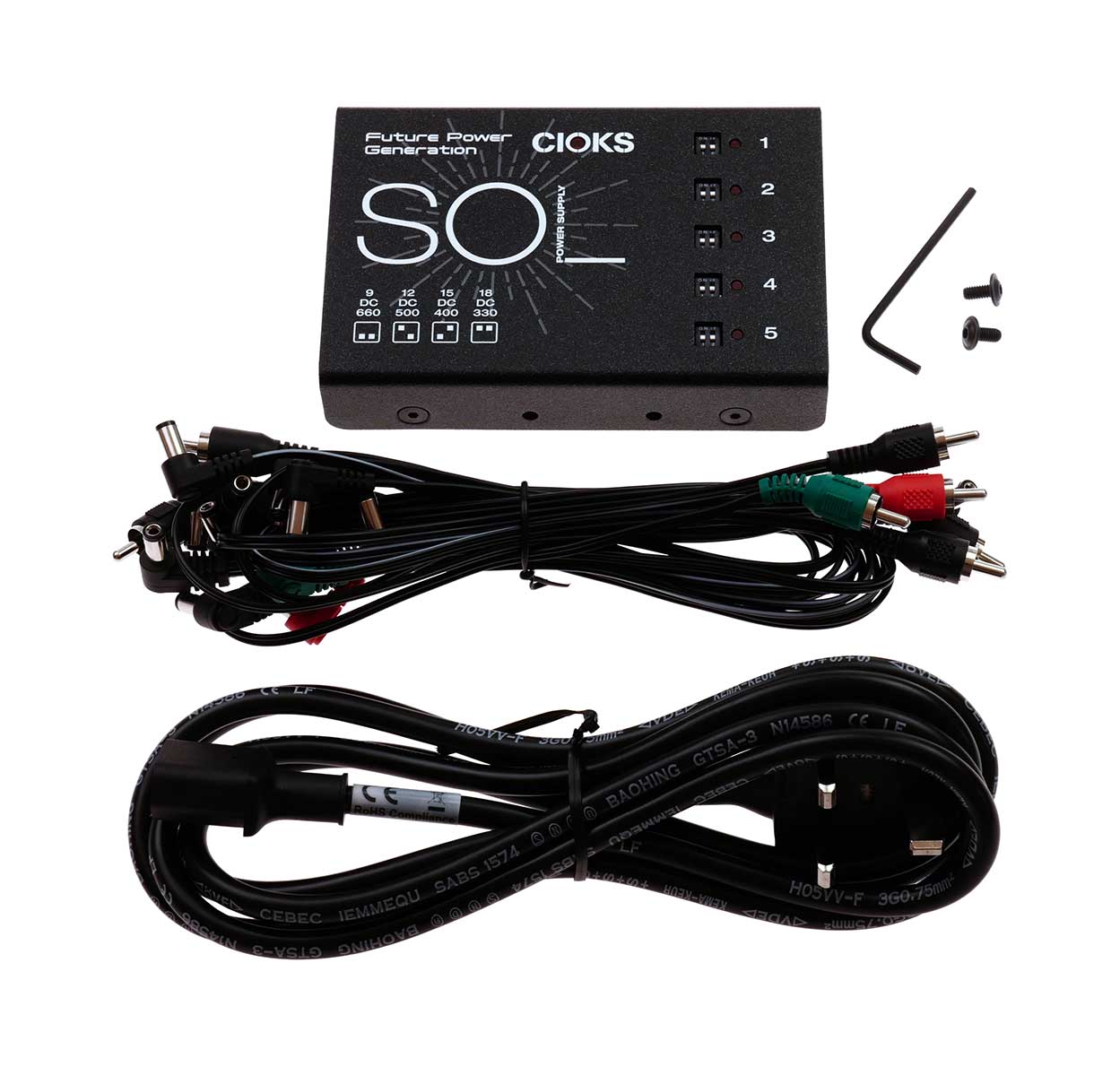

| Included Cables | 9 CIOKS Flex cables included |
| Warranty | 5-year worldwide warranty |
| Suitable Uses | Small to medium pedalboards, live rigs, studio boards and high-current pedal setups |
Power Requirements
The CIOKS SOL is a mains-powered pedalboard power supply with universal 100–240V AC input, making it suitable for professional use in different regions with the correct mains cable. It provides isolated DC power to pedals using CIOKS Flex cables.
Before connecting any pedal, always check the pedal’s voltage, polarity and current requirement. Using the wrong voltage or polarity can damage pedals, so each SOL output should be set carefully before use.
Pairs Perfectly With
Overdrive pedals
Distortion pedals
Fuzz pedals
Delay pedals
Reverb pedals
Modulation pedals
Loopers
Tuners
Compact multi-effects
Digital pedals
Wah pedals
Pedaltrain pedalboards
Temple Audio pedalboards
CIOKS Flex cables
Patch cables
Small to medium touring boards
Studio pedalboards
Looking for advice on powering your pedalboard properly? Our experienced team of musicians can help you choose the right power supply, cables and accessories for your pedal setup.
Why Buy From Fair Deal Music?
Fair Deal Music has been helping musicians find the right gear since 1987. As Birmingham’s largest independent music store, we offer friendly, honest advice from knowledgeable staff who understand the needs of real players, guitarists, bassists and pedalboard users.
We are a family-run retailer with 6,000+ Excellent 4.9-star Trustpilot reviews, fast UK delivery, secure online ordering and a large Birmingham showroom where you can speak to experienced musicians in person. Our team can help you choose the right power supply, check compatibility with your pedals and make sure your board is powered safely and reliably.
Frequently Asked Questions
Is the CIOKS SOL fully isolated?
Yes. The CIOKS SOL has five isolated DC outputs, helping reduce noise, hum and power-related interference on pedalboards.
How many pedals can the CIOKS SOL power?
It has five isolated outputs, but it can power more than five pedals when using suitable split or daisy-chain Flex cables, provided the total current draw and compatibility are correct.
What voltages does the CIOKS SOL support?
Each output can be set to 9V, 12V, 15V or 18V.
Can the CIOKS SOL power high-current digital pedals?
Yes. Each output can deliver up to 660mA at 9V, making it suitable for many modern high-current digital pedals. Always check your pedal’s exact current requirement before connecting.
What is the difference between the CIOKS SOL and CIOKS DC7?
The SOL has five isolated outputs and is designed as a compact standalone power supply for small to medium pedalboards. The DC7 has seven isolated outputs, plus USB power and 24V expansion support, making it better suited to larger or expandable boards.
Does the CIOKS SOL have USB power?
No. Unlike the CIOKS DC7, the SOL does not include a USB output. It focuses on five high-current isolated pedal outputs in a compact format.
Can the CIOKS SOL be expanded?
The SOL is primarily designed as a standalone compact supply. For an expandable CIOKS setup, the DC7 is usually the better choice because it includes a 24V auxiliary output for compatible CIOKS expanders.
Is the CIOKS SOL suitable for Pedaltrain boards?
Yes. The SOL includes mounting hardware for Pedaltrain-style boards and is compatible with CIOKS GRIP v2.0 for drill-free mounting on compatible Pedaltrain boards.
Is the CIOKS SOL good for gigging?
Yes. Its isolated outputs, compact metal enclosure, universal mains input and high-current performance make it a strong choice for gigging pedalboards.
Should I check pedal polarity before using the CIOKS SOL?
Yes. Always check each pedal’s voltage, polarity and current requirement before connecting it to any power supply. This helps prevent damage and ensures reliable operation.
