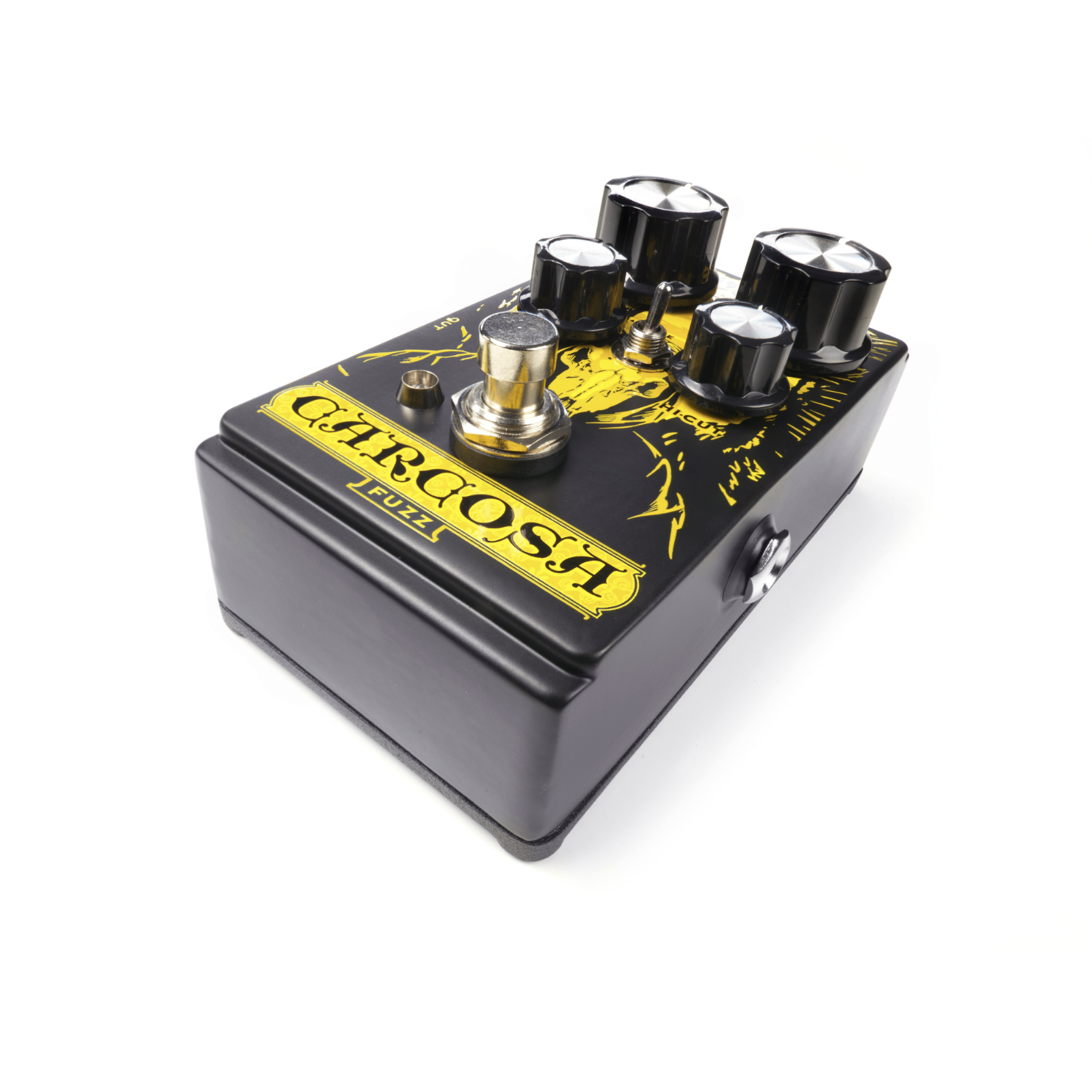

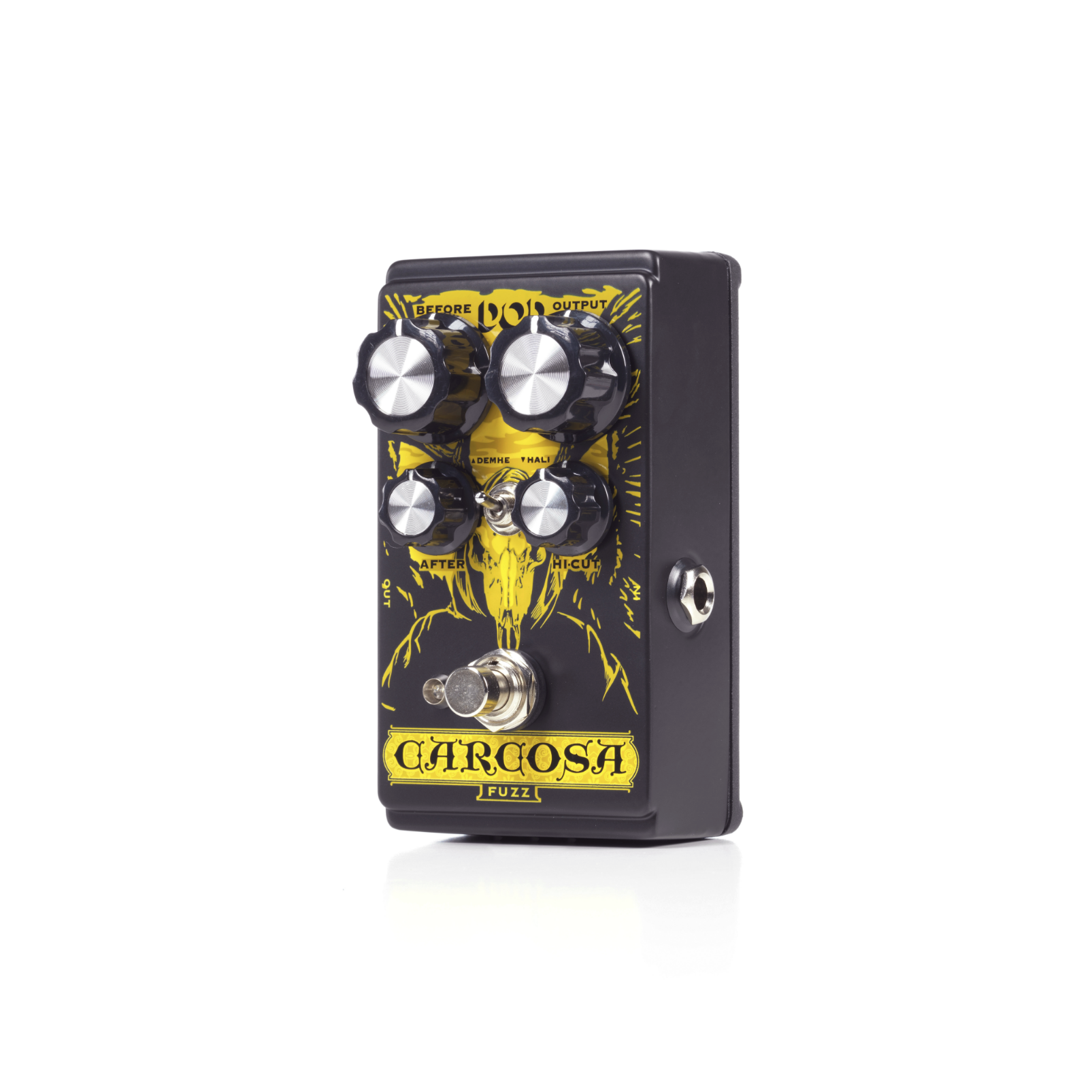

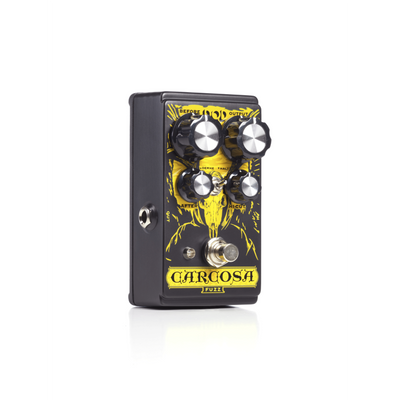

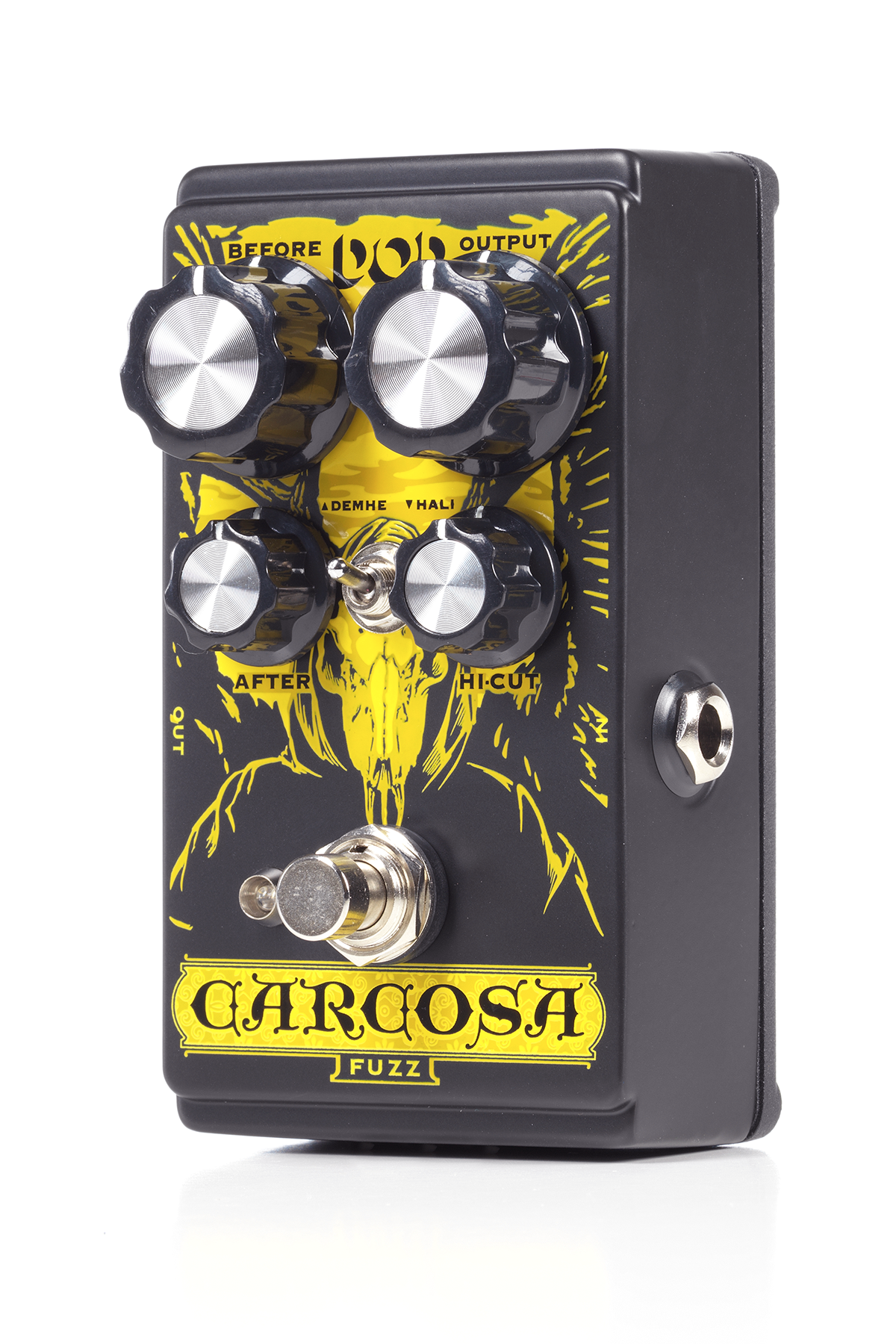

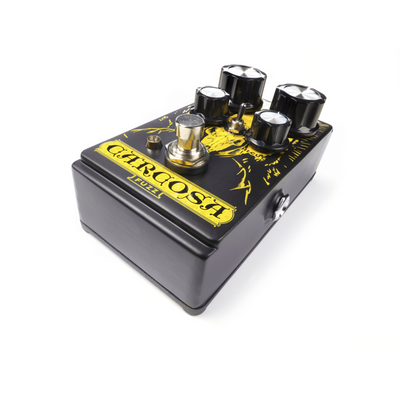

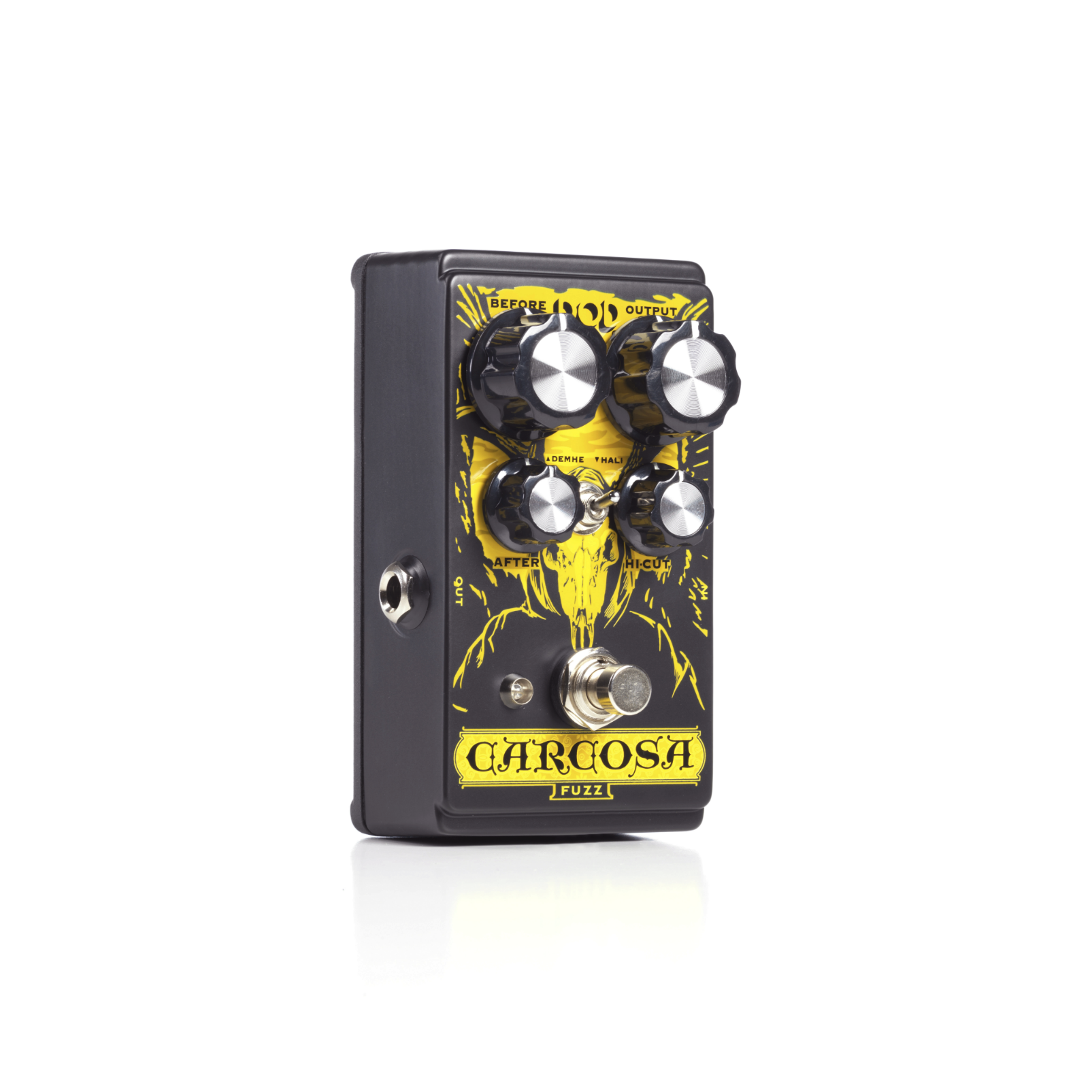

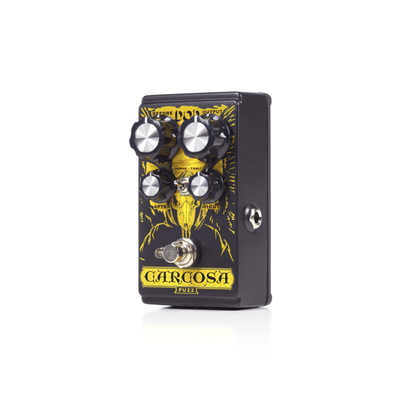

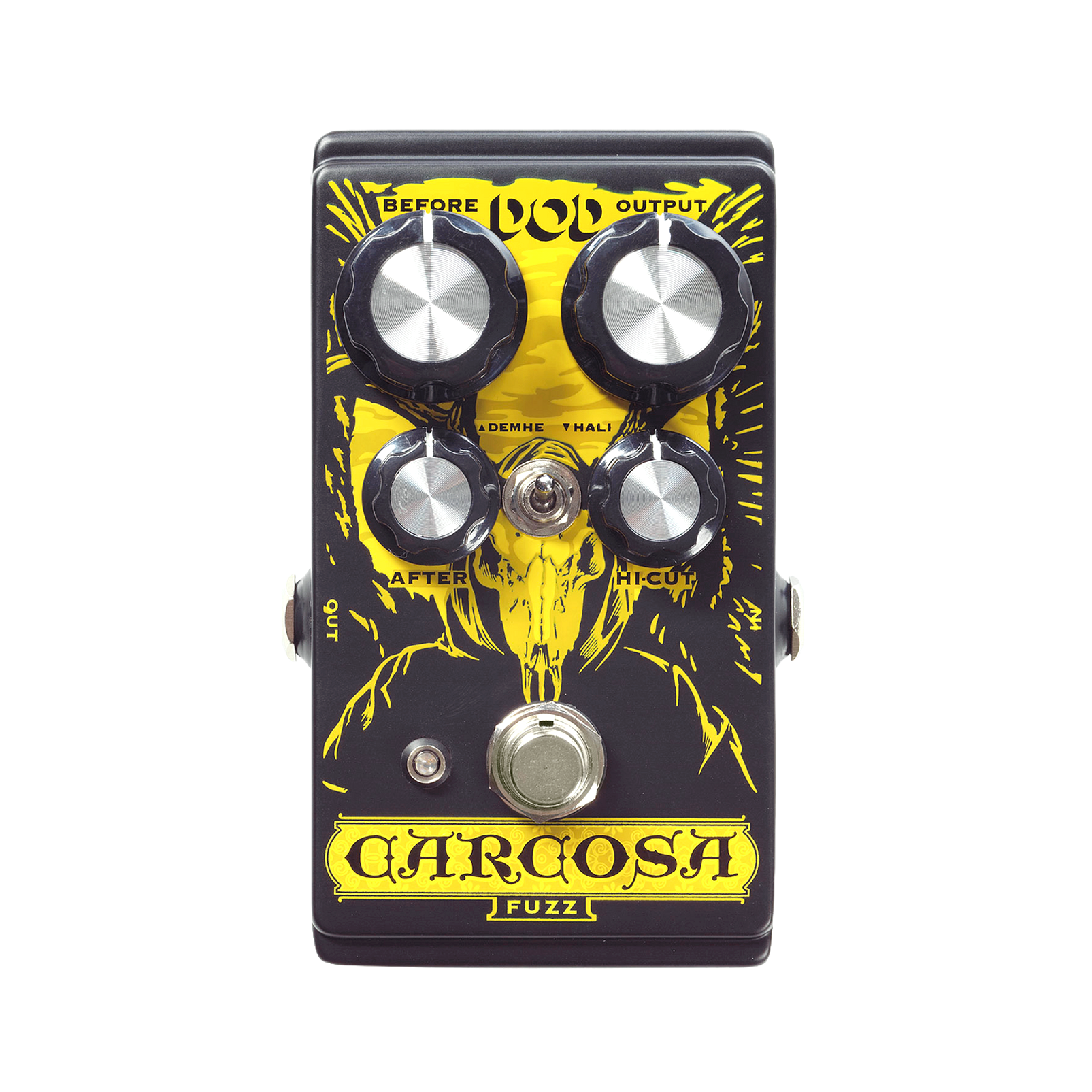

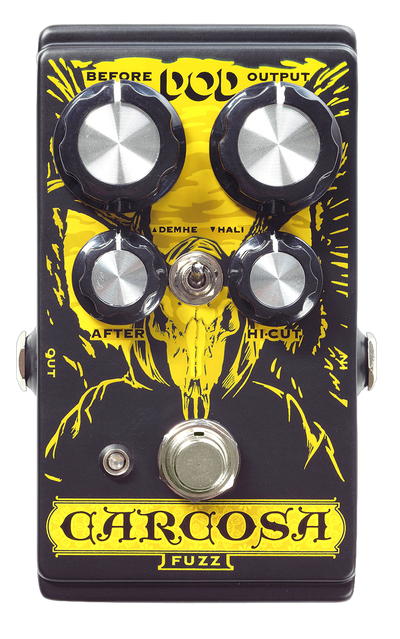

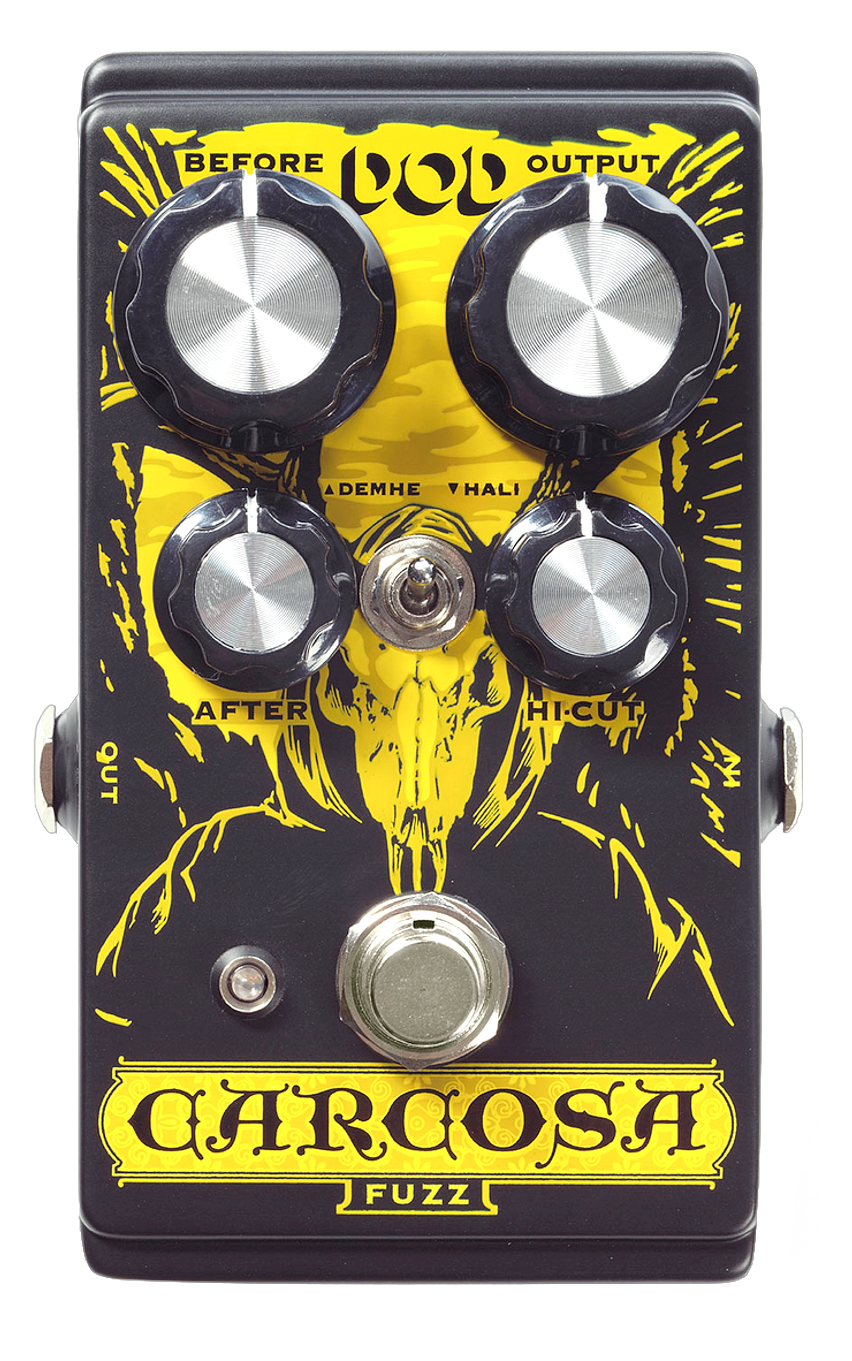

DOD Carcosa Analog Fuzz Pedal

The DOD Carcosa Fuzz is an exceptionally versatile analogue silicon fuzz pedal capable of moving from gritty vintage-style drive and thick sustaining fuzz to heavily biased, gated and sputtering textures.

Its interactive Before and After controls give you much more flexibility than a conventional two-knob fuzz. Before adjusts the amount of signal driving the circuit, while After changes the transistor bias, allowing the Carcosa to move from smooth and responsive to compressed, broken and synth-like.

Add DEMHE and HALI voicings, a Hi-Cut control, huge output and true bypass, and the Carcosa becomes a powerful choice for guitar or bass across rock, garage, psychedelic, doom, stoner, alternative and experimental music.

At A Glance

Feature	Details
Brand	DOD
Model	Carcosa Fuzz
Product Type	Analog Silicon Fuzz Pedal
Condition	New

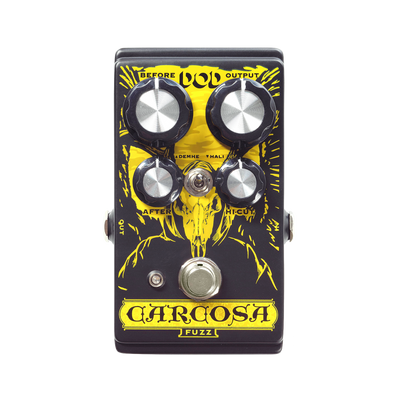

Controls	Before, After, Output, Hi-Cut
Voicings	DEMHE / HALI
Before	Gain / Input Drive
After	Bias Control
Hi-Cut	High-Frequency Roll-Off
Bypass	True Bypass
Input Impedance	500kΩ
Output Impedance	1kΩ
Current Draw	4mA
Power	9V DC / 9V Battery
Best For	Garage, psychedelic, doom, stoner, alternative and experimental fuzz

What Makes The DOD Carcosa Fuzz Special?

The Carcosa is designed to cover a much wider range than a traditional vintage fuzz.

At conservative settings it can deliver articulate, relatively controlled fuzz with enough midrange and treble presence to remain clear in a band mix. Start pushing the bias and gain controls harder and it moves into gated, splattering and deliberately unstable sounds.

This makes the Carcosa equally useful for players chasing classic fuzz tones and those looking for more extreme textures.

Before Control

The Before control adjusts how much signal is fed into the fuzz circuit.

Lower settings provide cleaner attack and lighter fuzz textures.

Increase Before for:

• More gain
• Greater sustain
• Stronger compression
• Heavier fuzz
• Increased harmonic saturation

Its interaction with the After control is central to the Carcosa's wide tonal range.

After Bias Control

The After control adjusts the bias of the fuzz circuit.

This changes the feel and behaviour of the pedal as much as the amount of gain.

At more conventional settings, the Carcosa remains full and responsive.

Push After further and the sound becomes increasingly:

• Gated
• Sputtering
• Compressed
• Nasal
• Broken
• Synth-like
• Unpredictable

Extreme settings are particularly useful for experimental, noise and heavily textured guitar parts.

DEMHE & HALI Voicings

A two-position switch gives you two different low-frequency responses.

DEMHE

DEMHE adds more bass and low-mid emphasis.

It works particularly well into cleaner amplifiers and for players who want a fuller, heavier fuzz sound.

This voicing is also useful for bass guitar or rigs where retaining low-frequency weight is important.

HALI

HALI reduces some of the low-frequency content for a tighter response.

It works especially well with:

• Overdriven amplifiers
• Dirty channels
• Dense mixes
• Higher-gain rigs
• Situations where tighter bass response is required

Hi-Cut Control

The Hi-Cut control lets you reduce the amount of high-frequency content in the fuzz.

This is particularly useful because changing the bias with the After control also changes the overall tonal character.

Use Hi-Cut to:

• Smooth bright pickups
• Tame aggressive treble
• Darken extreme fuzz settings
• Match the pedal to different amplifiers
• Fine-tune high-frequency attack at stage volume

Output Control

The Output control sets the overall signal level.

The Carcosa has plenty of available output, making it useful not only as a fuzz but also for pushing an amplifier or another gain stage harder.

This gives you scope to use it for:

• Unity-level fuzz
• Solo boosts
• Driving valve amplifiers
• Gain stacking
• High-output fuzz textures

Who Is It For?

The DOD Carcosa is particularly well suited to:

• Garage rock
• Psychedelic rock
• Alternative
• Indie
• Doom
• Stoner rock
• Sludge
• Noise rock
• Experimental music
• Classic rock
• Bass guitar
• Players who enjoy gated fuzz
• Musicians wanting both vintage and extreme fuzz tones

Carcosa With Guitar

With electric guitar, the Carcosa can move from lightly fuzzy overdrive through classic saturated fuzz and into extreme gated sounds.

Its pronounced mids and treble help notes and chords remain articulate, making it particularly useful in dense guitar-heavy mixes.

The guitar's volume control can also be used to reduce the intensity of the effect for more responsive lower-gain sounds.

Carcosa With Bass

The Carcosa also works well with bass guitar.

DEMHE mode provides additional low-end and low-mid weight, helping retain the body of the instrument while adding fuzz.

The Before and After controls allow you to move from relatively subtle fuzzy bass through to heavily splattered and gated textures.

Why Choose A Bias-Controlled Fuzz?

A conventional fuzz usually gives you a fixed circuit response with controls for gain and output.

A bias control changes the operating behaviour of the fuzz transistor itself.

This lets the Carcosa create sounds that a conventional Fuzz control alone cannot achieve, particularly the gated, sputtering and voltage-starved-style textures associated with deliberately misbiased fuzz circuits.

How It Compares

Carcosa vs Traditional Vintage Fuzz

Classic fuzz circuits often have relatively limited controls and one main tonal character.

The Carcosa offers much greater flexibility through its Before, After, Hi-Cut and dual-voicing controls.

Carcosa vs Conventional Gated Fuzz

A dedicated gated fuzz is often focused primarily on short sustain and abrupt note decay.

The Carcosa can create those sounds but also covers smoother, more traditional fuzz tones, making it considerably more versatile.

Carcosa Into Clean vs Dirty Amps

DEMHE works particularly well into cleaner amps where extra bass and low-mid weight can be useful.

HALI reduces bass and can help keep the fuzz tighter when feeding an already overdriven amplifier.

What's Included?

• DOD Carcosa Analog Fuzz Pedal

No power supply included.

Technical Specifications

Specification	Details
Brand	DOD
Model	Carcosa Fuzz
Product Type	Analog Fuzz Pedal
Circuit Type	Silicon Fuzz
Controls	Before, After, Output, Hi-Cut
Voicing Switch	DEMHE / HALI
Input	1/4" TS Unbalanced
Input Impedance	500kΩ
Output	1/4" TS Unbalanced
Output Impedance	1kΩ
Bypass	True Bypass
Current Draw	4mA
Battery Power	9V Alkaline Battery
External Power	Compatible 9V DC Supply
Condition	New

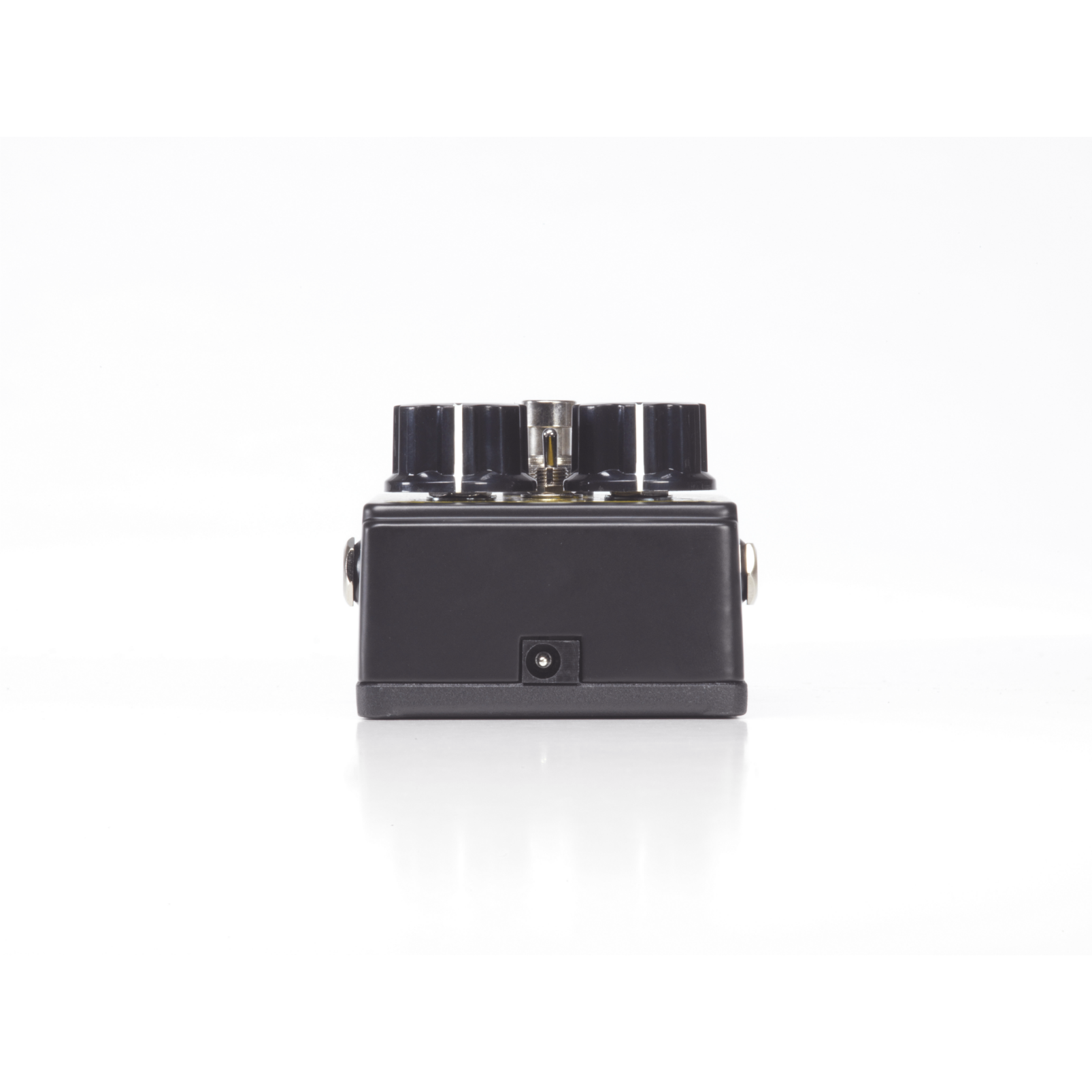

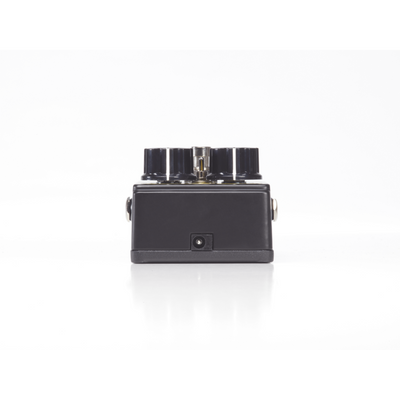

Power Requirements

The DOD Carcosa Fuzz can operate from a 9V alkaline battery or a compatible regulated 9V DC pedal power supply.

Current draw is approximately 4mA.

No power supply is included.

FAQs

What type of fuzz is the DOD Carcosa?

The Carcosa is an analogue silicon fuzz pedal with adjustable gain, bias and EQ.

What does the Before control do?

Before controls how much signal drives the fuzz circuit and therefore affects gain, attack and saturation.

What does the After control do?

After adjusts the fuzz bias, allowing the pedal to move from smoother conventional fuzz into gated, sputtering and more extreme sounds.

What is DEMHE mode?

DEMHE provides increased bass and low-mid content and works particularly well with cleaner amplifier settings.

What is HALI mode?

HALI reduces bass for a tighter response that works especially well with dirty or already overdriven amplifiers.

What does the Hi-Cut control do?

Hi-Cut reduces high-frequency content, helping you soften bright pickups or aggressive fuzz settings.

Can the Carcosa produce gated fuzz?

Yes. Higher and more extreme bias settings can create heavily gated, sputtering and synth-like fuzz sounds.

Can it produce conventional fuzz tones?

Yes. Less extreme Before and After settings provide more traditional, responsive fuzz sounds.

Does the Carcosa clean up with guitar volume?

Yes. Appropriate settings can respond well to changes in guitar volume, allowing you to reduce the amount of fuzz from the instrument.

Can I use the Carcosa with bass?

Yes. It works well with bass, particularly using DEMHE mode when additional low-end weight is desired.

Is the Carcosa good for doom and stoner rock?

Yes. Its heavy fuzz range, strong output and bias control make it well suited to doom, stoner, sludge and psychedelic styles.

Is it suitable for experimental music?

Yes. Extreme After settings are particularly useful for gated, sputtering and unconventional fuzz textures.

Where should I place the Carcosa in my pedal chain?

A good starting point is near the beginning of the signal chain before modulation, delay and reverb effects, although experimenting with placement can produce different results.

Does the DOD Carcosa have true bypass?

Yes. It uses true bypass switching.

Can it run from a battery?

Yes. It can operate from a standard 9V alkaline battery.

How much current does it draw?

Approximately 4mA.

Is a power supply included?

No. A compatible external power supply is not included.
