DOD Drag Analog Delay Guitar Pedal

The DOD Drag Analog Delay is a feature-packed BBD delay pedal built for players who want classic warm analogue repeats combined with much more experimental real-time control.

At its core is a fully analogue bucket-brigade delay engine with up to 750ms of delay time, covering everything from quick slapback and rhythmic echoes to long, drifting repeats and psychedelic self-oscillation.

Where the Drag really separates itself from a conventional analogue delay is its Friction system. Hold the footswitch and you can trigger dramatic SlideStop, Rubberneck and Evade effects that manipulate the delay time for tape-stop-style slowdowns, octave pitch bends and abrupt braking-and-accelerating textures.

Add modulation with four selectable waveform shapes, three intensity ranges, flexible bypass modes and optional FS3X footswitch control, and the Drag becomes an exceptionally creative delay for rock, ambient, psychedelic, experimental and alternative guitar.

At A Glance

Feature	Details
Brand	DOD
Model	Drag
Product Code	DOD-DRAG-V-00
Product Type	Analog Delay Pedal
Condition	New
Delay Engine	Fully Analog BBD
Maximum Standard Delay Time	750ms
Controls	Time, Feedback, Filter, Level, Drift, Friction
Modulation Waveforms	Sine, Reverse Saw, Square, Random
Modulation Ranges	Light, Medium, Heavy
Friction Effects	SlideStop, Rubberneck, Evade
Self-Oscillation	Yes
External Control	Optional DigiTech FS3X
Bypass Options	True Bypass / Buffered Tails / Buffered Tails + Dry Kill
Jack Layout	Top Mounted
Current Draw	Less Than 120mA Typical
Power	9V DC Centre Negative
Best For	Rock, ambient, psychedelic, experimental and creative delay effects

What Makes The DOD Drag Special?

The Drag combines the warmth and natural degradation of a traditional BBD analogue delay with performance effects normally associated with much more specialised delay processors.

You can use it as a conventional analogue delay for slapback, rhythmic echoes and atmospheric repeats, then hold the footswitch to manipulate the delay time in real time.

The Friction control determines how quickly these changes happen, allowing anything from smooth tape-style slowdowns to sudden, dramatic pitch dives and accelerations.

Fully Analog BBD Delay

The Drag uses a genuine bucket-brigade device delay engine.

BBD delay is known for repeats that gradually become darker and softer as they regenerate, producing a warmer and more organic response than pristine digital delay.

The Drag provides up to 750ms of standard delay time, giving you plenty of range for:

• Rockabilly slapback

• Short doubling

• Rhythmic delay

• Lead guitar echoes

• Ambient textures

• Psychedelic repeats

• Self-oscillating noise

Six Main Controls

Time

Adjusts the basic delay time.

Short settings create tight slapback and doubling effects, while longer settings produce spacious rhythmic and atmospheric echoes.

Feedback

Controls how many repeats are generated.

Lower settings give a small number of echoes, while higher settings create longer trails and eventually push the pedal into self-oscillation.

Filter

Adjusts the low-pass filtering applied to the delay repeats.

Turn it down for darker, warmer echoes or increase it for brighter and more defined repeats.

Level

Controls the volume of the delayed signal relative to your dry sound.

Drift

Controls the intensity and behaviour of the modulation applied to the delay.

Three modulation ranges—Light, Medium and Heavy—let you move from subtle analogue movement to much more pronounced pitch modulation.

Friction

Controls the onset and recovery speed of the Drag's real-time delay-warping effects.

Lower settings create slower transitions, while higher settings produce faster and more abrupt pitch movement.

Four Modulation Waveforms

The Drag gives you four different modulation shapes:

Sine

Smooth, flowing modulation suited to classic analogue chorus-like delay movement.

Reverse Saw

Creates a more directional sweeping effect with a distinctive rising-and-resetting character.

Square

Produces abrupt modulation changes for more obvious pitch movement.

Random

Introduces unpredictable variation for drifting, unstable and experimental textures.

Combined with the Light, Medium and Heavy Drift ranges, these waveforms give the Drag a broad modulation palette.

SlideStop

SlideStop is one of the Drag's new Friction effects.

Hold the footswitch and the delay time begins to slow dramatically, producing a sound similar to braking a tape machine or slowing a record.

Two variations are available:

• Shallow Slide

• Deep Slide

Release the footswitch and the delay accelerates back towards its original setting.

The Friction control determines how quickly the effect slows down and recovers.

Rubberneck

The Drag also inherits the famous Rubberneck concept from the larger DOD Rubberneck Analog Delay.

Rubberneck dynamically stretches or compresses the delay time to create dramatic pitch bending.

Available behaviour includes:

• Octave Up Bend

• Octave Down Bend

Hold the footswitch to trigger the bend, then release it to return to the original delay setting.

This is especially effective for transitions, psychedelic textures and live performance effects.

Evade

Evade introduces another style of delay-time manipulation.

Its two variations are:

• HopStop Slide

• Slide-n-Go

These settings create rapid braking, shifting and acceleration effects that push the analogue delay engine far beyond standard delay operation.

Combined with the Friction control, Evade can move from relatively controlled time manipulation to extreme pitch-warping effects.

Self-Oscillation

Turn the Feedback control high enough and the Drag enters the runaway feedback behaviour associated with classic analogue delays.

This can produce:

• Rising walls of repeats

• Drones

• Noise sweeps

• Pitch-shifting feedback

• Ambient transitions

• Experimental sound effects

Manipulating Friction, Time and Drift while the pedal is oscillating opens up particularly extreme sounds.

Flexible Bypass Modes

The Drag provides three bypass behaviours.

True Hardwired Bypass

The pedal is fully bypassed and the existing delay repeats stop immediately.

Buffered Bypass With Tails

The dry signal remains buffered and existing delay repeats continue naturally after bypassing the effect.

Buffered Bypass With Tails & Dry Kill

This mode adds Dry Kill operation alongside delay tails for more specialised routing and effect applications.

Optional FS3X Footswitch Control

A dedicated 3.5mm control input allows the Drag to connect to an optional DigiTech FS3X three-button footswitch.

This provides expanded hands-free access to the pedal's advanced functions, making the Drag even more practical for live performance.

The FS3X is sold separately.

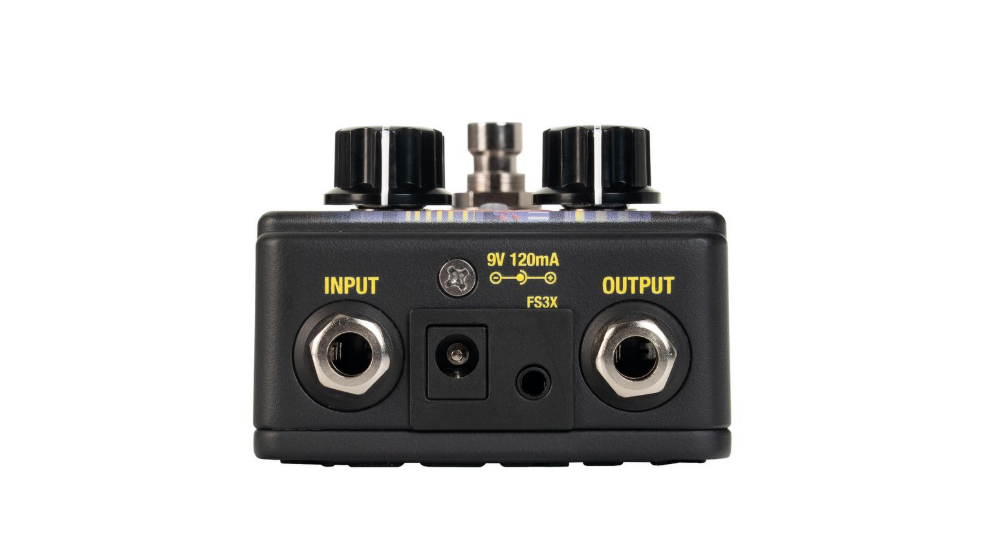

Top-Mounted Connections

The Drag uses a top-jack enclosure design, helping reduce the horizontal space required by patch cables.

This makes it easier to fit alongside other effects on a crowded pedalboard.

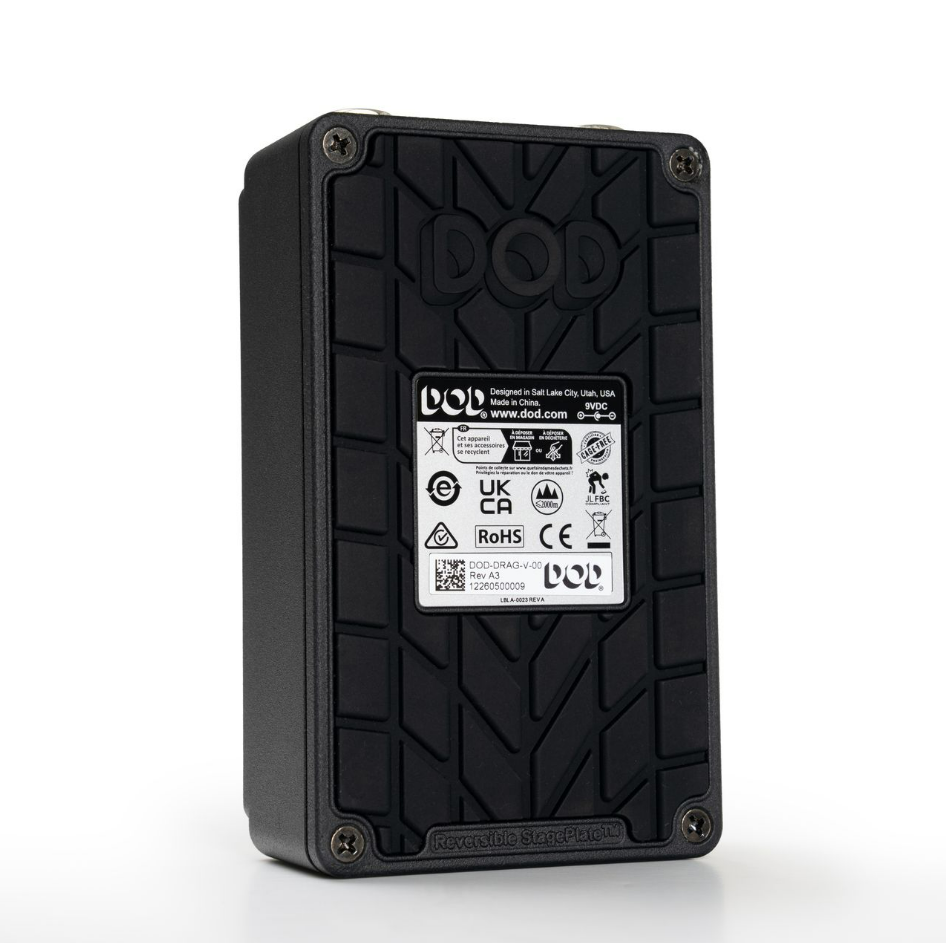

Reversible StagePlate™

DOD's reversible StagePlate™ base provides two mounting options.

One side has a rubber skid surface for stable floor use.

Remove the screws and reverse the plate to expose the hook-and-loop mounting surface for easier pedalboard installation.

Who Is It For?

The DOD Drag is ideal for:

• Rock

• Psychedelic guitar

• Ambient

• Shoegaze

• Post-rock

• Alternative

• Indie

• Experimental music

• Noise

• Sound design

• Lead guitar

• Analogue delay fans

• Players who enjoy self-oscillation

• Musicians wanting hands-on performance effects

Why Choose An Analog Delay?

Analogue BBD delays naturally darken the repeated signal as it regenerates.

Rather than producing perfectly identical echoes, each repeat becomes progressively softer and more coloured.

This helps the delay sit behind your dry guitar signal instead of competing with it.

The Drag combines this traditional analogue behaviour with extensive modulation and real-time time-warping effects, giving it considerably more creative range than a simple vintage-style delay.

How It Compares

DOD Drag vs Conventional Analog Delay

A conventional analogue delay generally gives you control over delay time, repeats and level.

The Drag adds extensive modulation, self-oscillation, flexible bypass modes and three different families of real-time Friction effects.

DOD Drag vs DOD Rubberneck

The larger DOD Rubberneck Analog Delay offers up to 1.5 seconds of delay, tap tempo, an effects loop and extensive dedicated controls.

The Drag takes the core analogue-delay and Rubbernecking concept in a smaller format while adding new SlideStop and Evade time-warping effects.

DOD Drag vs Digital Delay

A digital delay typically prioritises clean and accurate repeats.

The Drag is deliberately analogue, producing warmer BBD repeats that progressively change character as they regenerate.

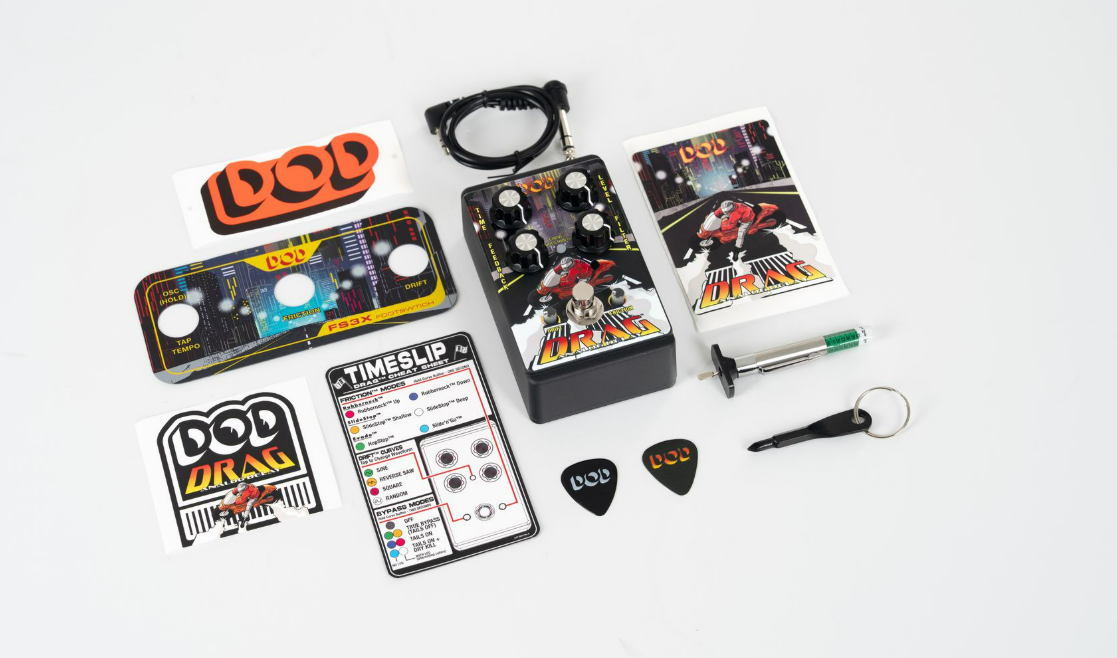

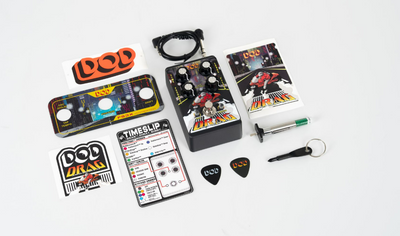

What's Included?

• DOD Drag Analog Delay Guitar Pedal

• Reversible StagePlate™

• Mechanic's Toolkit

• Product documentation

Optional DigiTech FS3X footswitch not included.

No power supply included.

Technical Specifications

Specification	Details
Brand	DOD
Model	Drag
SKU / Product Code	DOD-DRAG-V-00
Product Type	Time-Warping Analog Delay
Delay Technology	Analog BBD
Standard Delay Time	Up to 750ms
Controls	Time, Feedback, Filter, Level, Drift, Friction
Modulation Waveforms	Sine, Reverse Saw, Square, Random
Modulation Ranges	Light, Medium, Heavy
Friction Categories	SlideStop, Rubberneck, Evade
SlideStop Modes	Shallow Slide / Deep Slide
Rubberneck Modes	Octave Up / Octave Down
Evade Modes	HopStop Slide / Slide-n-Go
Input	1 x 1/4" Mono Instrument
Input Impedance	Greater Than 500kΩ
Output	1 x 1/4" Mono Instrument
Output Impedance	Less Than 1kΩ
External Footswitch Input	3.5mm
Compatible Footswitch	DigiTech FS3X, Optional
Chassis	Aluminium
Bypass Options	True Hardwired / Buffered Tails / Buffered Tails + Dry Kill
Dimensions	121 × 71 × 38mm
Height Including Footswitch	Approx. 53mm
Weight	0.67 lbs / 0.30kg
Current Draw	Less Than 120mA Typical
Power Requirement	9V DC Centre Negative
Condition	New

Power Requirements

The DOD Drag requires a well-regulated 9V DC centre-negative power supply using a standard 2.1mm barrel connector.

Typical current draw is less than 120mA.

No power supply is included.

FAQs

What type of delay is the DOD Drag?

The Drag is a fully analogue BBD delay pedal with modulation and real-time delay-time manipulation.

How much delay time does the DOD Drag have?

It provides up to approximately 750ms of standard delay time.

Is the DOD Drag a digital delay?

No. The delay engine is fully analogue and uses BBD technology.

What is Friction?

Friction is DOD's system for controlling how quickly the delay time changes when using the SlideStop, Rubberneck and Evade performance effects.

What is SlideStop?

SlideStop slows the delay dramatically when the footswitch is held, creating tape-stop and braking-style pitch effects.

What is Rubberneck?

Rubberneck manipulates the delay time to produce real-time octave-up or octave-down pitch bends.

What is Evade?

Evade provides additional abrupt stop-and-accelerate delay-time effects using HopStop Slide and Slide-n-Go settings.

Does the Drag have modulation?

Yes. It offers four modulation waveform shapes and three intensity ranges.

What modulation waveforms are available?

Sine, Reverse Saw, Square and Random.

Can the Drag self-oscillate?

Yes. Higher Feedback settings push the analogue delay circuit into runaway self-oscillation.

Does it have delay trails?

Yes. Buffered bypass modes are available that allow existing delay repeats to decay naturally after the effect is switched off.

Does it have true bypass?

Yes. A true hardwired bypass mode is available.

What is Dry Kill?

Dry Kill removes the unaffected dry signal, leaving only the processed delay signal.

Can I connect an external footswitch?

Yes. The optional DigiTech FS3X provides expanded control through the Drag's 3.5mm footswitch input.

Is the FS3X included?

No. The FS3X footswitch is sold separately.

Is the DOD Drag good for ambient and psychedelic guitar?

Yes. Its analogue repeats, modulation, self-oscillation and time-warping effects make it particularly well suited to ambient, psychedelic, shoegaze and experimental sounds.

Does it have top-mounted jacks?

Yes. The main audio and power connections use a space-efficient top-mounted design.

What power supply does it require?

It requires a regulated 9V DC centre-negative power supply capable of supplying at least 120mA.

Is a power supply included?

No. A compatible external power supply is not included.
