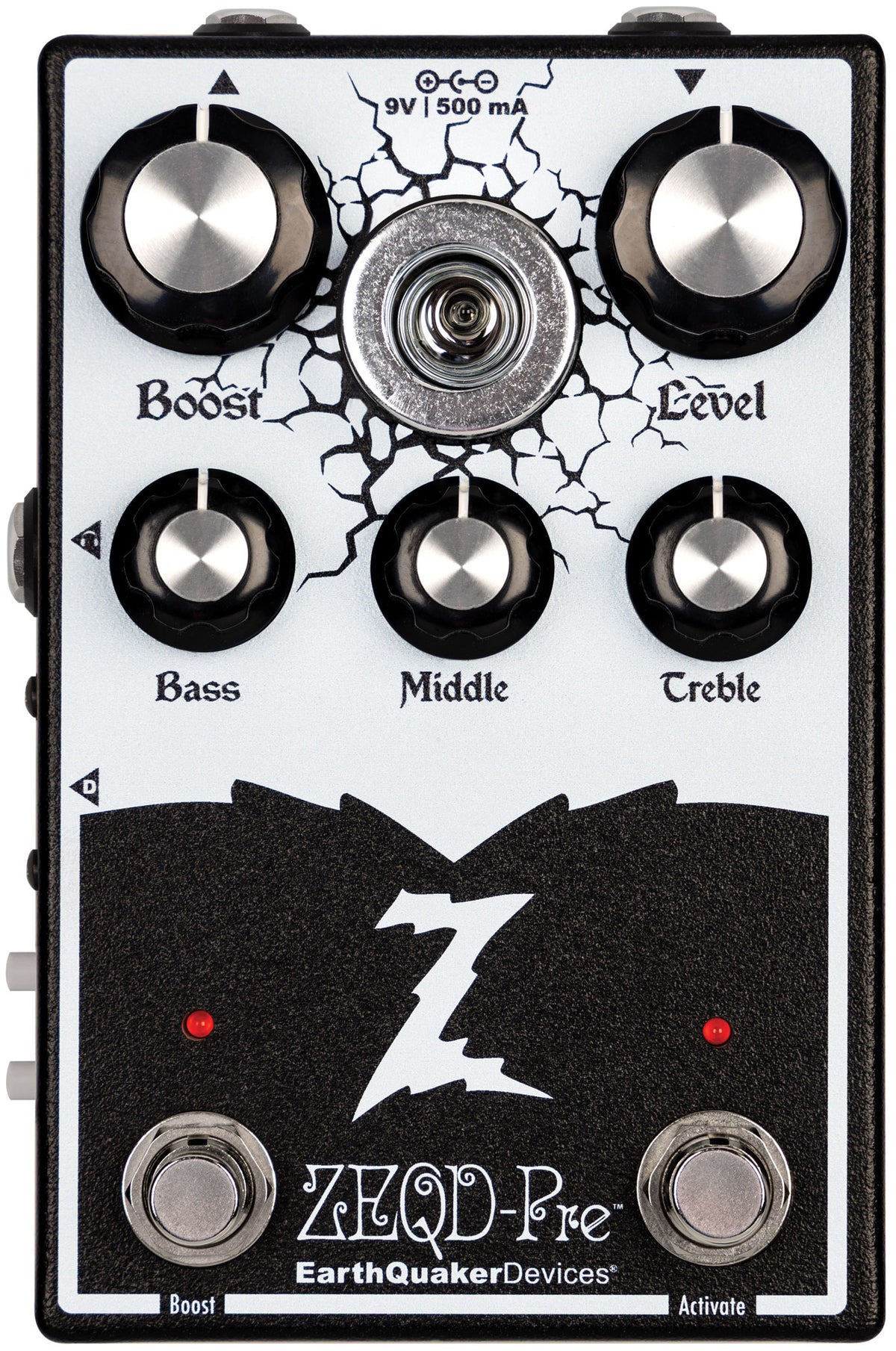

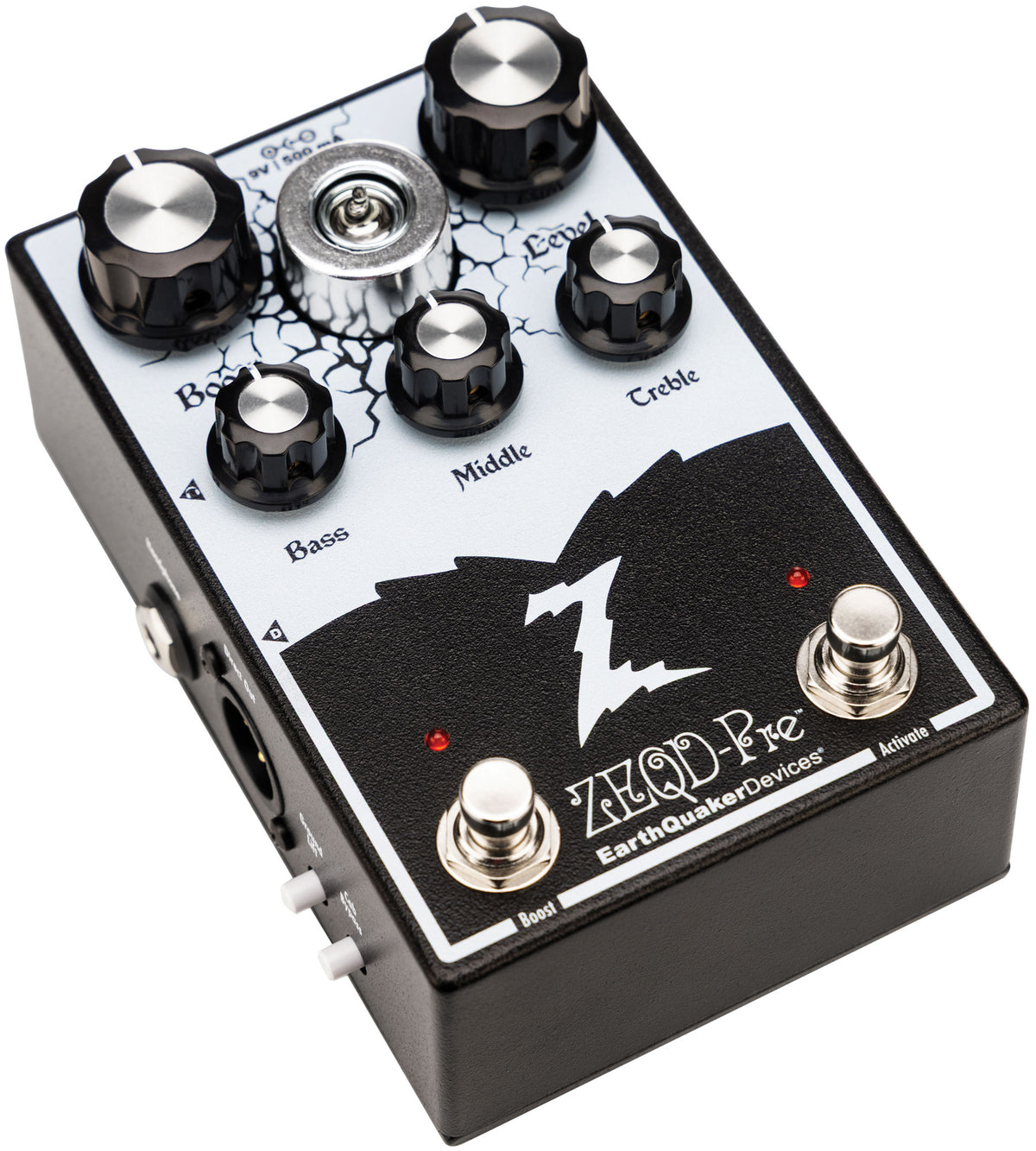

EarthQuaker Devices ZEQD-Pre All-Analog EF86 Tube Preamp

The EarthQuaker Devices ZEQD-Pre is an all-analogue EF86 tube preamp and amp simulation solution, developed in collaboration with Dr. Z Amplification.

Designed to bring genuine valve response to a pedalboard-sized format, the ZEQD-Pre combines an EF86 pentode preamp with a passive three-band EQ, full-range boost, headphone output, balanced XLR direct output and analogue cabinet simulation.

Use it for silent headphone practice, direct recording, amplifier-free live rigs, pedalboard preamp duties or as the front end of a traditional guitar amplifier. Multiple outputs can operate simultaneously, making the ZEQD-Pre particularly useful for musicians who want one compact unit to handle stage, studio and practice applications.

At A Glance

Feature	Details
Brand	EarthQuaker Devices
Model	ZEQD-Pre
Product Code	EQDZEQDV1USA
Type	All-Analog Tube Preamp
Condition	New
Valve	EF86 Pentode
Collaboration	EarthQuaker Devices × Dr. Z Amplification
EQ	Passive 3-Band Bass, Middle, Treble
Boost	Full-Range Boost
Headphone Output	Yes
Direct Output	Balanced XLR
Cabinet Simulation	Analogue, Switchable on XLR Output
Ground Lift	Yes
Bypass	Mechanical True Bypass
Current Draw	500mA
Power	9V DC Centre Negative
Main Appeal	Genuine EF86 valve preamp with direct, headphone and amp routing
Best For	Pedalboards, direct recording, silent practice, live rigs and studio use

What Makes The EarthQuaker Devices ZEQD-Pre Special?

The ZEQD-Pre combines EarthQuaker Devices pedal design with Dr. Z Amplification's valve-amplifier expertise.

At its heart is an EF86 pentode valve, chosen for its high gain capability, wide frequency response and dynamic playing feel. Rather than digitally modelling an amplifier, the ZEQD-Pre uses an analogue valve preamp and analogue cabinet simulation to create a responsive direct guitar signal.

The result is a highly flexible end-of-chain solution that can feed headphones, an audio interface, mixing console and traditional amplifier setup.

Genuine EF86 Tube Preamp

The EF86 is a pentode valve used in a number of highly regarded amplifier designs and is central to the ZEQD-Pre's character.

It offers a broad frequency response and strong dynamic range, helping the preamp react naturally to both picking intensity and the pedals placed before it.

Play more gently and the response remains controlled and articulate; dig in harder and the sound develops additional harmonic richness and dynamics.

This makes the ZEQD-Pre particularly attractive for players who want real valve interaction rather than a purely digital amp model.

Passive Three-Band EQ

The ZEQD-Pre features a traditional passive EQ section with dedicated controls for:

• Bass: 20Hz–400Hz
• Middle: 400Hz–2kHz
• Treble: 2kHz–20kHz

The controls interact in a similar way to a traditional amplifier tone stack, allowing you to shape the overall response for different guitars, pedals, cabinets and recording situations.

Full-Range Boost

The dedicated Boost footswitch bypasses the tone controls and activates a full-range boost.

A separate Boost control determines the output level when this mode is active.

This gives you another useful voice within the same preamp, whether you want increased level for leads, a more direct full-frequency response or additional drive into another part of your rig.

Headphone Practice

A dedicated 1/4" stereo headphone output makes the ZEQD-Pre an excellent option for quiet practice.

The headphone output includes the analogue cabinet simulation, allowing you to hear a complete amp-style signal without connecting a conventional speaker cabinet.

The headphone output remains available even when the main preamp section is bypassed.

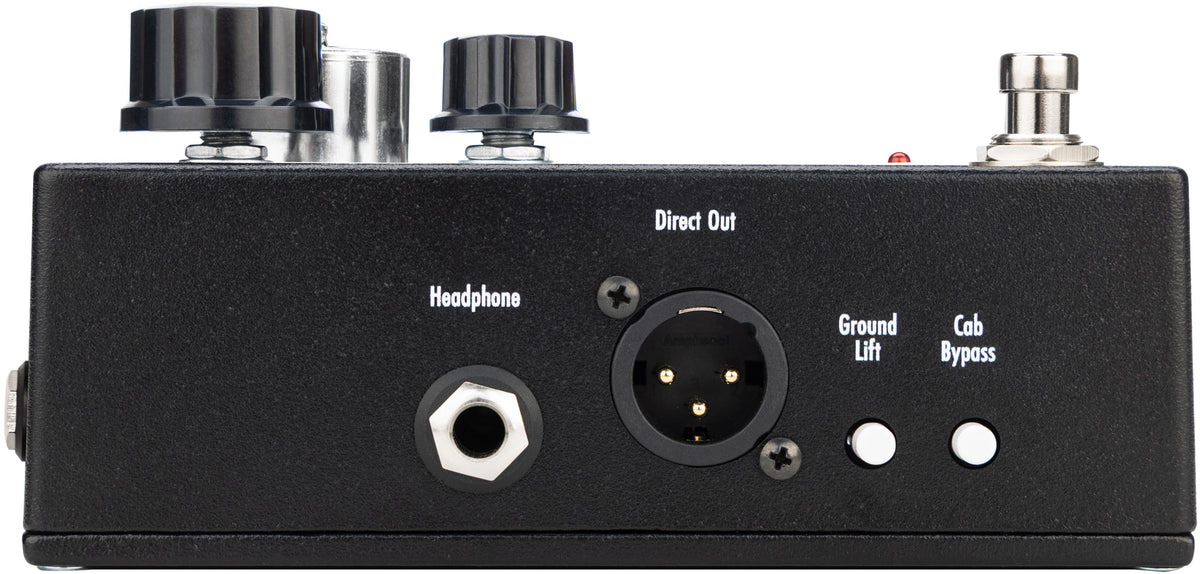

Balanced XLR Direct Output

The balanced XLR output allows the ZEQD-Pre to connect directly to:

• Mixing consoles
• PA systems
• Audio interfaces
• Recording equipment
• Stage boxes

The built-in analogue cabinet simulation can be used for a ready-to-record or front-of-house signal.

Alternatively, activate the Cab Sim Bypass switch to send the preamp signal to your preferred external impulse response loader, cabinet simulator or modelling software.

Flexible Simultaneous Routing

One of the ZEQD-Pre's strongest features is its ability to operate multiple outputs simultaneously.

This means you could, for example:

• Send one signal to your conventional guitar amplifier
• Send a balanced XLR signal to front of house
• Monitor through headphones

This makes it a particularly useful solution for hybrid live rigs and studio setups where several signal paths are required at once.

Who Is It For?

The EarthQuaker Devices ZEQD-Pre is ideal for:

• Guitarists building an amp-free pedalboard
• Players wanting genuine valve response
• Home recording
• Professional studio use
• Silent headphone practice
• Backline-free live performance
• Fly rigs and portable setups
• Pedal-platform players
• Musicians using IR loaders
• Guitarists wanting a direct XLR output
• Players building hybrid amp/direct rigs
• Bass players looking for valve preamp colour

Why Choose A Tube Preamp Pedal?

A preamp is one of the major stages responsible for shaping the response and character of a guitar amplifier.

Putting a genuine tube preamp on your pedalboard allows you to access some of that valve behaviour without carrying a complete traditional amplifier.

The ZEQD-Pre goes further by integrating cabinet simulation, headphone monitoring, balanced direct output and flexible routing into the same unit.

That makes it capable of functioning as much more than an effect pedal — it can become the central amplifier and routing stage of an entire pedalboard rig.

How It Compares

ZEQD-Pre vs Digital Amp Modellers

Digital amp modellers can provide large libraries of amplifier and cabinet models.

The ZEQD-Pre takes a different approach, focusing on one genuine analogue EF86 valve preamp rather than recreating multiple amplifiers digitally.

It is particularly attractive to players who prefer straightforward physical controls and analogue circuitry over menus, presets and model libraries.

ZEQD-Pre vs EarthQuaker Devices Easy Listening

The Easy Listening is a highly compact analogue amp and cabinet simulator designed around simplicity.

The ZEQD-Pre is a considerably more advanced solution, adding a genuine EF86 valve stage, three-band EQ, boost, balanced XLR output, switchable cabinet simulation and more flexible routing.

ZEQD-Pre vs A Traditional Guitar Amplifier

A traditional guitar amplifier provides its own power amp and physical speaker.

The ZEQD-Pre instead concentrates on preamplification and direct connectivity, making it ideal for headphone practice, recording, PA systems and portable pedalboard rigs.

It can also be integrated with a conventional amplifier when required.

What's Included?

• EarthQuaker Devices ZEQD-Pre All-Analog Tube Preamp
• Product documentation

No power supply included.

Technical Specifications

Specification	Details
Brand	EarthQuaker Devices
Model	ZEQD-Pre
SKU / Product Code	EQDZEQDV1USA
Product Type	All-Analog Tube Preamp
Valve Type	EF86 Pentode
Controls	Boost, Level, Bass, Middle, Treble
Footswitches	Activate, Boost
EQ Type	Passive Three-Band
Headphone Output	1/4" Stereo TRS
Direct Output	Balanced XLR
Ground Lift	Yes
Cab Sim	Analogue
Cab Sim Bypass	Yes, XLR Output
Input Impedance	10MΩ
Output Impedance	Variable
Headphone Output Impedance	39Ω
Direct Output Impedance	100Ω
Switching	Mechanical True Bypass
Dimensions	149 × 100 × 70mm including knobs
Current Draw	500mA
Power Requirement	9V DC Centre Negative
Condition	New

Power Requirements

The EarthQuaker Devices ZEQD-Pre requires a regulated 9V DC centre-negative power supply capable of supplying at least 500mA, using a standard 2.1mm barrel connector.

No power supply is included.

Because of its 500mA current requirement, make sure your pedalboard power supply can provide sufficient current from the selected output.

Do not operate the ZEQD-Pre at voltages higher than 9V.

FAQs

What is the EarthQuaker Devices ZEQD-Pre?

The ZEQD-Pre is an all-analogue EF86 valve preamp developed by EarthQuaker Devices in collaboration with Dr. Z Amplification.

Does the ZEQD-Pre use a real tube?

Yes. It uses an EF86 pentode valve.

Is the ZEQD-Pre an amp simulator?

It can function as a complete analogue direct amp solution, combining its EF86 preamp with onboard analogue cabinet simulation.

Can I use headphones?

Yes. It has a dedicated 1/4" stereo headphone output with cabinet simulation.

Can I connect it directly to a PA?

Yes. The balanced XLR direct output can feed a suitable mixing console, stage box or PA system.

Can I record directly into an audio interface?

Yes. The balanced direct output makes the ZEQD-Pre particularly well suited to direct recording.

Can I turn the cabinet simulation off?

Yes. The XLR output features a Cab Sim Bypass switch, allowing you to use an external IR loader, cabinet simulator or suitable modelling software.

Does it have an EQ?

Yes. It features a passive three-band EQ with dedicated Bass, Middle and Treble controls.

Does it have a boost?

Yes. A separate Boost footswitch bypasses the tone controls and activates a full-range boost with its own level control.

Can multiple outputs be used together?

Yes. The outputs can operate simultaneously, allowing flexible amp, direct and headphone routing.

Is it true bypass?

Yes. EarthQuaker Devices specifies mechanical true bypass switching.

How much power does it need?

It requires 9V DC centre-negative power at 500mA or greater.

Is a power supply included?

No. A compatible power supply is not included.

Is the ZEQD-Pre suitable for a pedalboard?

Yes. It is specifically designed to provide valve preamp, cabinet simulation and routing functionality in a pedalboard-friendly format.
