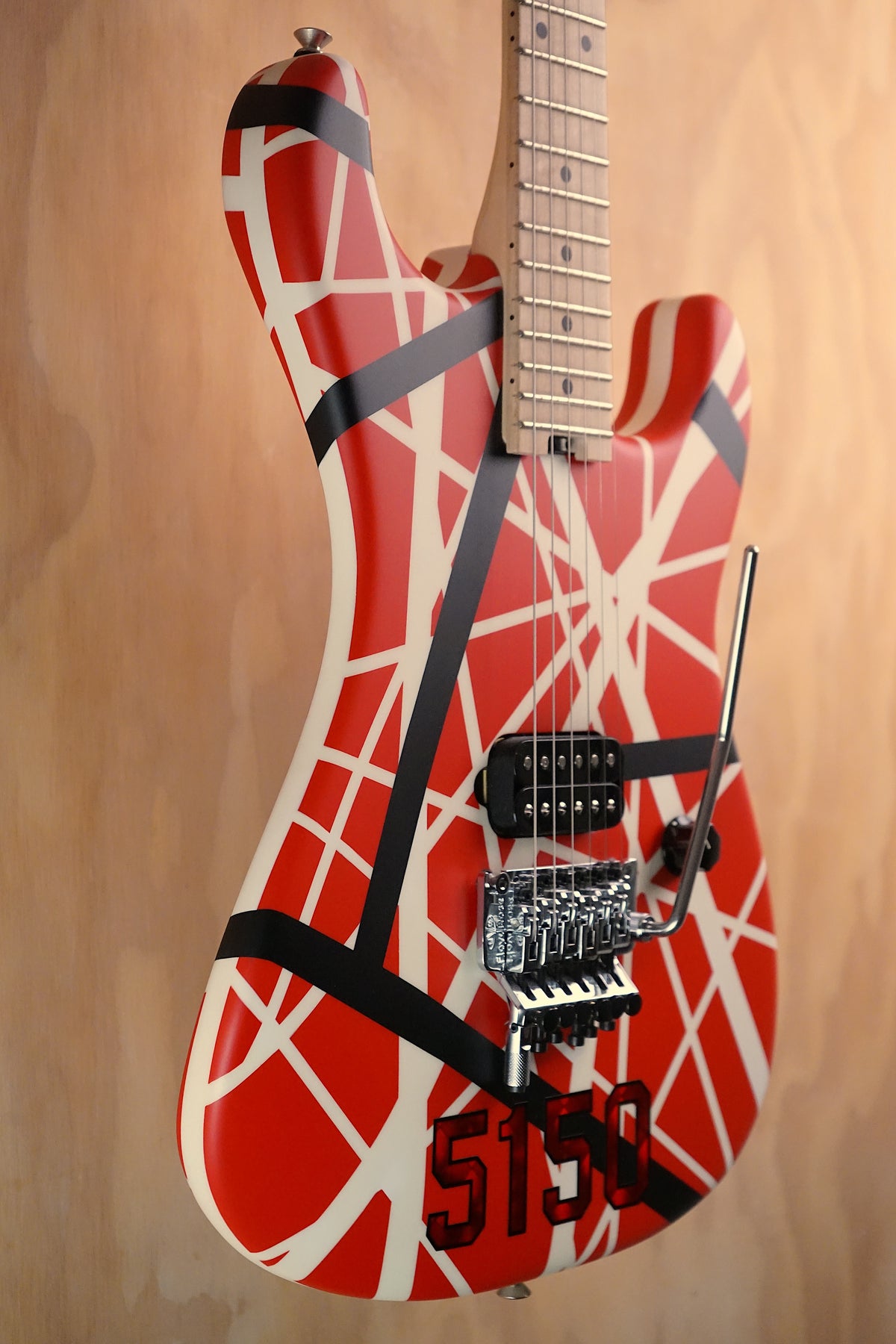

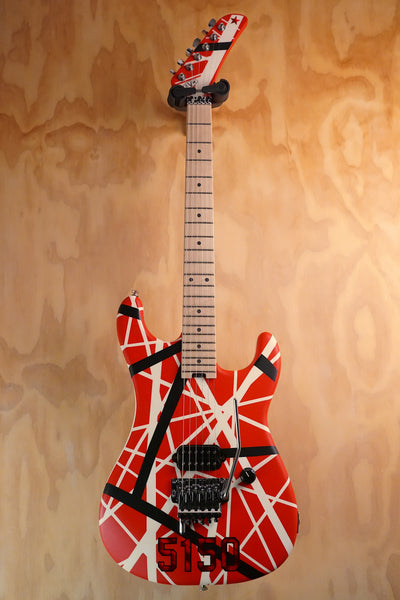

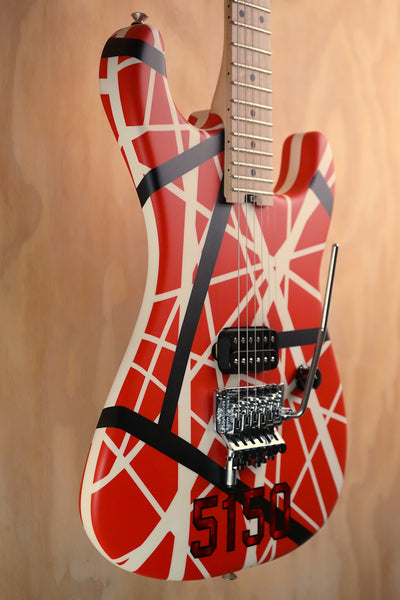

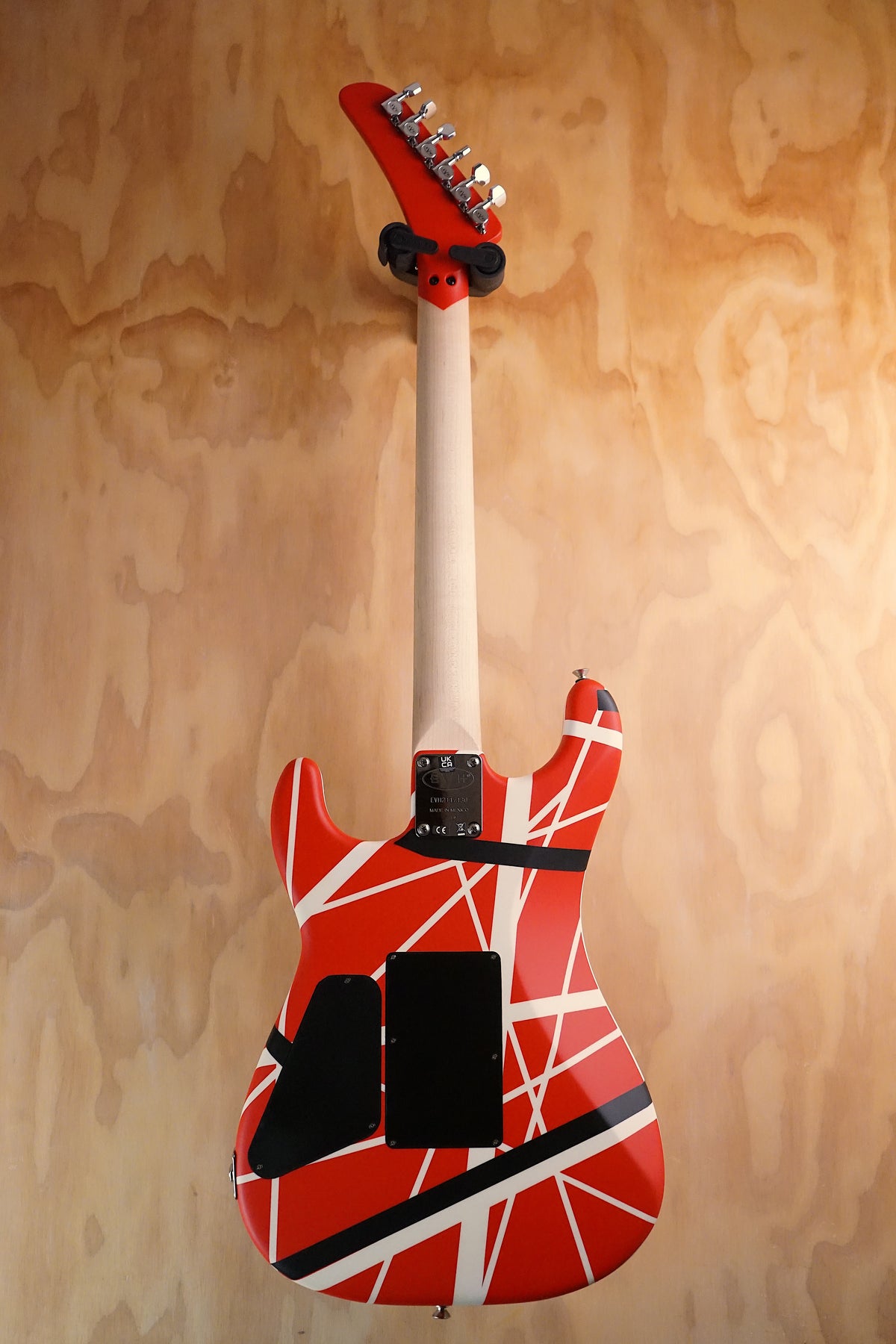

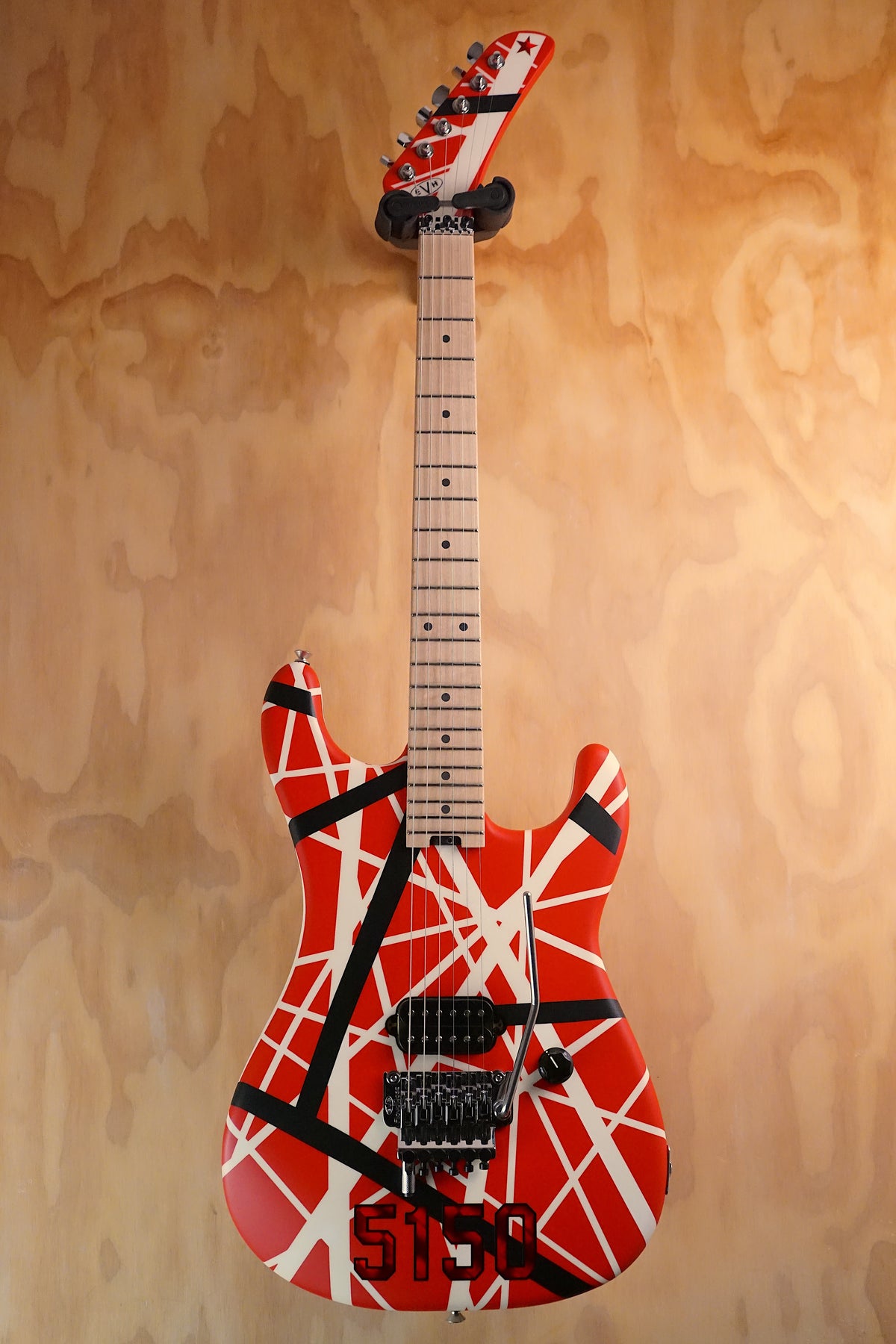

The EVH Striped Series 5150 in Red, Black and White recreates one of Eddie Van Halen's most recognisable guitars from the mid-1980s, combining the famous 5150 striped aesthetic with a stripped-back, high-performance specification.

Built around a basswood 5150-style body, graphite-reinforced quartersawn maple neck and maple fingerboard, it features a single direct-mounted EVH Wolfgang Alnico II bridge humbucker, EVH-branded Floyd Rose locking tremolo and the hugely practical EVH D-Tuna.

The distinctive hockey-stick headstock, matching striped finish and holographic-style 5150 body graphic complete the unmistakable look.

This pre-owned example is presented in Very Good Condition, weighs 7.44 lbs, and is sold without a case or gigbag.

At A Glance

Detail	Specification
Brand	EVH
Model	Striped Series 5150
Finish	Red / Black / White 5150 Striped Pattern
Body	Basswood
Neck	Quartersawn Maple
Neck Reinforcement	Graphite
Neck Profile	EVH Modified C
Fingerboard	Maple
Radius	12"–16" Compound
Scale Length	25.5"
Frets	22 Jumbo
Pickup	EVH Wolfgang Humbucker
Controls	Master Volume
Switching	None
Bridge	EVH Floyd Rose Locking Tremolo
D-Tuna	Yes
Weight	7.44 lbs
Condition	Very Good
Included	Guitar Only – No Case

Condition Overview

Very Good Condition

This EVH Striped Series 5150 is presented in Very Good Condition.

Under the Fair Deal Music grading system, Very Good means the guitar shows some cosmetic signs of previous use consistent with careful ownership while remaining fully functional.

Unlike the EVH Frankie Relic, this model uses a gloss urethane striped finish rather than a factory relic treatment, so genuine marks from previous ownership are reflected in the condition grade.

What’s Included?

✔ EVH Striped Series 5150 Red/Black/White

✘ No Case Included
✘ No Gigbag Included

No additional accessories are included unless pictured or stated.

Condition Notes

• Very Good overall condition
• Iconic Red/Black/White 5150 striped finish
• Single EVH Wolfgang humbucker
• EVH Floyd Rose locking tremolo
• EVH D-Tuna
• Quartersawn maple neck
• Compound-radius maple fingerboard
• 7.44 lbs actual measured weight
• No case or gigbag included

Fair Deal Quality Control Assessment

This pre-owned EVH has been checked for general operation and playability.

Assessment includes:

• EVH Wolfgang pickup operation
• Master volume control
• Treble bleed circuit
• Output jack
• Neck condition
• Maple fingerboard
• Frets
• Floyd Rose locking nut
• Floyd Rose bridge
• EVH D-Tuna
• Tuning machines
• General hardware
• Structural condition
• Overall setup
• General playability

Service / Setup Work

All pre-owned guitars at Fair Deal Music are checked for general setup and playability before leaving the shop.

Key areas assessed include:

• Action
• Neck relief
• Fret condition
• Intonation
• Tuning stability
• Pickup operation
• Electronics
• Tremolo setup
• D-Tuna operation
• Hardware
• General playing feel

Changing string gauge or substantially changing tuning may require corresponding adjustment to the Floyd Rose and D-Tuna setup.

What Makes The EVH Striped Series 5150 Special?

The 5150 guitar became one of Eddie Van Halen's defining instruments during the mid-1980s and was closely associated with the 1984, 5150 and subsequent eras of Van Halen.

This production model captures its essential formula: one powerful bridge humbucker, one volume control, locking tremolo, D-Tuna and a fast maple neck, all wrapped in the unmistakable striped 5150 aesthetic.

It is deliberately uncomplicated, placing the emphasis firmly on playing rather than complex electronics.

Basswood Body

The 5150-style body is constructed from basswood.

Basswood is particularly popular for high-performance electric guitars because of its:

• Balanced midrange
• Controlled bass response
• Smooth high frequencies
• Relatively manageable weight

It provides an excellent foundation for the high-output Wolfgang bridge humbucker.

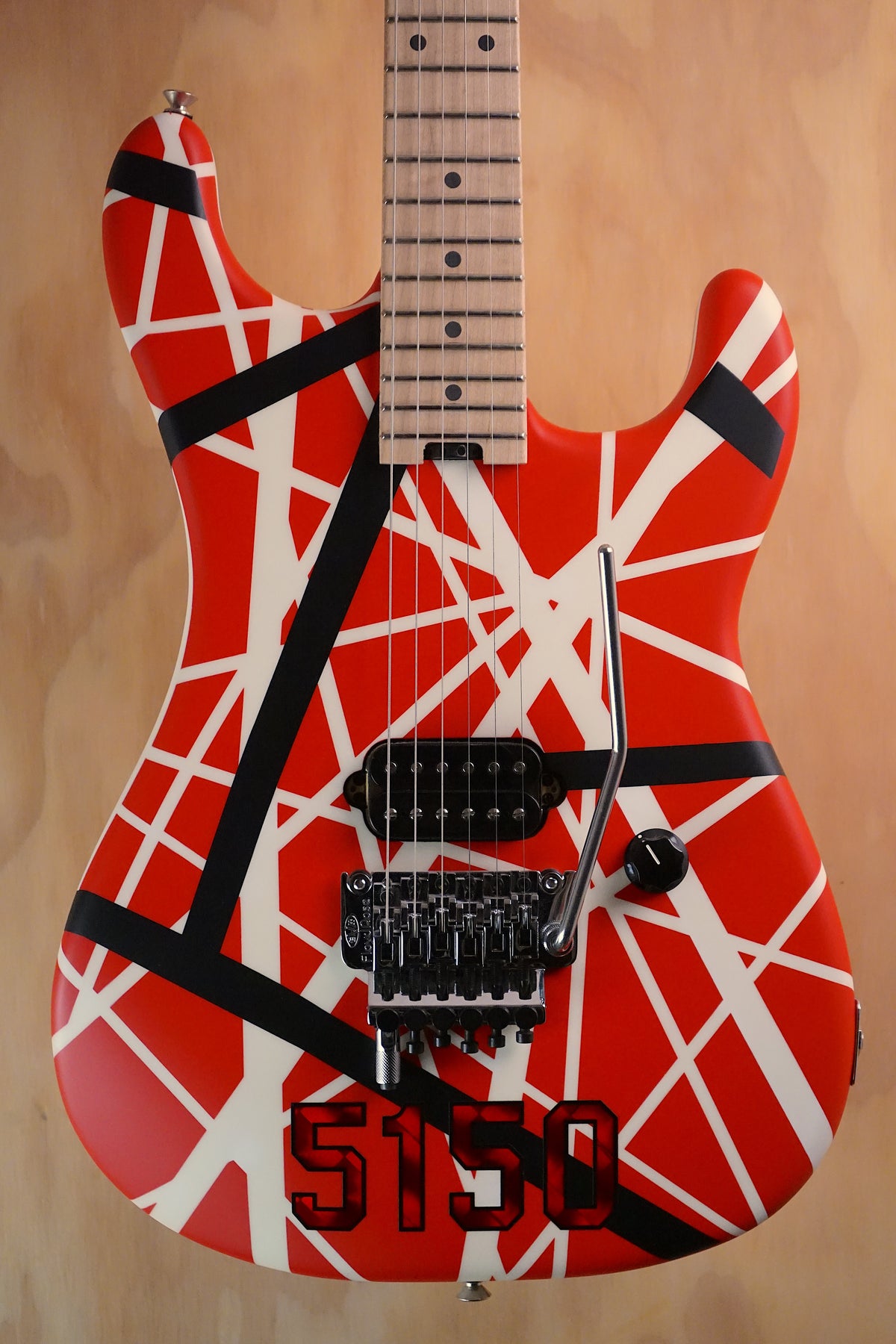

Red, Black & White 5150 Finish

The iconic finish combines:

• Red background
• Black stripes
• White stripes
• 5150 body graphic

The design became one of Eddie Van Halen's most recognisable post-Frankenstein guitar looks.

Unlike the Frankie model, the standard 5150 uses a gloss urethane finish rather than extensive factory ageing.

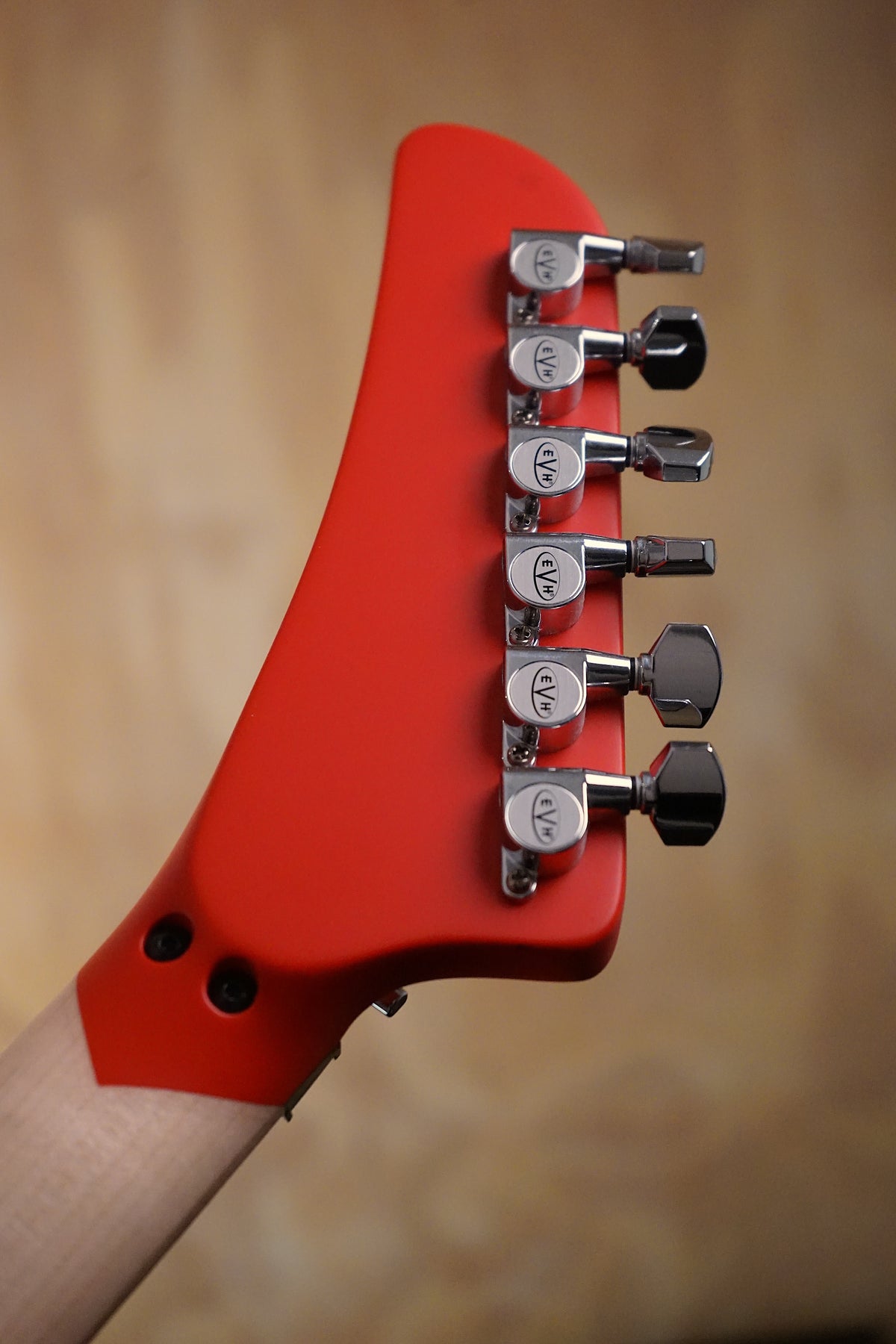

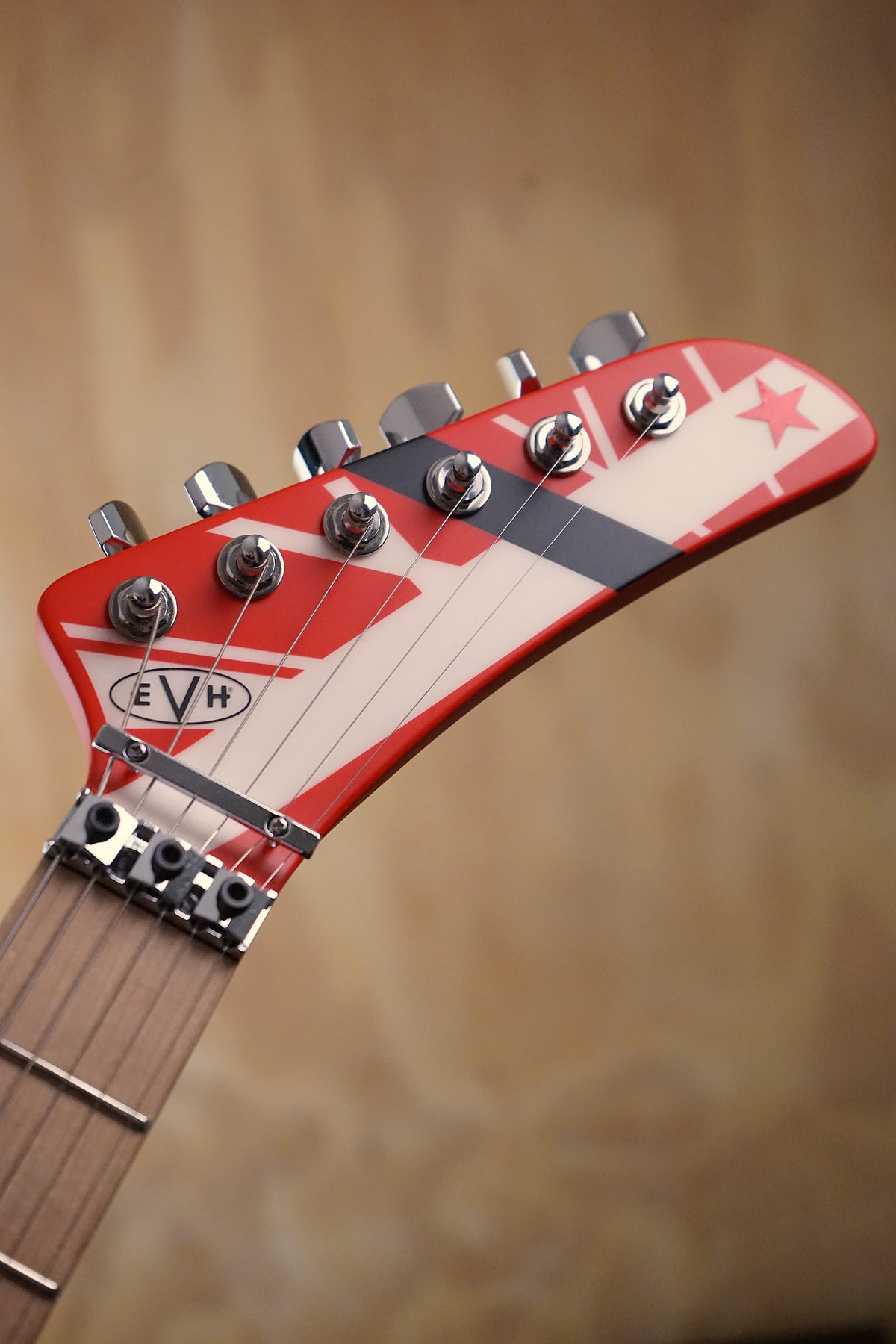

Hockey-Stick Headstock

The distinctive EVH hockey-stick headstock is a defining feature of the 5150.

It carries matching striped artwork and the EVH star logo, separating the guitar visually from the Strat-style headstock used on several other EVH Striped Series models.

Quartersawn Maple Neck

The bolt-on neck is made from quartersawn maple.

Graphite reinforcement rods flank the truss rod to improve stability.

This construction provides:

• Strong structural rigidity
• Immediate attack
• Fast response
• Excellent suitability for demanding tremolo use

EVH Modified C Profile

The neck uses the EVH Modified C backshape.

Approximate factory dimensions are:

• 0.790" at the 3rd fret
• 0.810" at the 12th fret

It offers a slim, fast feel without becoming excessively flat across the back.

Maple Fingerboard

The maple fingerboard features:

• 22 jumbo frets
• Black dot inlays
• 12"–16" compound radius
• Heel-mounted truss rod adjustment wheel

This provides a fast, modern playing surface while retaining traditional maple-board attack.

12"–16" Compound Radius

The fingerboard becomes progressively flatter towards the upper frets.

This provides:

• Comfortable chord work around the nut
• Easier bends higher up the neck
• Improved high-fret lead playing
• Lower-action potential
• Reduced risk of bends choking out

25.5" Scale Length

The guitar uses a 25.5" scale length.

This provides the firm string response and defined attack traditionally associated with high-performance bolt-on guitars.

22 Jumbo Frets

The 22 jumbo frets offer plenty of room for:

• Wide string bends
• Vibrato
• Legato
• Fast lead playing
• Rock rhythm work

EVH Wolfgang Bridge Humbucker

The only pickup is a direct-mounted EVH Wolfgang humbucker.

It uses an Alnico II magnet and is designed to deliver Eddie's signature combination of power and articulation.

Its character includes:

• Strong harmonics
• Thick rhythm tones
• Cutting upper mids
• Singing sustain
• Good clarity under gain
• Responsive volume cleanup

Direct-Mount Pickup

The Wolfgang humbucker is mounted directly into the body rather than suspended from a pickup ring or pickguard.

This keeps the appearance stripped back and follows EVH's performance-focused design philosophy.

Single Volume Control

The electronics could hardly be simpler:

1 x Master Volume

The control uses a 500K EVH Bourns low-friction potentiometer with treble bleed circuit.

The low-friction action makes rapid volume swells easier, while the treble bleed helps retain clarity as the volume is reduced.

No Pickup Selector

There is only one functional pickup.

As a result:

No pickup selector is required.

This keeps the signal path straightforward and removes unnecessary controls from the playing area.

EVH Floyd Rose Locking Tremolo

The guitar uses an EVH-branded Floyd Rose locking tremolo.

Features include:

• Double-locking design
• Steel saddles
• Floyd Rose R3 locking nut
• Fine tuners
• Brass tremolo block

It provides the tuning stability required for aggressive vibrato techniques.

EVH D-Tuna

The EVH D-Tuna allows the lowest string to be switched rapidly between:

E Standard ↔ Drop D

This is particularly useful on stage when moving between songs in different tunings.

The system was developed from hardware Eddie used on his personal instruments.

Brass Tremolo Block

The Floyd Rose system incorporates a solid brass block.

This forms part of the factory tremolo specification and contributes to the bridge's overall mass and response.

EVH-Branded Gotoh Tuners

The headstock uses EVH-branded Gotoh tuning machines.

With the locking nut engaged, the tuners primarily serve initial tuning and string-change duties, while the Floyd Rose fine tuners handle small adjustments.

Heel-Mounted Truss Rod Wheel

Neck relief can be adjusted using the accessible heel-mounted truss rod wheel.

This avoids the need to remove a conventional headstock truss rod cover.

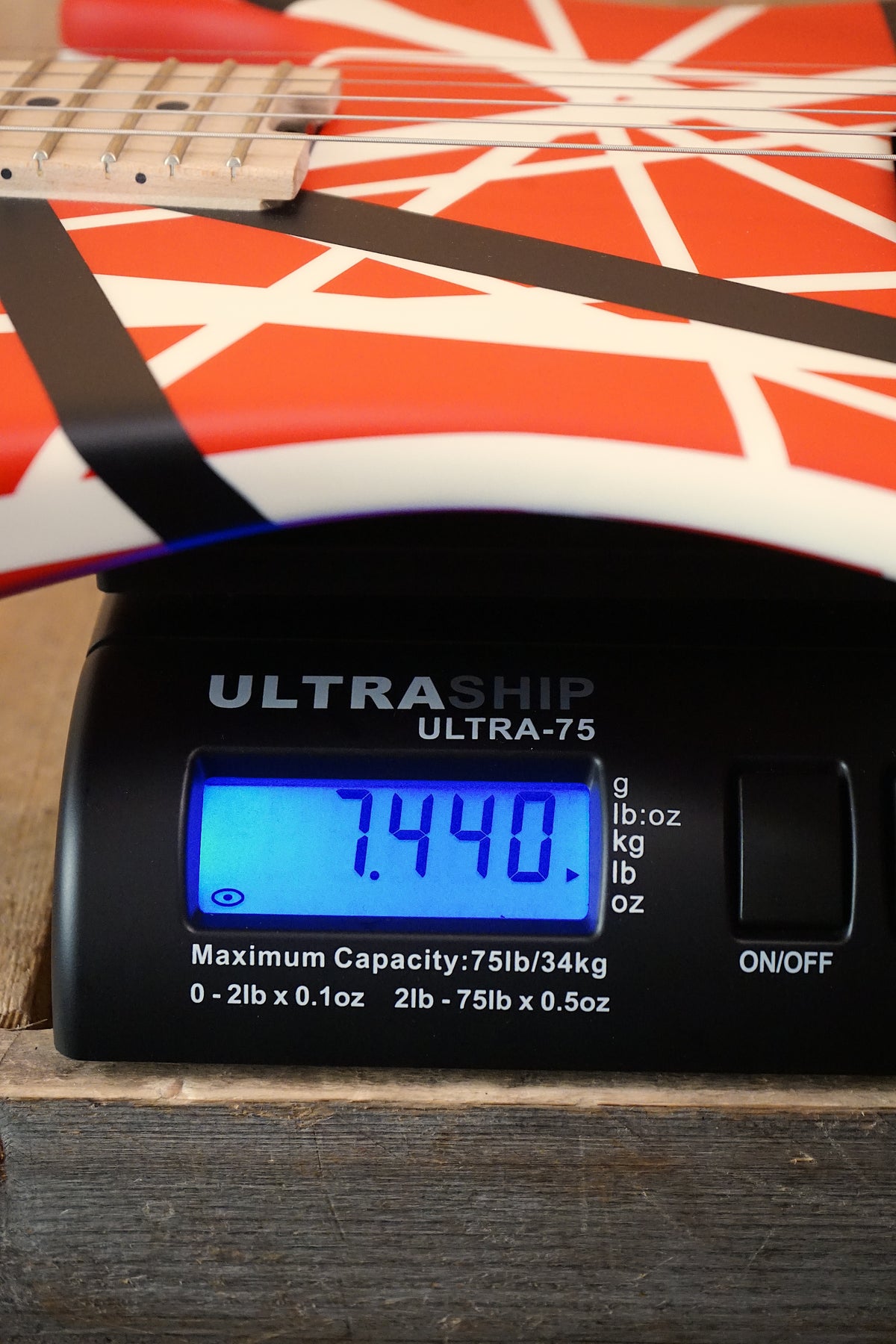

Weight

7.44 lbs

This is the actual measured weight of this individual guitar rather than a manufacturer estimate.

At 7.44 lbs, it remains comfortably manageable for rehearsals, studio sessions and longer live performances.

5150 vs Frankie

Although both guitars carry Eddie Van Halen's striped aesthetic, they represent different periods and instruments.

EVH 5150

• Purpose-built 5150 body shape
• Hockey-stick headstock
• Red/Black/White stripes
• Single Wolfgang humbucker
• One volume control
• Floyd Rose
• D-Tuna
• Gloss finish

EVH Frankie

• Strat-style body
• Strat-style headstock
• Red/White/Black relic finish
• Functional bridge Wolfgang humbucker
• Dummy neck pickup
• Dummy 5-way switch
• Extensive factory ageing

The 5150 offers a cleaner, more purpose-built high-performance design.

Who Is It For?

Eddie Van Halen fans – One of his most recognisable guitar designs recreated by EVH.

Hard-rock players – Wolfgang humbucker and Floyd Rose provide an ideal platform for driven tones.

Lead guitarists – Compound radius, jumbo frets and locking tremolo suit demanding techniques.

Drop-D players – The D-Tuna makes tuning changes extremely quick.

Players who prefer simple controls – One pickup and one volume control keep the guitar focused.

Stage players – Straightforward electronics and high-performance hardware suit live use particularly well.

Suitable Genres & Applications

Particularly well suited to:

• Hard rock
• Classic rock
• Heavy rock
• Glam metal
• Hair metal
• Shred
• Instrumental rock
• Alternative rock
• High-gain rhythm
• Technical lead guitar
• Studio recording
• Live performance
• Drop-D playing

Technical Specifications

Specification	Details
Product Type	Solid Body Electric Guitar
Brand	EVH
Model	Striped Series 5150
Model Number	5107902515
Finish	Red / Black / White 5150 Striped Pattern
Body Material	Basswood
Body Shape	EVH 5150
Body Finish	Gloss Urethane
Neck Material	Quartersawn Maple
Neck Construction	Bolt-On
Neck Reinforcement	Graphite
Neck Profile	EVH Modified C
Neck Finish	Hand-Rubbed Satin Urethane
Fingerboard	Maple
Fingerboard Radius	12"–16" Compound
Scale Length	25.5"
Frets	22
Fret Size	Jumbo
Inlays	Black Dot
Nut	Floyd Rose R3 Locking
Nut Width	42.8mm
Pickup Configuration	H
Bridge Pickup	Direct-Mount EVH Wolfgang Humbucker
Pickup Magnet	Alnico II
Electronics	Passive
Controls	Master Volume
Volume Pot	500K EVH Bourns Low Friction
Treble Bleed	Yes
Pickup Switching	None
Bridge	EVH-Branded Floyd Rose Locking Tremolo
Tremolo Block	Brass
D-Tuna	EVH D-Tuna
Tuners	EVH-Branded Gotoh
Hardware Finish	Chrome
Headstock	EVH Hockey Stick
Weight	7.44 lbs
Included	No Case or Gigbag
Condition	Pre-Owned, Very Good

D-Tuna & Tremolo Setup Note

The D-Tuna works as part of the guitar's Floyd Rose setup.

Substantial changes to:

• String gauge
• Tuning
• Action
• Tremolo adjustment

may require the Floyd Rose and D-Tuna to be reset for reliable operation.

This is normal for this type of locking tremolo system.

Case Note

No case or gigbag is included.

EVH-compatible hardcases and gigbags are available separately, and suitable protection is recommended for regular transport.

Power Requirements

None.

The EVH Wolfgang humbucker and volume circuit are passive.

No battery or external power supply is required.

Fair Deal Music Verdict

The EVH Striped Series 5150 Red/Black/White captures one of Eddie Van Halen's most recognisable guitar designs while remaining a serious high-performance instrument in its own right.

Its basswood body, graphite-reinforced quartersawn maple neck, compound-radius maple fingerboard and direct-mounted Wolfgang humbucker deliver the fast feel, powerful sound and simplicity expected from the EVH platform.

The Floyd Rose and D-Tuna provide genuine practical advantages for aggressive tremolo playing and instant drop-D changes, while the one-pickup, one-control electronics keep everything straightforward.

At 7.44 lbs, this example remains comfortably weighted.

Presented in Very Good Condition and sold without a case or gigbag, it is a compelling option for EVH enthusiasts, hard-rock players and anyone looking for a stripped-back performance guitar.

Why Buy Pre-Owned From Fair Deal Music?

Every pre-owned guitar at Fair Deal Music is individually assessed so its actual condition, measured weight and included accessories are represented clearly.

On this EVH, the Very Good condition grade, 7.44 lbs measured weight and absence of a case or gigbag are all clearly stated.

Why Buy From Fair Deal Music?

When you buy from Fair Deal Music, you're choosing one of the UK's most established, independent family run music retailers since 1987.

When you buy from us, you benefit from:

• Family-run independent retailer established in 1987
• Birmingham's largest independent music store
• 6,000+ Trustpilot reviews
• Expert musician-led advice
• Pre-owned instruments individually assessed
• Clear condition grading
• Secure ordering
• Fast UK delivery
• Large Birmingham showroom
• Friendly support before and after purchase

Trade In. Trade Up. Save More.

Your existing guitar could help towards the cost of this EVH.

Fair Deal Music buys and part-exchanges guitars, basses, amplifiers, effects, keyboards and other musical equipment.

Contact our team for a no-obligation valuation and find out what your current gear could be worth towards this EVH Striped Series 5150.

Frequently Asked Questions

What condition is this EVH 5150 in?

It is presented in Very Good Condition, showing some cosmetic evidence of careful previous ownership while remaining fully functional.

Is this the EVH 5150 model?

Yes. This is the Striped Series 5150 based on Eddie Van Halen's famous red, black and white 5150 guitar.

What is the body made from?

It uses basswood.

Is the finish reliced?

No. The 5150 uses a gloss urethane striped finish rather than the extensive factory relic treatment used on the Frankie.

What is the neck made from?

It has a quartersawn maple neck with graphite reinforcement.

What neck profile does it use?

It uses the EVH Modified C profile.

What fingerboard does it have?

It has a maple fingerboard.

What is the fingerboard radius?

It uses a 12"–16" compound radius.

How many frets does it have?

It has 22 jumbo frets.

What is the scale length?

It uses a 25.5" scale length.

What pickup is fitted?

It uses one direct-mounted EVH Wolfgang Alnico II humbucker in the bridge position.

Does it have a neck pickup?

No. The 5150 is intentionally designed with a single bridge humbucker.

Does it have a pickup selector?

No. With only one pickup, no selector is required.

What controls does it have?

It has a single master volume control with an EVH Bourns low-friction potentiometer and treble bleed circuit.

Does it have a Floyd Rose?

Yes. It uses an EVH-branded Floyd Rose locking tremolo.

What does the D-Tuna do?

The EVH D-Tuna allows the low E string to switch quickly between E and D for drop-D tuning.

What tuners are fitted?

It uses EVH-branded Gotoh tuning machines.

How much does it weigh?

This individual guitar weighs 7.44 lbs.

Are the electronics active?

No. They are passive.

Does it require a battery?

No.

Does it come with a case?

No. No case or gigbag is included.

Can I request a video demo?

Yes. Our Request a Video Demo service is ideal if you would like to see the individual condition and striped finish or hear the Wolfgang humbucker and D-Tuna in operation before purchasing.

Can I part-exchange another guitar against it?

Yes. Fair Deal Music considers trade-ins and part exchanges across a wide range of guitars and other musical equipment.
