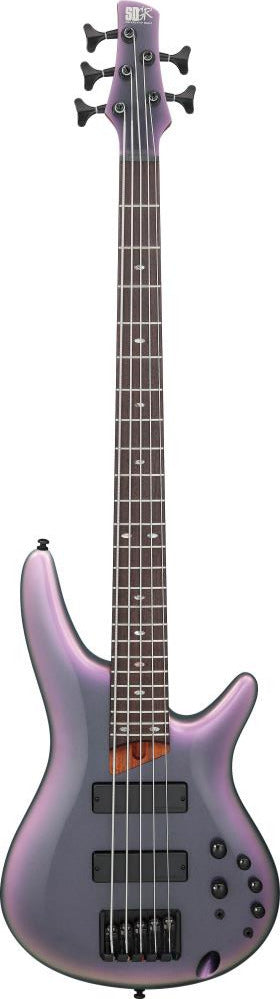

Ibanez SR505E-BAB Black Aurora Burst, Open Box Bass Guitar

This item has been opened to check the quality; it may have some signs of damage, feel free to call up and ask about the instrument 0121 643 1685

Quick Product Summary

The Ibanez SR505E-BAB is a versatile five-string electric bass built around the fast, comfortable feel that has made the Soundgear range a favourite with modern bass players. Finished in striking Black Aurora Burst, it combines an okoume body with a slim five-piece jatoba/walnut neck and rosewood fingerboard.

A pair of Bartolini BH2 pickups feeds an extensive Ibanez active electronics package, giving you three-band EQ, selectable mid frequencies and an EQ bypass function for access to both active and passive-style sounds.

What Makes the Ibanez SR505E-BAB Special?

The SR505E's combination of a compact, sculpted body and slim SR5 five-piece jatoba/walnut neck gives it an exceptionally comfortable playing feel for a five-string bass. Its 34-inch scale maintains familiar bass proportions, while the 45mm nut and 16.5mm bridge string spacing help keep the extended five-string layout manageable.

Its electronics are equally flexible. The Bartolini BH2 pickups provide a strong foundation, while the Ibanez Custom Electronics three-band EQ lets you shape bass, mid and treble frequencies directly from the instrument. A three-position mid-frequency switch and EQ bypass provide additional control for everything from warm traditional bass sounds to focused modern tones.

Who Is It For?

The SR505E-BAB is an excellent choice for players moving into five-string bass as well as experienced bassists who want a comfortable, highly adjustable instrument.

Its extended low-B range and comprehensive onboard EQ make it particularly suitable for rock, metal, funk, fusion, worship, pop, studio work and contemporary styles where a broad tonal palette is useful.

At A Glance

Feature	Details
Model	Ibanez SR505E-BAB
Series	SR Standard / Soundgear
Finish	Black Aurora Burst
Strings	5
Body	Okoume
Neck	5pc Jatoba/Walnut
Fingerboard	Rosewood
Pickups	Bartolini BH2
Electronics	Active 3-Band EQ with Bypass
Condition	Open Box

Condition Overview

Condition: Open Box

This Ibanez SR505E-BAB is offered in Open Box condition, providing an excellent opportunity to purchase this versatile five-string Soundgear bass at an Open Box price.

What's Included?

• Ibanez SR505E-BAB 5-String Electric Bass Guitar

No hard case or gig bag is included.

Technical Specifications

Body

• Body Type: Solidbody 5-string electric bass
• Body Material: Okoume
• Finish: Black Aurora Burst
• Body Finish: Gloss polyurethane
• Orientation: Right-handed

Neck

• Neck Type: SR5
• Neck Material: 5-piece Jatoba/Walnut
• Construction: Bolt-on
• Scale Length: 864mm / 34"
• Nut Width: 45mm
• Width at 24th Fret: 68mm
• Thickness at 1st Fret: 19.5mm
• Thickness at 12th Fret: 21.5mm

Fingerboard

• Material: Rosewood
• Radius: 305mm
• Inlays: Abalone Oval
• Frets: 24 Medium

Electronics

• Neck Pickup: Bartolini BH2
• Bridge Pickup: Bartolini BH2
• Pickup Type: Passive
• Preamp: Ibanez Custom Electronics
• EQ: 3-Band Bass, Middle and Treble
• Additional Controls: EQ Bypass Switch
• Mid Control: 3-Way Mid Frequency Switch
• Main Controls: Volume and Pickup Balance

Hardware

• Bridge: Accu-cast B505
• String Spacing: 16.5mm
• Hardware Colour: Black
• Factory Tuning: B, E, A, D, G
• Factory Strings: D'Addario EXL165 + .130
• String Gauges: .045 / .065 / .085 / .105 / .130

Power Requirements

The onboard active EQ is powered by a 9V battery. The bass can also operate with the EQ bypassed, with the treble control functioning as a passive tone control.

FAQs

Is the Ibanez SR505E-BAB a five-string bass?

Yes. The SR505E is a five-string bass tuned B, E, A, D and G, adding an extended low-B string below a conventional four-string bass.

What does BAB mean?

BAB identifies the Black Aurora Burst finish used on this version of the SR505E.

What pickups does the SR505E use?

It features a pair of Bartolini BH2 passive pickups connected to Ibanez's active onboard EQ system.

Does the bass have active electronics?

Yes. It features an Ibanez Custom Electronics three-band active EQ with separate bass, mid and treble adjustment.

Can the active EQ be bypassed?

Yes. An EQ bypass switch allows the preamp to be bypassed. When bypassed, the treble control functions as a passive tone control.

What does the three-way mid-frequency switch do?

The switch changes the centre frequency affected by the mid EQ control, allowing you to target different areas of the midrange for more precise tonal shaping.

What is the scale length?

The SR505E uses a 34-inch / 864mm scale, giving it a familiar full-scale bass feel while accommodating the additional low-B string.

Is the neck suitable for fast playing?

Yes. The slim SR5 neck profile, five-piece jatoba/walnut construction and 305mm-radius fingerboard are designed for comfortable and responsive playing across all five strings.

How many frets does it have?

The SR505E has 24 medium frets, giving you a full two-octave range on each string.

What is the string spacing?

The Accu-cast B505 bridge uses 16.5mm string spacing, helping keep the five-string neck comfortable while providing enough room for accurate fingerstyle and pick playing.

Does it come with a case?

No. A hard case or gig bag is not included with this Open Box bass.

Is it suitable as a first five-string bass?

Yes. Its compact SR body, slim neck and relatively narrow string spacing make the SR505E a particularly approachable option for players making the move from four to five strings.
