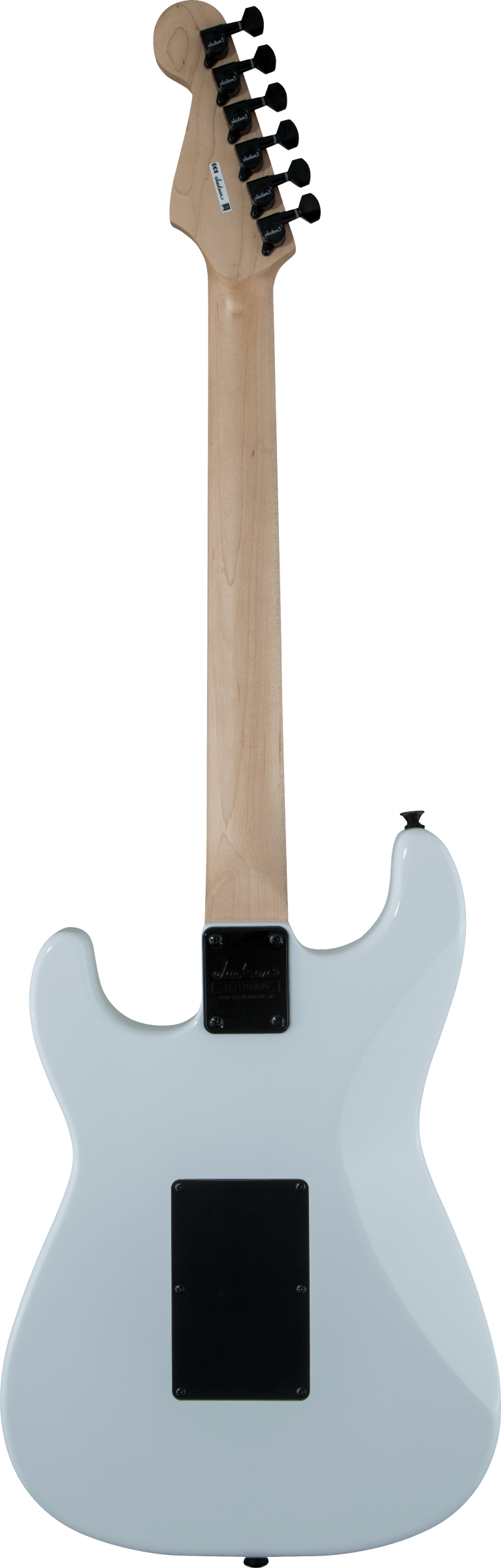

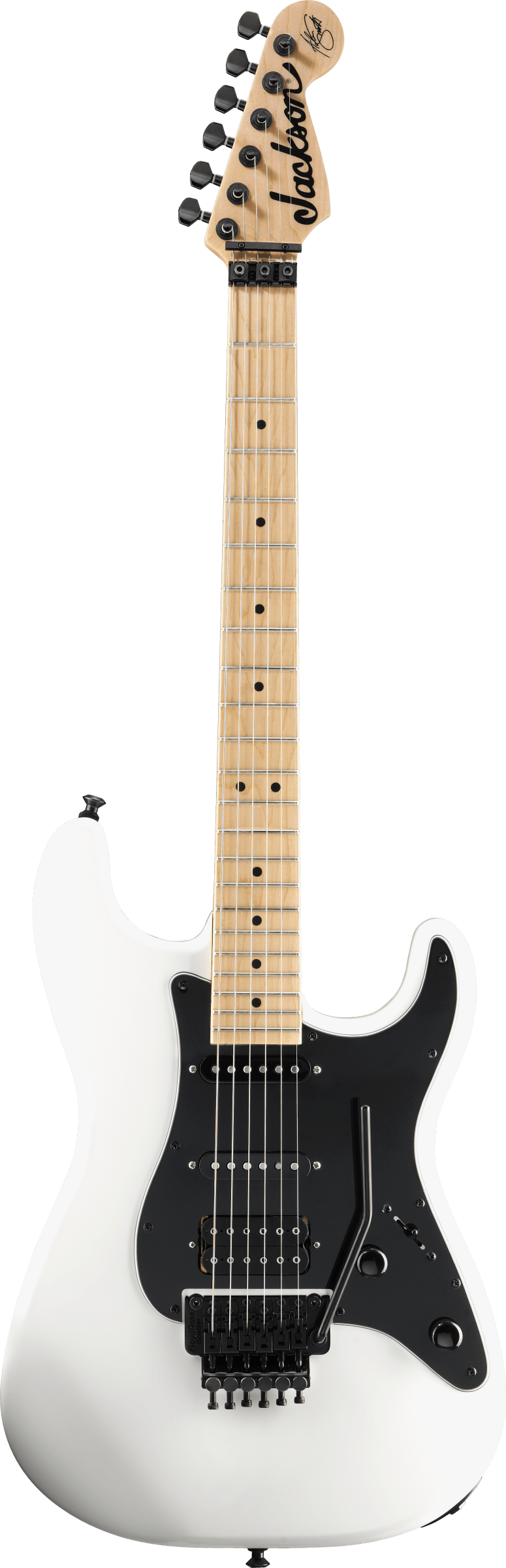

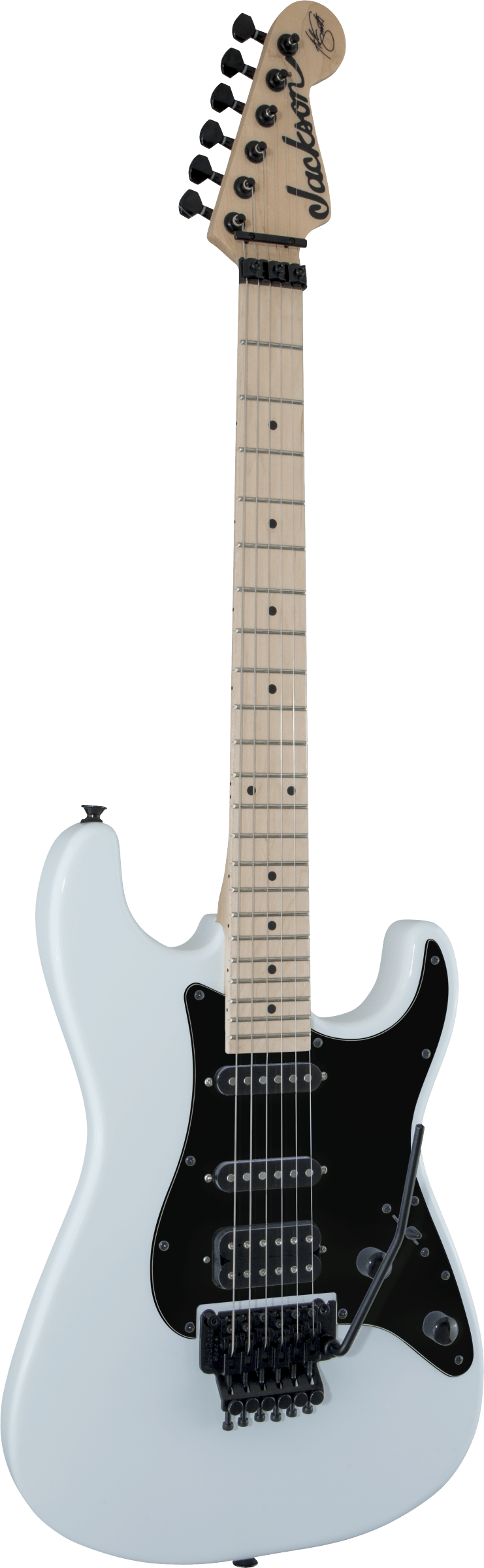

Jackson X Series Signature Adrian Smith San Dimas SDXM Snow White Electric Guitar

Quick Product Summary

The Jackson X Series Signature Adrian Smith San Dimas SDXM in Snow White brings the fast-playing feel and versatile HSS electronics associated with the Iron Maiden guitarist's signature instruments into the accessible X Series range. Its San Dimas-style poplar body is paired with a graphite-reinforced bolt-on maple neck and maple fingerboard for a responsive, performance-focused feel.

A Jackson High-Output humbucker in the bridge provides the power and sustain required for hard rock and metal, while Jackson single-coils in the middle and neck positions introduce brighter, more articulate sounds. Add a Floyd Rose Special double-locking tremolo and 12"-16" compound-radius fingerboard, and the SDXM is equipped for everything from rhythm playing to expressive lead work.

What Makes the Jackson Adrian Smith SDXM Special?

The SDXM combines a familiar double-cutaway shape with a specification geared towards demanding rock and metal playing. Its compound-radius maple fingerboard becomes progressively flatter towards the upper frets, giving chords and riffs a comfortable feel closer to the nut while providing plenty of room for bends and fast lead work higher up the neck.

Its HSS pickup configuration also gives the SDXM considerably more tonal range than a conventional dual-humbucker metal guitar. The bridge humbucker supplies powerful driven tones, while the middle and neck single-coils add clear, responsive sounds suitable for cleaner passages and classic rock textures.

Who Is It For?

The Jackson Adrian Smith SDXM is particularly well suited to:

• Iron Maiden and Adrian Smith fans.

• Hard rock and heavy metal guitarists.

• Players who need both humbucker and single-coil sounds.

• Lead guitarists who regularly use tremolo effects.

• Players who prefer compound-radius fingerboards.

• Guitarists looking for a fast-playing performance instrument.

• Musicians covering classic rock, metal and melodic lead styles.

• Players wanting a Floyd Rose-equipped guitar for expressive pitch effects.

At A Glance

Feature	Specification
Series	X Series Artist Signature
Artist	Adrian Smith
Body Shape	San Dimas
Colour	Snow White
Body	Poplar
Neck	Maple, Graphite Reinforced
Fingerboard	Maple
Pickups	Jackson HSS
Scale Length	25.5"
Bridge	Floyd Rose Special Double-Locking Tremolo
Orientation	Right-Handed

What’s Included?

• Jackson X Series Signature Adrian Smith SDXM Electric Guitar

• Floyd Rose tremolo arm

• Truss rod adjustment wrench

• Factory-fitted .009–.042 nickel-plated steel strings

Case or gig bag is not included.

Technical Specifications

General

• Brand: Jackson

• Model: X Series Signature Adrian Smith San Dimas SDXM

• Model Number: 2913052576

• Series: Artist Signature / X Series

• Artist: Adrian Smith

• Colour: Snow White

• Orientation: Right-Handed

• Number of Strings: 6

Body

• Body Shape: San Dimas

• Body Material: Poplar

• Body Finish: Gloss

Neck

• Neck Material: Maple

• Neck Construction: Bolt-On with Graphite Reinforcement

• Neck Finish: Satin

• Fingerboard Material: Maple

• Fingerboard Radius: 12"-16" Compound Radius / 304.8–406.4 mm

• Scale Length: 25.5" / 648 mm

• Number of Frets: 22

• Fret Size: Jumbo

• Nut Material: Floyd Rose Locking

• Nut Width: 1.6875" / 42.86 mm

• Position Inlays: Black Dot

• Headstock: Licensed Fender Stratocaster Style

• Truss Rod: Dual-Action

Electronics

• Bridge Pickup: Jackson High-Output Humbucking

• Middle Pickup: Jackson Single-Coil

• Neck Pickup: Jackson Single-Coil

• Pickup Configuration: HSS

• Controls: Master Volume, Master Tone

• Pickup Switching: 5-Position Blade

  • Position 1: Bridge Pickup

  • Position 2: Bridge and Middle Pickups

  • Position 3: Middle Pickup

  • Position 4: Middle and Neck Pickups

  • Position 5: Neck Pickup

• Electronics: Passive

Hardware

• Bridge: Floyd Rose Special Double-Locking Tremolo

• Hardware Finish: Black

• Tuning Machines: Jackson Sealed Die-Cast

• Pickguard: Black

• Control Knobs: Dome-Style

• Pickup Covers: Black

• Strap Buttons: Standard

• Strings: Nickel-Plated Steel, .009–.042

Power Requirements

The Jackson Adrian Smith SDXM uses passive pickups and electronics, so no battery or external power supply is required.

Connect the guitar to a suitable amplifier, effects system or audio interface using a standard 1/4" instrument cable.

FAQs

Who is the Jackson SDXM designed for?

The SDXM is an Adrian Smith signature model, inspired by the Iron Maiden guitarist's preferred San Dimas-style instruments and designed around versatile HSS electronics and high-performance playability.

What pickups are fitted?

It features a Jackson High-Output humbucker in the bridge with Jackson single-coil pickups in the middle and neck positions.

What is the advantage of the HSS pickup configuration?

The bridge humbucker provides powerful rock and metal tones, while the single-coils add brighter and more articulate sounds. This gives the guitar a broad tonal range from one instrument.

What is a compound-radius fingerboard?

The fingerboard changes from 12" near the nut to 16" towards the upper frets. This provides a comfortable surface for chords lower down the neck while giving lead players a flatter surface for bends and faster playing higher up.

Does it have a Floyd Rose?

Yes. It features a Floyd Rose Special double-locking tremolo, designed for expressive dives, pull-ups and vibrato effects while helping maintain tuning stability.

How many frets does it have?

The SDXM has 22 jumbo frets, providing a substantial fretting surface suited to lead playing and string bending.

What is the scale length?

It uses a familiar 25.5" / 648 mm scale length.

Is the neck reinforced?

Yes. The bolt-on maple neck incorporates graphite reinforcement, helping improve stability.

Is the guitar suitable for clean tones?

Yes. Although strongly associated with rock and metal, the neck and middle single-coil pickups provide clear, articulate sounds that work particularly well for cleaner playing.

Does it require a battery?

No. All three pickups are passive, so no battery is required.

What gauge strings are fitted?

Jackson supplies the guitar with .009–.042 nickel-plated steel strings.

Is a case or gig bag included?

No. A case or gig bag is not included and can be purchased separately.
