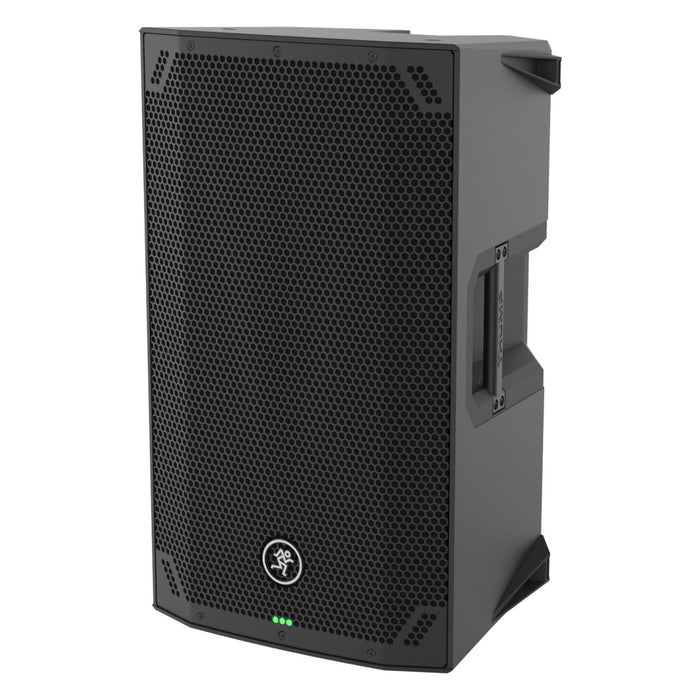

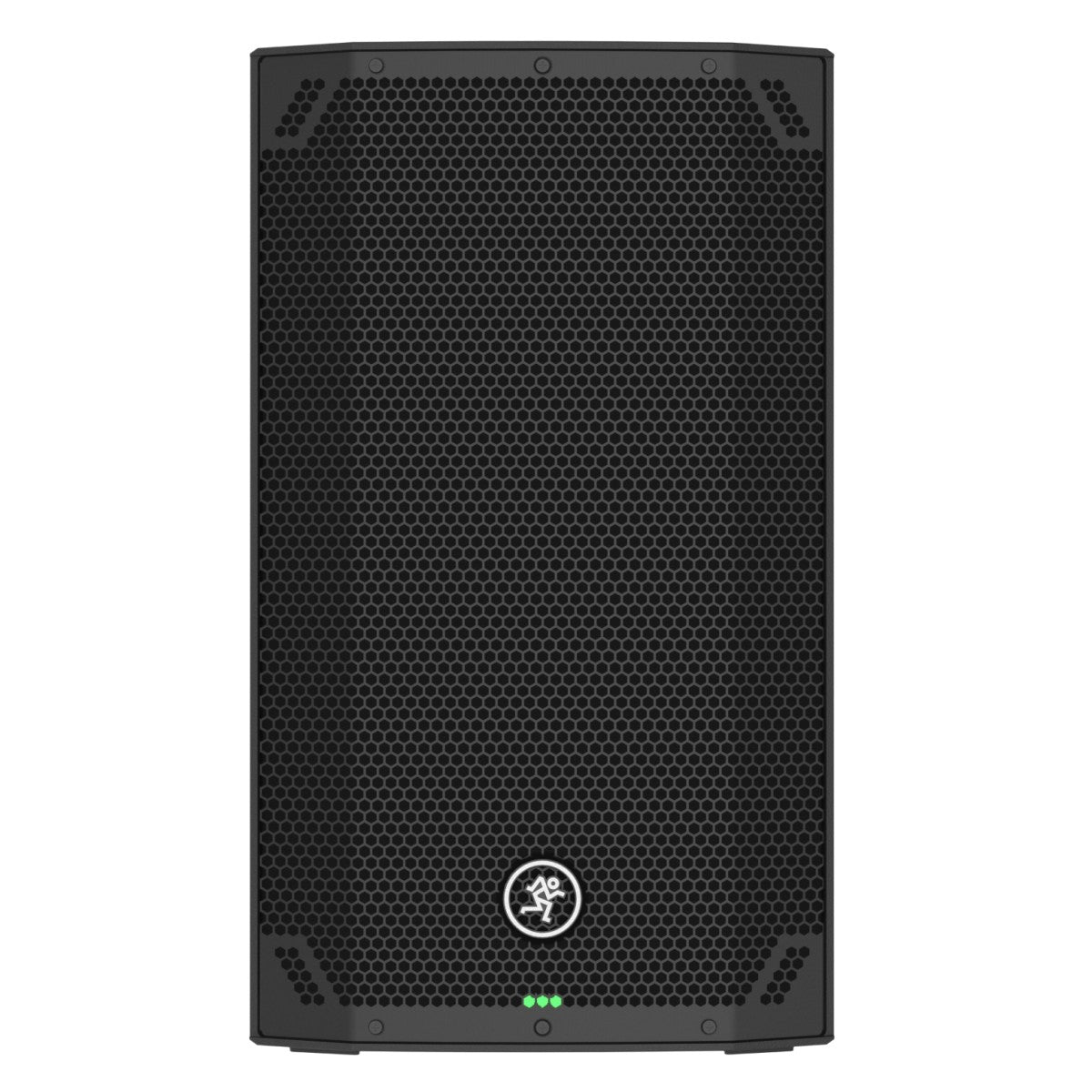

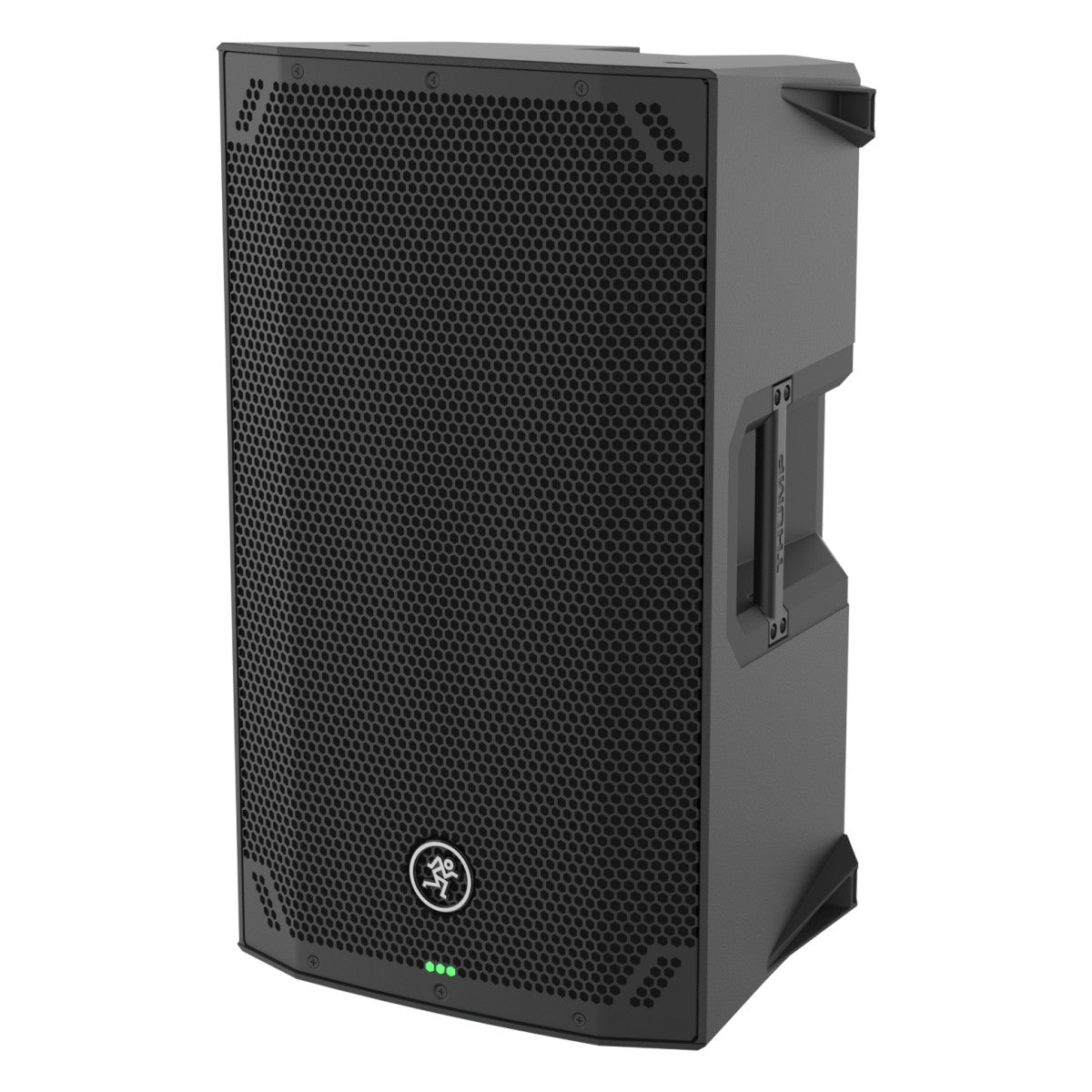

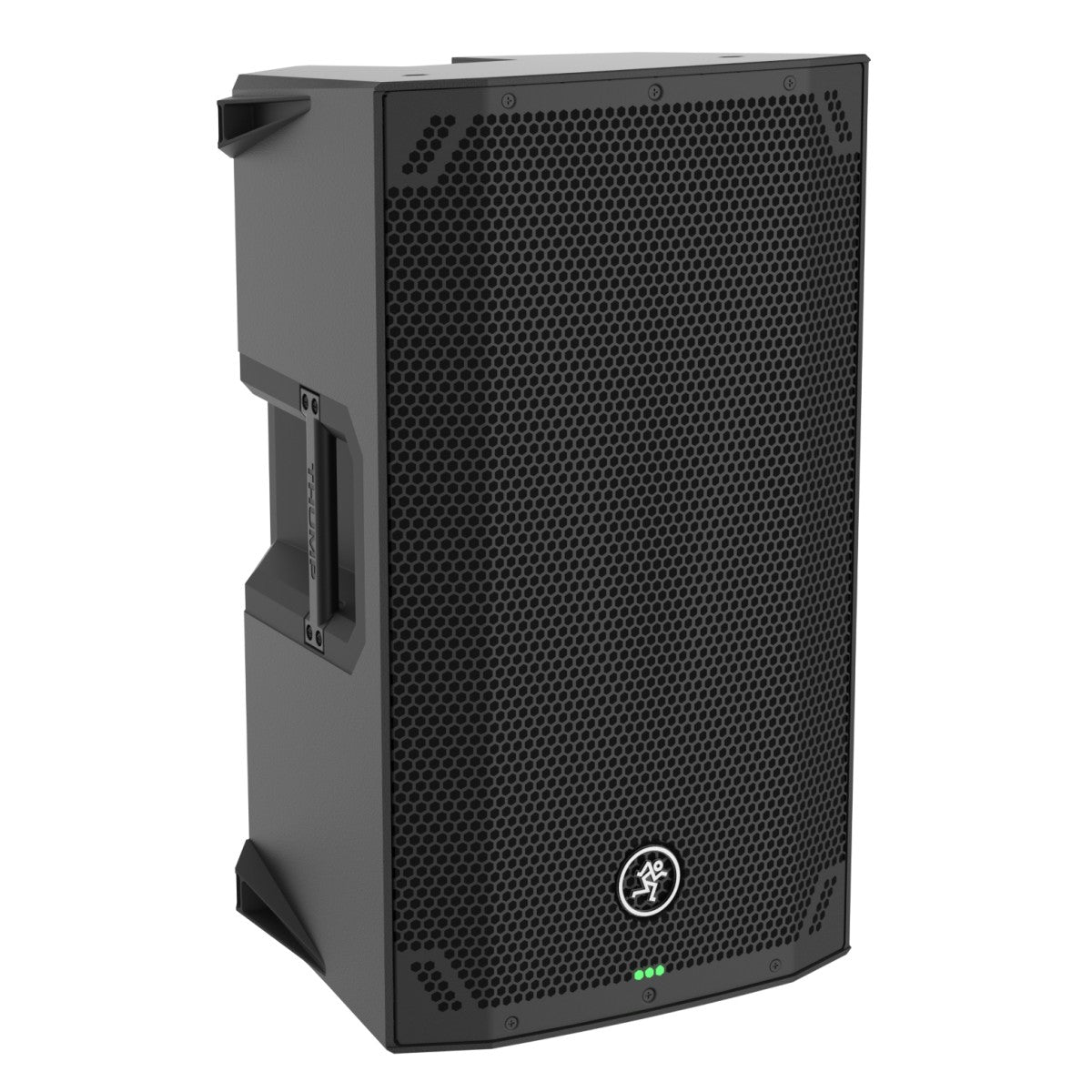

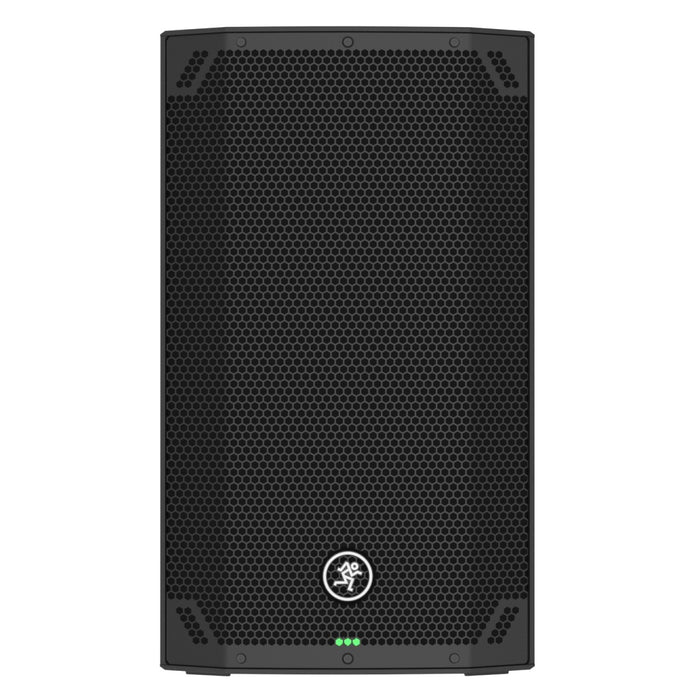

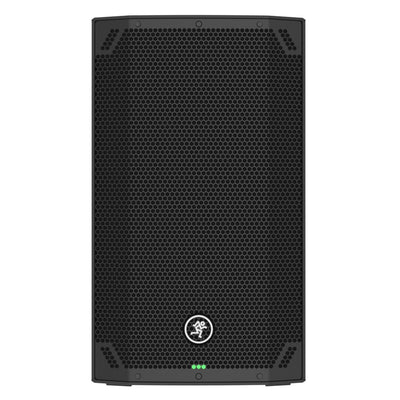

Mackie Thump 12 V4 12" Active PA Speaker
The Mackie Thump12v4 12" Professional Powered Loudspeaker is a powered PA speaker designed for live sound, DJ sets and general audio playback. Delivering up to 129 dB maximum SPL with a 1400W Class-D amplifier, it provides strong output and clear performance for a wide range of applications.
SoundCheck DSP offers simple setup with selectable voicing modes and helpful tools such as feedback elimination and music ducking. Bluetooth connectivity allows wireless streaming, speaker linking and remote control via the Thump Connect 2 app. With a built-in mixer and multiple input options, it connects easily to microphones, instruments and playback devices, making it a practical and flexible choice for portable PA setups
Powerful performance for live sound
The Thump12v4 is built to deliver reliable output for gigs, events and rehearsals. Its 1400W Class-D amplifier drives a 12-inch low frequency driver and 1-inch compression driver, producing a maximum SPL of 129 dB. This ensures clear projection in small to medium venues, while the extended low frequency response down to 39 Hz provides solid bass presence without requiring a subwoofer in many situations.
Simple setup with SoundCheck DSP
SoundCheck DSP makes it easy to tailor the speaker to different uses. Four voicing modes, Flat, DJ, Live and Wedge, optimise the sound for playback, speech or monitoring. Additional features such as Feedback Eliminator, Music Ducking and Outdoor Mode help maintain consistent sound quality in different environments, reducing setup time and allowing users to focus on their performance.
Wireless control and streaming
Bluetooth functionality adds flexibility to your setup. Stream audio directly from a phone or tablet, or link two speakers wirelessly for stereo or dual mono playback. The Thump Connect 2 app provides remote control over settings including EQ, levels and voicing modes, allowing adjustments without needing to access the rear panel.
Flexible connectivity and portable design

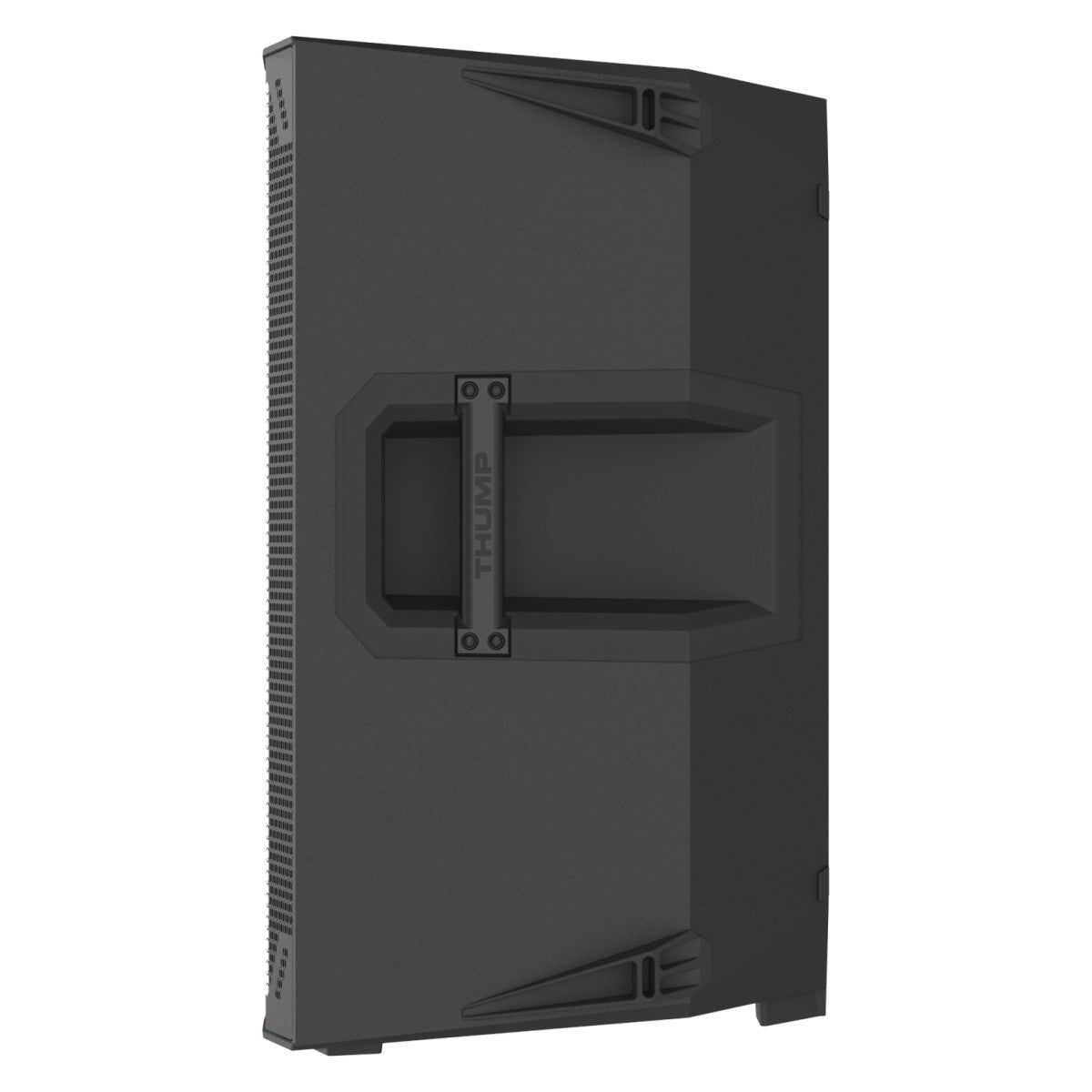

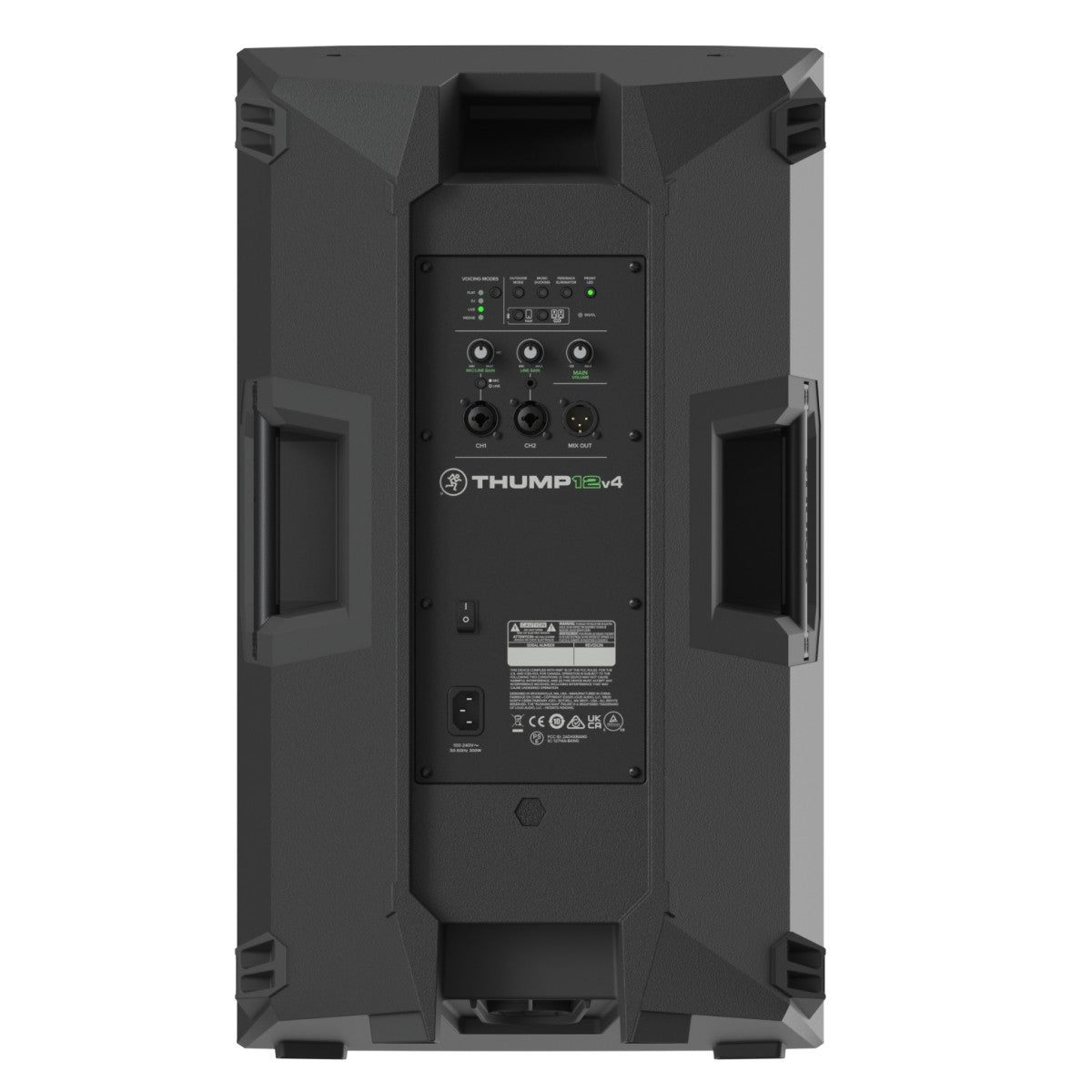

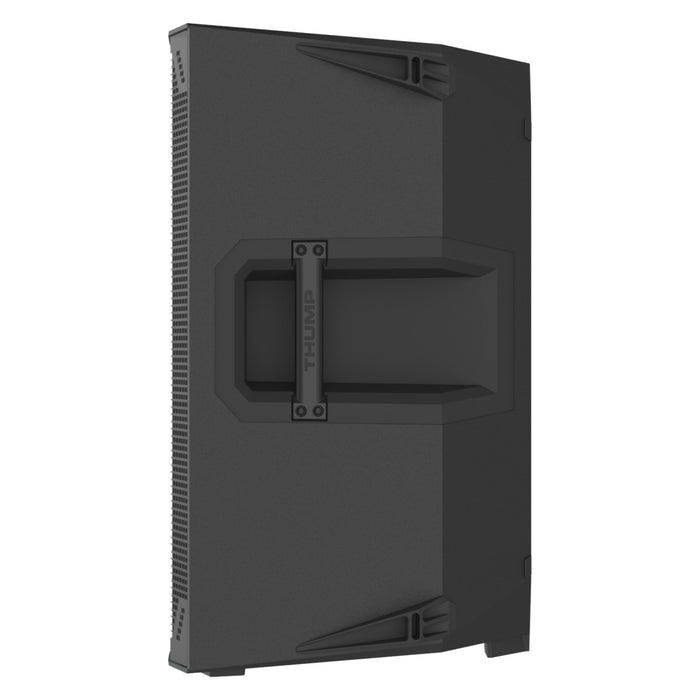

The built-in mixer includes dual XLR/TRS combo inputs, a dedicated mic/line switch and an additional 3.5 mm input, making it easy to connect microphones, DJ controllers and other sources. An XLR mix output allows simple daisy chaining to additional speakers. The rugged enclosure, integrated metal handles and multiple mounting options, including pole mount and M10 fly points, make the Thump12v4 suitable for both portable and installed setups.
Features
- SoundCheck DSP simplifies setup with multiple voicing modes
- Flat, DJ, Live and Wedge modes suit different applications
- Outdoor mode maintains clarity when used outside
- Music ducking automatically lowers playback during speech
- Feedback eliminator helps prevent unwanted noise
- Bluetooth enables wireless streaming and speaker linking
- Thump Connect 2 app allows remote control of settings
- Durable enclosure with metal handles for portability
Specifications
- System Power: 1400W peak
- Maximum SPL: 129 dB
- Frequency Response (-10 dB): 39 Hz to 20 kHz
- Frequency Response (-3 dB): 47 Hz to 20 kHz
- Coverage: 140° horizontal, 60° vertical
- Low Frequency Driver: 12-inch (305 mm) woofer
- High Frequency Driver: 1-inch (25 mm) compression driver
- Amplifier Type: Class D
- Low Frequency Power: 1200W peak
- High Frequency Power: 200W peak
- Crossover Frequency: 1.8 kHz
- Bluetooth Version: 5.0
- Bluetooth Functions: Audio streaming and control
- Inputs: 2 x XLR/TRS combo, 1 x 3.5 mm, Bluetooth
- Mic/Line Impedance: 10 kΩ balanced
- Mix Output: XLR balanced
- Mix Output Impedance: 150 Ω balanced
- Power Supply: 100 to 240V, 50 to 60 Hz
- Power Consumption: 300W
- AC Connector: 3-pin IEC
- Voicing Modes: Flat, DJ, Live, Wedge
- Protection: Peak and RMS limiting, thermal protection
- Mounting Options: Floor, pole mount, M10 fly points
- Monitor Angle: 40°
- Dimensions: 620 x 356 x 356 mm
- Weight: 12.5 kg
