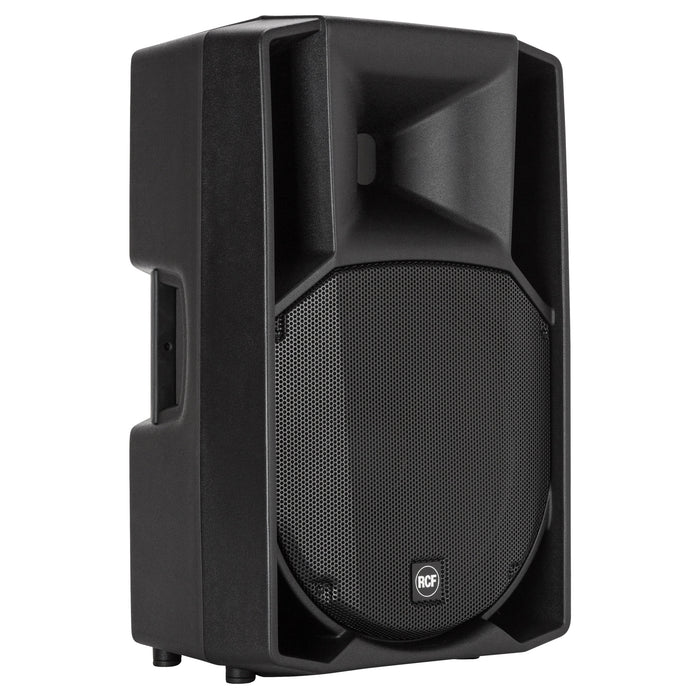

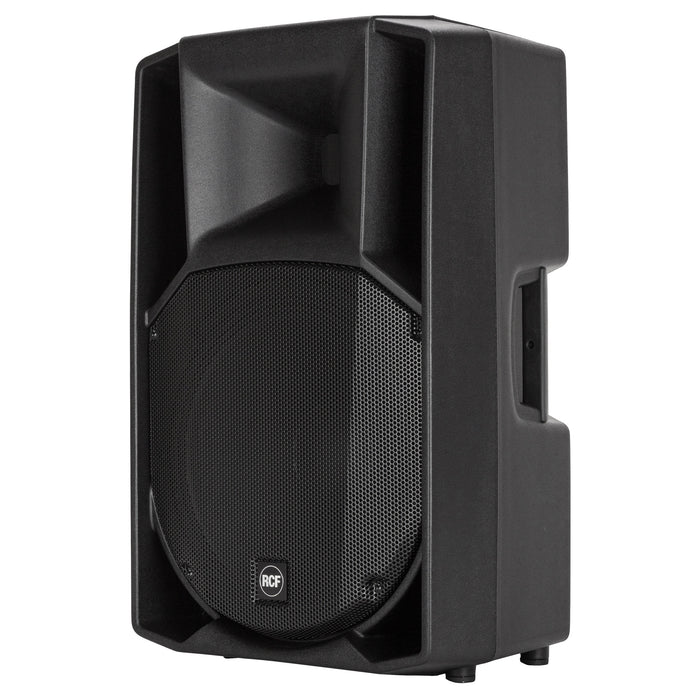

RCF ART 715-A MK4 Active PA Speaker
A unique product in its category. The ART 715-A delivers unique vocal clarity and constant sound coverage thanks to its professional compression driver with custom designed dome and high power voice coil. With a 15" woofer you can expect extremely linear response and precise low frequency control.
Overview:
RCF speakers are designed using a proprietary and advanced FiRPHASE filters to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.
RCF's Class-D power amplifier technology packs huge performance and high efficiency into a lightweight solution. The amplifier features a solid mechanical aluminium structure which stabilises the amplifier during transportation and helps the fan-less heat dissipation. All ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Specification:

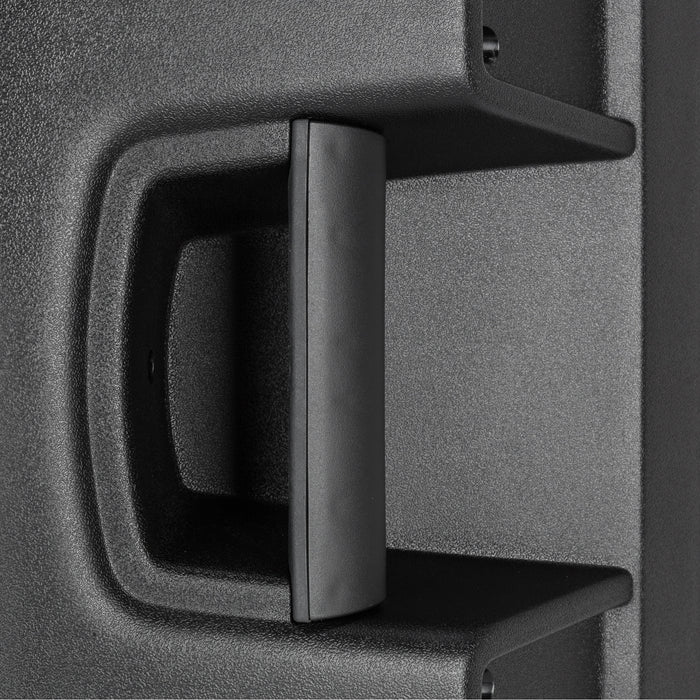

- Handles: 1 Top, 2 Side
- Grille: Steel
-
Frequency Response: 45 Hz ÷ 20000 Hz
-
MAX SPL @ 1M: 130 dB
-
Horizontal Coverage Angle: 90°
-
Vertical Coverage Angle: 60°
-
Compression Driver: 1.0'', 1.75'' v.c
-
Woofer: 15'', 2.5'' v.c
-
Input Signal: bal/unbal
-
Input Connectors: XRL, Jack
-
Output Connectors: XLR
-
Input Sensitivity: -2 dBu/+4 dBu
-
Mic. Input Sensitivity: -32 dBu
-
Crossover Frequencies: 1600 Hz
-
Protections: Thermal, RMS
-
Limiter: Soft Limiter
-
Controls: Volume, Boost, Mic/Line
-
Total Power: 1400 W Peak, 700 W RMS
-
High Frequencies: 400 W Peak, 200 W RMS
-
Low Frequencies: 1000 W Peak, 500 W RMS
-
Cooling: Convection
-
Connections: VDE
