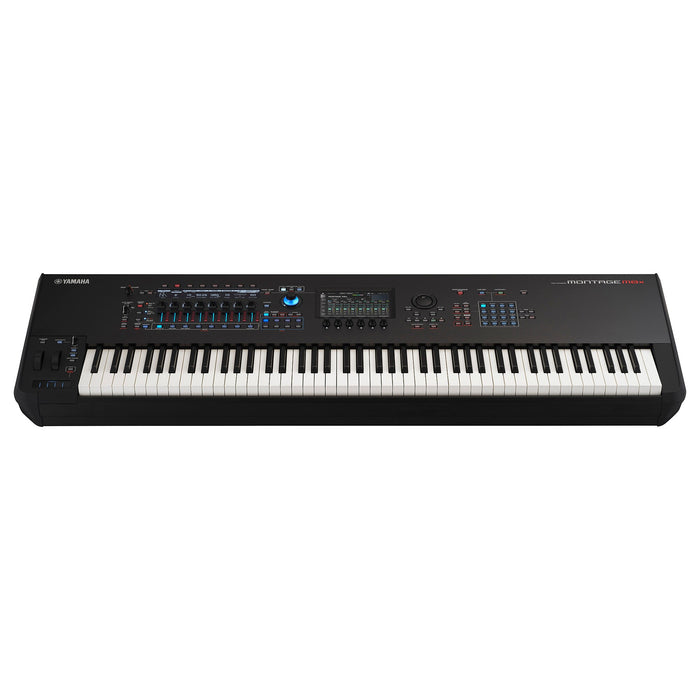

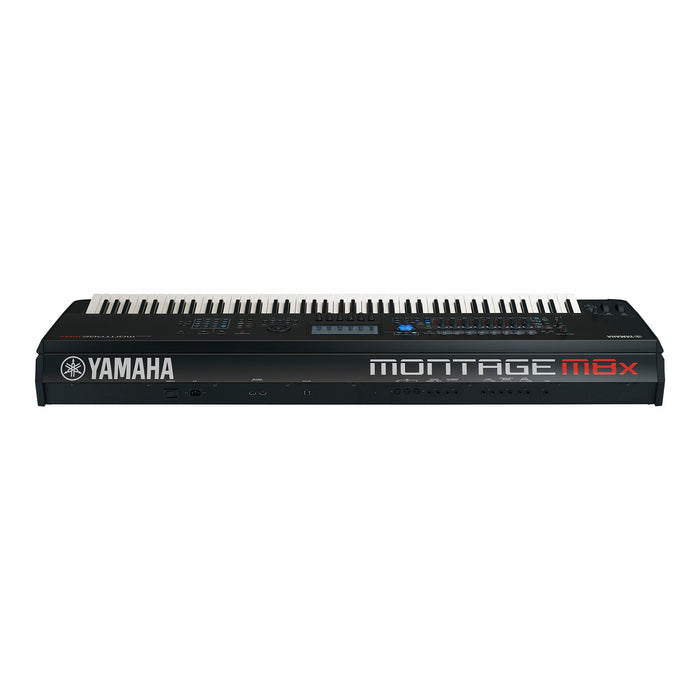

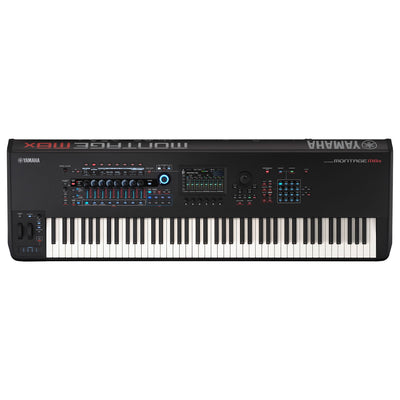

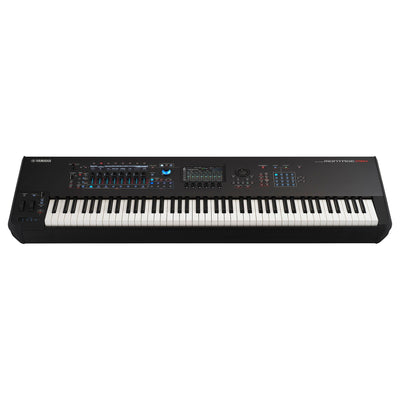

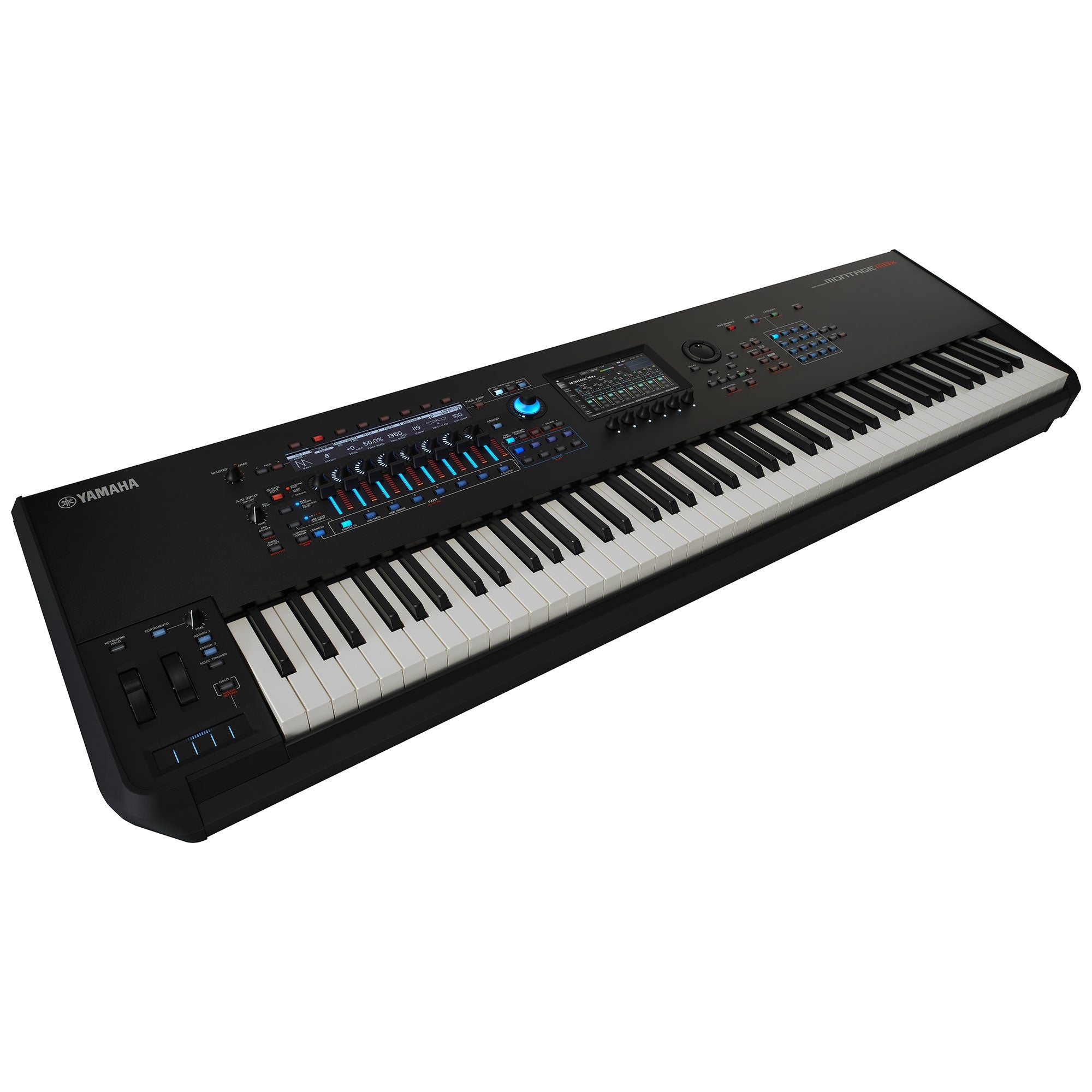

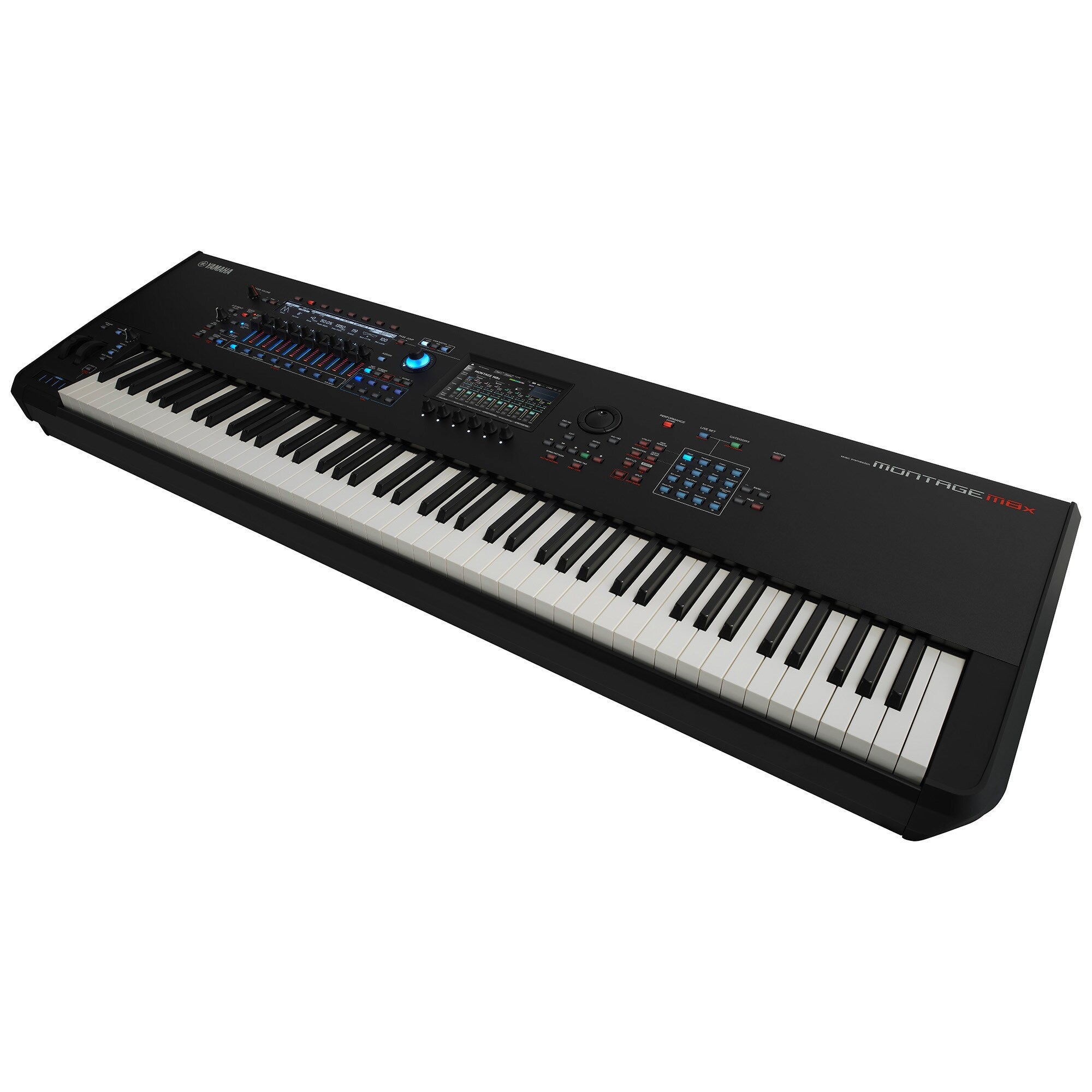

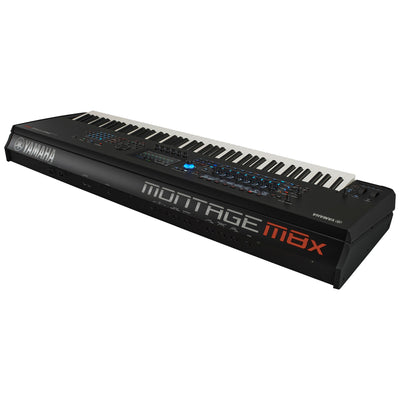

The Yamaha MONTAGE M8x is Yamaha’s flagship 88-note performance synthesizer, combining a premium weighted keyboard with three powerful sound engines, deep Motion Control synthesis, extensive hands-on control and sophisticated stage and studio integration.

The M8x is the largest and most piano-oriented member of the MONTAGE M family.

Its standout feature is Yamaha’s 88-note GEX keyboard with Polyphonic Aftertouch.

Unlike conventional channel aftertouch, Polyphonic Aftertouch can respond independently to pressure on individual held notes. This gives performers far more detailed expressive control over pads, orchestral sounds, evolving textures, leads and sound-design performances.

Yamaha also designed GEX to provide key repetition behaviour inspired by grand piano actions, giving the M8x a distinctly different playing character from the 61-note and 76-note MONTAGE M models.

At the heart of MONTAGE M is Yamaha’s next-generation Motion Control Synthesis Engine combining:

• AWM2

• FM-X

• AN-X

These three engines cover deeply sampled acoustic instruments, powerful frequency-modulation synthesis and virtual-analogue synthesis within one integrated performance architecture.

The current OS v3.0 specification provides 3,487 Performances, 11.29GB of preset waveform memory, 3.7GB of user waveform memory, extensive effects, up to 16 internal Parts, sophisticated arpeggiation, pattern and song sequencing, and a powerful multi-channel USB audio interface.

For professional performers, sound designers, composers, producers and studio musicians who want one flagship keyboard capable of deep synthesis, premium weighted-key performance and serious computer integration, the MONTAGE M8x is Yamaha’s most advanced 88-note synthesizer platform.

QUICK PRODUCT SUMMARY

The Yamaha MONTAGE M8x is an 88-note flagship synthesizer featuring Yamaha’s exclusive GEX weighted keyboard with Polyphonic Aftertouch.

Its three-engine architecture combines:

• AWM2 sample-based synthesis

• FM-X 8-operator FM synthesis

• AN-X virtual-analogue synthesis

The M8x provides up to:

• 256-note AWM2 polyphony

• 128-note FM-X polyphony

• 16-note AN-X polyphony

along with 3,487 Performances, 11.29GB of preset waveform content, 3.7GB of user waveform memory, 16-Part multitimbral operation, extensive Motion Control, a 7-inch colour touchscreen, secondary full-dot display, balanced outputs and multichannel USB audio.

It is particularly well suited to professional stage performance, studio production, advanced sound design, film and media scoring, complex live rigs and players who want expressive polyphonic aftertouch from a premium weighted 88-note keyboard.

AT A GLANCE

Key Detail	Information
Product	Yamaha MONTAGE M8x
Product Type	Flagship Performance Synthesizer
Number of Keys	88
Keyboard	GEX Keyboard
Initial Touch	Yes
Aftertouch	Polyphonic Aftertouch
Sound Engines	AWM2 / FM-X / AN-X
AWM2 Polyphony	256 notes max.
FM-X Polyphony	128 notes max.
AN-X Polyphony	16 notes max.
Multitimbral Capacity	16 internal Parts
Preset Performances	3,487
Preset Wave Memory	11.29GB
User Wave Memory	3.7GB
Arpeggios	10,922+ preset types
Main Display	7-inch colour touchscreen
Secondary Display	512 × 64 full-dot LCD
USB Audio	Up to 32 output channels
Main Outputs	Balanced TRS
Width	1,446mm
Height	170mm
Depth	460mm
Weight	28.1kg
Power Consumption	36W
Condition	New

KEY FEATURES

• Yamaha flagship MONTAGE M synthesizer

• 88-note GEX weighted keyboard

• Polyphonic Aftertouch

• Initial Touch

• Grand-piano-style key repetition behaviour

• AWM2 synthesis

• FM-X synthesis

• AN-X virtual analogue synthesis

• AWM2 with up to 128 Elements per Part

• FM-X with 8 Operators and 88 Algorithms

• AN-X with 3 Oscillators + Noise

• Up to 256-note AWM2 polyphony

• Up to 128-note FM-X polyphony

• Up to 16-note AN-X polyphony

• 16 internal Parts

• 3,487 Performances

• 11.29GB preset waveform memory

• 3.7GB user waveform memory

• 18 filter types

• Extensive insertion, variation, reverb and master effects

• Super Knob

• Ribbon Controller

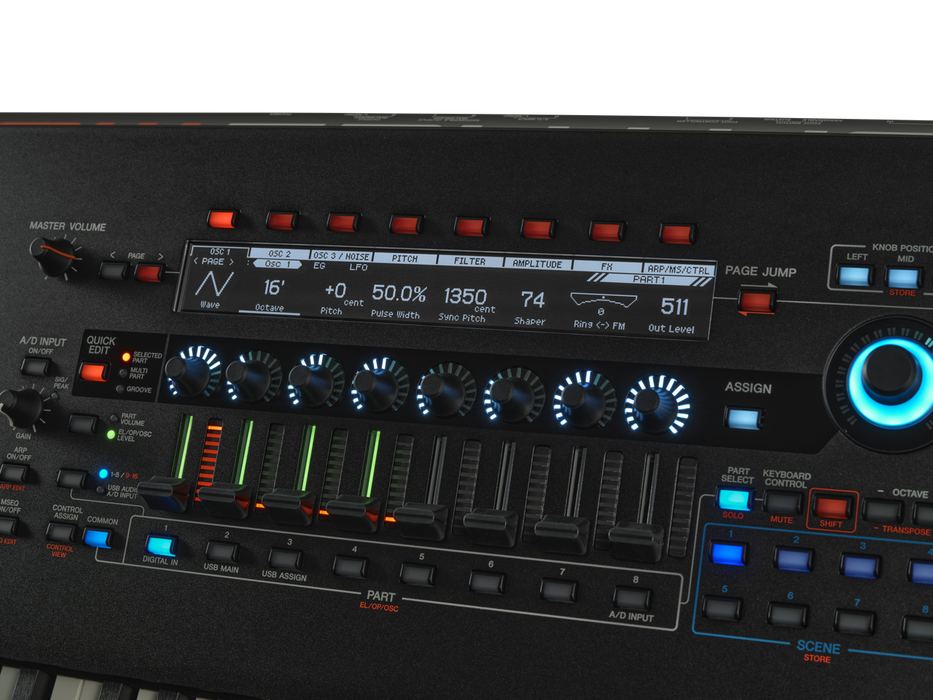

• 8 Control Sliders

• 8 Knobs

• 6 Display Knobs

• Pitch Bend wheel

• Modulation wheel

• Portamento controls

• Keyboard Hold

• Motion Sequencer controls

• 7-inch colour touchscreen

• 512 × 64 secondary full-dot display

• More than 10,922 preset arpeggios

• 128 Patterns

• 128 Songs

• 16 sequence tracks

• USB audio interface

• Balanced main outputs

• Balanced assignable outputs

• MIDI IN / OUT / THRU

• Dual USB TO DEVICE ports

• A/D stereo inputs

• Foot controller and footswitch inputs

• Headphone output

• Includes Cubase AI download information

• Includes Expanded Softsynth Plugin for MONTAGE M download information

WHY YOU’LL LOVE IT

MONTAGE M8x is designed for players who do not want to choose between:

a premium weighted performance keyboard

and

a deep modern synthesizer.

The GEX action gives the M8x the physical presence expected from a serious 88-note stage instrument.

Polyphonic Aftertouch then takes expression much further.

The three sound engines allow you to move between:

deeply sampled acoustic instruments

complex FM synthesis

and

virtual analogue synthesis

without changing keyboards or workflows.

Motion Control allows multiple sound parameters to evolve together.

The Super Knob can transform complete Performances in real time.

The integrated sequencer handles both Pattern and Song workflows.

And the USB audio interface turns the M8x into a serious production hub rather than simply a MIDI controller with internal sounds.

GEX KEYBOARD

The MONTAGE M8x uses Yamaha’s GEX Keyboard.

It is exclusive to the M8x within the MONTAGE M range.

Yamaha designed GEX to provide:

• 88 weighted keys

• Initial Touch

• Polyphonic Aftertouch

• Grand-piano-inspired key repetition behaviour

This makes the M8x particularly attractive to:

• Pianists

• Stage performers

• Film composers

• Sound designers

• Keyboardists using expressive orchestral sounds

• Players who want pressure control on individual notes

Yamaha specifically highlights GEX and Polyphonic Aftertouch as an M8x-exclusive feature.

POLYPHONIC AFTERTOUCH

Polyphonic Aftertouch is one of the defining technologies of the MONTAGE M8x.

Traditional channel aftertouch treats all held notes as one group.

Press harder on one note and the aftertouch data affects the whole keyboard channel.

Polyphonic Aftertouch can respond to individual held notes.

That opens up far more detailed expressive possibilities.

For example, you can:

• Add vibrato to one sustained note without changing another

• Open the filter on selected notes inside a chord

• Increase orchestral intensity on specific tones

• Introduce modulation independently across a pad

• Shape evolving textures with individual finger pressure

For expressive synthesis, this can fundamentally change how a sound is performed.

THREE SOUND ENGINES

The MONTAGE M architecture combines three distinct synthesis systems.

AWM2

Yamaha’s advanced sample-based synthesis engine.

FM-X

Yamaha’s modern 8-operator FM synthesis engine.

AN-X

Yamaha’s latest virtual-analogue synthesis engine.

Rather than operating as unrelated sound modules, these engines can be integrated within sophisticated multi-Part Performances.

AWM2

AWM2 – Advanced Wave Memory 2 is Yamaha’s sample-based sound engine.

On MONTAGE M, an AWM2 Part can contain up to:

128 Elements

This allows extremely detailed instrument programming.

The engine supports up to:

256 notes of polyphony

using stereo or mono waveforms.

AWM2 is particularly important for:

• Acoustic pianos

• Electric pianos

• Strings

• Brass

• Woodwinds

• Guitars

• Percussion

• Layered cinematic instruments

• Hybrid sample/synth sounds

11.29GB PRESET WAVE MEMORY

Yamaha specifies approximately:

11.29GB of preset waveform content

when converted to 16-bit linear format.

That substantial waveform library provides the raw material for thousands of acoustic, electric, orchestral and synthetic sounds.

3.7GB USER WAVE MEMORY

The MONTAGE M platform provides approximately:

3.7GB of user waveform memory.

This gives sound designers and performers substantial space for custom samples, libraries and user content.

FM-X

FM-X provides Yamaha’s advanced frequency-modulation synthesis.

It uses:

• 8 Operators

• 88 Algorithms

FM synthesis can create sounds ranging from:

• Electric pianos

• Bells

• Metallic textures

• Percussion

• Digital basses

• Glassy pads

• Aggressive leads

• Complex evolving soundscapes

The MONTAGE M platform provides up to:

128-note FM-X polyphony.

AN-X VIRTUAL ANALOGUE SYNTHESIS

AN-X introduces Yamaha’s next-generation virtual-analogue synthesis into MONTAGE M.

Each AN-X Part provides:

• 3 Oscillators

• 1 Noise source

AN-X is designed for sounds including:

• Analogue-style basses

• Leads

• Pads

• Poly synths

• Brass

• Sweeps

• Evolving textures

• Classic subtractive synthesis

The AN-X engine provides up to:

16-note polyphony.

3,487 PERFORMANCES

Yamaha currently specifies:

3,487 Performances

on the MONTAGE M platform.

A Performance can contain multiple Parts, layers, splits and Motion Control assignments, making the system much more sophisticated than a conventional one-sound-per-preset architecture.

16-PART MULTITIMBRAL ARCHITECTURE

MONTAGE M supports:

16 internal Parts

plus stereo audio input Parts for:

• A/D input

• USB input

This allows complex setups combining multiple internal sounds and external audio sources.

MOTION CONTROL SYNTHESIS ENGINE

Motion Control is one of the core concepts behind MONTAGE.

Instead of editing every parameter separately during performance, Motion Control allows multiple parameters to interact dynamically.

A single movement can affect:

• Filter

• Volume

• Effects

• Pan

• FM parameters

• Oscillator parameters

• Part levels

• Modulation

• Rhythmic movement

This can transform a Performance gradually or dramatically in real time.

SUPER KNOB

The Super Knob is one of Yamaha’s signature MONTAGE controllers.

It can control multiple parameter destinations simultaneously.

A single turn can:

• Blend Parts

• Open filters

• Change effects

• Alter FM timbres

• Transform dynamics

• Change spatial effects

• Move between complete sound states

This makes it particularly effective during live performance.

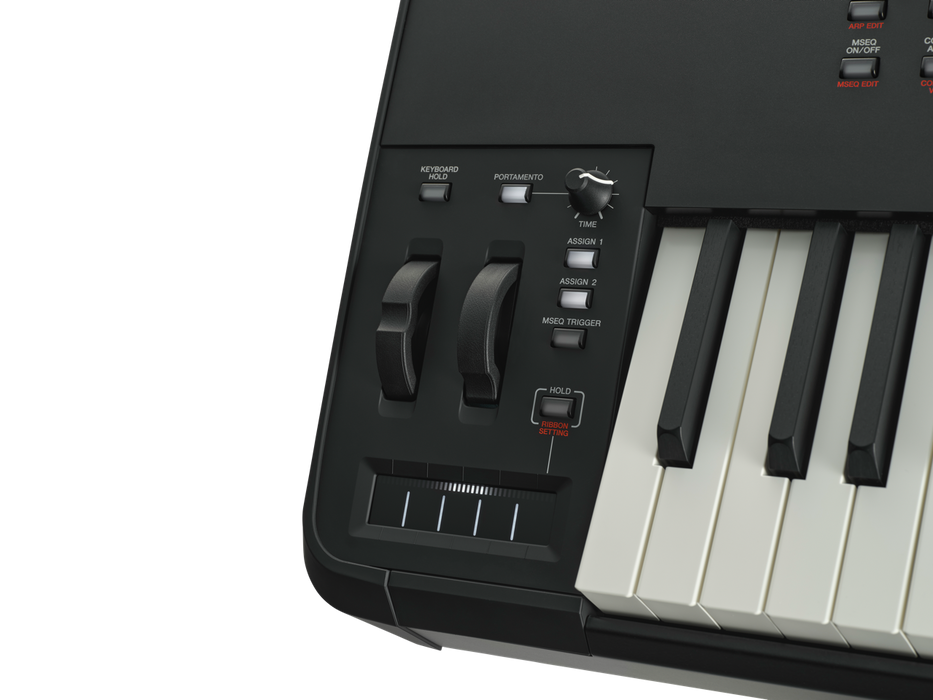

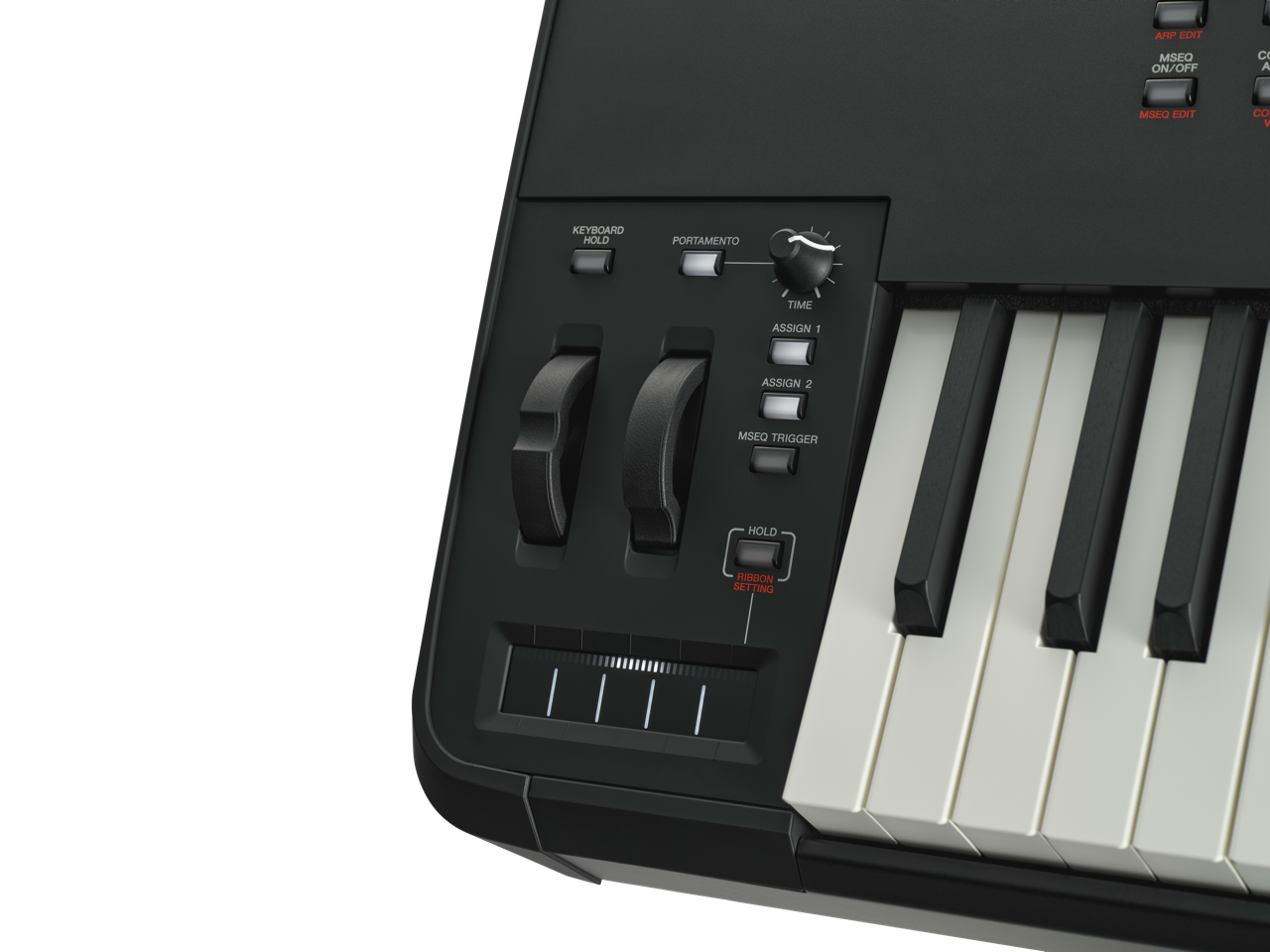

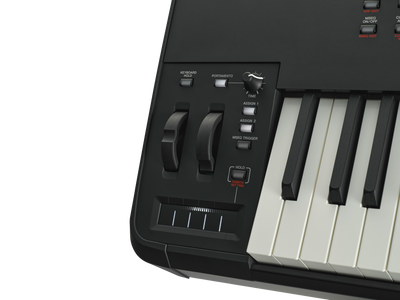

RIBBON CONTROLLER

The MONTAGE M adds a 5-segment Ribbon Controller with a dedicated Hold function.

The ribbon provides another expressive control source for:

• Pitch

• Filters

• Modulation

• Effects

• Morphing

• Motion Control destinations

Yamaha specifically highlights the new ribbon and Hold implementation as part of the expanded MONTAGE M performance-control system.

KEYBOARD HOLD

The dedicated Keyboard Hold function can sustain a chord or note structure while your hands move to other controls.

This can be especially useful during:

• Sound design

• Filter manipulation

• FM editing

• Motion Sequencing

• Live transitions

• Ambient performance

PORTAMENTO CONTROLS

MONTAGE M includes:

• Dedicated Portamento on/off

• Dedicated Portamento time control

This makes glide-based performance much faster to access than burying the function inside menus.

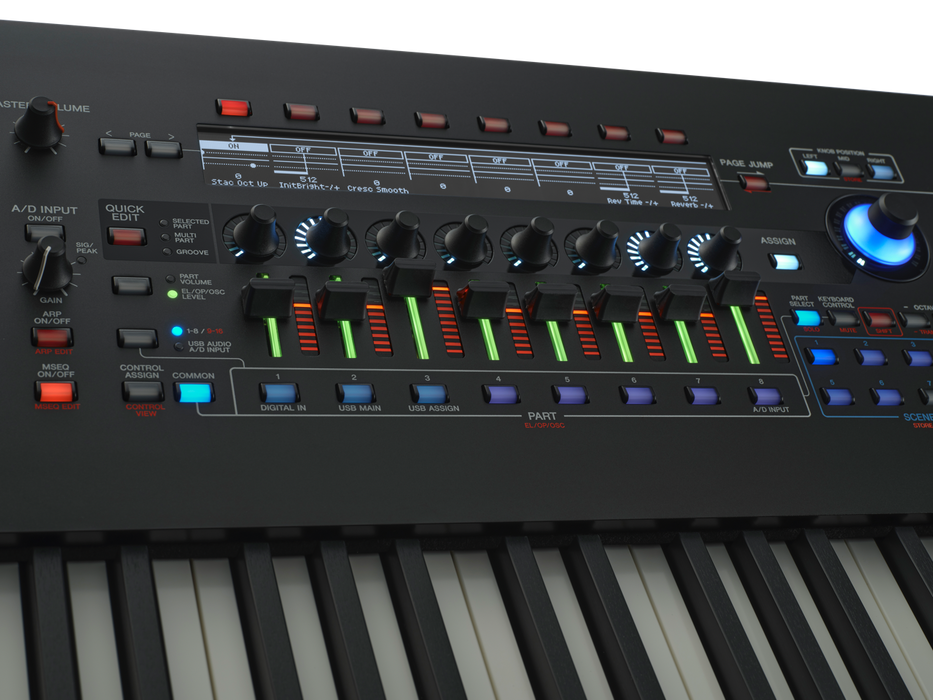

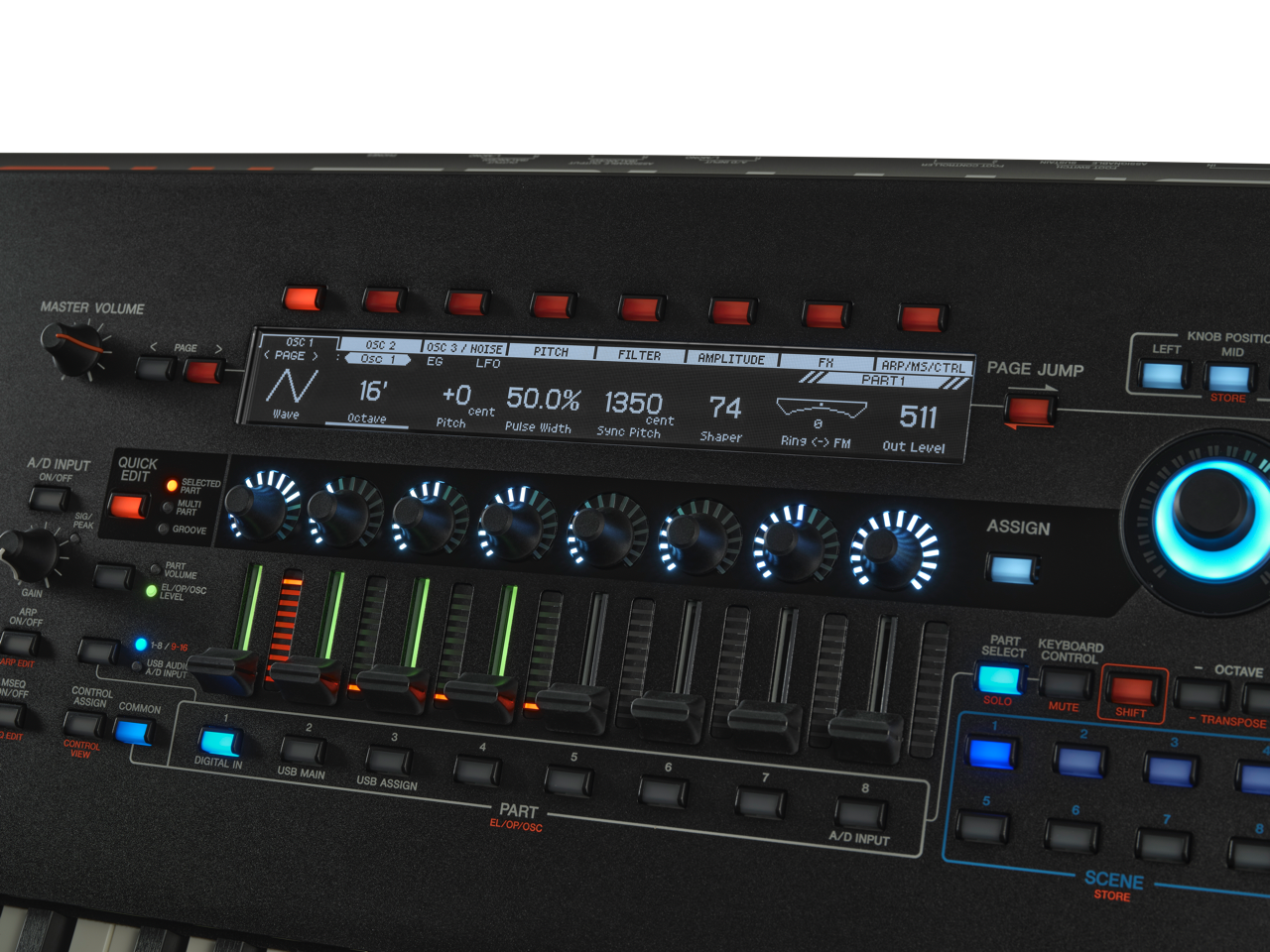

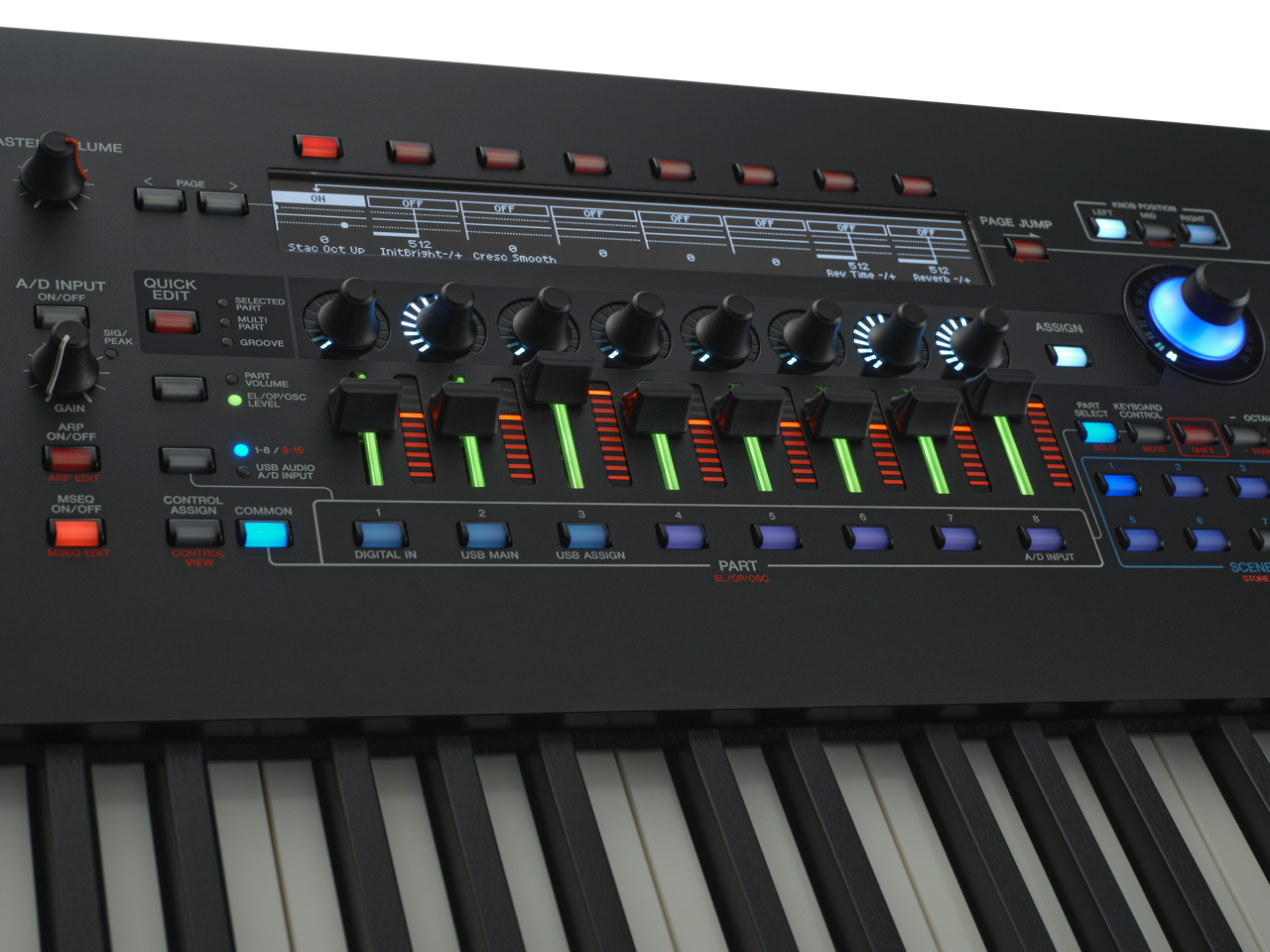

8 CONTROL SLIDERS

The front panel provides:

8 Control Sliders

These are particularly useful for:

• Part levels

• Drawbar-style organ control

• Performance mixing

• Sound design

• Real-time changes

8 CONTROL KNOBS

Eight assignable control knobs provide additional hands-on access to synthesis and Performance parameters.

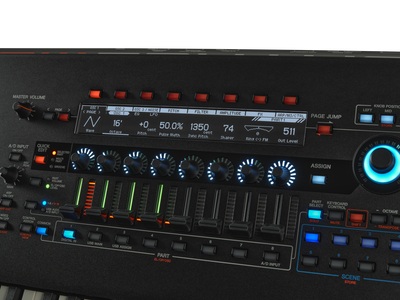

7-INCH COLOUR TOUCHSCREEN

The primary display is a:

7-inch TFT colour Wide VGA touchscreen.

This provides visual access to:

• Performance selection

• Editing

• Mixing

• Motion Control

• Effects

• Utility functions

• Sequencing

• Sound design

SECONDARY FULL-DOT DISPLAY

MONTAGE M also incorporates a:

512 × 64 full-dot LCD

in addition to the touchscreen.

This second display helps keep key performance information visible while working with physical controllers.

EFFECTS

The current MONTAGE M specification provides:

• 13 Reverb types

• 91 Variation types

• Up to 91 Insertion A types

• Up to 94 Insertion B types

• 28 Master Effect types

• 5-band Master EQ

• 3-band first Part EQ

• 2-band second Part EQ

The extensive effects system allows each Performance to move from subtle enhancement to radical sound transformation.

18 FILTER TYPES

MONTAGE M provides:

18 filter types

giving sound designers a wide range of tonal-shaping options across the synthesis engines.

OVER 10,922 PRESET ARPEGGIOS

The MONTAGE M platform provides more than:

10,922 preset arpeggio types

with up to:

8 Parts simultaneously

plus:

256 user arpeggios.

Arpeggios can cover far more than simple note patterns.

They can contribute:

• Instrument articulations

• Rhythmic movement

• Guitar strumming

• Drum patterns

• Sequenced synth figures

• Motion textures

• Performance phrases

PERFORMANCE RECORDER

MONTAGE M incorporates an extensive Performance Recorder.

Yamaha specifies approximately:

130,000 notes per individual Song or Pattern

with larger total storage areas available for stored Song and Pattern data.

128 PATTERNS

The integrated Pattern Sequencer supports:

128 Patterns

with:

16 sequence tracks

and both real-time Replace and Overdub recording modes.

128 SONGS

The Song system provides:

128 Songs

with:

• 16 sequence tracks

• Tempo track

• Scene track

Recording modes include:

• Real-time Replace

• Real-time Overdub

• Real-time Punch In/Out

480 PPQ SEQUENCER RESOLUTION

The sequencer operates at:

480 parts per quarter note – PPQ

providing detailed timing resolution for MIDI sequencing.

USB AUDIO INTERFACE

The MONTAGE M8x includes a sophisticated multi-channel USB audio interface.

At:

44.1kHz

the system supports:

• 6 input channels / 3 stereo

• 32 output channels / 16 stereo

At sample rates from:

44.1kHz up to 192kHz

it supports:

• 6 input channels / 3 stereo

• 8 output channels / 4 stereo

This makes MONTAGE M much more than a keyboard connected to a DAW.

It can operate as a substantial studio audio interface in its own right.

BALANCED MAIN OUTPUTS

The main stereo outputs are:

6.3mm balanced TRS

with:

• L/MONO

• R

Balanced outputs are particularly useful in professional stage and studio setups because they can reduce susceptibility to unwanted interference over longer cable runs.

BALANCED ASSIGNABLE OUTPUTS

A separate pair of:

Balanced Assignable Outputs

provides additional routing flexibility.

This can be useful for:

• Separate monitor mixes

• External processing

• Routing selected Parts

• Stage rigs

• Studio recording

A/D AUDIO INPUTS

The MONTAGE M8x includes stereo:

A/D INPUT L/MONO and R

allowing external audio sources to be incorporated into the Performance architecture.

MIDI IN / OUT / THRU

Traditional 5-pin MIDI connectivity includes:

• MIDI IN

• MIDI OUT

• MIDI THRU

This makes the M8x easy to integrate into complex hardware-based MIDI rigs.

TWO USB TO DEVICE PORTS

The M8x provides:

2 × USB TO DEVICE

along with:

USB TO HOST

for computer integration.

FOOT CONTROLLER CONNECTIONS

MONTAGE M8x provides:

• Foot Controller 1

• Foot Controller 2

• Sustain Footswitch

• Assignable Footswitch

This allows extensive hands-free control during performance.

EXPANDED SOFTSYNTH PLUGIN FOR MONTAGE M

Registered MONTAGE M owners can access Yamaha’s Expanded Softsynth Plugin – ESP.

ESP allows compatible MONTAGE M Performances to be created, edited and mixed within supported computer environments without requiring the hardware to be physically present for every stage of production.

Yamaha currently lists ESP support for Windows and macOS in VST3, with AU v2 support on Mac.

CUBASE AI

The standard MONTAGE M accessory package includes Cubase AI download information, giving new owners a route into computer-based music production.

WHO IS IT FOR?

The Yamaha MONTAGE M8x is particularly well suited to:

• Professional keyboardists

• Touring musicians

• Stage pianists

• Synthesizer players

• Film composers

• Media composers

• Studio producers

• Sound designers

• Electronic musicians

• Musical directors

• Session players

• Advanced piano players

• Players wanting Polyphonic Aftertouch

• Musicians building complex stage rigs

• Producers using DAW-based workflows

PLAYING STYLES & APPLICATIONS

The MONTAGE M8x is exceptionally capable for:

• Piano

• Electric piano

• Synth leads

• Synth bass

• Pads

• Ambient music

• Cinematic scoring

• Orchestral textures

• Electronic music

• Progressive music

• Pop

• Rock

• Jazz

• Gospel

• R&B

• Fusion

• Film scoring

• Sound design

• Studio production

• Live performance

MONTAGE M8x VS MONTAGE M7

The sound engine is fundamentally the same across the MONTAGE M range.

The major differences are keyboard format and performance feel.

MONTAGE M8x

• 88 keys

• GEX weighted keyboard

• Polyphonic Aftertouch

• 1,446mm wide

• 28.1kg

MONTAGE M7

• 76 keys

• FSX synth-action keyboard

• Channel Aftertouch

• 1,244mm wide

• 17.6kg

Choose the M8x when piano-style weighting and Polyphonic Aftertouch matter.

Choose the M7 when lower weight and a faster synth-style action are more important.

MONTAGE M8x VS MONTAGE M6

MONTAGE M8x

• 88-note GEX weighted action

• Polyphonic Aftertouch

• Largest chassis

• 28.1kg

MONTAGE M6

• 61-note FSX synth action

• Channel Aftertouch

• Compact chassis

• 15.3kg

The M6 is significantly easier to transport.

The M8x provides the most substantial performance keyboard and the most advanced aftertouch implementation.

MONTAGE M8x VS ORIGINAL MONTAGE8

The MONTAGE M8x represents a substantial evolution from the original MONTAGE8.

Original MONTAGE8

• Balanced Hammer Effect keyboard

• Channel Aftertouch

• AWM2 + FM-X

• Up to 128-note AWM2 polyphony

• 8 Elements per AWM2 Part

• No AN-X engine

MONTAGE M8x

• GEX keyboard

• Polyphonic Aftertouch

• AWM2 + FM-X + AN-X

• Up to 256-note AWM2 polyphony

• Up to 128 Elements per AWM2 Part

• Expanded controller architecture

• Expanded USB audio capability

• Secondary display

• Updated Motion Control environment

The M8x therefore represents far more than a simple cosmetic revision of MONTAGE.

PRODUCT SPECIFICATIONS

Specification	Yamaha MONTAGE M8x
Product Type	Flagship Music Synthesizer
Number of Keys	88
Keyboard	GEX Keyboard
Initial Touch	Yes
Aftertouch	Polyphonic Aftertouch
Sound Engines	AWM2 / FM-X / AN-X
AWM2 Elements	Up to 128 per Part
FM-X	8 Operators / 88 Algorithms
AN-X	3 Oscillators + Noise
AWM2 Polyphony	256 max.
FM-X Polyphony	128 max.
AN-X Polyphony	16 max.
Internal Parts	16
Preset Wave Memory	11.29GB
User Wave Memory	3.7GB
Preset Performances	3,487
Filter Types	18
Reverb Types	13
Variation Types	91
Master Effects	28
Preset Arpeggios	10,922+
User Arpeggios	256
Simultaneous Arpeggio Parts	8 max.
Patterns	128
Pattern Tracks	16
Songs	128
Song Tracks	16 + Tempo + Scene
Note Resolution	480 PPQ
Tempo Range	5–300 BPM
Main Display	7-inch TFT colour touchscreen
Secondary Display	512 × 64 full-dot LCD
Control Sliders	8
Control Knobs	8
Ribbon Controller	Yes
Super Knob	Yes
Pitch Bend	Yes
Modulation Wheel	Yes
USB TO DEVICE	2
USB TO HOST	Yes
MIDI	IN / OUT / THRU
Main Outputs	Balanced L/MONO + R TRS
Assignable Outputs	Balanced L + R TRS
A/D Inputs	L/MONO + R
Headphones	6.3mm stereo
Foot Controllers	2
Footswitches	Sustain + Assignable
Width	1,446mm
Height	170mm
Depth	460mm
Weight	28.1kg
Power Consumption	36W
Condition	New

Yamaha’s current OS v3.0 specification confirms these figures.

DIMENSIONS & WEIGHT

The Yamaha MONTAGE M8x measures approximately:

Width: 1,446mm
Height: 170mm
Depth: 460mm
Weight: 28.1kg

Its shipping carton measures approximately:

1,647 × 261 × 572mm.

At 28.1kg, the M8x is a substantial professional instrument, so players intending to move it regularly should consider a suitably strong stand and protective case.

POWER REQUIREMENTS

Yamaha specifies power consumption of approximately:

36W.

The instrument uses a mains AC power connection rather than an external low-voltage adaptor.

🎵 FAIR DEAL MUSIC EXPERT VERDICT ★★★★★

Best suited for: Professional players, producers, composers and advanced keyboardists wanting an 88-note flagship synthesizer that combines premium weighted action with exceptionally deep synthesis and studio integration.

Likely upgrade path: Particularly relevant for original MONTAGE8 owners, stage-piano players who need deeper synthesis, and professional keyboardists moving from conventional aftertouch to Polyphonic Aftertouch.

Useful pairings: A heavy-duty professional keyboard stand, high-quality expression pedals, sustain pedal, robust 88-note flight case and professional studio or stage monitoring.

Our tip: The reason to choose the M8x rather than M7 or M6 is not simply “more keys.” GEX and Polyphonic Aftertouch fundamentally change the playing interface. If your performances rely heavily on piano technique, orchestral expression, evolving pads or per-note pressure control, that difference is significant.

FDM view: The MONTAGE M8x is one of those instruments where the keyboard and synthesis engine genuinely deserve equal attention. GEX makes it a serious 88-note performance instrument, while AWM2, FM-X and AN-X make it a deeply programmable synthesizer. Add Motion Control, the Super Knob, extensive hardware controls and a serious multichannel USB interface, and you have a workstation designed equally for stage and studio.

WHY BUY FROM FAIR DEAL MUSIC?

When you buy from Fair Deal Music, you're choosing one of the UK's most established, independent family run music retailers since 1987.

Our keyboard and synth team can help with:

• MONTAGE M8x vs M7 comparisons

• MONTAGE M8x vs stage-piano comparisons

• Polyphonic Aftertouch questions

• Expression and sustain pedal options

• Professional stands

• Cases and transport

• Studio integration

• USB audio setup

• MIDI routing

• Part exchange

PART EXCHANGE / TRADE-IN

Trade In. Trade Up.

Already own a synthesizer, workstation, digital piano or stage keyboard?

Fair Deal Music welcomes part-exchange enquiries on suitable musical instruments.

Simply provide:

• Make

• Exact model

• Condition

• Included accessories

and our team can provide a no-obligation valuation towards your new Yamaha MONTAGE M8x.

FREQUENTLY ASKED QUESTIONS

How many keys does the Yamaha MONTAGE M8x have?

88.

What keyboard action does it use?

Yamaha’s GEX weighted keyboard.

Does it have Polyphonic Aftertouch?

Yes.

The MONTAGE M8x uses Polyphonic Aftertouch, meaning pressure can be detected independently on individual held notes.

Do the MONTAGE M6 and M7 also have Polyphonic Aftertouch?

No.

They use Channel Aftertouch.

Polyphonic Aftertouch is exclusive to the M8x within the MONTAGE M range.

What sound engines are included?

Three:

• AWM2

• FM-X

• AN-X

What is AWM2?

AWM2 is Yamaha’s advanced sample-based synthesis engine.

What is FM-X?

FM-X is Yamaha’s modern 8-operator FM synthesis system with 88 algorithms.

What is AN-X?

AN-X is Yamaha’s virtual-analogue synthesis engine.

How much AWM2 polyphony does it have?

Up to:

256 notes.

How much FM-X polyphony?

Up to:

128 notes.

How much AN-X polyphony?

Up to:

16 notes.

How many Performances are included?

Yamaha currently specifies:

3,487 Performances.

How much preset waveform memory is included?

Approximately:

11.29GB, converted to 16-bit linear format.

How much user waveform memory is available?

Approximately:

3.7GB.

How many Parts can a Performance use?

Up to:

16 internal Parts.

How many arpeggios are included?

More than:

10,922 preset arpeggio types.

How many arpeggio Parts can run simultaneously?

Up to:

8 Parts.

Does it have a sequencer?

Yes.

It provides:

• 128 Patterns

• 128 Songs

• 16 sequence tracks

Does it have a touchscreen?

Yes.

The main interface is a 7-inch colour touchscreen.

What is the second screen for?

The MONTAGE M also provides a 512 × 64 full-dot LCD that works alongside the main touchscreen and physical controls.

Does it have balanced outputs?

Yes.

Both the main stereo outputs and assignable outputs use balanced 6.3mm TRS connections.

Does it have conventional MIDI sockets?

Yes.

It provides:

• MIDI IN

• MIDI OUT

• MIDI THRU

Does it have USB audio?

Yes.

At 44.1kHz it can provide up to:

6 input channels and 32 output channels.

At sample rates up to 192kHz, Yamaha specifies:

6 inputs and 8 outputs.

Does it include built-in speakers?

No.

The MONTAGE M8x is a professional synthesizer designed for use with headphones, stage amplification, studio monitors or a PA system.

Does it include a sustain pedal?

Yamaha’s current published accessory list does not specify a sustain pedal as a standard included accessory.

Does it include Cubase?

Yamaha includes Cubase AI download information.

What is ESP?

ESP is Yamaha’s Expanded Softsynth Plugin for MONTAGE M, providing compatible software-based access to the MONTAGE M environment for production workflows.

How large is the MONTAGE M8x?

Approximately:

1,446mm wide × 170mm high × 460mm deep.

How much does it weigh?

Approximately:

28.1kg.

How much power does it consume?

Approximately:

36W.

Is the MONTAGE M8x the replacement for the original MONTAGE8?

It is the current 88-note flagship in Yamaha’s MONTAGE M generation and represents a major evolution of the original MONTAGE concept, adding GEX, Polyphonic Aftertouch, AN-X, expanded AWM2 and updated control and integration features.

WHAT’S INCLUDED?

Yamaha currently specifies:

• 1 × Yamaha MONTAGE M8x

• AC power cord

• Quick Guide

• Cubase AI download information

• Expanded Softsynth Plugin for MONTAGE M download information

No stand, pedal, case, headphones or amplification system is listed by Yamaha as part of the standard package.

EXPRESSIVE 88-NOTE CONTROL. THREE SYNTHESIS ENGINES. ONE FLAGSHIP INSTRUMENT.

The Yamaha MONTAGE M8x starts with a serious physical interface:

88-note GEX weighted keyboard.

Polyphonic Aftertouch.

Then it gives you three completely different ways to create sound:

AWM2.

FM-X.

AN-X.

Add:

256-note AWM2 polyphony.

128-note FM-X polyphony.

Motion Control.

Super Knob.

Ribbon Controller.

10,922+ arpeggios.

3,487 Performances.

Multichannel USB audio.

Balanced professional outputs.

And a control surface built for live manipulation rather than menu diving.

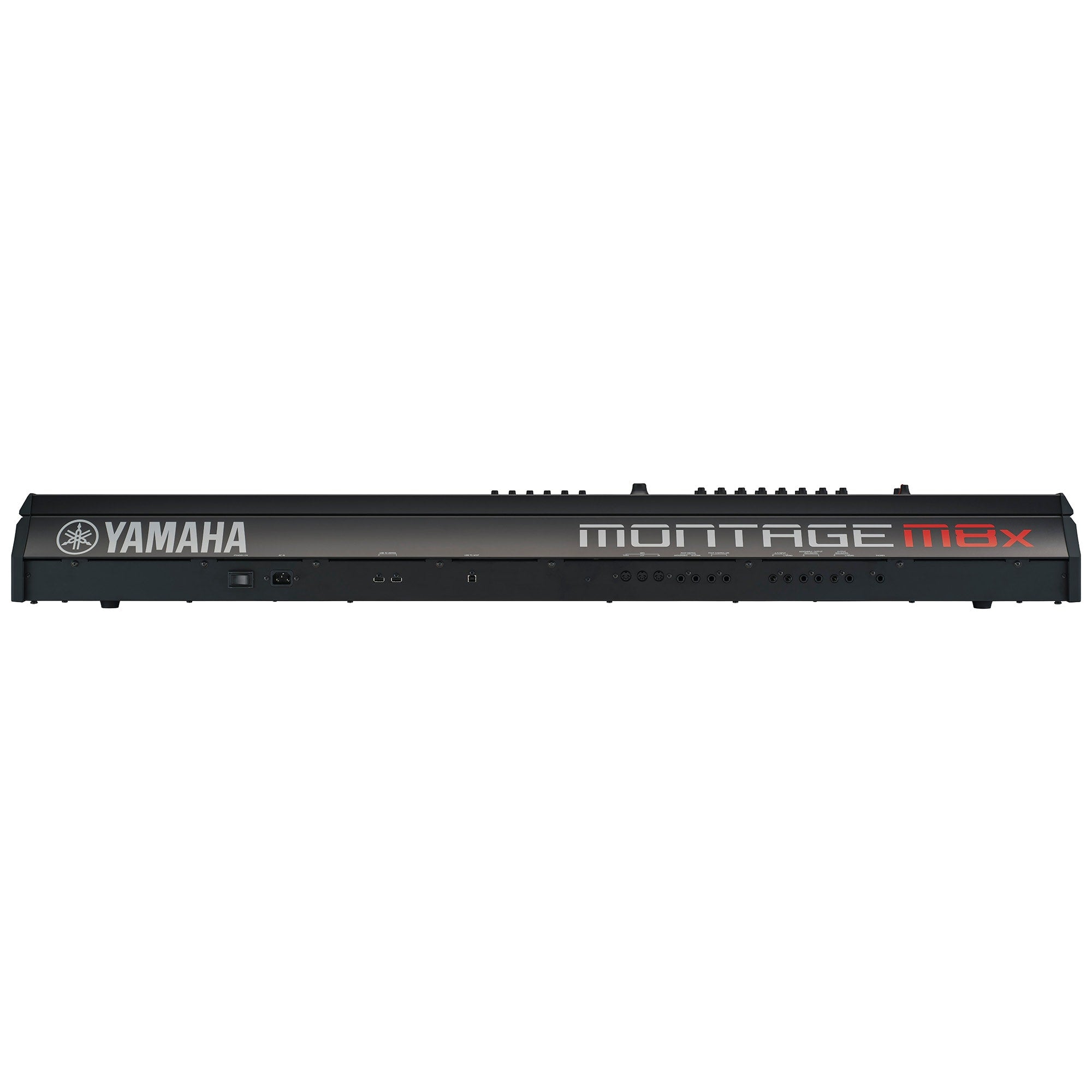

For professional keyboardists who want piano-weighted control without sacrificing deep synthesis, the MONTAGE M8x is Yamaha’s definitive flagship.
