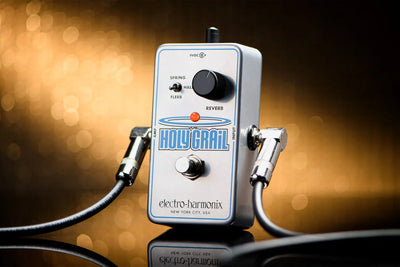

Electro Harmonix Holy Grail Reverb Nano Pedal

The Electro-Harmonix Holy Grail Nano delivers three distinctive reverb sounds through one of the most straightforward control layouts available. From authentic amplifier-style spring ambience and spacious hall reverb to the unusual flanged textures of Flerb mode, it covers both essential and creative sounds without complicated menus or programming.

Its single Reverb control adjusts the balance between the original instrument signal and the effect, allowing everything from a subtle touch of space to a dramatically wet, atmospheric sound. A three-position selector provides immediate access to Spring, Hall and Flerb modes, making the Holy Grail Nano easy to adjust during rehearsals, recording sessions and live performances.

With digital reverb processing, true-bypass switching and a compact pedalboard-friendly enclosure, the Holy Grail Nano is ideal for players who want dependable Electro-Harmonix reverb with minimal controls and maximum musicality.

Quick Product Summary

The Electro-Harmonix Holy Grail Nano is a compact digital reverb pedal featuring three carefully voiced algorithms: Spring, Hall and Flerb.

Spring recreates the lively, resonant character associated with traditional amplifier spring tanks. Hall produces smooth, spacious ambience suited to a wide range of musical styles, while Flerb combines reverb and flanging for a distinctive moving texture.

A single wet/dry Reverb control keeps operation immediate, while true bypass removes the active circuit from the signal path when the pedal is disengaged.

At A Glance

Feature	Details
Brand	Electro-Harmonix
Model	Holy Grail Nano
Product Type	Digital reverb pedal
Reverb Algorithms	Spring, Hall and Flerb
Main Control	Reverb wet/dry balance
Mode Selection	Three-position slide switch
Bypass	True bypass
Audio Format	Mono
Power	9.6V DC
Current Draw	105mA
Power Adapter	Included
Battery Operation	No
Dimensions	4.5 × 2.75 × 2.1 inches
Main Appeal	Three musical reverbs with exceptionally simple operation
Best For	Rock, blues, country, surf, indie, ambient and experimental music
Suitable Instruments	Guitar, bass, keyboards and compatible electronic instruments
Condition	Brand New

Why Choose the Electro-Harmonix Holy Grail Nano?

Three Distinct Reverb Sounds

The Holy Grail Nano provides three contrasting reverb algorithms, allowing it to cover traditional ambience and more experimental modulation without overwhelming the player with controls.

The available modes are:

• Spring

• Hall

• Flerb

Each mode responds to the same Reverb control, so changing from one sound to another remains fast and intuitive.

Classic Spring Reverb

Spring mode recreates the distinctive sound associated with the mechanical spring-reverb tanks found in many vintage guitar amplifiers.

It produces the lively reflections, resonant character and recognisable splash that work especially well with clean and lightly driven guitar sounds.

Spring reverb is particularly suited to:

• Surf guitar

• Rockabilly

• Country

• Blues

• Vintage rock

• Clean rhythm playing

• Spaghetti-western-style tones

• Traditional amplifier sounds

Lower Reverb settings add subtle depth and make a dry amplifier feel more natural. Higher settings create a more obvious, wet and atmospheric spring effect.

Spacious Hall Reverb

Hall mode creates the impression of playing within a large acoustic space.

Its smooth and expansive response can add depth behind the instrument without the distinctive bounce or splash of a spring-reverb effect.

Hall mode works particularly well for:

• Lead guitar

• Clean chords

• Arpeggios

• Ambient music

• Ballads

• Keyboard and synthesiser sounds

• Sustained melodic playing

• General-purpose live reverb

Lower settings provide a polished sense of space, while higher settings produce broader and more atmospheric ambience.

Unique Flerb Reverb

Flerb combines reverb with flanging to create a moving, ethereal effect.

Rather than simply placing the instrument within a static virtual space, Flerb introduces a sweeping modulation that changes the texture of the reverb.

It can produce:

• Psychedelic modulation

• Metallic ambient textures

• Animated chord sounds

• Experimental lead effects

• Moving keyboard pads

• Unusual studio layers

• Dreamlike soundscapes

Flerb gives the Holy Grail Nano a creative voice that extends beyond conventional reverb.

Simple Wet/Dry Reverb Control

The Reverb knob adjusts the relationship between the original instrument and the processed effect.

Turning the control clockwise increases the reverb while reducing the relative level of the dry signal.

The control has been designed to provide detailed adjustment across the lower half of its range. This makes it easy to find the subtle reverb levels often used for everyday rhythm and lead sounds.

Turning beyond the central position introduces increasingly dramatic reverb for ambient and experimental applications.

Straightforward Three-Position Selector

The slide switch provides immediate access to all three algorithms.

There are no menus, presets, secondary functions or button combinations to remember. This makes the Holy Grail Nano particularly useful for players who want to concentrate on performing rather than programming their effects.

True-Bypass Switching

The Holy Grail Nano uses true-bypass switching.

When the effect is disengaged, the active reverb circuit is removed from the signal path. The status LED clearly indicates when the pedal is active.

Compact Pedalboard Format

The Holy Grail Nano houses its digital reverb processing inside a compact Electro-Harmonix enclosure measuring approximately 4.5 × 2.75 × 2.1 inches.

Its narrow footprint leaves more pedalboard space for:

• Tuners

• Compression

• Overdrive and fuzz

• Modulation

• Delay

• Loop switchers

• Additional ambient effects

The durable enclosure is designed for regular rehearsal, recording and live use.

Dedicated Power Adapter Included

The correct Electro-Harmonix 9.6V DC power adapter is supplied with the pedal.

This provides the current required by the digital reverb circuit without needing to purchase a separate supply.

Why Choose a Dedicated Reverb Pedal?

Reverb recreates the natural reflections produced when sound interacts with a physical space.

A completely dry guitar or keyboard signal can sound unnaturally close and isolated. Adding reverb provides depth and helps the instrument feel connected to the surrounding performance.

A dedicated reverb pedal can be used to:

• Add natural space to a dry amplifier

• Recreate vintage spring-reverb sounds

• Add depth behind lead guitar

• Create wider clean chords

• Smooth sustained notes

• Build ambient soundscapes

• Add atmosphere to keyboards

• Create experimental modulation

• Give different song sections contrasting space

• Improve the feel of direct recording setups

The Holy Grail Nano focuses on three useful and distinctive sounds rather than offering a large collection of parameters that may never be used.

Who Is the Electro-Harmonix Holy Grail Nano For?

Guitarists Using an Amplifier Without Reverb

The Holy Grail Nano can add convincing spring or hall ambience to amplifiers that do not include a built-in reverb effect.

Blues and Classic-Rock Players

Spring mode adds the familiar sense of space associated with vintage guitar amplifiers and works naturally with clean, overdriven and lead tones.

Surf and Rockabilly Guitarists

The lively character of Spring mode suits sharp picking, tremolo effects and traditional surf-inspired sounds.

Indie and Alternative Musicians

Hall and Flerb modes can add spacious or unusual textures to clean chords, riffs and layered guitar parts.

Ambient Players

Higher Reverb settings create atmospheric washes that combine effectively with delay, modulation and volume effects.

Singer-Songwriters

A restrained Hall setting can add depth and polish without overpowering vocals or acoustic arrangements.

Keyboard and Synthesiser Players

Compatible mono keyboard and synthesiser signals can be processed to create spacious ambience or animated Flerb textures.

Recording Musicians

The pedal provides a straightforward hardware reverb option for tracking, re-amping and creative studio processing.

Players Who Prefer Simple Controls

The single-knob layout is ideal for musicians who want useful sounds without menus, displays or detailed parameter editing.

What’s Included?

• Electro-Harmonix Holy Grail Nano digital reverb pedal

• Electro-Harmonix 9.6V DC 200mA power adapter

Fair Deal Quality Control Assessment

Every effects pedal supplied by Fair Deal Music is checked by our experienced team before dispatch.

Our assessment includes:

• Enclosure and finish inspection

• Input and output socket test

• Reverb control operation

• Spring algorithm check

• Hall algorithm check

• Flerb algorithm check

• Mode-selector operation

• Footswitch and status LED test

• True-bypass assessment

• Power input test

• Supplied adapter inspection

• Final presentation and packing assessment

Technical Specifications

General

Specification	Details
Effect Type	Digital reverb
Processing	Digital
Number of Reverb Algorithms	Three
Algorithms	Spring, Hall and Flerb
Audio Format	Mono
Bypass Type	True bypass
Main Control	Reverb wet/dry balance
Mode Selection	Three-position slide switch
Year Released	2009
Dimensions	4.5 × 2.75 × 2.1 inches
UPC	683274010847

Reverb Modes

Mode	Description
Spring	Recreates the character of traditional amplifier spring reverb
Hall	Produces smooth and spacious performance-hall ambience
Flerb	Combines flanging with reverb for an ethereal moving effect

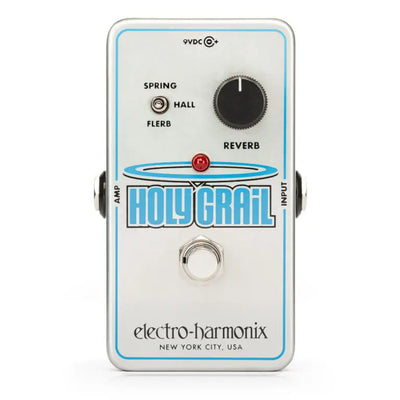

Controls

Control	Function
Reverb	Adjusts the balance between the dry instrument signal and reverb
Mode Selector	Selects Spring, Hall or Flerb
Footswitch	Engages or disengages the effect
Status LED	Illuminates when the reverb is active

Connections

Connection	Details
Input	¼-inch mono audio input
AMP Output	¼-inch mono audio output

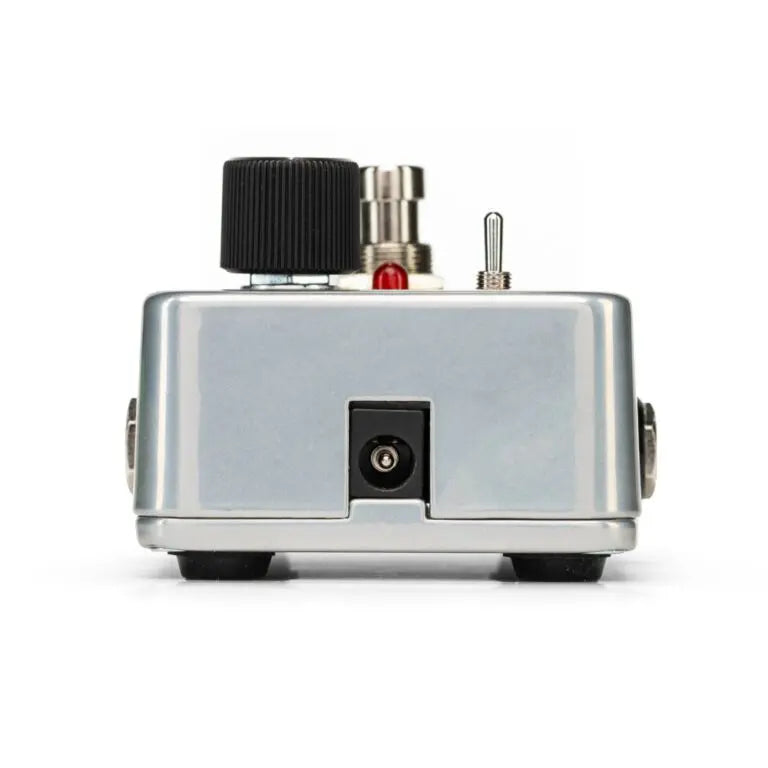

Power Input	Dedicated Electro-Harmonix DC connection

Power Requirements

The Electro-Harmonix Holy Grail Nano requires external DC power and does not support battery operation.

Specification	Details
Required Power	9.6V DC
Current Draw	105mA
Supplied Adapter	Electro-Harmonix 9.6V DC 200mA
Battery Operation	No

Use the supplied Electro-Harmonix adapter to ensure the pedal receives the correct voltage, polarity and available current.

Where Should the Holy Grail Nano Be Placed?

There is no single correct pedal order, but the following positions provide useful starting points.

After Overdrive and Distortion

Placing the Holy Grail Nano after gain pedals allows the reverb to process the complete driven guitar sound.

This creates clear and natural reverb tails and is a strong general-purpose arrangement.

In an Amplifier Effects Loop

If the amplifier produces distortion through its preamp, placing the Holy Grail Nano in a compatible effects loop keeps the reverb after that gain stage.

This can produce clearer ambience with high-gain amplifier sounds.

After Delay

Placing reverb after delay creates the impression that the original notes and their repeats exist within the same acoustic space.

This is a common arrangement for lead guitar and ambient effects.

Before Delay

Placing the Holy Grail Nano before delay causes the echoes to repeat the complete reverberated sound.

This can produce wider and more layered textures.

Before Overdrive or Fuzz

Sending the reverb into distortion compresses and saturates the reflections.

This creates a denser, less natural effect suited to shoegaze, ambient and experimental music.

Electro-Harmonix Holy Grail Nano Compared with Other Reverb Pedals

Holy Grail Nano vs Holy Grail Neo

Both pedals provide Spring and Hall reverbs through a similarly straightforward single-control design.

The Holy Grail Nano includes Flerb, which combines flanging and reverb for a distinctive modulated effect.

The Holy Grail Neo replaces Flerb with Plate reverb, giving it a smoother studio-inspired third algorithm.

Choose the Holy Grail Nano for experimental modulation. Choose the Holy Grail Neo for traditional Spring, Hall and Plate sounds.

Holy Grail Nano vs Oceans 11

The Oceans 11 offers 11 reverb types, multiple modes, secondary controls, infinite sustain and additional performance functions.

The Holy Grail Nano is significantly simpler and provides immediate access to three sounds through one knob and one selector.

Choose the Holy Grail Nano for straightforward operation. Choose the Oceans 11 for a broader range of algorithms and deeper editing.

Holy Grail Nano vs Pico Oceans 3-Verb

The Pico Oceans 3-Verb offers Spring, Hall and Plate reverbs inside an even smaller enclosure, with additional control over colour and decay.

The Holy Grail Nano uses a larger traditional compact format and features the unusual Flerb algorithm.

Choose the Pico Oceans for maximum pedalboard efficiency and additional adjustment. Choose the Holy Grail Nano for classic simplicity and Flerb modulation.

Holy Grail Nano vs Holy Grail Max

The Holy Grail Max provides Spring, Hall, Plate and Reverse reverbs with separate blend and time controls.

The Holy Grail Nano has fewer controls and algorithms but is faster to operate and occupies less space.

Choose the Holy Grail Nano for simplicity. Choose the Holy Grail Max for additional reverb types and decay control.

Holy Grail Nano vs Amplifier Spring Reverb

A mechanical amplifier spring tank produces its sound using physical springs and transducers.

The Holy Grail Nano digitally recreates this character while also providing Hall and Flerb algorithms. It is especially useful when the amplifier has no built-in reverb or when a consistent effect is required across several amplifiers.

Holy Grail Nano vs Large Multi-Effects Processors

Larger processors may offer presets, stereo operation, displays and detailed parameter control.

The Holy Grail Nano focuses on immediate physical controls and a small footprint. It is ideal when the player needs reliable reverb without menu navigation.

Frequently Asked Questions

Is the Electro-Harmonix Holy Grail Nano digital?

Yes. It uses digital processing to create its three reverb algorithms.

Which reverb sounds are included?

The pedal includes Spring, Hall and Flerb modes.

What is Flerb?

Flerb combines flanging with reverb to create a moving, ethereal modulation effect.

What does the Reverb control do?

It adjusts the wet/dry relationship between the original instrument signal and the processed reverb.

Turning the control clockwise increases the amount of reverb.

Can the Holy Grail Nano create subtle reverb?

Yes. The lower half of the Reverb control provides detailed adjustment for adding a small amount of ambience.

Can it create heavily wet sounds?

Yes. Higher settings substantially increase the effect and reduce the relative amount of dry signal.

Does it have separate decay and tone controls?

No. The Holy Grail Nano uses a single Reverb control to keep operation simple.

Players requiring detailed control over decay, tone or modulation may prefer the Oceans 11 or Holy Grail Max.

Is the Holy Grail Nano stereo?

No. It has one mono input and one mono output.

Does it use true bypass?

Yes. The active circuit is removed from the signal path when the pedal is disengaged.

Can it be used with bass guitar?

Yes. Lower Reverb settings can add depth to bass, while Flerb and higher Hall settings provide more experimental textures.

Can it be used with keyboards?

Yes. Compatible mono keyboard and synthesiser signals can be connected to the pedal.

Can it run from a battery?

No. The Holy Grail Nano requires external DC power.

Is a power adapter included?

Yes. An Electro-Harmonix 9.6V DC 200mA adapter is supplied.

How much current does it draw?

The Holy Grail Nano draws 105mA.

Fair Deal Music Verdict

★★★★★ 5/5

The Electro-Harmonix Holy Grail Nano is a modern reverb classic that proves excellent ambience does not require complicated controls.

Its Spring mode provides lively amplifier-inspired character, Hall adds smooth and spacious depth, and Flerb introduces a distinctive modulated texture that sets the pedal apart from conventional three-mode reverbs. The single Reverb knob makes it exceptionally quick to operate, while true bypass and the compact enclosure ensure straightforward pedalboard integration.

For guitarists, bassists and keyboard players seeking musical digital reverb with classic Electro-Harmonix personality, the Holy Grail Nano remains an excellent choice.

Why Buy From Fair Deal Music?

Choosing Fair Deal Music means buying from a passionate team of musicians who genuinely understand the products we sell. Whether you're purchasing your first instrument, upgrading your current setup or searching for something special, we're here to help you make the right choice with friendly advice and expert support.

When you shop with Fair Deal Music, you can buy with confidence thanks to:

• Expert advice from knowledgeable musicians

• Carefully checked new, used, pre-owned and ex-display equipment

• Competitive prices on leading music brands

• Secure UK-wide delivery

• Flexible finance options available, subject to status

• Friendly support before and after your purchase

• A trusted independent UK music retailer with decades of experience

Trade In. Trade Up. Save More.

Thinking about upgrading? Your next piece of gear could cost less than you think.

We're always happy to consider part exchanges and trade-ins on a wide range of musical instruments and equipment. Whether you're looking to move on a guitar, amplifier, keyboard, drum kit, studio equipment or another piece of gear, our team can provide a straightforward, no-obligation valuation.

Simply get in touch with details and photographs of your equipment, and we'll help you explore your options. It’s an easy way to unlock the value of your current gear and put it towards something new.
