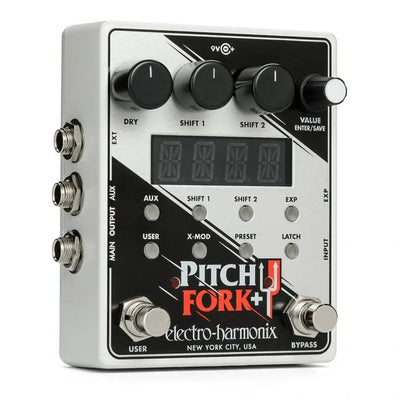

Electro Harmonix Pitch Fork + Polyphonic Pitch Shifter Pedal

The Electro-Harmonix Pitch Fork+ is an advanced polyphonic pitch shifter and harmony pedal featuring two independent pitch-shifting engines, extensive real-time control and storage for up to 100 presets.

Each shift engine can transpose the incoming signal across a range of three octaves above or below the original pitch. Both voices can also be detuned by up to 99 cents, allowing the Pitch Fork+ to create everything from subtle doubling and chorus-like movement to wide harmonies, convincing alternate tunings and dramatic multi-octave effects.

Dedicated level controls for the Dry signal, Shift 1 and Shift 2 make it easy to balance all three voices. The Main and Aux outputs offer flexible routing for single-amplifier, stereo and dual-signal setups, while expression pedal, control voltage and external foot-controller inputs provide extensive performance control.

With fast polyphonic tracking, programmable footswitch functions, glissando effects, cross-modulation and ten ready-to-use factory presets, the Pitch Fork+ is a powerful creative tool for guitarists, bassists, keyboard players and experimental musicians.

Quick Product Summary

The Electro-Harmonix Pitch Fork+ is a dual-engine digital pitch shifter capable of producing two independently controlled shifted voices alongside the original dry signal.

Each engine offers pitch shifting across a ±3-octave range, interval-based harmonies and fine detuning of up to ±99 cents. Dedicated expression, programmable footswitch and output-routing options make the pedal equally suitable for straightforward octave effects, complex harmonies, alternate tunings and experimental sound design.

At A Glance

Feature	Details
Brand	Electro-Harmonix
Model	Pitch Fork+
Product Type	Polyphonic pitch shifter and harmony pedal
Circuit	Digital
Pitch Engines	Two independent shift voices
Pitch Range	Three octaves above or below the original signal
Detune Range	±99 cents per shift engine
Voice Levels	Individual Dry, Shift 1 and Shift 2 controls
Preset Memory	100 preset locations
Factory Presets	10
Outputs	Main and Aux
Expression Control	Expression pedal or 0–5V control voltage
External Control	Compatible three-button foot controller
Footswitches	Bypass and programmable User footswitch
Bypass	Buffered bypass
Power Supply	Electro-Harmonix 9.6V DC adapter included
Main Appeal	Dual-engine polyphonic shifting with extensive routing and performance control
Best For	Harmonies, octaves, detuning, alternate tunings and experimental effects
Condition	Brand New

Why Choose the Electro-Harmonix Pitch Fork+?

Two Independent Pitch-Shifting Engines

The Pitch Fork+ contains two separate pitch-shifting engines that can be configured independently.

Each voice can be placed above or below the original note, allowing combinations such as:

• One octave below and one octave above

• A perfect fifth and an upper octave

• Parallel fourths and fifths

• Two slightly detuned voices

• Different extended intervals

• Multi-octave organ-style textures

• Low and high harmony layers

Because Shift 1 and Shift 2 have separate volume controls, each harmony can be positioned precisely within the overall sound.

Three-Octave Pitch Range

Both shift engines can transpose the signal across a range extending from three octaves below to three octaves above the original pitch.

The available intervals cover semitone-based and octave-based shifts, including common musical intervals such as:

• Minor and major seconds

• Minor and major thirds

• Perfect fourths and fifths

• Minor and major sixths

• Minor and major sevenths

• One, two and three octaves

• Extended ninths, tenths, elevenths, twelfths and higher intervals

This wide range allows the Pitch Fork+ to perform the roles of an octave pedal, harmoniser, detuning effect and creative pitch processor within one enclosure.

Accurate Polyphonic Tracking

The Pitch Fork+ is designed to process both individual notes and full chords.

Its polyphonic operation makes it suitable for:

• Chord-based octave effects

• Alternate-tuning simulations

• Twelve-string-style textures

• Bass reinforcement beneath chords

• Layered ambient parts

• Keyboard and synthesiser processing

Players are not restricted to single-note melodies when using its pitch-shifting functions.

Dedicated Dry and Shift Level Controls

Three front-panel volume controls provide direct control over the main components of the sound:

Dry

Controls the level of the original, unshifted instrument signal.

Shift 1

Controls the volume of the first pitch-shifted voice.

Shift 2

Controls the volume of the second pitch-shifted voice.

This layout makes it easy to create a wide variety of mixes. The dry sound can remain dominant with subtle harmony underneath, or it can be removed completely for fully transformed pitch effects.

Fine Detuning up to 99 Cents

Each shift engine can be detuned by as much as 99 cents above or below its selected pitch.

Small detuning values can create:

• Natural doubling effects

• Chorus-like movement

• Wider stereo textures

• Twelve-string-style sounds

• Subtle pitch instability

• Rich three-voice ensembles

Larger settings can produce intentionally dissonant, unstable or experimental effects.

The second shift voice can also combine its selected interval and detune value, allowing an octave or harmony to be offset by a precise number of cents.

Flexible Main and Aux Outputs

The Pitch Fork+ provides separate Main and Aux outputs with several routing configurations.

The Aux output can carry:

• The unaffected input signal

• The Dry channel

• Shift 2

• Dry and Shift 2

• All three voices

• Special split configurations between Main and Aux

This allows the pedal to operate within single-amplifier, dual-amplifier and recording setups.

For example, one amplifier can receive a lower octave while another receives the original signal and upper harmony. A recording interface can also capture separate components for further processing and mixing.

Programmable User Footswitch

The dedicated User footswitch can be assigned to a variety of functions.

Depending on the selected mode, it can be used to:

• Mute or activate an individual shift voice

• Control multiple voice levels

• Blend between dry and shifted sounds

• Crossfade between Shift 1 and Shift 2

• Jump to another preset

• Create preset chains

• Activate performance-based effects

The User footswitch operates independently from the main Bypass footswitch and has its own status indicator.

Latching and Momentary Operation

The main Bypass footswitch can operate in conventional latching mode or as a momentary effect control.

In latching mode, each press switches between the effect and buffered bypass.

Momentary mode activates the selected pitch effect while the footswitch is held down and returns to bypass when released. This is useful for:

• Brief octave accents

• Whammy-style pitch movements

• Sudden harmony changes

• Short glissando effects

• Individual chord transformations

• Experimental rhythmic processing

Expression Pedal and Control Voltage Input

The EXP input accepts a compatible TRS expression pedal or a 0–5V control voltage signal.

Expression control can be assigned to several groups of parameters, including:

• Shift 1 pitch

• Shift 2 pitch

• Both shift pitches

• Glissando rise time

• Glissando fall time

• Individual voice volume

• Multiple voice volumes

• Dry-to-shift blending

• Crossfading between shifted voices

This transforms the Pitch Fork+ into a highly expressive performance instrument rather than a fixed pitch effect.

Whammy-Style Pitch Bending

Assigning pitch frequency to an expression pedal allows continuous movement between the original signal and selected pitch interval.

This can produce:

• Rising and falling octave sweeps

• Dive-bomb effects

• Smooth harmony transitions

• Artificial whammy-bar movement

• Pedal-steel-inspired bends

• Extreme three-octave pitch shifts

The two independent engines allow more complex movements than a conventional single-voice pitch pedal.

Adjustable Glissando

Glissando controls determine how quickly the shifted sound moves between pitch positions.

Separate rise and fall behaviour can be controlled, allowing fast jumps in one direction and slower movement in the other.

This can create:

• Smooth portamento

• Gradual octave transitions

• Mechanical pitch jumps

• Slow ambient movement

• Synthesiser-style glide

• Dramatic momentary effects

100 Preset Locations

The Pitch Fork+ provides 100 memory locations for saving and recalling complete effect configurations.

Saved settings can include pitch intervals, detuning, expression assignments, output routing, footswitch behaviour and cross-modulation parameters.

Ten factory presets are preloaded, leaving additional locations available for custom sounds. Factory presets can also be overwritten and restored later.

Preset storage is particularly useful for musicians who require several different pitch effects during a performance.

Preset Chains

The programmable User footswitch can be configured to jump between preset locations.

Multiple presets can be linked together, creating a sequence that can be advanced during a performance. A chain can also loop back to its starting point.

This allows one footswitch to move through sounds for different sections of a song without requiring constant menu navigation.

Cross-Modulation Effects

X-MOD mode allows the two pitch voices to modulate one another.

The amount of Shift 1 modulation applied to Shift 2 and the amount of Shift 2 modulation applied to Shift 1 can be adjusted independently.

Lower settings can add subtle movement and complexity. Higher settings produce more experimental textures, including:

• Frequency-modulation-style sounds

• Ring-modulator-style effects

• Metallic harmonics

• Robotic textures

• Dissonant synth-like tones

• Unpredictable pitch interactions

External Foot-Controller Support

The EXT connection accepts a compatible three-button foot controller such as the Electro-Harmonix Triple Foot Controller.

External switches can be used to:

• Move through modes

• Enter or exit submenus

• Increase parameter values

• Decrease parameter values

• Load presets

• Navigate stored sounds

This provides greater hands-free control when the pedal is used on stage.

Clear Four-Character Display

The onboard display shows the selected parameter, interval, preset or menu setting.

This provides a clear reference when editing detailed configurations and recalling saved sounds. Illuminated mode buttons also indicate which area of the pedal is currently being adjusted.

Why Choose a Polyphonic Pitch-Shifting Pedal?

A polyphonic pitch shifter can process full chords as well as individual notes, making it much more flexible than a traditional monophonic octave or harmoniser effect.

It can be used to create conventional musical effects such as octaves, fifths and detuned doubling, but it can also transform the perceived tuning and range of an instrument.

Common applications include:

• Simulating lower guitar tunings

• Creating baritone-style sounds

• Producing twelve-string textures

• Adding bass beneath guitar chords

• Building organ-like layers

• Creating harmonised lead parts

• Widening recorded instruments

• Designing experimental textures

• Adding upper octaves before distortion

• Producing synth-like modulation effects

A dual-engine pedal such as the Pitch Fork+ offers even greater flexibility because two different shifted voices can operate at the same time.

Who Is the Electro-Harmonix Pitch Fork+ For?

Guitarists Using Alternate Tunings

The wide downward pitch range can simulate lower tunings without requiring the instrument to be physically retuned between songs.

Lead Guitarists

Two harmony voices can be combined with the dry signal to produce rich layered lead sounds. Presets allow different intervals to be prepared for individual songs.

Ambient and Experimental Players

Long glissando times, detuning, cross-modulation and expression control make the Pitch Fork+ ideal for evolving soundscapes and unconventional textures.

Bassists

Lower and upper octaves can add weight, definition or synthesiser-like character to bass lines. The Aux output also enables split-signal amplifier setups.

Keyboard and Synthesiser Players

Polyphonic tracking and control-voltage compatibility allow the pedal to become part of both conventional keyboard systems and experimental electronic setups.

Recording Musicians

Separate outputs and adjustable voice levels allow dry and shifted components to be recorded or processed independently.

Live Performers

Preset storage, programmable switching and external foot-controller compatibility make the Pitch Fork+ practical for musicians who need repeatable sounds throughout a set.

Sound Designers

Extreme intervals, detuning and cross-modulation provide a substantial range of source material for film, game, electronic and experimental audio production.

What’s Included?

• Electro-Harmonix Pitch Fork+ polyphonic pitch shifter pedal

• Electro-Harmonix 9.6V DC 200mA power adapter

Fair Deal Quality Control Assessment

Every effects pedal supplied by Fair Deal Music is checked by our experienced team before dispatch.

Our assessment includes:

• Enclosure and control inspection

• Input socket test

• Main output test

• Aux output and routing check

• Dry, Shift 1 and Shift 2 level-control test

• Both pitch-shifting engines tested

• Display and mode-button inspection

• Preset loading and storage check

• Bypass footswitch operation

• Programmable User footswitch test

• Expression input check

• External controller input check

• Buffered bypass signal assessment

• Power supply and power input inspection

• Final presentation and packing check

Technical Specifications

General

Specification	Details
Effect Type	Polyphonic pitch shifter and harmoniser
Circuit	Digital
Audio Format	Mono input with dual-output routing
Pitch Engines	Two independent
Bypass Type	Buffered bypass
Preset Locations	100
Factory Presets	10
Display	Four-character display
Release Year	2020
Dimensions	4.75 × 4.13 × 2.25 inches
UPC	683274012216

Pitch Processing

Specification	Details
Shift 1 Range	Three octaves down to three octaves up
Shift 2 Range	Three octaves down to three octaves up
Detune Range	±99 cents
Polyphonic Processing	Yes
Fixed Musical Intervals	Yes
Octave Intervals	Up to three octaves
Glissando	Adjustable rise and fall behaviour
Cross-Modulation	Bidirectional between Shift 1 and Shift 2

Main Controls

Control	Function
Dry	Sets the level of the unaffected signal
Shift 1	Sets the level of the first shifted voice
Shift 2	Sets the level of the second shifted voice
Value Encoder	Selects parameters, enters submenus and saves presets
Display	Shows the active parameter, value or preset
Bypass Footswitch	Controls effect, bypass and momentary operation
User Footswitch	Programmable performance control

Operating Modes

Mode	Function
Aux	Configures the Aux output routing
Shift 1	Sets the first voice interval and detuning
Shift 2	Sets the second voice interval and detuning
EXP	Assigns expression pedal or control-voltage behaviour
User	Programs the User footswitch
X-MOD	Configures cross-modulation and combined detuning
Preset	Loads and stores effect programs
Latch	Configures latching or momentary bypass behaviour

Connections

Connection	Details
Input	¼-inch mono audio input
Input Impedance	2.2MΩ
Main Output	¼-inch audio output
Main Output Impedance	470Ω
Aux Output	¼-inch assignable audio output
Aux Output Impedance	470Ω
Expression Input	TRS expression pedal or 0–5V control voltage
External Controller Input	TRS three-button foot-controller connection
Power Input	2.1mm centre-negative DC connection

Expression Control Functions

The expression input can control:

• Shift 1 pitch

• Shift 2 pitch

• Both pitch engines

• Glissando rise time

• Glissando fall time

• Both glissando directions

• Dry volume

• Shift 1 volume

• Shift 2 volume

• Combined shifted volume

• Dry and shifted blends

• Crossfades between Shift 1 and Shift 2

Power Requirements

The Electro-Harmonix Pitch Fork+ requires a regulated 9V DC power source capable of providing at least 120mA.

Specification	Details
Operating Voltage	9V DC
Current Draw	120mA
Polarity	Centre-negative
Connector	2.1mm barrel plug
Supplied Adapter	Electro-Harmonix 9.6V DC 200mA power adapter
Battery Operation	No

Use the supplied adapter or a compatible regulated pedalboard power supply with the correct voltage, polarity and available current.

Electro-Harmonix Pitch Fork+ Compared with Other Pitch Pedals

Compared with the Electro-Harmonix Pitch Fork

The standard Pitch Fork provides a straightforward route to polyphonic pitch shifting in a smaller enclosure. It can shift up, down or in both directions simultaneously and supports expression control.

The Pitch Fork+ adds:

• Two fully independent shift engines

• Separate Dry, Shift 1 and Shift 2 level controls

• Precise detuning

• 100 preset locations

• Main and Aux output routing

• Programmable User footswitch

• External foot-controller compatibility

• Cross-modulation

• Expanded expression assignments

• A display and menu system

The original Pitch Fork is ideal for simple, immediate pitch effects. The Pitch Fork+ is better suited to players requiring detailed control, repeatable presets and complex multi-voice processing.

Compared with a Conventional Octave Pedal

A conventional octave pedal normally provides one or two fixed octave voices.

The Pitch Fork+ can produce octaves, but it also offers a much wider selection of musical intervals, fine detuning, expression-controlled bends and programmable routing.

Compared with a Dedicated Whammy-Style Pedal

A dedicated treadle-based pitch pedal provides immediate foot control but may occupy considerably more pedalboard space.

The Pitch Fork+ can produce similar pitch sweeps when connected to an expression pedal while also offering two pitch engines, stored presets and advanced harmony functions.

Compared with a Key-Based Harmoniser

A key-aware harmoniser automatically selects different harmony notes according to a musical scale.

The Pitch Fork+ applies fixed intervals to the incoming notes. This makes it particularly effective for octaves, parallel harmonies, alternate tunings and experimental effects rather than automatically generated diatonic harmony.

Frequently Asked Questions

Can the Pitch Fork+ process full chords?

Yes. Its polyphonic pitch-shifting system is designed to track chords as well as individual notes.

Can both pitch engines be used at the same time?

Yes. Shift 1 and Shift 2 operate independently and can be mixed with the original Dry signal.

Can it shift the guitar into a lower tuning?

Yes. The pedal can shift the complete signal down by fixed intervals, making it useful for simulated lower tunings and baritone-style sounds.

The playing feel and physical string tension remain unchanged because the instrument itself has not been mechanically retuned.

Does it save presets?

Yes. There are 100 preset locations, with ten factory programs installed.

Can presets be changed without using the front-panel controls?

The programmable User footswitch can jump to selected presets or move through a prepared preset chain. A compatible external three-button controller provides additional navigation options.

Does it work with an expression pedal?

Yes. A compatible TRS expression pedal can control pitch, glissando or volume-related parameters.

Can it accept control voltage?

Yes. The expression input accepts a 0–5V control-voltage signal.

Can it create momentary pitch effects?

Yes. The Bypass footswitch can be configured so the effect or glissando is active only while the switch is held down.

Can the dry and shifted signals be sent to different amplifiers?

Yes. The assignable Aux output offers several routing options for separating and combining the Dry, Shift 1 and Shift 2 channels.

Is the Pitch Fork+ suitable for bass?

Yes. Its wide pitch range and polyphonic tracking make it useful for sub-octaves, upper harmonies and experimental bass effects.

Can it produce chorus-style sounds?

Yes. Applying small and slightly different detuning values to Shift 1 and Shift 2 can create wide doubling and chorus-like movement.

Is the power adapter included?

Yes. An Electro-Harmonix 9.6V DC 200mA power adapter is supplied.

Fair Deal Music Verdict

★★★★★ 5/5

The Electro-Harmonix Pitch Fork+ is an exceptionally capable pitch processor that goes far beyond a conventional octave or harmoniser pedal.

Its two independent shift engines, wide ±3-octave range and precise detuning provide an enormous tonal palette. Dedicated voice levels keep the basic controls accessible, while presets, flexible output routing, expression assignments and the programmable User footswitch provide the depth required for advanced live and studio setups.

Whether it is being used for simple octave reinforcement, convincing alternate tunings, three-part harmonies or extreme cross-modulated sound design, the Pitch Fork+ delivers outstanding creative flexibility in a practical pedalboard format.

Why Buy From Fair Deal Music?

Choosing Fair Deal Music means buying from a passionate team of musicians who genuinely understand the products we sell. Whether you're purchasing your first instrument, upgrading your current setup or searching for something special, we're here to help you make the right choice with friendly advice and expert support.

When you shop with Fair Deal Music, you can buy with confidence thanks to:

• Expert advice from knowledgeable musicians

• Carefully checked new, used, pre-owned and ex-display equipment

• Competitive prices on leading music brands

• Secure UK-wide delivery

• Flexible finance options available, subject to status

• Friendly support before and after your purchase

• A trusted independent UK music retailer with decades of experience

Trade In. Trade Up. Save More.

Thinking about upgrading? Your next piece of gear could cost less than you think.

We're always happy to consider part exchanges and trade-ins on a wide range of musical instruments and equipment. Whether you're looking to move on a guitar, amplifier, keyboard, drum kit, studio equipment or another piece of gear, our team can provide a straightforward, no-obligation valuation.

Simply get in touch with details and photographs of your equipment, and we'll help you explore your options. It's an easy way to unlock the value of your current gear and put it towards something new.
