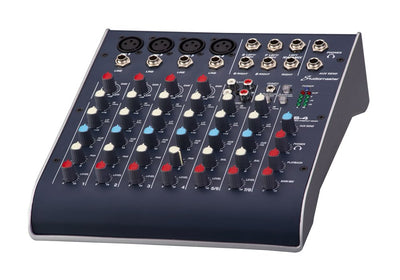

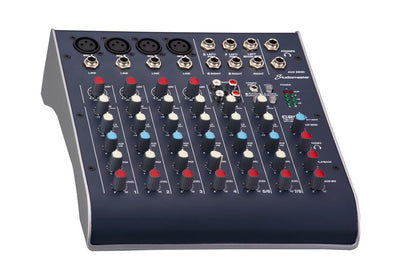

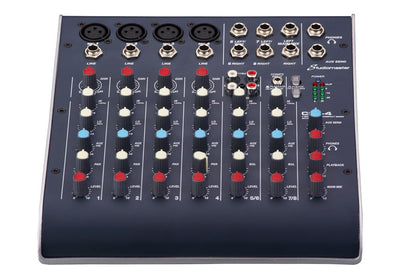

Studiomaster C2-4 Ultra Compact Mixer
Studiomaster C2-4 8-Input Compact Analogue Mixer
The Studiomaster C2-4 is an ultra-compact analogue mixer designed for live sound, basic recording, location audio, monitoring, presentations, home studios, rehearsal rooms and small PA systems. It offers more microphone capacity than the C2-2 while keeping the same simple, lightweight C2 Series format.
With 8 inputs, 4 mic inputs and 2 stereo input channels, the C2-4 is a practical choice for users who need to connect several microphones alongside stereo playback devices, keyboards, laptops or media players. Studiomaster describes the C2 Series as an ultra-compact mixer range with features usually found on larger consoles, including 2-band EQ on all channels, auxiliary output, pan/balance control, input gain and level controls.
The C2-4 is especially useful for small live performances, presentations, education, podcast-style routing with external recording gear, keyboard submixing, rehearsal rooms and compact installation audio. It keeps the workflow simple, while still offering stereo outputs, RCA playback/record connections, bargraph metering and headphone monitoring.
Why Choose The Studiomaster C2-4?
4 Microphone Inputs In A Compact Format
The C2-4 gives you 4 mic inputs, making it more flexible than the C2-2 for users who need extra microphones. This is useful for small vocal groups, panel discussions, presentations, acoustic acts, rehearsal rooms and compact live sound setups.
8-Input Mixing Flexibility
With 4 mic inputs and 2 stereo input channels, the C2-4 gives you enough room for microphones, instruments, keyboards, laptops, media players and playback devices. It is compact, but still practical for real-world audio setups.
2-Band EQ On All Channels
Every channel includes 2-band EQ, giving you simple tone control over vocals, instruments and playback sources. This helps you add brightness, reduce muddiness or shape the sound before sending it to speakers or recording equipment.
Auxiliary Output For External Effects
The auxiliary output allows connection to external effects processors or additional routing destinations. This gives the C2-4 more flexibility than a basic mini mixer, especially for small live sound or recording setups.
Stereo Outputs & Monitoring
The C2-4 includes stereo output on 1/4" jack connections, RCA playback/record connectivity, bargraph metering and headphone output. This makes it easy to connect to powered speakers, recorders, monitoring systems or a compact PA setup.
Simple Hands-On Operation
With input gain, level controls and pan/balance control, the C2-4 keeps operation straightforward. It is ideal for users who want physical mixer control without menus, screens, apps or complicated routing.
Ultra-Compact Moulded Case
The C2 Series is built into a compact moulded case, making the C2-4 easy to place on a desk, carry between setups or fit into small performance, education and recording spaces.
Why Choose A Compact Mixer With 4 Mic Inputs?
A compact mixer with 4 mic inputs is ideal when a smaller two-mic mixer is too limiting, but you do not need a full-size mixing desk. It gives you enough microphone capacity for small groups, interviews, classroom setups, acoustic performances, presentations and simple PA systems.
For performers, this can mean vocals, acoustic instruments and backing tracks through one mixer. For presenters and corporate users, it gives practical control over multiple speakers and playback audio. For home recording or location work, it gives you a simple way to manage several signals before sending them to speakers, recorders or an audio interface.
The Studiomaster C2-4 is especially useful if you want a small, affordable analogue mixer with extra mic inputs, EQ, aux output and monitoring, but do not need USB audio, Bluetooth or onboard effects.
Who Is It For?
Beginners
A great first mixer for users who need something compact but want more than two microphone inputs. It is easy to understand and suitable for small PA systems, home recording, practice rooms, presentations and basic live sound.
Intermediate Users
Ideal for solo performers, duos, small acoustic groups, educators, presenters, keyboard players, podcasters using external recording gear, rehearsal rooms and compact line/mic mixing setups.
Advanced & Professional Users
Useful as a small utility mixer, keyboard submixer, location mixer, monitoring mixer, backup desk, corporate audio mixer or compact installation mixer.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Compact Analogue Mixer |
| Model | Studiomaster C2-4 |
| Channels | 8 |
| Mic Inputs | 4 |
| Stereo Inputs | 2 stereo input channels |
| EQ | 2-band EQ on all channels |
| EQ Frequencies | High: ±15dB at 12kHz / Low: ±15dB at 80Hz |
| Aux Output | Yes |
| Pan / Balance Control | Yes |
| Input Gain Controls | Yes |
| Level Controls | Yes |
| Stereo Output | 1/4" jack stereo output |
| Playback / Record | RCA phono playback / record connections |
| USB Audio | No |
| Built-In Effects | No |
| Bluetooth | No |
| Metering | Bargraph metering |
| Headphone Output | Yes |
| Frequency Response | 20Hz – 20kHz, ±1dB |
| Distortion | Less than 0.08% at -10dBu |
| Residual Noise | Less than -98dB |
| Gain Range | Mic: 0dB to +45dB / Line: -20dB to +25dB |
| Input Impedance | 20k ohm balanced / 24k ohm unbalanced |
| Maximum Output | Main Mix: +21dB ±2dB / Aux Send: +18dBu ±2dB |
| Output Impedance | Record: 1k ohm / Headphones: 25k ohm |
| Dimensions | 218mm x 75mm x 244mm |
| Power Supply | Wall adaptor, 100V–240V, 50/60Hz |
| Power Consumption | 15W |
| Suitable For | Live sound, home recording, location mixing, monitoring, presentations, education, rehearsal rooms and compact PA systems |
Power Requirements
The Studiomaster C2-4 is powered by a wall adaptor. Studiomaster’s C2 Series catalogue lists the power supply as 100V–240V, 50/60Hz, with 15W power consumption for the C2-4.
Why Buy From Fair Deal Music?
Fair Deal Music has been a family-run independent music retailer since 1987 and is Birmingham’s largest independent music store. We offer expert advice, secure online ordering, fast UK delivery and support from a team of musicians who understand live sound, rehearsal spaces, recording and performance equipment.
Our team can help you choose the right mixer for your setup, whether you are building a compact PA system, small recording rig, presentation setup, keyboard rig, rehearsal room or installation audio system. With thousands of excellent customer reviews and a large Birmingham showroom, Fair Deal Music gives you trusted service before and after your purchase.
FAQs
Is the Studiomaster C2-4 a digital mixer?
No. The Studiomaster C2-4 is a compact analogue mixer. It does not offer digital mixer control, scene recall, onboard effects or app operation.
How many inputs does the Studiomaster C2-4 have?
The C2-4 has 8 inputs, including 4 mic inputs and 2 stereo input channels.
Does the Studiomaster C2-4 have USB?
No. The C2-4 does not include USB audio. The C2S-4 version adds 2-channel USB playback and recording.
Does the C2-4 have built-in effects?
No. The C2-4 does not have onboard effects. It does include an auxiliary output, which can be used with external effects processors.
Is the Studiomaster C2-4 suitable for live performance?
Yes. It is suitable for small live setups, acoustic acts, presentations, rehearsal rooms and compact PA systems where a few microphones and stereo sources are required.
Can I use the C2-4 for home recording?
Yes. It can be used to create a small stereo mix for recording into external recording equipment or an audio interface. It does not record directly over USB.
Does it have EQ?
Yes. The C2-4 includes 2-band EQ on all channels, with high and low tone control.
What is the difference between the C2-2 and C2-4?
The C2-2 has 2 mic inputs, while the C2-4 has 4 mic inputs. Choose the C2-4 if you need extra microphone capacity for small groups, presentations, performances or rehearsal setups.
What is the difference between the C2-4 and C2S-4?
The C2-4 is the standard analogue version without USB. The C2S-4 adds 2-channel USB playback and recording, making it more suitable for direct computer-based recording or playback.
Is the Studiomaster C2-4 portable?
Yes. With dimensions of 218mm x 75mm x 244mm, it is easy to fit into small desks, mobile rigs, rehearsal rooms and portable PA setups.
