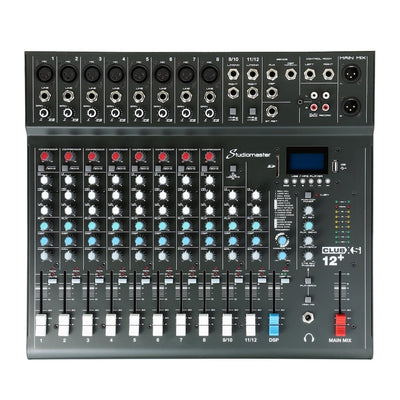

Studiomaster Club XS 12+ Mixer
Studiomaster Club XS12+ 12-Channel Analogue Mixer with Bluetooth, USB/SD Recording & DSP Effects
The Studiomaster Club XS12+ is a 12-channel analogue mixing console designed for live performers, bands, rehearsal rooms, schools, houses of worship, small venues, DJs, event users, home recording and streaming setups. Sitting between the smaller Club XS6+ and the larger Club XS16+, it offers a practical balance of channel count, portability and useful modern features.
With 12 inputs, 8 mic channels and 2 stereo channels, the Club XS12+ gives you enough flexibility for multiple vocals, acoustic instruments, keyboards, backing tracks, playback devices and small live setups. It also includes Bluetooth playback, USB/SD media playback and recording, 16 built-in DSP effects and a DSP footswitch socket, making it a versatile option for users who want a compact analogue mixer with more convenience than a basic desk.
The mic channels include practical live-sound tools such as 3-band EQ, compressor control, mute switching and high-pass filtering, while the stereo channels include 2-band EQ for shaping keyboards, media players and other line-level sources. With balanced XLR main outputs, aux routing, headphone/control room outputs and phono record/playback connections, the Club XS12+ is well suited to small-to-medium live and rehearsal environments.
Why Choose The Studiomaster Club XS12+?
12-Channel Mixing For Practical Live Setups
The Club XS12+ gives you more input capacity than a compact 6-channel mixer without becoming as large as a 16-channel desk. With 8 mic channels and 2 stereo channels, it is ideal for singers, small bands, acoustic groups, presenters, rehearsal rooms and venues needing several microphones plus stereo playback sources.
Built-In Bluetooth Playback
Bluetooth playback makes it easy to stream audio wirelessly from a compatible phone, tablet or laptop. This is useful for interval music, backing tracks, rehearsal playback, venue background music, DJ playlists and presentation audio.
USB/SD Playback & Recording
The USB/SD media section allows MP3 playback and direct recording to USB drive or SD card. This gives you a simple way to record rehearsals, capture basic live performances or play music without needing a separate computer or media player. Published specifications list USB/SD recording as 128kbps mono.
16 Built-In DSP Effects
The Club XS12+ includes 16 DSP effects, including reverb, delay and stereo effects. This helps vocals, instruments and spoken-word audio sound more polished without needing an external effects processor. A dedicated DSP on/off footswitch socket also makes it practical for live performance control.
EQ, Compression & High-Pass Filtering
Each mic channel includes 3-band EQ, compressor control and high-pass filtering. This helps you shape vocals, reduce unwanted rumble and keep levels more controlled during live use. The stereo channels include 2-band EQ, giving simple tone control for keyboards, playback devices and stereo instruments.
Mute Control On Every Channel
Mute switches make live operation easier, allowing you to quickly silence unused channels, swap performers, control playback sources or manage a live mix more cleanly during events and rehearsals.
Balanced Outputs & Useful Routing
Balanced XLR main outputs, aux outputs, control room outputs, headphone monitoring and phono record/playback connections make the Club XS12+ practical for live PA systems, rehearsal rooms, recording feeds and small venue installations.
Why Choose A 12-Channel Analogue Mixer?
A 12-channel analogue mixer is a strong choice when smaller compact mixers do not offer enough inputs, but a full 16-channel desk feels larger than necessary. It gives you room for multiple vocal microphones, instruments, stereo sources and playback devices while keeping the workflow simple and hands-on.
For bands, this means you can manage vocals, guitars, keyboards, backing tracks and basic drum microphones from one desk. For schools, churches and venues, it gives flexibility for performances, assemblies, presentations and events. For rehearsal rooms and content setups, it provides a practical centrepiece for routing several sound sources without constantly repatching equipment.
The Studiomaster Club XS12+ is especially useful because it combines traditional analogue control with Bluetooth playback, USB/SD recording and onboard DSP effects, making it a versatile mixer for modern live, rehearsal and event use.
Who Is It For?
Beginners
A good choice for users who need more than a small entry-level mixer but still want a clear analogue layout. It is straightforward to operate, while offering enough input capacity and features to support growing setups.
Intermediate Users
Ideal for bands, rehearsal rooms, schools, houses of worship, small venues, DJs, presenters, streamers and event users who need multiple mic inputs, effects, Bluetooth playback and simple recording options.
Advanced & Professional Users
Useful as a compact front-of-house mixer, rehearsal-room desk, venue mixer, installation console, keyboard submixer, backup live mixer or practical event production desk.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Analogue Mixing Console |
| Model | Studiomaster Club XS12+ |
| Inputs | 12 |
| Mic Channels | 8 |
| Stereo Channels | 2 |
| Mic Channel EQ | 3-band EQ |
| Stereo Channel EQ | 2-band EQ |
| Compression | Compressor control on mic channels |
| High-Pass Filter | 100Hz high-pass filter on mic channels |
| Mute Control | Mute button on all channels |
| Auxiliaries | 2 auxiliaries |
| DSP Effects | 16 built-in DSP effects |
| Footswitch Socket | DSP on/off footswitch socket |
| Bluetooth | Yes, Bluetooth playback |
| USB/SD Media | MP3 playback and recording |
| Recording | USB/SD recording, listed as 128kbps mono |
| Main Outputs | Balanced XLR main outputs |
| Additional Outputs | Aux outputs, control room outputs, headphone monitoring and phono record/playback connections |
| Phantom Power | +48V phantom power on mic channels |
| Mic Gain Range | 6dB to 50dB |
| Line Gain Range | +10dB to -34dB |
| EIN | -100dB |
| Frequency Response | 10Hz – 20kHz, +1/-3dB |
| THD Mic Channel | Less than 0.1% |
| Signal-to-Noise Ratio | 80dB |
| Output Levels | Max +26dB balanced / +20dB unbalanced |
| EQ Frequencies | Hi 12kHz, Mid 2.5kHz, Lo 45Hz, low cut 80Hz |
| Power Requirement | 100V–240V AC |
| Dimensions | 415mm x 80mm x 365mm |
| Weight | 5.5kg |
| Suitable For | Live bands, rehearsal rooms, schools, houses of worship, venues, DJs, streaming, events and home recording |
Power Requirements
The Studiomaster Club XS12+ is mains powered and listed with universal 100V–240V AC compatibility, making it suitable for standard UK use with the correct power lead.
Why Buy From Fair Deal Music?
Fair Deal Music has been a family-run independent music retailer since 1987 and is Birmingham’s largest independent music store. We offer expert advice, secure online ordering, fast UK delivery and support from a team of musicians who understand live sound, rehearsal spaces, recording and performance equipment.
Our team can help you choose the right mixer for your setup, whether you are building a live band PA, rehearsal room system, school production rig, venue sound setup, worship system or compact recording environment. With thousands of excellent customer reviews and a large Birmingham showroom, Fair Deal Music gives you trusted service before and after your purchase.
FAQs
Is the Studiomaster Club XS12+ a digital mixer?
No. The Club XS12+ is an analogue mixer with built-in digital DSP effects, Bluetooth playback and USB/SD media features. It does not offer full digital mixer control or scene recall.
How many channels does the Studiomaster Club XS12+ have?
The Club XS12+ has 12 inputs, including 8 microphone channels and 2 stereo channels.
Does the Club XS12+ have Bluetooth?
Yes. The Studiomaster Club XS12+ includes Bluetooth playback for wireless audio streaming from compatible devices.
Does the Club XS12+ have built-in effects?
Yes. It includes 16 built-in DSP effects, including reverb, delay and stereo effects, plus a DSP on/off footswitch socket for live control.
Can the Club XS12+ record audio?
Yes. It supports recording to USB drive or SD card. Published specifications list recording as 128kbps mono.
Is the Studiomaster Club XS12+ suitable for live bands?
Yes. With 8 mic channels, 2 stereo channels, EQ, compression, aux routing, DSP effects and balanced outputs, it is well suited to bands, rehearsal rooms and small-to-medium venue sound.
Does the Club XS12+ have phantom power?
Yes. Published specifications list +48V phantom power on the mic channels for compatible condenser microphones.
What is the difference between the Club XS6+ and Club XS12+?
The Club XS6+ is a smaller 6-input mixer for compact setups, while the Club XS12+ gives you 12 inputs, 8 mic channels and more flexibility for bands, venues and rehearsal spaces.
What is the difference between the Club XS12+ and Club XS16+?
The Club XS12+ is more compact and easier to manage, while the Club XS16+ offers more input capacity with 16 inputs and 12 mic channels. Choose the XS12+ for small-to-medium setups and the XS16+ for larger bands or venues needing more microphone channels.
Is the Club XS12+ portable?
Yes. Published specifications list dimensions of 415mm x 80mm x 365mm and a weight of 5.5kg, making it portable for a 12-channel analogue mixer.
