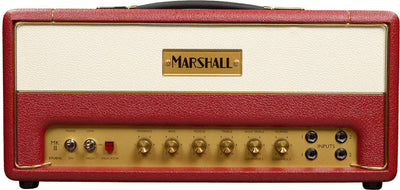

The Marshall SV20H Studio Vintage brings the unmistakable character of the legendary 1959SLP “Plexi” amplifier into a more compact and manageable 20-watt valve head. This limited-edition Maroon/Cream version adds a distinctive boutique-inspired appearance to one of Marshall’s most celebrated modern amplifier designs.

Powered by a pair of EL34 output valves, the SV20H produces the harmonically rich crunch, prominent midrange and dynamic response associated with classic British rock guitar tones. Two bridgeable channels let you choose between the brightness of the High Treble channel, the fuller response of the Normal channel or a blend of both.

Switchable 20-watt and 5-watt output modes make the SV20H suitable for recording, rehearsals and live performances, while a switchable series effects loop and DI output provide useful flexibility for modern guitar rigs.

This B-stock amplifier has been inspected and is offered at a reduced price, making it an excellent opportunity to own a limited-edition, UK-made Marshall valve head.

At A Glance

Feature	Details
Brand	Marshall
Model	SV20H Studio Vintage
Finish	Limited-Edition Maroon/Cream Levant
Product Type	Valve guitar amplifier head
Condition	B-Stock
Output Power	20 watts with 5-watt power reduction
Channels	Two bridgeable channels
Preamp Valves	Two ECC83 plus one ECC83 phase splitter
Power Valves	Two EL34
Effects Loop	Switchable series loop
DI Output	Yes
Country of Manufacture	United Kingdom
Main Appeal	Classic Plexi-style Marshall tone in a compact format
Best For	Classic rock, blues, hard rock, recording and live performance
Skill Level	Intermediate to professional

Why Choose the Marshall SV20H Studio Vintage?

Classic 1959SLP-Inspired Tone

The SV20H is inspired by Marshall’s legendary 100-watt 1959SLP Super Lead. It captures the clear attack, powerful midrange and harmonically rich valve overdrive associated with the classic Plexi sound while reducing the output and physical size.

Turned down, the amplifier delivers articulate cleans and responsive blues tones. Increase the channel volumes and the EL34 power stage produces the aggressive crunch, sustain and bite that helped define classic rock guitar.

Two Bridgeable Channels

The amplifier provides a High Treble channel and a Normal channel, each with high and low sensitivity inputs.

The High Treble channel offers a brighter, more cutting response, while the Normal channel produces a rounder and fuller sound. Players can bridge the two channels with a short patch cable and blend their individual volume controls to create a carefully balanced tone.

This traditional four-input arrangement provides considerably more tonal flexibility than its straightforward control panel initially suggests.

Switchable 20W and 5W Output

A rear-panel power switch reduces the output from 20 watts to 5 watts.

The full 20-watt setting provides the projection and headroom required for rehearsals, studio sessions and many live performances. The 5-watt mode allows the amplifier to reach its natural valve character at a lower overall level.

Although 5 watts through an efficient guitar speaker can still be loud, the reduced-power setting makes the SV20H more practical than a traditional 100-watt Plexi-style amplifier.

Authentic EL34 Valve Response

Two EL34 power valves give the SV20H its recognisable British character. The amplifier reacts naturally to changes in picking strength, guitar volume and pickup output.

Light playing can remain articulate and controlled, while harder picking brings out additional compression, overdrive and harmonic detail. Rolling back the guitar’s volume control provides an effective way to move between cleaner rhythm sounds and driven lead tones.

Pedal-Friendly Effects Loop

The switchable series effects loop lets you place delay, reverb and modulation pedals after the amplifier’s main gain stages.

This helps time-based effects remain defined when the front of the amplifier is being pushed into overdrive. Traditional boost, overdrive, fuzz and wah pedals can still be connected directly to the amplifier’s front inputs.

Useful DI Output

The rear-panel DI output provides an additional connection option for recording equipment and live sound systems.

The amplifier must still be connected to a correctly matched speaker cabinet or suitable professional load device whenever it is operating.

Limited-Edition Maroon/Cream Finish

This version replaces the familiar black-and-gold Marshall presentation with an eye-catching Maroon/Cream Levant design.

The contrasting coverings give the amplifier a distinctive vintage appearance while retaining the classic Marshall control layout and script logo. It is an excellent choice for players who want authentic Studio Vintage performance with a less common finish.

Made in the United Kingdom

The SV20H is designed, engineered and manufactured at Marshall’s UK factory.

Its compact dimensions and approximately 9.25kg weight make it easier to transport than a full-size 100-watt amplifier head without sacrificing the feel and response of an all-valve Marshall design.

Why Choose a Low-Wattage Valve Amplifier Head?

A separate amplifier head lets the guitarist choose the speaker cabinet that best suits the venue, recording session or tonal requirement.

Pairing the SV20H with a compact 1x12 cabinet creates a portable recording or rehearsal rig. A 2x12 cabinet provides greater spread and low-end authority, while a 4x12 delivers the physical projection and visual impact associated with classic Marshall stacks.

The 20-watt valve format provides a useful balance between natural power-stage response and practical volume. It offers greater live-performance capability than many small practice amplifiers while being significantly easier to manage than a traditional 100-watt Super Lead.

Who Is It For?

Classic Rock and Blues Players

The SV20H is ideal for guitarists looking for responsive cleans, edge-of-breakup rhythm sounds, thick blues overdrive and cutting classic-rock lead tones.

Pedal Users

The amplifier works particularly well with boosts, overdrives, fuzz pedals and wah effects connected to the front inputs. Delay, reverb and modulation pedals can be placed in the effects loop for additional clarity.

Studio Guitarists

Its compact dimensions, reduced-power mode, DI output and authentic valve response make the SV20H a strong recording amplifier. Different speaker cabinets and microphones can be used to create a wide range of traditional British guitar sounds.

Gigging Musicians

The 20-watt setting offers enough power for rehearsals and many live situations, particularly when the amplifier is miked through a venue’s PA system.

Players Who Control Gain From the Guitar

The SV20H is especially rewarding for players who use their guitar’s volume and tone controls. It responds dynamically as the guitar volume is reduced, allowing multiple gain textures without channel switching.

Players Who Want a Limited-Edition Marshall

The Maroon/Cream finish makes this version particularly appealing to collectors and players who want something less common than the standard black model.

Condition Overview

B-Stock

This amplifier is being sold as B-stock rather than factory-sealed new stock. It has been inspected to confirm correct operation and provides the same core performance and technical specification as the standard SV20H.

B-stock offers an opportunity to purchase professional-quality equipment at a reduced price. Please examine the product photographs for the exact cosmetic presentation of this individual amplifier.

What’s Included?

• Marshall SV20H Studio Vintage amplifier head

• Detachable mains power cable

• Speaker cable

Condition Notes

• B-stock example

• Limited-edition Maroon/Cream Levant finish

• Please refer to the listing photographs for the exact cosmetic condition and packaging presentation

Fair Deal Quality Control Assessment

Before dispatch, our team checks B-stock amplification equipment for correct operation. Relevant functions include:

• Instrument inputs

• High Treble and Normal volume controls

• Treble, Middle, Bass and Presence controls

• 20-watt and 5-watt power modes

• Effects-loop send and return

• DI output

• Speaker output connections

• Valve operation

• Unwanted noise or intermittent controls

The amplifier must always be connected to a suitable speaker cabinet or correctly rated professional load device before being powered on.

Understanding the Studio Vintage Sound

The SV20H does not use a conventional preamp-gain and master-volume arrangement. Its overdrive is created by increasing the two channel-volume controls and driving the valve circuit.

This gives the amplifier an open, immediate and highly dynamic response. At higher volume settings, the sound becomes progressively thicker, more compressed and harmonically complex.

Players requiring heavily saturated sounds at very low listening levels may prefer to use a high-quality attenuator, reactive load device or suitable drive pedal. The amplifier’s 5-watt mode reduces the available output but remains capable of substantial volume through an efficient cabinet.

Technical Specifications

Specification	Details
Model	SV20H
Range	Marshall Studio Vintage
Amplifier Technology	All-valve
Output Power	20 watts
Reduced-Power Mode	5 watts
Channels	Two, bridgeable
Channel Types	High Treble and Normal
Instrument Inputs	Four 1/4-inch inputs
Input Sensitivities	High and low sensitivity for each channel
Controls	High Treble/Loudness I, Normal/Loudness II, Treble, Middle, Bass and Presence
Preamp Valves	Two ECC83
Phase Splitter	One ECC83
Power Valves	Two EL34
Effects	None
Effects Loop	Switchable series effects loop
DI Output	One 1/4-inch jack
Speaker Outputs	Five 1/4-inch jack sockets
Supported Speaker Loads	16Ω, 8Ω and 4Ω
Width	500mm
Height	240mm
Depth	230mm
Weight	Approximately 9.25kg
Country of Manufacture	United Kingdom

Power and Speaker Requirements

The Marshall SV20H requires a suitable UK mains electricity connection.

A compatible external guitar speaker cabinet is required. The amplifier does not contain a built-in speaker and must not be operated without a correctly connected cabinet or an appropriate professional load device.

The speaker cabinet’s impedance must be connected to the correct amplifier output. The SV20H supports 16Ω, 8Ω and 4Ω speaker loads through its dedicated output sockets.

Always use a proper speaker cable between the amplifier and cabinet. A standard guitar instrument cable must not be used for this connection.

Which Speaker Cabinet Should You Choose?

1x12 Cabinet

A 1x12 provides the most portable option and works well for recording, rehearsals and smaller performances. Speaker power handling and impedance must be suitable for the amplifier.

2x12 Cabinet

A 2x12 provides greater projection, bass response and sound dispersion while remaining easier to transport than a full-size 4x12.

4x12 Cabinet

A 4x12 delivers the strongest physical impact, stage projection and traditional Plexi-style playing experience. It is the natural choice for players seeking the feel of a classic Marshall stack.

Comparison With Other Marshall Studio Amplifiers

Marshall SV20H Studio Vintage

The SV20H is the choice for players who want the open, bright and dynamically responsive character of the 1959SLP Plexi format.

Marshall SC20H Studio Classic

The SC20H is inspired by the JCM800 2203 and includes a master-volume design. It provides a tighter, more aggressive response and can produce preamp overdrive at lower output levels.

Marshall ST20H Studio JTM

The ST20H offers a softer attack, fuller bass response and earlier vintage-style breakup inspired by Marshall’s earliest amplifiers.

The SV20H sits between the rounder Studio JTM and the more aggressive Studio Classic, delivering the articulate attack and muscular crunch associated with the Plexi era.

Frequently Asked Questions

Can the Marshall SV20H be used without a speaker cabinet?

No. The amplifier must be connected to a correctly matched speaker cabinet or a suitable professional load device whenever it is powered on.

Is 5-watt mode quiet enough for home use?

The 5-watt setting reduces the output significantly, but a 5-watt valve amplifier can still be loud through an efficient speaker cabinet. An attenuator or reactive load solution can provide greater control when very low playing levels are required.

Can the two channels be used together?

Yes. A short patch cable can be used to bridge the High Treble and Normal channels. Their individual volume controls can then be blended to balance brightness and body.

Does the SV20H have a master-volume control?

No. The SV20H follows a traditional Plexi-style control arrangement. Overdrive is produced by increasing the channel-volume controls and driving the valve circuit.

Is there an effects loop?

Yes. The amplifier has a switchable series effects loop for connecting compatible effects pedals and processors.

Can it be connected directly to recording equipment?

The SV20H has a DI output. However, the amplifier must remain connected to a suitable speaker cabinet or professional load device while it is operating.

Does the amplifier require valve biasing after replacing the power valves?

The SV20H uses a cathode-biased design, so replacement power valves do not require manual bias adjustment. Valve replacement should still be carried out by a suitably qualified amplifier technician.

Is the Maroon/Cream version technically different from the standard SV20H?

The principal difference is the limited-edition Maroon/Cream Levant presentation. It retains the established SV20H valve circuit, controls, connections and output modes.

Fair Deal Music Verdict

★★★★★ 5/5

The Marshall SV20H Studio Vintage is one of the most convincing ways to experience authentic Plexi-style response without committing to the size and output of a 100-watt Super Lead.

Its bridgeable channels, reactive EL34 power stage and simple control layout encourage the player to shape the sound through playing dynamics, guitar controls and pedals. The switchable output, effects loop and DI connection add useful practicality without removing the amplifier’s traditional character.

Finished in limited-edition Maroon/Cream and offered at a reduced B-stock price, this is an especially attractive choice for classic-rock players, recording guitarists and Marshall collectors.
