RCF EVOX JMIX9 Column PA System
Full Description
Built-in mixing for complete control
The EVOX JMIX9 features an integrated 8-channel stereo digital mixer, giving you hands-on control without extra hardware. Four mic/line inputs with phantom power support microphones and instruments, while stereo line and Bluetooth inputs handle playback sources. Each channel includes EQ, compression, and high-pass filtering, plus onboard stereo reverb for vocals and instruments. Wireless control via the JMixRemote app lets you mix from anywhere in the room using your phone.
Clear, balanced column sound
Like the EVOX J9, the JMIX9 uses a true three-way column array to deliver a natural and focused sound. A 1.75" neodymium compression driver and True Resistive Waveguide help high frequencies project smoothly, while six 3" full-range drivers maintain vocal clarity and midrange detail. This centred acoustic design keeps the sound consistent for listeners across the space.
Power that suits live events
The onboard 2100 W Class-D amplifier delivers strong output with clean transient response, reaching up to 130 dB SPL. A 12" RCF woofer provides deep, controlled low frequencies that hold together at higher volumes. Built-in DSP presets for Live, Club, and Voice make it easy to adapt the system to different applications without additional processing.
Compact design with fast setup

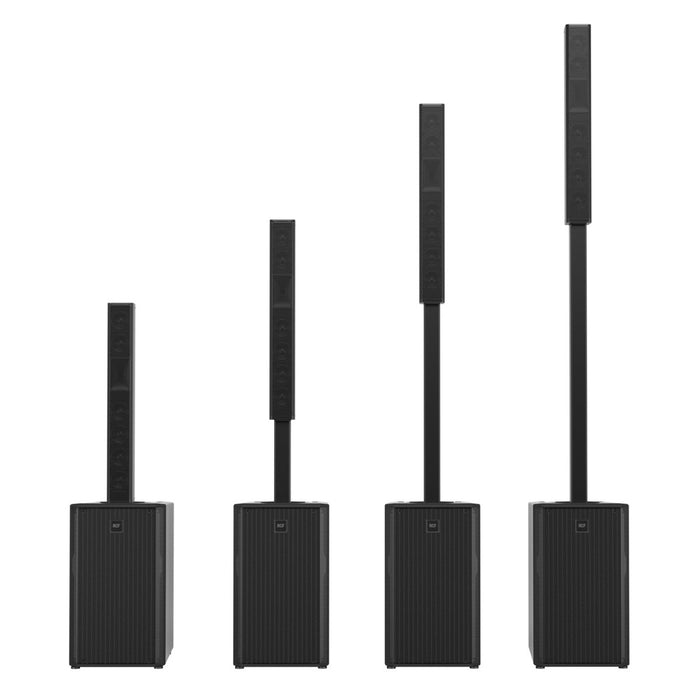

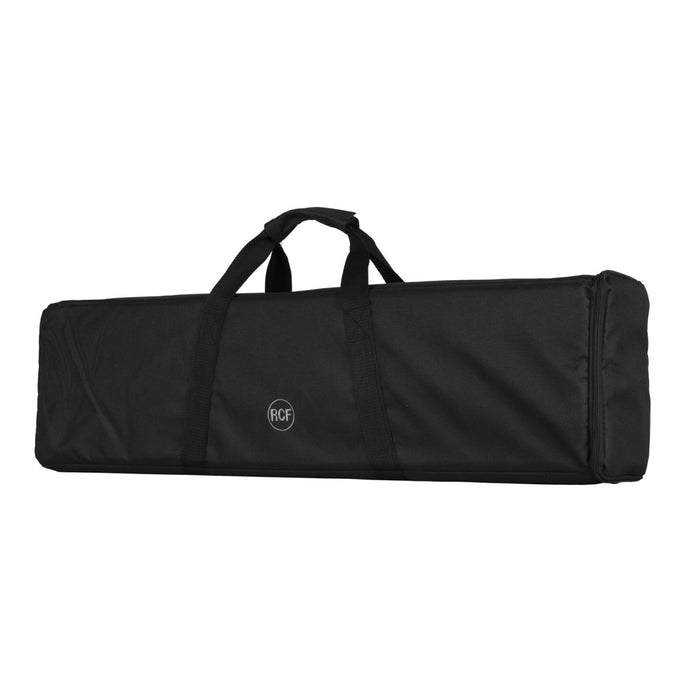

The JMIX9 keeps load-ins simple with an integrated aluminium pole that carries both the signal and physical connection between the column and subwoofer. Adjustable height options allow you to tailor coverage for seated or standing audiences. A padded carrying bag for the column and pole is included, making transport easier and helping protect your gear between shows.
Features
- True three-way active column PA system.
- Integrated 8-channel stereo digital mixer.
- Wireless control via the JMixRemote app.
- 2100 W Class-D amplification.
- Maximum SPL up to 130 dB.
- 120° x 40° wide dispersion pattern.
- 12" RCF precision woofer.
- DSP presets for Live, Club, and Voice use.
Specifications
- System Type:Active Three-Way Portable Column System
- Frequency Range:40 Hz - 20000 Hz
- Max SPL At 1m:130 dB
- Horizontal Coverage Angle:120°
- Vertical Coverage Angle:40°
- Compression Driver:0.75" Neo, 1.75" V.C
- Full-Range Drivers:6 x 3.0" Neo, 1.0" V.C
- Woofer:12", 2.5" V.C
- Total Power:2100 W Peak
- High Frequencies Power:700 W Peak
- Low Frequencies Power:1400 W Peak
- Input Signal:Balanced/Unbalanced
- Input Connectors:Combo XLR/Jack
- Output Connectors:XLR
- Bluetooth Audio:Bluetooth 5.3 Streaming
- Digital Mixer:8-Channel Stereo, 48 kHz, 32-Bit DSP
- Internal Effects:Stereo Reverb, Ducker
- Presets:Linear/Live, Club, Voice
- Cabinet Material:PP Composite
- Grille Material:Steel
- Colour Options:Black, White
- Dimensions (W x D x H):350 mm x 462.6 mm x 2080 mm
- Weight:26.5 kg
