The Marshall DSL20CR is a versatile 20-watt all-valve guitar combo capable of delivering everything from bright, articulate clean tones and classic British crunch to saturated hard-rock and metal distortion.

Its two footswitchable channels—Classic Gain and Ultra Gain—each feature independent Gain and Volume controls, allowing players to move between contrasting rhythm and lead sounds without completely rebuilding their settings. A switchable 10-watt power mode makes the amplifier more adaptable for home practice and recording, while the full 20-watt setting provides the projection required for rehearsals and smaller live performances.

Equipped with a 12-inch Celestion Seventy 80 speaker, digital reverb, a series effects loop, auxiliary input and balanced speaker-emulated line output, the DSL20CR offers a flexible all-in-one solution for home, studio and stage use.

At A Glance

Feature	Details
Brand	Marshall
Model	DSL20CR
Series	DSL
Amplifier Type	All-valve guitar combo
Output Power	20W with switchable 10W mode
Channels	Classic Gain and Ultra Gain
Speaker	1 x 12-inch Celestion Seventy 80
Speaker Rating	80W, 16Ω
Preamp Valves	2 x ECC83 plus 1 x ECC83 phase splitter
Power Valves	2 x EL34
Equalisation	Treble, Middle, Bass and Presence
Additional Tone Control	Tone Shift
Built-In Effect	Digital reverb
Effects Loop	Series effects loop
Direct Output	Balanced speaker-emulated line output
Footswitch	Marshall PEDL-90012 included
Condition	Brand New
Main Appeal	Wide-ranging Marshall valve tones in a practical 1x12 combo
Best For	Blues, rock, punk, hard rock, metal, recording and live performance
Skill Level	Beginner to professional

---

Why Choose the Marshall DSL20CR?

Two Versatile Gain Channels

The DSL20CR features separate Classic Gain and Ultra Gain channels, each with independent Gain and Volume controls.

The Classic Gain channel covers clear clean sounds, warm edge-of-breakup tones and traditional Marshall crunch. It responds naturally to picking dynamics and guitar-volume changes, making it suitable for blues, indie, country and classic-rock playing.

The Ultra Gain channel provides increased saturation, compression and sustain for hard rock, punk, alternative music and metal. Its separate Gain control allows the amount of distortion to be adjusted without changing the Classic Gain channel.

Genuine All-Valve Construction

Three ECC83 valves handle the preamp and phase-splitter duties, while two EL34 valves power the output stage.

This traditional Marshall valve configuration delivers strong midrange presence, natural harmonic complexity and a responsive playing feel. The amplifier reacts closely to changes in picking strength, pickup output and guitar-volume settings rather than producing a completely fixed or heavily processed response.

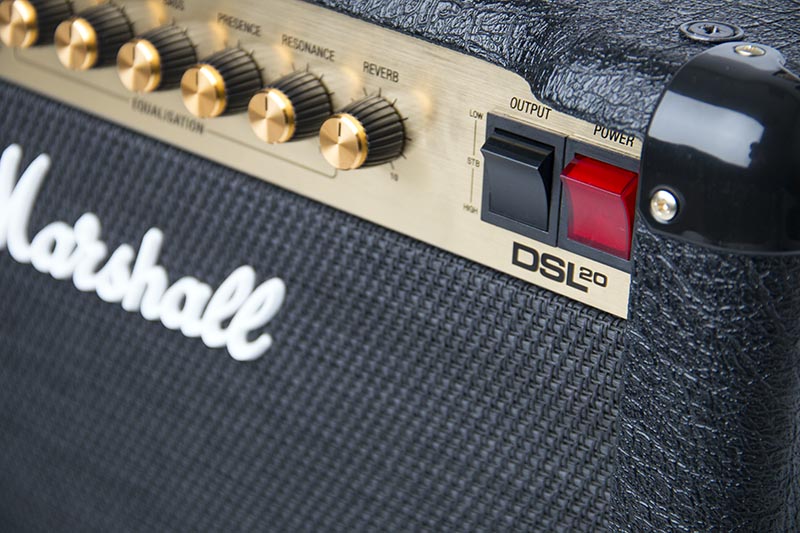

Switchable 20W and 10W Power

A rear-panel power selector allows the DSL20CR to operate at either 20 watts or 10 watts.

The full-power mode provides greater projection and clean headroom for rehearsals and performances. The reduced-power setting makes the amplifier easier to manage during home practice and recording while retaining its core valve character.

Both settings remain capable of producing considerable volume through the built-in 12-inch speaker.

Celestion Seventy 80 Speaker

The DSL20CR is fitted with a 12-inch Celestion Seventy 80 speaker rated at 80 watts and 16Ω.

Its balanced response supports the amplifier’s broad tonal range, providing clear high-frequency detail, controlled low end and enough midrange presence for distorted guitar sounds to remain defined within a band mix.

The full-sized 12-inch speaker also gives the DSL20CR greater depth and projection than smaller practice-oriented guitar combos.

Independent Gain and Volume Controls

Both channels feature their own Gain and Volume controls, allowing their level and distortion characteristics to be balanced independently.

Players can configure the Classic Gain channel for cleaner rhythm work and set the Ultra Gain channel for a louder or more saturated lead sound. The included footswitch then provides convenient channel changes during practice, rehearsal or performance.

Flexible Tone-Shaping Controls

A shared three-band EQ provides dedicated Treble, Middle and Bass controls for shaping the amplifier’s overall voice.

The Presence control adjusts the upper-frequency response of the power-amplifier section, helping the guitar sound move forward in a mix or sit more smoothly beneath vocals and other instruments.

The Tone Shift switch changes the EQ response to create a more scooped character, which can be useful for tighter modern rhythm sounds and heavier styles.

Built-In Digital Reverb

The onboard digital reverb adds adjustable ambience without requiring a separate pedal.

Lower settings can provide subtle space and depth, while higher settings create a more noticeable atmospheric effect. The reverb works across both channels and can be adjusted from the front control panel.

Series Effects Loop

The rear-panel series effects loop provides a dedicated connection point for delay, reverb, chorus and other effects that are often clearer when placed after preamp distortion.

The loop can be switched using the included PEDL-90012 footswitch, making it possible to bring an entire group of connected effects into or out of the signal path during a performance.

Balanced Speaker-Emulated Line Output

The 3.5mm speaker-emulated line output provides a balanced direct signal for compatible recording equipment and mixing systems.

Its speaker emulation creates a more guitar-appropriate direct sound than an unfiltered preamp output. The amplifier also supports silent recording when the line output is connected and the amplifier is operated in its designated standby configuration.

Auxiliary Input for Practice

A 3.5mm auxiliary input allows a compatible phone, tablet, music player or computer to be connected for playing along with backing tracks, songs and lesson material.

This makes the DSL20CR equally useful for structured home practice and performance preparation.

---

Why Choose a Two-Channel Valve Combo?

A two-channel valve combo combines contrasting clean and distorted sounds with the dynamic response of a traditional valve amplifier.

Unlike a single-channel design that may require guitar-volume adjustments or pedals to create different gain levels, the DSL20CR allows separate rhythm and lead sounds to be prepared in advance and selected by footswitch.

The integrated combo format also houses the amplifier and speaker within one enclosure. This removes the need to transport and connect a separate amplifier head and cabinet, making the DSL20CR a practical option for lessons, rehearsal rooms, recording sessions and smaller performances.

Its power reduction, direct-recording output and effects loop further extend its usefulness beyond that of a simple traditional valve combo.

---

Who Is It For?

Players Who Need Clean and Distorted Sounds

The two-channel layout is ideal for guitarists who regularly move between cleaner rhythm parts and more heavily driven lead or chorus sections.

Rock and Hard-Rock Guitarists

The DSL20CR delivers the strong midrange, aggressive attack and harmonically rich distortion associated with classic Marshall amplifiers.

Metal Players

The Ultra Gain channel provides enough saturation for traditional and contemporary heavy styles. The Tone Shift control can create a more scooped response, while an external boost pedal can be used for additional tightness and attack.

Blues and Classic-Rock Musicians

The Classic Gain channel provides responsive clean, edge-of-breakup and crunch sounds that work particularly well with lower-output humbuckers, P-90s and traditional single-coil pickups.

Pedalboard Users

Drives, boosts, wah and fuzz pedals can be connected before the amplifier, while delay, reverb and modulation effects can be placed through the series effects loop.

Home and Studio Players

The 10-watt setting, auxiliary input and speaker-emulated line output give the DSL20CR useful flexibility for home practice and recording.

Rehearsing and Gigging Musicians

The 20-watt setting and 12-inch Celestion speaker provide enough projection for many rehearsals and smaller performances, particularly when the amplifier is reinforced through a PA system.

---

What’s Included?

• Marshall DSL20CR all-valve guitar combo amplifier

• Marshall PEDL-90012 footswitch

• Detachable UK mains cable

---

Technical Specifications

Specification	Details
Product Type	All-valve guitar combo amplifier
Model	DSL20CR
Series	DSL
Technology	Valve
Channels	2
Channel Names	Classic Gain and Ultra Gain
Full-Power Output	20W
Reduced-Power Output	10W
Instrument Input	1 x ¼-inch jack
Auxiliary Input	1 x 3.5mm jack
Classic Gain Controls	Gain and Volume
Ultra Gain Controls	Gain and Volume
Shared EQ Controls	Treble, Middle and Bass
Additional Controls	Presence, Reverb and Tone Shift
Channel Selection	Front-panel switch or included footswitch
Built-In Effects	Digital reverb
Effects Loop	1 x series effects loop
Effects Loop Connections	¼-inch Send and Return
Direct Output	1 x 3.5mm balanced speaker-emulated line output
Speaker Outputs	3 x ¼-inch jack sockets
Supported Speaker Loads	16Ω or 8Ω configurations
Speaker Configuration	1 x 12-inch
Speaker Model	Celestion Seventy 80
Speaker Power Rating	80W
Speaker Impedance	16Ω
Amplifier Impedance	16Ω
Preamp Valves	2 x ECC83
Phase Splitter	1 x ECC83
Power Amplifier Valves	2 x EL34
Included Footswitch	Marshall PEDL-90012
Finish	Black with classic Marshall styling
Width	500mm
Height	420mm
Depth	250mm
Weight	16.3kg
Designed and Engineered	United Kingdom
Country of Manufacture	Vietnam

---

Power Requirements

The Marshall DSL20CR operates from UK mains power using the supplied detachable mains cable.

Before powering the amplifier on, reduce the channel Volume and Gain controls and confirm that the internal speaker is connected to the correct speaker output. Allow the valves a short period to warm up before moving the amplifier into its operating mode.

The internal Celestion speaker presents a 16Ω load. Alternative speaker arrangements must match one of the impedance configurations marked on the amplifier’s rear panel.

Always use a dedicated speaker cable when connecting an external guitar cabinet. A screened instrument cable is not suitable for speaker-level connections.

---

Recording with the DSL20CR

The speaker-emulated line output can be connected to a compatible recording interface, portable recorder or mixing desk.

For conventional recording, the built-in Celestion speaker can be captured with a microphone while the direct output records a separate emulated signal. These tracks can then be blended during mixing.

The amplifier also supports silent direct recording through its designated standby configuration. Follow Marshall’s operating instructions carefully when using this function to ensure that the amplifier and connected equipment are configured correctly.

---

Comparison and Alternatives

Marshall DSL20HR

The DSL20HR provides the same core amplifier circuit in a separate head format. It is the better option for players who already own speaker cabinets or want to change cabinet and speaker combinations regularly.

The DSL20CR offers the convenience of an integrated Celestion-equipped combo.

Marshall DSL40CR

The DSL40CR offers greater output, additional switching options and increased live-performance flexibility. Its higher clean headroom makes it better suited to louder bands and larger stages.

The DSL20CR is more compact, lighter and easier to operate at moderate volume levels.

Marshall Origin20C

The Origin20C focuses on open clean sounds, edge-of-breakup tones and vintage-style crunch. It is particularly effective as a pedal platform but provides less built-in preamp gain.

Choose the DSL20CR for channel switching and heavier distortion, or the Origin20C for a more traditional single-channel response.

Marshall SC20C Studio Classic

The SC20C recreates the focused, aggressive character of the JCM800 2203 in a compact British-built format. Its simpler single-channel circuit offers a more direct vintage playing experience.

The DSL20CR provides a wider tonal range, digital reverb and greater flexibility at a more accessible price.

Marshall MG30GFX

The MG30GFX is a solid-state modelling combo with multiple channels and built-in effects. It offers convenient low-volume versatility without the maintenance requirements of valves.

The DSL20CR provides a more traditional all-valve response, greater harmonic complexity and a more organic transition into overdrive.

---

Frequently Asked Questions

Is the DSL20CR suitable for home practice?

Yes. The switchable 10-watt mode makes it more manageable than a fixed-output 20-watt valve amplifier.

It can still produce substantial volume, so players seeking heavily driven power-valve sounds at quiet levels may require an appropriate attenuator or load solution.

What is the difference between the two channels?

Classic Gain covers clean, edge-of-breakup and traditional crunch sounds. Ultra Gain provides increased distortion, sustain and compression for heavier rock and metal tones.

Can the channels be changed with a footswitch?

Yes. The included PEDL-90012 footswitch allows the two channels to be selected remotely.

What does the Tone Shift control do?

Tone Shift changes the response of the shared EQ section to produce a more scooped tonal profile. This reduces some of the central midrange emphasis and can suit modern rhythm sounds.

Is the effects loop footswitchable?

Yes. The included footswitch controls the effects loop, allowing connected effects to be activated or bypassed during a performance.

Does it have built-in reverb?

Yes. The DSL20CR includes adjustable digital reverb shared by both channels.

Can it be used with effects pedals?

Yes. Overdrive, distortion, boost, fuzz, compression and wah pedals can be connected before the amplifier input. Delay, reverb and modulation effects can be placed through the series effects loop.

Can an external speaker cabinet be connected?

Yes. The amplifier provides three speaker outputs for approved 8Ω and 16Ω configurations.

The internal speaker or external cabinet arrangement must be connected to the correctly labelled output before the amplifier is operated.

Is it suitable for metal?

Yes. The Ultra Gain channel provides saturated distortion for traditional and modern metal styles. A boost or overdrive pedal can add further attack and low-frequency control.

Can it produce clean sounds at rehearsal volume?

The Classic Gain channel can provide clean and lightly driven sounds, but available clean headroom depends on the guitar, pickup output, channel settings and required band volume.

Can it record without a microphone?

Yes. The balanced speaker-emulated line output can be connected to compatible recording equipment for direct recording.

Does it have a headphone output?

No. The speaker-emulated line output is designed for recording and line-level connections rather than direct headphone use.

Do replacement power valves require manual biasing?

No. The DSL20CR uses a cathode-biased power stage, so conventional manual bias adjustment is not required when its power valves are replaced.

---

Fair Deal Music Verdict

★★★★★ 5/5

The Marshall DSL20CR is one of the most versatile compact valve combos in Marshall’s range. Its Classic Gain channel covers articulate cleans and traditional British crunch, while the Ultra Gain channel delivers the saturation and sustain required for hard rock and metal.

The switchable 20-watt and 10-watt output, Celestion Seventy 80 speaker, digital reverb, effects loop and direct-recording capability make it equally useful for home practice, studio sessions, rehearsals and smaller performances.

For players who want genuine Marshall valve character without being restricted to one style or gain level, the DSL20CR is an excellent all-round choice.

---
