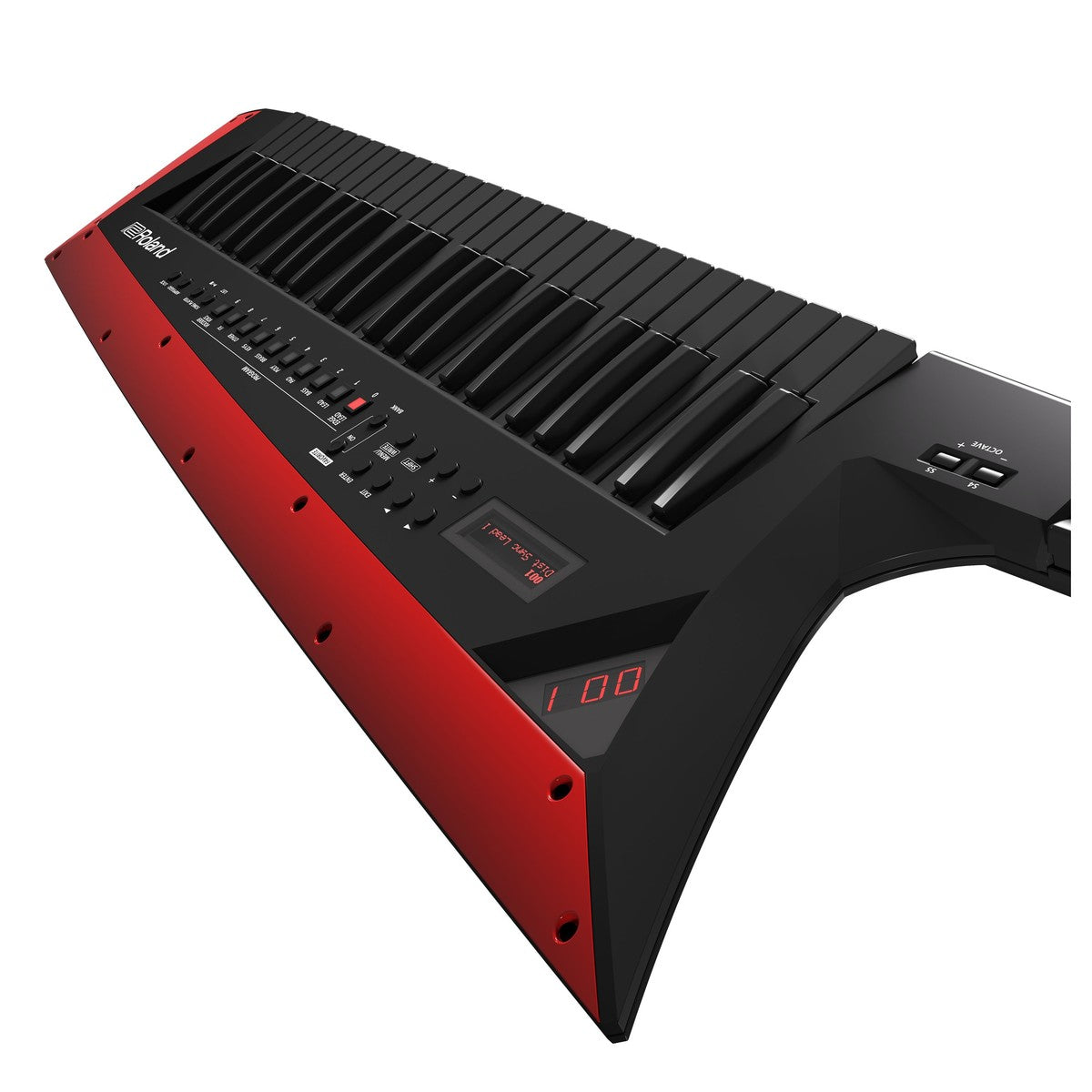

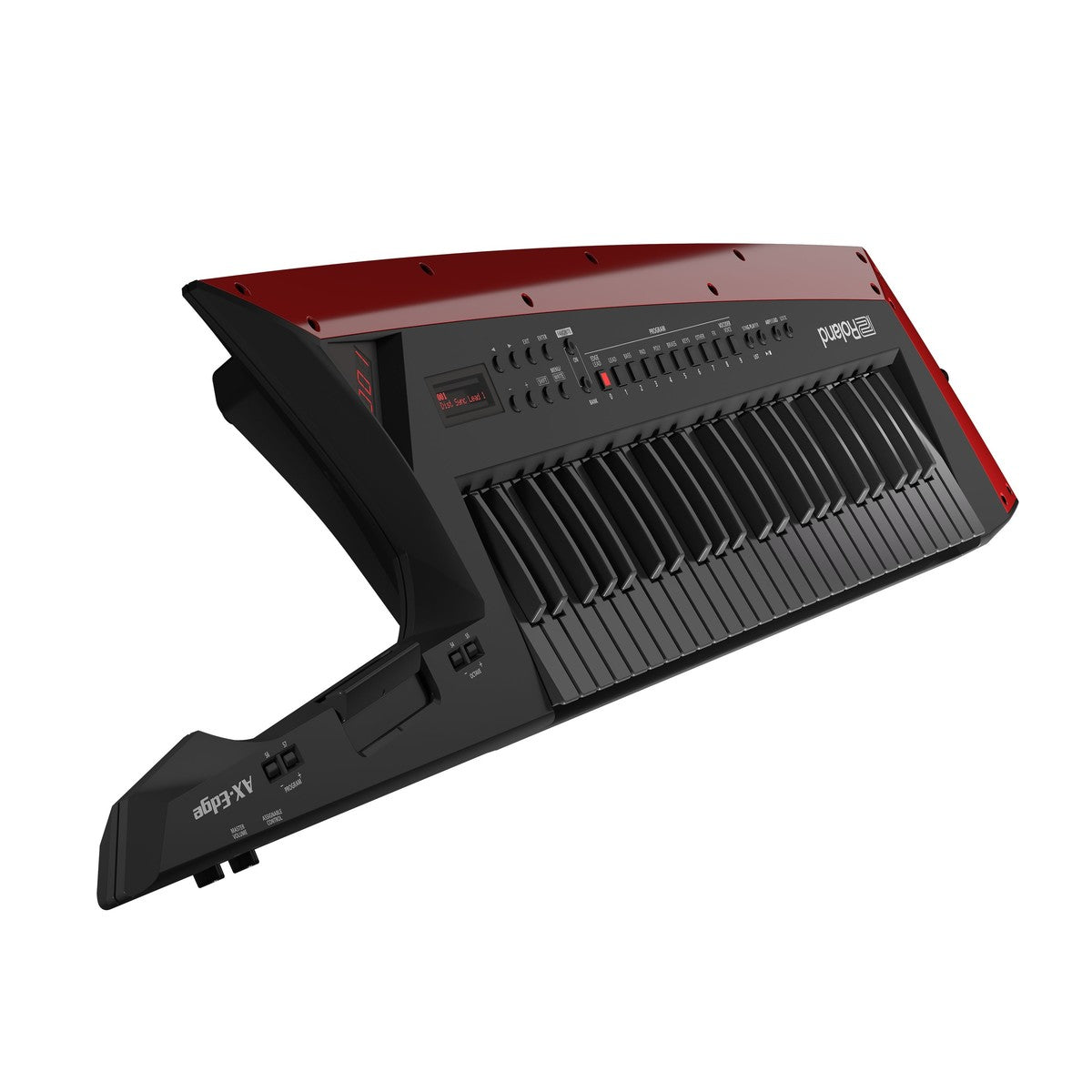

Roland AX-EDGE-B Keytar Shoulder Keyboard – Black

Quick Product Summary

The Roland AX-EDGE-B is a professional performance keytar built for keyboard players who want to step out from behind a traditional keyboard rig. Finished in striking Black, it combines a full-size 49-note keyboard with velocity and channel aftertouch with Roland’s powerful ZEN-Core sound engine, hands-on neck controls and a huge selection of stage-ready sounds.

Designed specifically for live performance, the AX-Edge offers more than 500 preset tones, four-part sound combinations, an integrated vocoder, arpeggiator, Bluetooth MIDI and expressive ribbon and modulation controls. At just 4.2 kg without batteries, it gives performers the freedom to move around the stage without sacrificing serious synthesizer capability.

What Makes the Roland AX-EDGE-B Special?

Unlike a conventional MIDI controller, the AX-Edge is a complete standalone performance synthesizer with its own extensive sound engine. The 49 full-size keys provide velocity sensitivity and channel aftertouch, while the neck-mounted ribbon controller, modulation bar and assignable controls let you manipulate sounds naturally while moving around the stage. Splits and layers allow complex performance setups, while Tone Remain enables smoother sound changes without abruptly cutting off sustained notes or effects.

The AX-Edge is equally useful as a standalone instrument or as a master controller for external MIDI equipment and software instruments. Bluetooth MIDI provides wireless editing with the AX-Edge Editor, while battery operation offers genuine cable-free stage freedom when used with suitable rechargeable Ni-MH batteries.

Who Is It For?

The Roland AX-EDGE-B is particularly well suited to:

• Gigging keyboard players wanting greater freedom on stage

• Synth players who perform lead and solo parts

• Rock, pop, electronic and function-band musicians

• Keyboardists wanting full-size keys in a shoulder-mounted instrument

• Performers requiring expressive aftertouch and real-time controls

• Vocalists and keyboardists wanting an integrated vocoder

• Producers using hardware synths or software instruments

• Players wanting a professional MIDI master keyboard in keytar format

At A Glance

Feature	Details
Model	Roland AX-EDGE-B
Type	Performance Keytar / Synthesizer
Finish	Black
Keyboard	49 Full-Size Keys
Expression	Velocity & Channel Aftertouch
Sound Engine	ZEN-Core
Parts	4 Parts + Vocoder
Preset Tones	Over 500
Programs	320 User Programs
Wireless	Bluetooth MIDI
Weight	4.2 kg
Condition	New

Condition Overview

This Roland AX-EDGE-B Keytar is brand new.

What’s Included?

• Roland AX-EDGE-B Keytar in Black

• Shoulder strap

• Additional Edge Blade panel

• Hex key and blade-panel screws

• Ferrite core and fastening band

• Owner’s documentation

No power supply, rechargeable batteries, stand, pedal or expression pedal are included.

Technical Specifications

Keyboard

• Keys: 49 full-size keys

• Velocity sensitive

• Channel aftertouch

• Designed for expressive live performance

Sound Generator

• Sound Engine: ZEN-Core

• Professional Roland synthesis architecture

• Designed for stage-ready performance sounds

Parts

• 4 instrument parts

• 1 dedicated Vocoder part

• Split and layered performance configurations

Sounds

• Preset Tones: Over 500

• User Tones: 256

• User Programs: 320

The sound library covers a broad range of performance sounds including:

• Synth leads

• Synth basses

• Pads

• Brass

• Strings

• Pianos

• Electric pianos

• Organs

• Modern electronic textures

Effects

• 90 types of Part Multi-Effects

• Part EQ

• 90 types of Program Multi-Effects

• 9 chorus types

• 7 reverb types

• Master Compressor

• Master EQ

• Vocoder processing

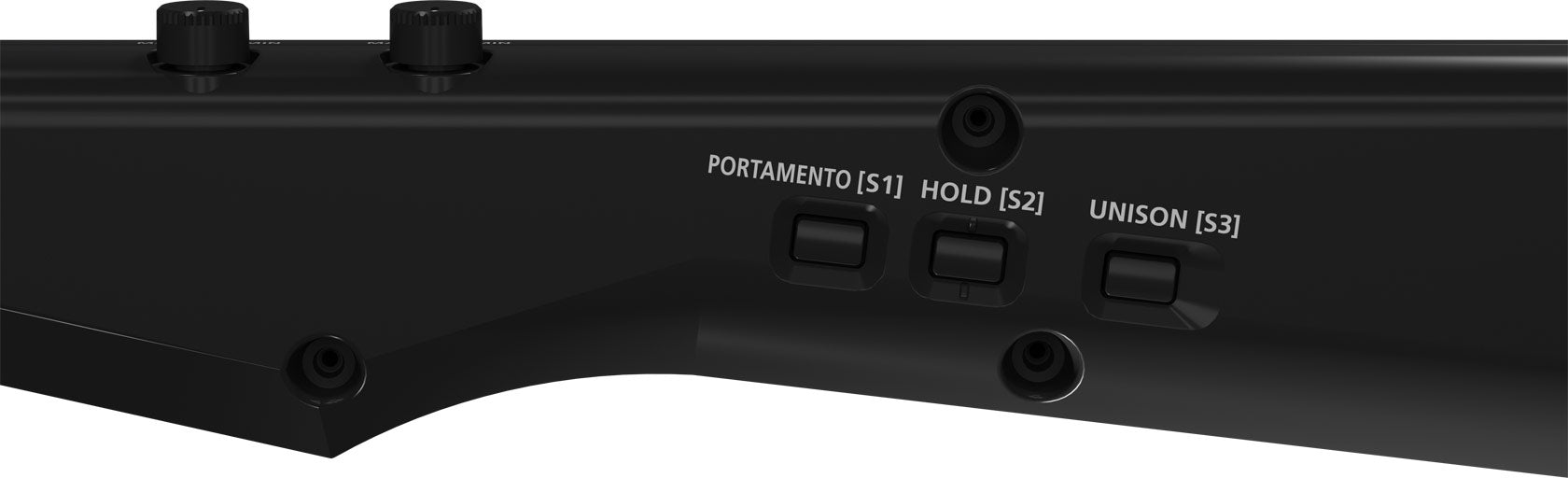

Performance Controls

• Pressure-sensitive ribbon controller

• Modulation bar

• Assignable control knob

• Master volume control

• Seven assignable buttons

• Pedal control support

• Aftertouch

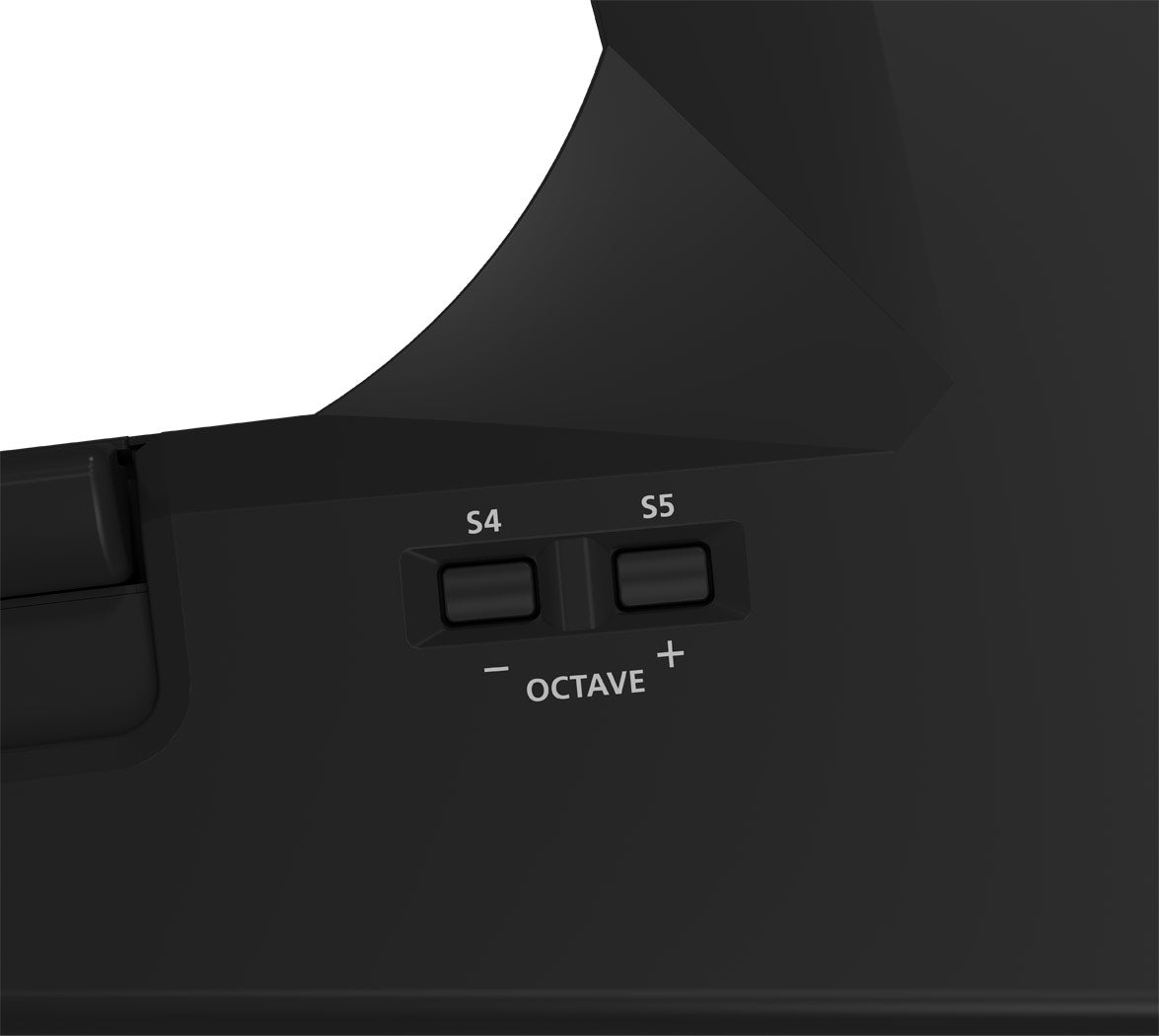

• Octave controls

• Portamento

• Hold

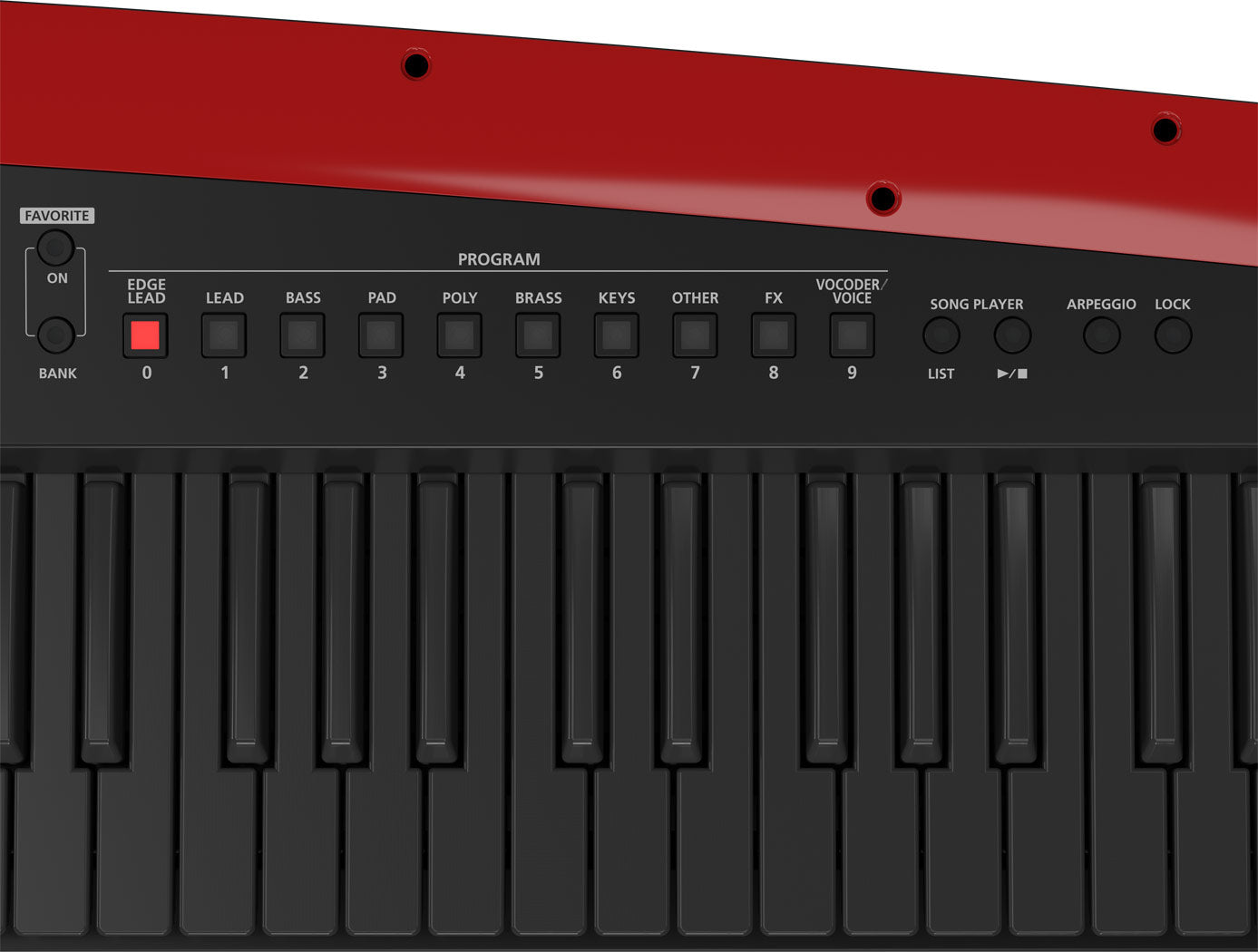

• Program switching

Performance Functions

• Favorite sounds

• Arpeggiator

• Song Player

• Vocoder

• MIDI Master Keyboard mode

• Sound editing

• Split and layer capability

• Tone Remain for smoother sound switching

Vocoder

The integrated vocoder can process a connected microphone signal and combine it with the AX-Edge's internal sounds for classic electronic vocal effects and creative stage performances.

Bluetooth

• Bluetooth MIDI

• Bluetooth LE

• Wireless communication with compatible mobile devices

• Compatible with the AX-Edge Editor for wireless sound editing

AX-Edge Editor

The compatible AX-Edge Editor allows detailed sound editing from a smartphone or tablet, making it easier to customise patches without navigating deeper parameters from the instrument itself.

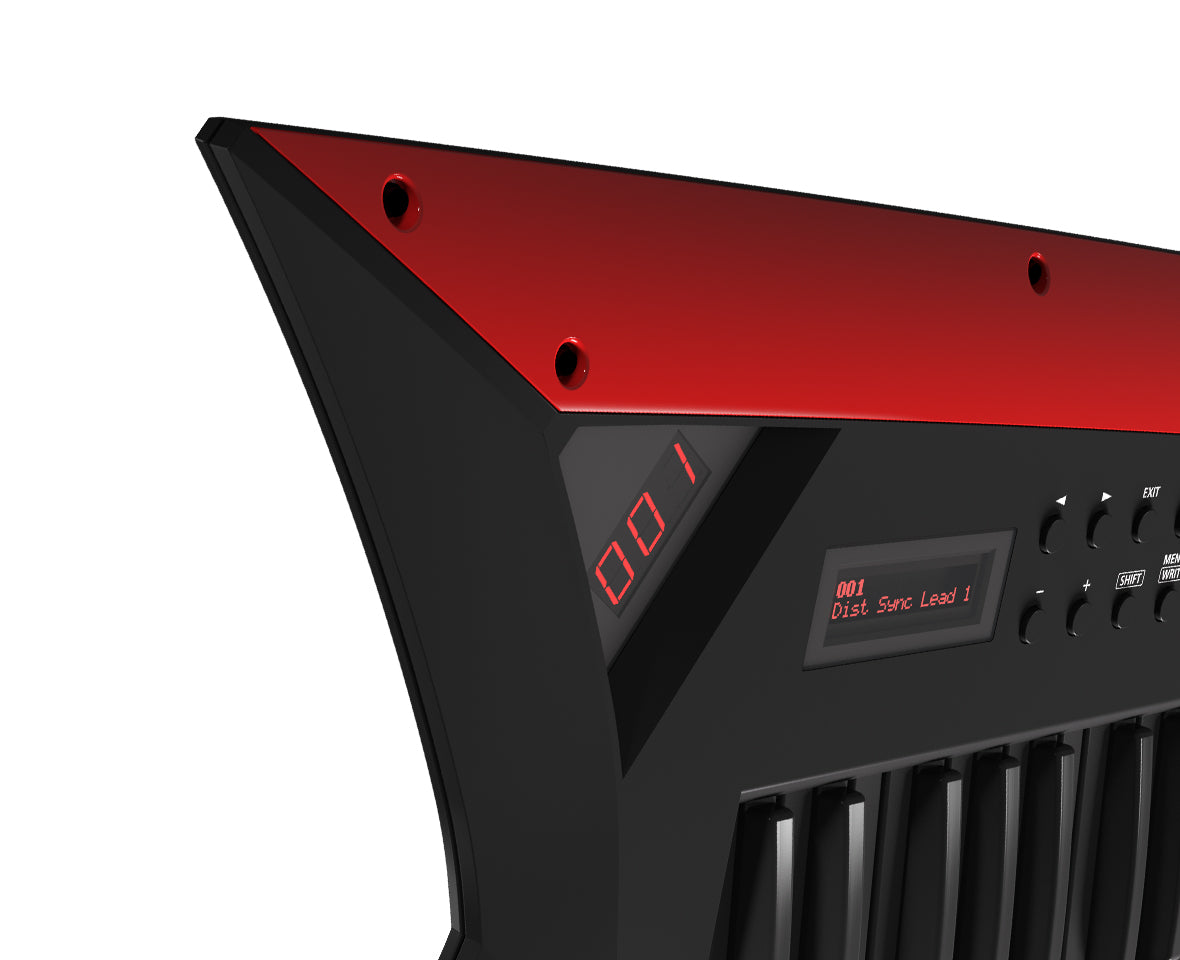

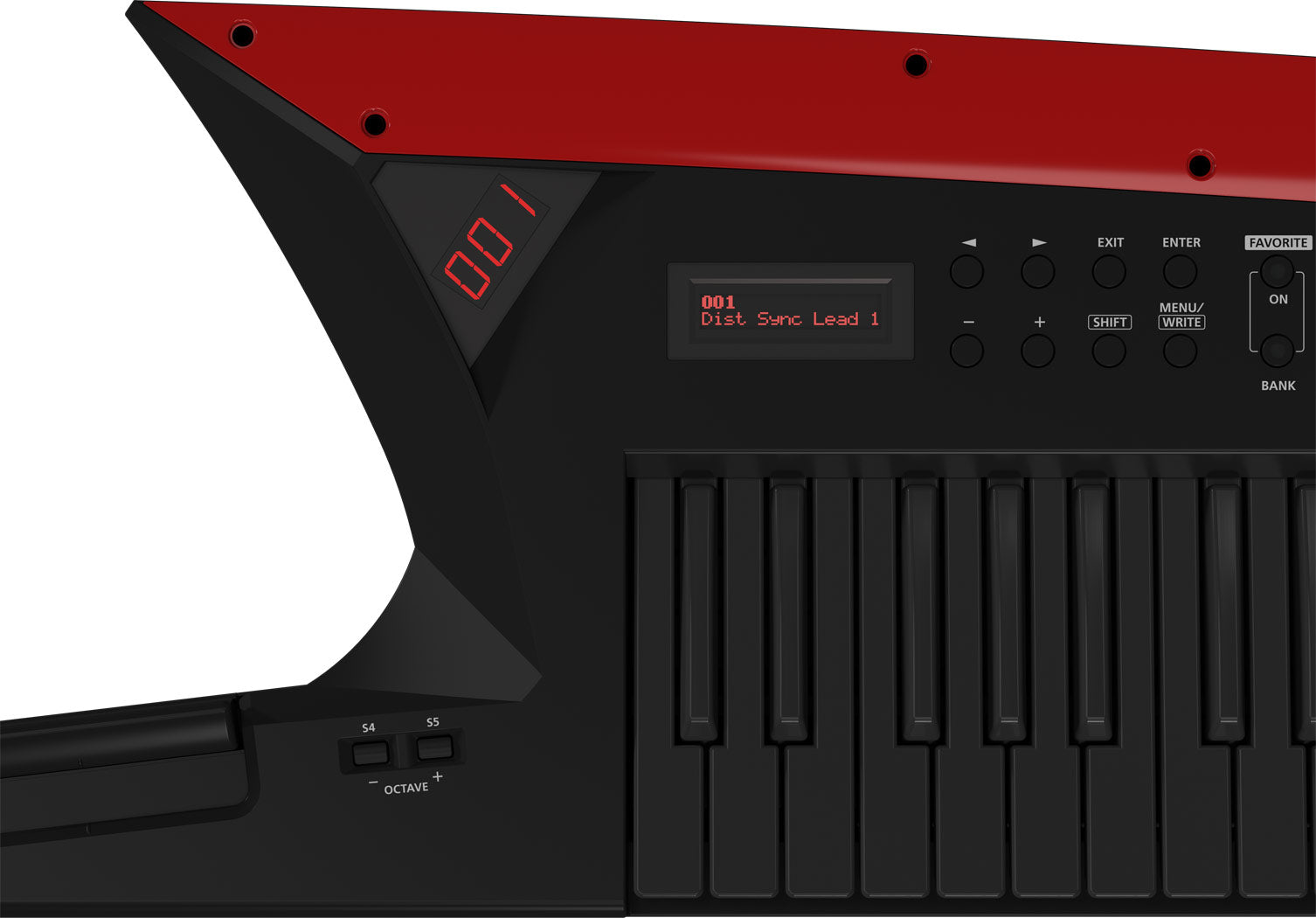

Displays

The AX-Edge uses a dual-display system designed for stage visibility:

• 16-character x 2-line LCD

• 3 x 7-segment LED display

Song Player

Audio files stored on compatible USB flash memory can be played directly from the instrument, providing a convenient option for backing tracks and performance material.

MIDI Controller Functions

The AX-Edge can also function as a master MIDI controller for:

• Hardware sound modules

• External synthesizers

• Software instruments

• Computer-based music systems

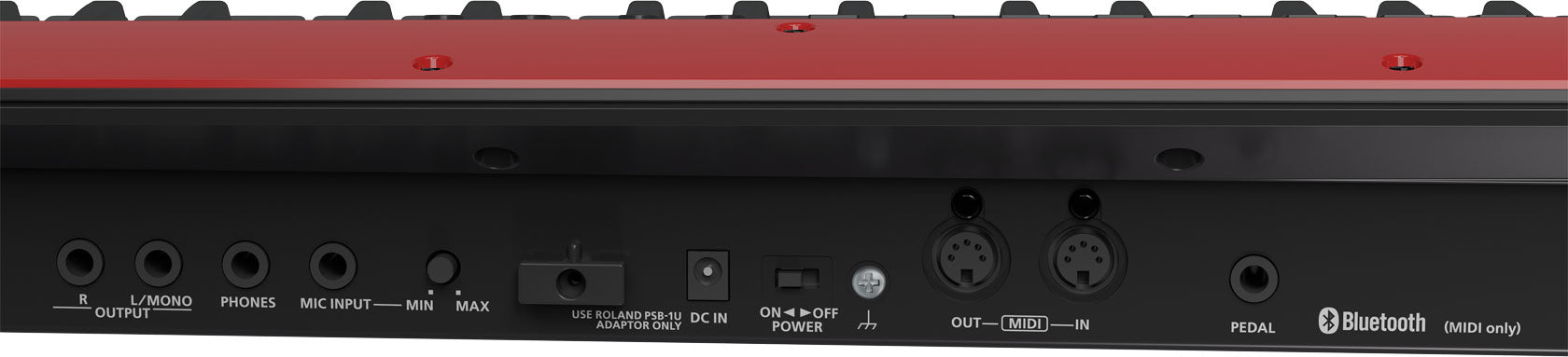

Connections

• 6.35 mm stereo headphone output

• L/Mono 6.35 mm audio output

• R 6.35 mm audio output

• 6.35 mm microphone input

• Pedal input

• MIDI In

• MIDI Out

• USB Memory port

• USB Computer port with USB MIDI

• DC In

External Storage

• Compatible USB flash memory

• Audio file playback

• Backup capability

Customisable Edge Blade

The AX-EDGE-B features Roland’s interchangeable Edge Blade system, allowing the visual appearance of the keytar to be customised.

The Black AX-Edge includes an additional contrasting blade panel for an alternative stage look.

Dimensions

• Width: 1,252 mm

• Depth: 291 mm

• Height: 85 mm

Weight

• 4.2 kg excluding batteries

Its comparatively low weight is particularly important for an instrument designed to be worn and played while moving around the stage.

Power Requirements

The Roland AX-EDGE-B can operate from:

• Compatible DC 9 V AC adaptor, or

• 8 x AA rechargeable Ni-MH batteries

No power supply or batteries are included with this listing.

• Current Draw: 1,000 mA

• Battery operation: approximately 4 hours depending on operating conditions

• Rechargeable Ni-MH batteries are required for battery operation

• Carbon-zinc and alkaline batteries cannot be used

FAQs

Is the Roland AX-EDGE-B a synthesizer or just a MIDI controller?

It is a complete standalone synthesizer as well as a MIDI controller. It has its own ZEN-Core sound engine and hundreds of onboard tones, so no computer or external sound module is required for normal performance.

Does the AX-Edge have full-size keys?

Yes. It features 49 full-size keys, making it feel much closer to a conventional professional keyboard than compact-key keytars.

Does the keyboard support aftertouch?

Yes. The AX-Edge supports channel aftertouch, allowing additional expression to be applied by pressing further into the keys after a note has been played.

How many sounds does the AX-Edge have?

It provides over 500 preset tones, along with 256 user-tone locations and 320 user-program locations for customised performance setups.

Does the AX-Edge have a vocoder?

Yes. A dedicated microphone input and built-in vocoder allow vocal signals to be processed and combined with the internal synthesizer sounds.

Can the AX-Edge run on batteries?

Yes. It can operate from eight rechargeable AA Ni-MH batteries, giving approximately four hours of use depending on operating conditions.

Can I use normal alkaline AA batteries?

No. Roland specifies rechargeable Ni-MH batteries for battery operation. Carbon-zinc and alkaline batteries cannot be used.

Does it have Bluetooth?

Yes. The AX-Edge features Bluetooth MIDI, allowing wireless communication with compatible devices and use with the AX-Edge Editor.

Can I edit the sounds?

Yes. Sounds can be customised, and the compatible AX-Edge Editor provides convenient wireless editing from supported mobile devices.

Can the AX-Edge control other synthesizers?

Yes. Its MIDI In/Out and USB MIDI connectivity allow it to function as a master controller for external synthesizers, sound modules and compatible software instruments.

Does it have normal audio outputs for connecting to a PA?

Yes. Dedicated L/Mono and R 6.35 mm outputs allow connection to amplifiers, powered speakers, mixers and PA systems.

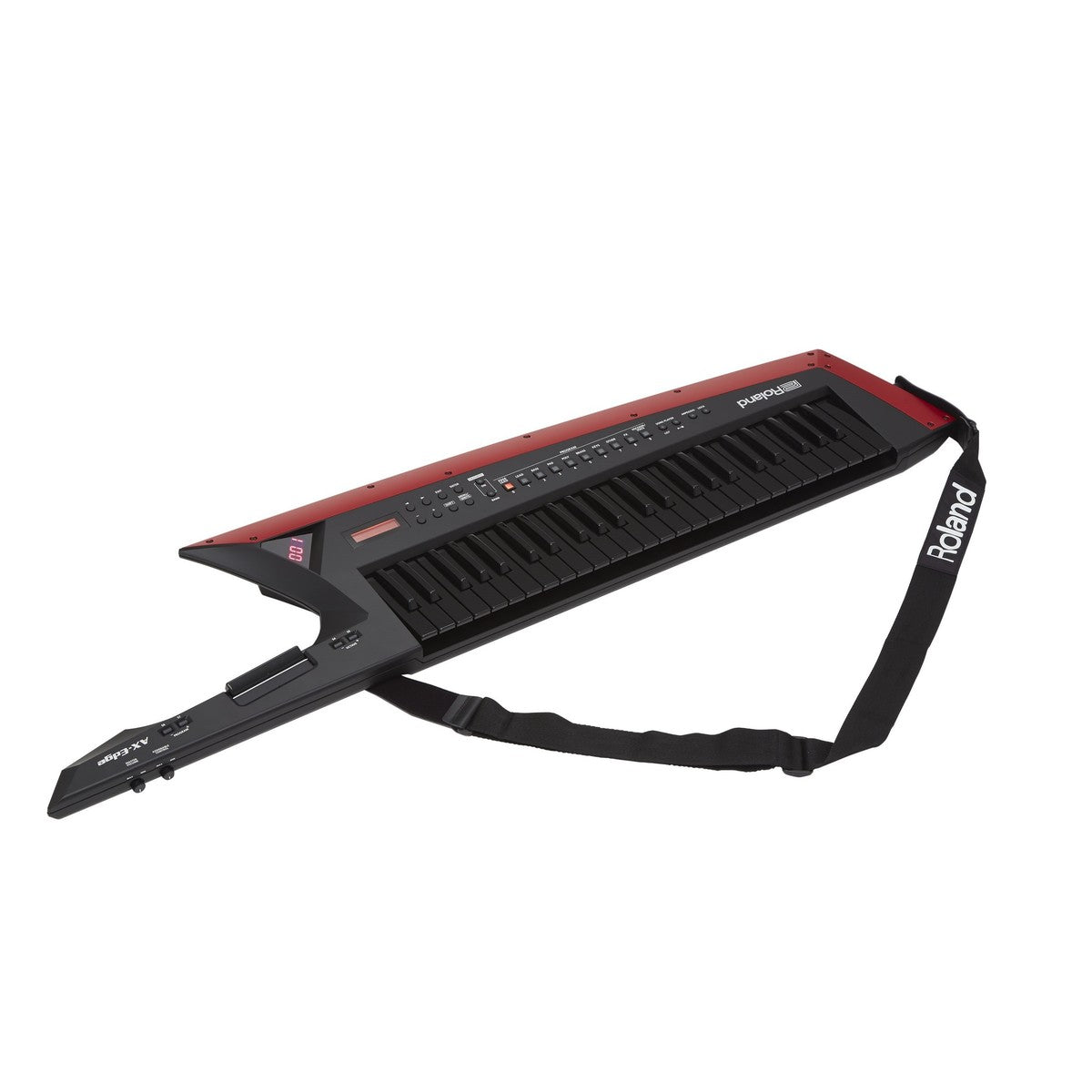

Is a shoulder strap included?

Yes. A shoulder strap is included, allowing the AX-Edge to be played in its intended keytar-style performance position.

Can I customise how the AX-Edge looks?

Yes. Roland’s removable Edge Blade panels allow the appearance to be changed, and an additional blade panel is included.

How heavy is the AX-EDGE-B?

The instrument weighs approximately 4.2 kg excluding batteries, keeping it manageable for active stage performances.

Is a stand available?

Yes. Roland offers the optional ST-AX2 stand, which provides dedicated support for the AX-Edge when it is not being worn.

Is a power supply included?

No. A power supply is not included with this listing. The AX-EDGE-B requires a compatible 9 V AC adaptor or eight rechargeable Ni-MH AA batteries.
