Roland FANTOM-08 Synthesizer Keyboard Workstation – 88 Keys

Quick Product Summary

The Roland FANTOM-08 is a powerful 88-note synthesizer workstation that brings much of the sound engine, workflow and performance capability of Roland's flagship FANTOM instruments into a lighter, more portable design.

Its PHA-4 Standard weighted keyboard provides an expressive piano-style playing experience, while ZEN-Core, SuperNATURAL and Virtual ToneWheel Organ technologies provide thousands of sounds for stage, studio and songwriting. A 5.5-inch colour touchscreen, clip-based sequencer, deep sampling, 16 RGB pads, vocoder and extensive computer integration make the FANTOM-08 a complete creative workstation.

What Makes the Roland FANTOM-08 Special?

The FANTOM-08 combines the feel of an 88-note weighted instrument with the flexibility of a modern production workstation. More than 3,500 tones and 90+ drum kits cover acoustic pianos, electric pianos, organs, synthesisers, orchestral instruments, pads, basses, drums and contemporary electronic sounds, while 16 zones allow complex layered, split and external MIDI setups to be created and recalled as Scenes.

Its workflow is equally powerful. Patterns can be recorded and triggered through the clip-based sequencer, TR-REC brings classic Roland drum-machine style programming to the workstation, and onboard keyboard and pad sampling allow your own sounds to become part of a performance. Deep USB audio/MIDI integration also makes the FANTOM-08 a capable centrepiece for a computer-based studio.

Who Is It For?

The Roland FANTOM-08 is ideal for stage pianists, keyboard players, producers, songwriters, composers and performing musicians who want weighted keys without sacrificing advanced synthesizer and workstation functionality.

It is particularly suited to musicians who need one instrument to cover piano performance, synthesis, backing sequences, sampling, DAW control and complex live keyboard setups.

At A Glance

Feature	Details
Instrument Type	Synthesizer keyboard workstation
Keyboard	88-note PHA-4 Standard
Sound Architecture	ZEN-Core / SuperNATURAL / VTW Organ
Tones	3,500+
Drum Kits	90+
Zones	16
Display	5.5-inch colour touchscreen
Performance Pads	16 RGB pads
Sequencer	Clip-based / TR-REC
USB Audio/MIDI	Yes

Condition Overview

Condition: New

Brand-new Roland FANTOM-08 88-Key Synthesizer Keyboard Workstation.

What’s Included?

• Roland FANTOM-08 Synthesizer Keyboard Workstation

• AC adaptor

• Owner's Manual

Keyboard stand, sustain pedal, expression pedal and headphones are not included.

Technical Specifications

Keyboard

Keys: 88

Keyboard: PHA-4 Standard

Features include:

• Progressive hammer action

• Escapement

• Ivory Feel key surfaces

• Weighted piano-style response

Sound Generator

Sound technologies include:

• ZEN-Core

• SuperNATURAL Acoustic

• SuperNATURAL Acoustic Piano

• SuperNATURAL Electric Piano

• Virtual ToneWheel Organ

• Support for compatible Model Expansions

Tones

Preset Tones: 3,500+
Drum Kits: 90+

Additional compatible sounds and expansions can be installed through Roland Cloud.

Zones

Zones: 16 internal/external

Zones can be used to build:

• Layers

• Splits

• Multi-instrument setups

• External MIDI configurations

• Complex live-performance Scenes

Scenes

Scenes: 128 x 4 banks

Scenes store complete performance setups including zones, effects, sequencing and other settings.

Tone Remain

Tone Remain: Up to 8 zones

Compatible sounds can continue naturally when switching between Scenes rather than being abruptly cut off.

Display

Display: 5.5-inch colour touchscreen
Resolution: 1280 x 720

The touchscreen provides access to sound selection, sequencing, sampling, mixing and system functions.

Controllers

Performance controls include:

• Pitch Bend / Modulation lever

• 2 x assignable switches

• 8 x control knobs

• 8 x sliders

• 2 x control wheels

• 6 x function knobs

• 2 x Sound Modify knobs

• 16 RGB performance pads

Performance Pads

The 4 x 4 pad matrix can perform numerous functions including:

• Sample triggering

• Note triggering

• DAW control

• Zone mute

• Zone solo

• Rhythm pattern control

• Pattern triggering

• Variation triggering

• Group playback

Sequencer

The FANTOM-08 features an integrated clip-based sequencer designed for fast composition and performance.

Features include:

• Pattern recording

• Pattern triggering

• TR-REC programming

• Realtime recording

• Track mute

• Track solo

• Pattern looping

• Rhythm patterns

• Arpeggiator

• Chord Memory

Keyboard Multisampling

Sample Format:

• WAV / AIFF

• 16-bit or 24-bit

• 44.1kHz / 48kHz

Maximum Samples: 2,048
Maximum Multisamples: 128

Samples can be mapped across the keyboard and incorporated into compatible ZEN-Core tones.

Pad Sampling

Pads: 16
Banks: 4
Maximum Pad Sample Polyphony: 8 voices

The pad sampler supports WAV and AIFF files and provides approximately 2GB of sample storage, including imported audio.

Internal File Storage

Capacity: Approx. 2GB

Vocoder

A powerful onboard vocoder works with the dedicated microphone input, allowing vocal signals to interact with synthesizer sounds.

This makes the FANTOM-08 suitable for electronic vocals, layered textures and creative live-performance effects.

Effects

The FANTOM-08 includes extensive onboard processing for individual sounds, zones and complete performance setups.

Effects are integrated into the Scene architecture, allowing complete processed setups to be recalled for live performance and production.

USB Audio Interface

The FANTOM-08 can function as a high-quality USB audio interface.

Maximum Resolution: 24-bit / 96kHz

Its multi-channel USB audio capability provides deep integration with computer-based recording and production systems.

DAW Integration

Native integration is provided for compatible versions of:

• Logic Pro

• MainStage

• Ableton Live

The touchscreen, knobs, sliders and pads can be incorporated into computer-based production workflows.

MIDI

Connections include:

• MIDI In

• MIDI Out

The 16-zone architecture also allows the FANTOM-08 to operate as a powerful controller for external MIDI instruments and software.

Audio Inputs

• Stereo L/Mono and R line inputs

• Dedicated microphone input

External instruments, sound sources and microphones can therefore be incorporated into the FANTOM-08 setup.

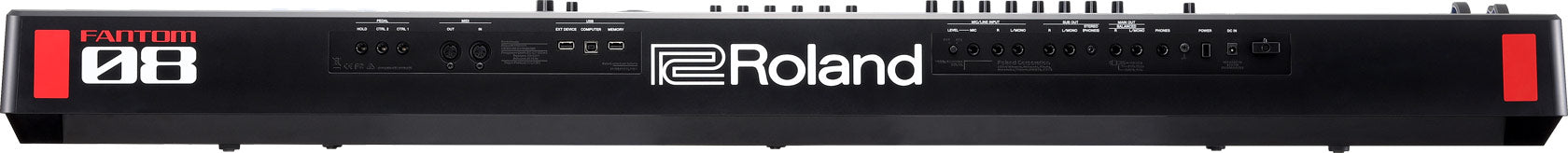

Audio Outputs

• Main Out L/Mono

• Main Out R

• Sub Out L/Mono

• Sub Out R

• Stereo Sub Out / Phones connection

• Dedicated headphone output

Pedal Connections

• Hold pedal

• Control 1

• Control 2

Compatible sustain, switch and expression pedals can be assigned to various performance functions.

USB Connections

• USB Computer – Audio/MIDI

• USB Memory

• External Device Port

Roland Cloud Expansion

The FANTOM-08 supports compatible:

• Model Expansions

• Wave Expansions

• Sound Packs

• Sample Packs

Roland also provides compatible downloadable expansion content for the instrument through Roland Cloud.

Dimensions

Width: 1,393mm
Depth: 354mm
Height: 138mm

Weight

14.8kg

The lightweight moulded chassis makes the FANTOM-08 considerably easier to transport than many traditional 88-note workstation keyboards.

Power Requirements

Power Supply: AC adaptor

A compatible Roland AC adaptor is included.

FAQs

Does the Roland FANTOM-08 have weighted keys?

Yes. The FANTOM-08 uses Roland's 88-note PHA-4 Standard keyboard with progressive hammer action, escapement and Ivory Feel surfaces.

How many sounds does the FANTOM-08 include?

It provides more than 3,500 tones and over 90 drum kits, covering a huge range of acoustic, electronic and synthesised sounds.

Is the FANTOM-08 suitable as a stage piano?

Yes. Its weighted 88-note action and SuperNATURAL piano sounds make it a strong stage-piano instrument, while its workstation features provide considerably greater flexibility than a conventional digital piano.

Does the FANTOM-08 have the ZEN-Core sound engine?

Yes. ZEN-Core forms a major part of the FANTOM-08's sound architecture and provides access to a wide collection of modern synthesizer and instrument sounds.

Does it have SuperNATURAL piano sounds?

Yes. SuperNATURAL Acoustic Piano and Electric Piano technologies are included, providing expressive acoustic and electric piano sounds.

Can I split and layer sounds?

Yes. The 16-zone architecture allows sophisticated splits and layers to be created, including combinations of internal sounds and external MIDI instruments.

Does the FANTOM-08 have a sequencer?

Yes. It features a powerful clip-based pattern sequencer alongside TR-REC programming inspired by classic Roland drum machines.

Can I load my own samples?

Yes. Both keyboard multisampling and pad sampling are supported, allowing your own WAV and AIFF material to become part of your sounds and performances.

Does it have performance pads?

Yes. There are 16 RGB pads that can trigger samples, notes, patterns and other performance functions.

Does the FANTOM-08 have a vocoder?

Yes. A dedicated microphone input and onboard vocoder allow vocal signals to be processed through compatible synthesizer sounds.

Can I use the FANTOM-08 with a DAW?

Yes. It provides deep computer integration and dedicated control modes for compatible versions of Logic Pro, MainStage and Ableton Live.

Can it work as an audio interface?

Yes. The FANTOM-08 provides multi-channel USB audio and MIDI connectivity at up to 24-bit/96kHz.

Can the sounds be expanded?

Yes. Compatible Model Expansions, Sound Packs, Wave Expansions and Sample Packs can be added through Roland Cloud.

Can I control external synthesizers?

Yes. The 16-zone architecture, MIDI connections and extensive controllers make the FANTOM-08 a capable master keyboard for external hardware and software instruments.

Is the FANTOM-08 portable?

For an 88-note weighted workstation, yes. It weighs approximately 14.8kg, making it considerably easier to transport than many full-size workstation keyboards.

Is a sustain pedal included?

No. A sustain pedal is not included and can be purchased separately.

Is the power adaptor included?

Yes. A compatible Roland AC adaptor is included.
