Shure BLX14/B98-K3E

BLX1 Bodypack Transmitter

The transmitter included within this Shure wireless system is both lightweight and durable. The compact transmitter fits comfortably in hand and features adjustable gain control, quick and easy frequency matching and a power/battery status LED. The BLX1 can run up to 14 hours of continuous use with AA batteries (included with the system) and has an operating range of up to 100 metres.

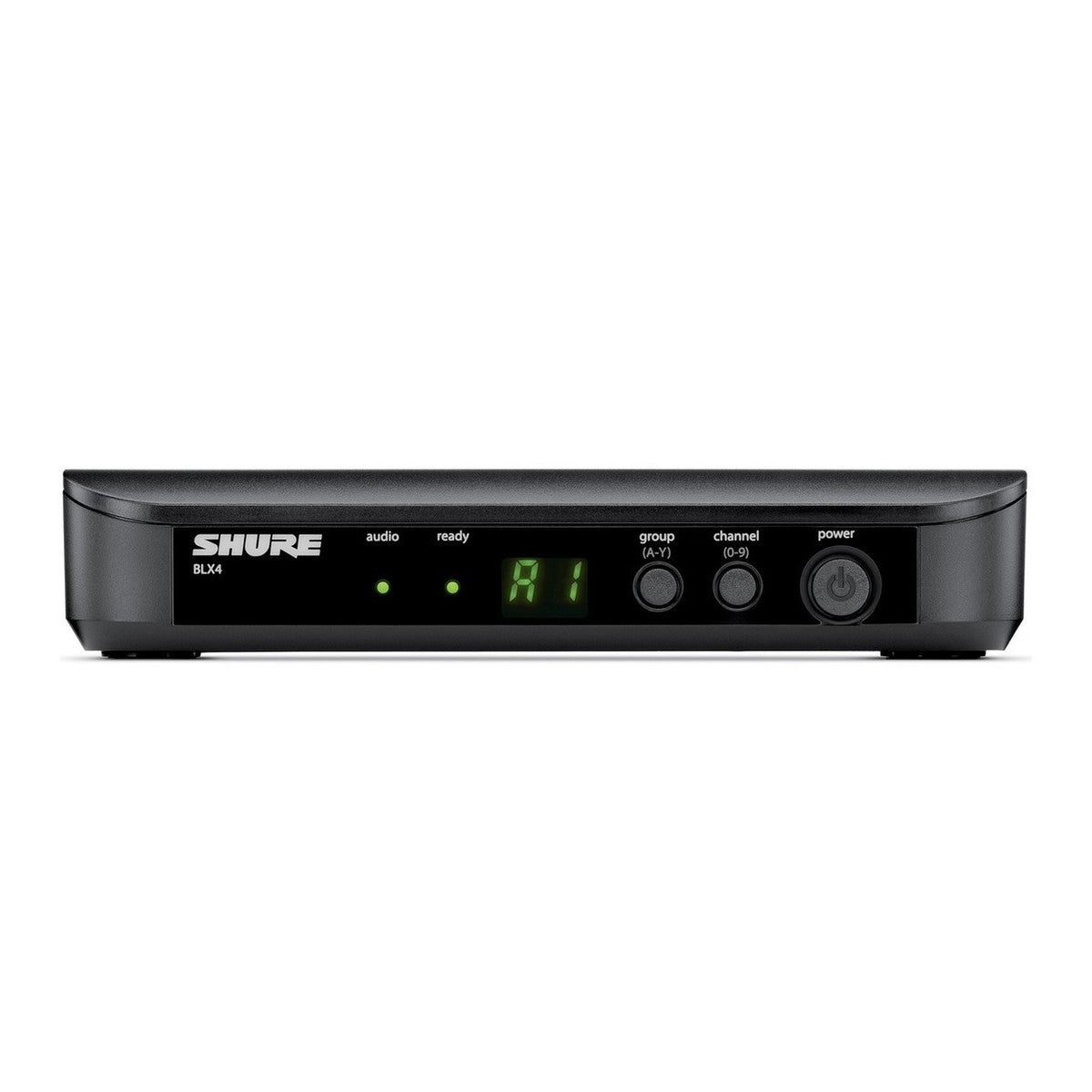

BLX4 Wireless Receiver

The BLX4 receiver has been designed for a quick setup, with user friendly intuitive controls making operation easy. Microprocessor controlled internal antenna diversity provides rock solid and dependable communication to the transmitter whilst the 'One touch-QuickScan' frequency selection system quickly locates the best open frequency to battle any potential interference.

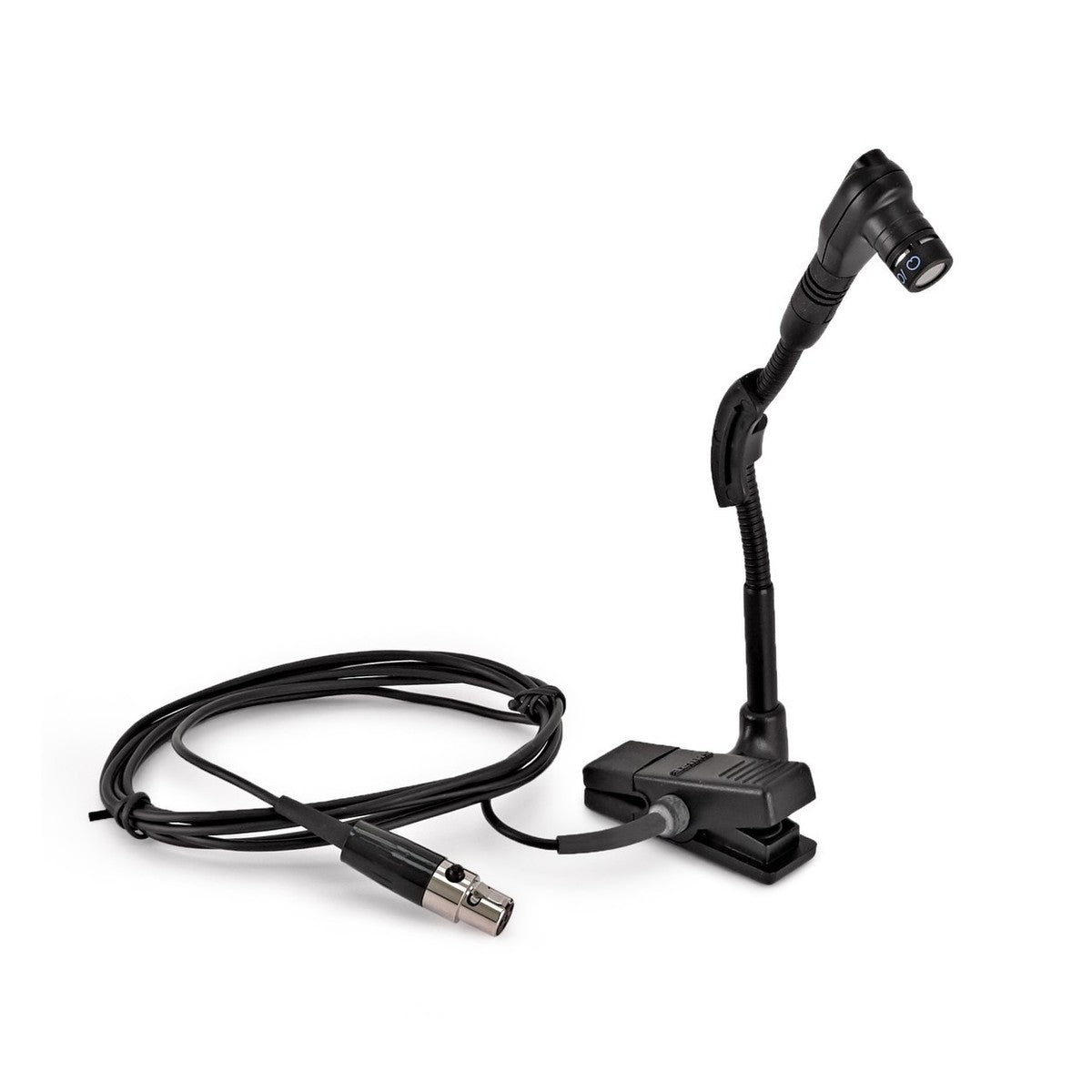

Beta 98H/C Instrument Microphone

The Beta 98H/C is able to attach to the bell of wind instruments and onto the rims of percussion instruments. With the gooseneck and swivelling joint, the microphone can be easily positioned and adjusted whilst remaining secure.

The mini shock-mount provides protection against mechanical and unwanted noises such as instrument 'key noise'. Finally, a cardioid pick-up pattern ensures resistance to feedback, delivering crystal clear sound every time you perform.

Included Within The System

• 1 x BLX4 Wireless Receiver
• 1 x BLX1 Bodypack Transmitter
• 1 x Beta 98H/C Instrument Microphone
• 1 x Swivel Adapter
• 1 x Power Supply
• 1 x Thread Adapter

Features

WB98H/C Wireless Microphone

• Transformerless preamplifier circuitry
• Uniform cardioid pick-up pattern
• High maximum sound pressure level
• Tailored frequency response
• Wide dynamic range
• Compact design with detachable cable

BLX1 Body Pack Transmitter

• 14-hour run time and a 100 meter range from one pair of AA batteries
• Quick and easy frequency matching
• Continuously adjustable gain dial
• Easily accessible on/off switch
• Power & battery status LED
• Clip-on design easily attaches to performer
• Lightweight, comfortable and discrete build
• Rugged and robust - built for rigorous live performances
• TA4F (TQG) connection for use with Shure headset, lavalier, instrument mics and guitar cables

BLX4 Single Channel Receiver

• User friendly and intuitive design – no complicated setup options
• One touch QuickScan finds the best open frequency for uninterrupted signal
• Internal microprocessor-controlled antenna keeps the unit discrete and compact
• Two colour LED for monitoring signal level
• Compatible with up to 12 other systems

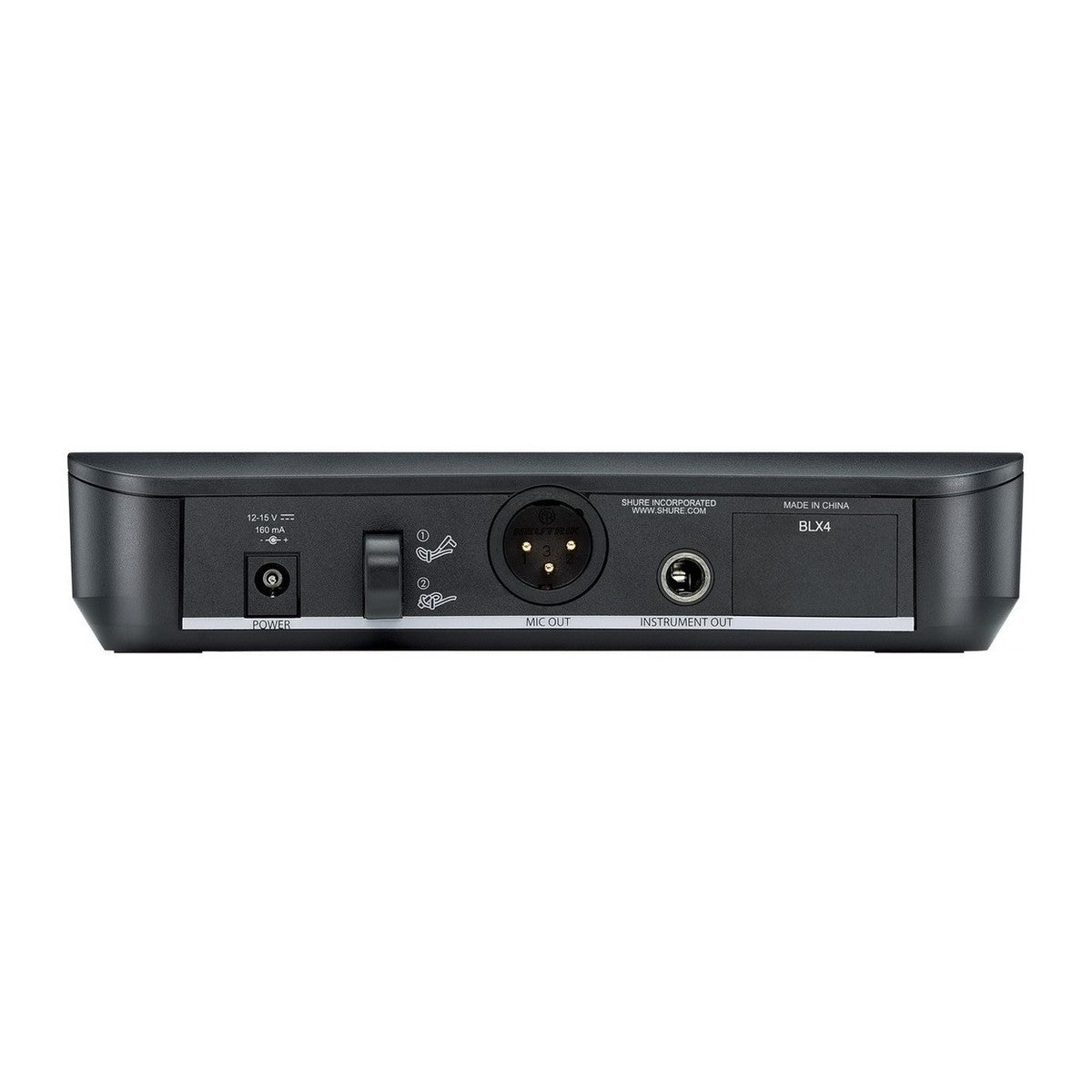

• XLR & 1/4" audio outputs

Specifications

BLX14/B98 Wireless System

• Available Transmitter Form Factors: Bodypack
• Operating Range (Up To): 100m

Beta 98H/C Instrument Microphone

• Frequency Response: Tailored, 20Hz - 20kHz
• Output Impedance: 150Ω
• Sensitivity: -56 dBV/Pa - 1.60 mV/Pa
• Equivalent Selfnoise: 31 dB(A)
• Sound Pressure: 155 dB (@ 1kΩ), 163 dB (@ 2.5kΩ)
• Dynamic Range: 124 dB
• Clipping Level: 3 dBV (1.4V)
• Transducer Type: Condenser
• Polar Pattern: Cardioid
• Connectors: TQG
• Interchangeable Capsule: Yes
• Requires Phantom Power: 11 - 52 VDC
• Weight: 65 g

BLX4 Wireless Receiver

• Transmission: Analogue
• Type of Power Supply: External
• Receiver Housings: Moulded ABS
• Number Of Compatible Systems Per Frequency Band: 12
• Scan Features: Quick Scan
• Rack Hardware: Optional URT2
• Receiver Displays: LEDs
• Receiver Type: Single
• Image Rejection: 50 dB, Typical
• RF Sensitivity: -105 dBm, For 12dB SINAD, Typical
• Weight: 241 g
• Dimensions
  • Height: 40 mm
  • Width: 188 mm
  • Depth: 103 mm

BLX1 Wireless Bodypack Transmitter

• Form Factor: Bodypack
• Operating Range (Up To): 100 m
• Battery Life Alkaline: 14 h
• Transmitter Housings: Moulded ABS
• Batteries: AA
• Battery Status: Multi-Colour LED
• Connectors: TQG
• Functionality: Transmitter
• Gain Adjustment Range: 26 dB
• Included Antenna: 1/4 Wave
• Input Impedance: 1 MΩ
• Weight: 75 g
• Dimensions:
  • Height: 110 mm
  • Width: 64 mm
  • Depth: 21 mm
