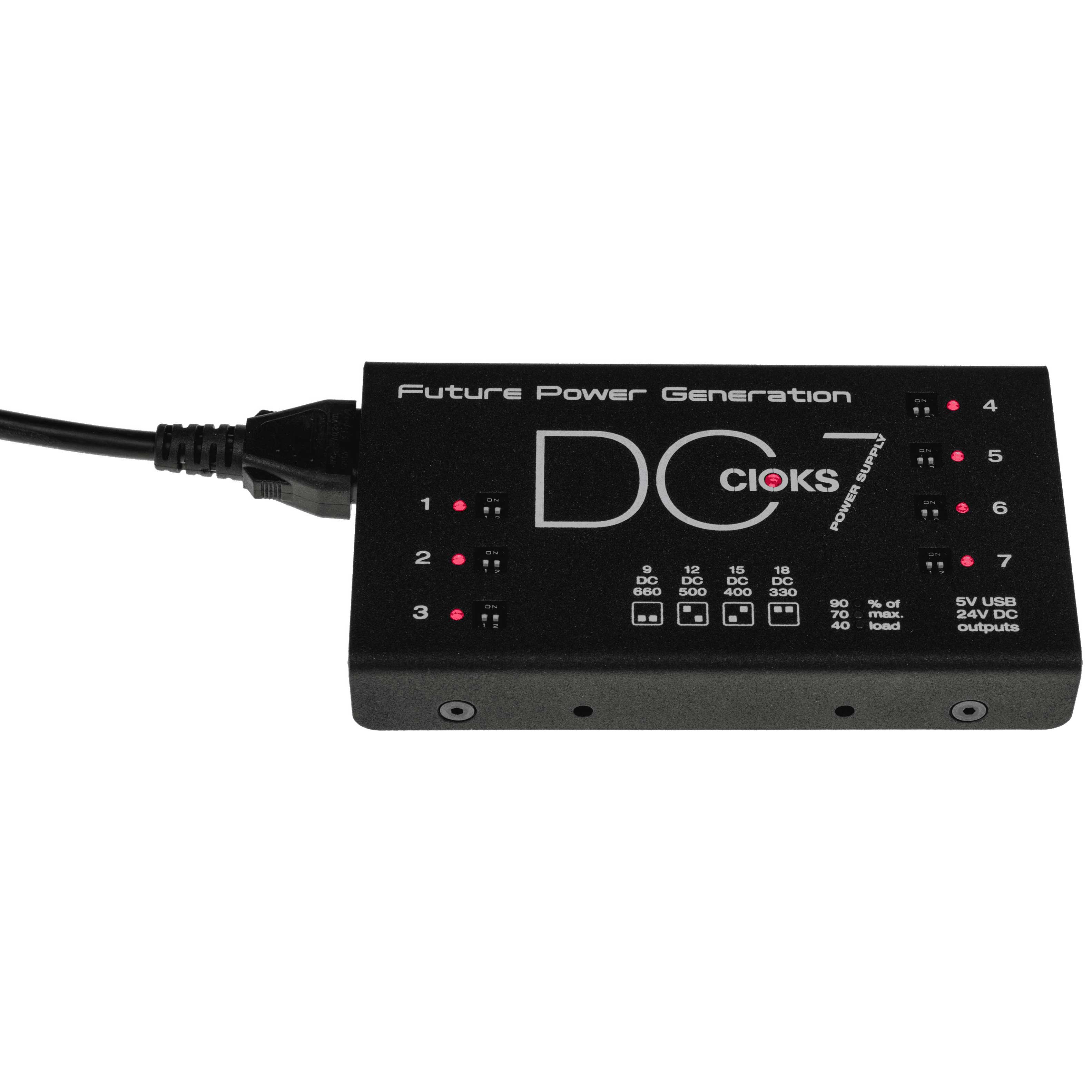

Cioks DC7 Power Supply
The CIOKS DC7 is a premium isolated pedalboard power supply designed for guitarists, bassists, touring musicians, studio players and pedalboard builders who need clean, flexible and reliable power for modern effects pedals. It combines seven fully isolated high-current DC outputs, selectable voltages, ultra-low noise operation, USB power and expansion support in one slim, professional power supply.
Built for demanding pedalboards, the DC7 is designed to power everything from classic analogue pedals to high-current digital effects, amp modellers and complex multi-pedal setups. Each of its seven isolated outputs can be set to 9V, 12V, 15V or 18V, with up to 660mA available per output at 9V, making it one of the most flexible compact pedalboard power solutions available.
It follows the same practical product-led approach as the Mackie ShowBox template, focusing on real-world performance, reliability, flexibility and making a musician’s setup easier to use.
Why Choose the CIOKS DC7?
The CIOKS DC7 is designed to solve one of the most common pedalboard problems: unreliable or noisy power. A high-quality pedalboard power supply can make a huge difference to the way a rig performs, especially when using multiple pedals, digital effects, gain pedals, modulation units and time-based effects together.
Seven isolated outputs help reduce ground loop noise and power-related interference. This is particularly important for pedalboards that combine overdrives, delays, reverbs, loopers, wireless receivers and digital processors, where poor power can quickly lead to hum, buzz or inconsistent performance.
Each output is highly flexible. You can choose between 9V, 12V, 15V and 18V on every outlet, allowing the DC7 to support a wide range of pedals without needing separate power supplies. At 9V, each output can deliver up to 660mA, making it suitable for many current-hungry modern pedals.
The slim 25.4mm profile makes the DC7 ideal for mounting underneath pedalboards. CIOKS describes the DC7 as having a one-inch profile and weighing around 500g, helping it fit neatly into compact and professional board builds without adding unnecessary bulk.
The DC7 also includes a 5V USB outlet and a 24V auxiliary outlet. The USB output can be used for compatible USB-powered accessories, while the 24V auxiliary output allows expansion with compatible CIOKS add-on units, making the DC7 a strong foundation for larger pedalboards.
Expansion is a key advantage. The DC7 can be paired with CIOKS expanders such as the CIOKS 4 Expander, CIOKS 8 Expander and CIOKS Crux, giving players a way to grow their power system as their pedalboard develops.
Comparison Against Popular Alternatives
| Product | Best For | Key Difference |
|---|---|---|
| CIOKS DC7 | Professional pedalboards, high-current pedals, touring rigs and flexible voltage setups | Seven isolated outputs, selectable voltages, slim profile, USB power and expansion support |
| CIOKS SOL | Smaller pedalboards needing isolated power | More compact and simpler, while the DC7 offers more outputs and greater expansion flexibility |
| CIOKS 4 Expander | Adding extra outlets to a compatible CIOKS power supply | Works as an expansion unit, while the DC7 is the main power supply foundation |
| CIOKS Crux | Powering demanding digital processors and high-current pedals | Designed as an add-on for high-current needs, while the DC7 covers the main board power |
| Voodoo Lab Pedal Power Series | Traditional isolated pedalboard power | Strong established option, while the DC7 offers a very slim format with flexible high-current outputs across all seven outlets |
The CIOKS DC7 is especially strong if you need one professional power supply that can handle a mixed pedalboard of analogue pedals, digital pedals, higher-voltage units and future expansion.
Who Is It For?
The CIOKS DC7 is ideal for guitarists and bassists building a serious pedalboard for live performance, studio recording, touring, worship, theatre work, session playing or home use. It is particularly useful for players who use several pedals with different voltage or current requirements.
Beginners building their first professional board will appreciate the clean, reliable power and future-proof flexibility. Intermediate and advanced players will benefit from the isolated outputs, switchable voltages, low-noise design, power monitoring and expansion options.
It is also a strong choice for pedalboard builders and techs who need a dependable power supply that can adapt to many different layouts and pedal combinations.
Why Choose an Isolated Pedalboard Power Supply?
An isolated pedalboard power supply is one of the best upgrades you can make to a pedalboard. While daisy chains and basic plug-in supplies may work for small setups, they can introduce noise, hum and instability as the board grows.
The CIOKS DC7 gives each pedal output its own isolated supply, helping reduce unwanted noise and making the board more reliable. This is especially useful when mixing analogue drive pedals with digital delays, reverbs, loopers, multi-effects and high-current units.
For live players, this means more confidence on stage. For recording players, it helps keep the signal cleaner. For pedalboard builders, it provides a flexible platform that can handle changing setups over time.
Story & Context
CIOKS is a Danish company that has specialised in pedal power supplies since 1991, building a strong reputation with guitarists, bassists and professional pedalboard builders. The DC7 is part of the company’s Future Power Generation range, designed around flexible isolated power, low-noise performance and modern pedalboard requirements.
The DC7 has become a popular choice for serious boards because it combines a slim enclosure, high output capacity, selectable voltages and expandability. Rather than being a basic pedal power brick, it is designed as the central power platform for players who want a reliable board that can grow with them.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | CIOKS DC7 |
| Product Type | Isolated pedalboard power supply |
| Outputs | 7 isolated DC outlets |
| Output Voltage Options | 9V, 12V, 15V or 18V selectable per outlet |
| Output Current at 9V | 660mA per outlet |
| Output Current at 12V | 500mA per outlet |
| Output Current at 15V | 400mA per outlet |
| Output Current at 18V | 330mA per outlet |
| Total Power Output | Up to 48W |
| USB Output | 5V USB outlet |
| Auxiliary Output | 24V DC auxiliary outlet for compatible expansion |
| Noise Performance | Ultra-low noise with multistage filtering |
| Power Topology | 2-stage switch-mode technology |
| Profile | Approx. 25.4mm / 1" |
| Weight | Approx. 500g |
| Expandable | Compatible with CIOKS 4 Expander, CIOKS 8 Expander and CIOKS Crux |
| Included Cables | Selection of CIOKS Flex cables included |
| Mounting | Mounting hardware included for compatible pedalboards |
| Suitable Uses | Professional pedalboards, live rigs, studio setups, touring boards and high-current pedal setups |
Power Requirements
The CIOKS DC7 is designed as a mains-powered pedalboard power supply and can operate internationally thanks to its universal mains input design. It provides isolated DC power to your pedals through CIOKS Flex cables, with voltage selected individually for each outlet.
Before connecting any pedal, always check the pedal’s voltage, polarity and current requirement. Using the wrong voltage or polarity can damage pedals, so the DC7’s flexibility should be matched carefully to each pedal’s specification.
Pairs Perfectly With
Overdrive pedals
Distortion pedals
Fuzz pedals
Delay pedals
Reverb pedals
Modulation pedals
Loopers
Digital multi-effects
Amp modellers
Pedalboard switchers
Wah pedals
CIOKS 4 Expander
CIOKS 8 Expander
CIOKS Crux
Pedaltrain pedalboards
Temple Audio pedalboards
Patch cables
Professional touring pedalboards
Looking for advice on powering your pedalboard properly? Our experienced team of musicians can help you choose the right power supply, cables and accessories for your pedal setup.
Why Buy From Fair Deal Music?
Fair Deal Music has been helping musicians find the right gear since 1987. As Birmingham’s largest independent music store, we offer friendly, honest advice from knowledgeable staff who understand the needs of real players, guitarists, bassists and pedalboard users.
We are a family-run retailer with 6,000+ Excellent 4.9-star Trustpilot reviews, fast UK delivery, secure online ordering and a large Birmingham showroom where you can speak to experienced musicians in person. Our team can help you choose the right power supply, check compatibility with your pedals and make sure your board is powered safely and reliably.
Frequently Asked Questions
Is the CIOKS DC7 fully isolated?
Yes. The CIOKS DC7 has seven isolated DC outputs, helping reduce noise, hum and power-related interference on pedalboards.
How many pedals can the CIOKS DC7 power?
It has seven isolated outputs, but it can power more than seven pedals when using suitable split or daisy-chain Flex cables, provided the total current draw and compatibility are correct.
What voltages does the CIOKS DC7 support?
Each output can be set to 9V, 12V, 15V or 18V, making it suitable for a wide range of pedals.
Can the CIOKS DC7 power high-current digital pedals?
Yes. Each output can deliver up to 660mA at 9V, making it suitable for many modern high-current digital pedals. Always check your pedal’s exact current requirement before connecting.
Does the CIOKS DC7 have USB power?
Yes. The DC7 includes a 5V USB outlet for compatible USB-powered devices or accessories.
Can the CIOKS DC7 be expanded?
Yes. The DC7 can be expanded using compatible CIOKS units such as the CIOKS 4 Expander, CIOKS 8 Expander and CIOKS Crux.
Is the CIOKS DC7 suitable for Pedaltrain boards?
Yes. The DC7 has a slim profile and includes mounting hardware for compatible boards, including Pedaltrain-style setups.
Is the CIOKS DC7 good for touring?
Yes. Its isolated outputs, rugged design, flexible voltage options and compact format make it a strong choice for touring pedalboards and professional live rigs.
What is the benefit of isolated power?
Isolated power helps reduce unwanted hum and noise, especially when using multiple pedals with different power demands or mixed analogue and digital circuits.
Should I check pedal polarity before using the CIOKS DC7?
Yes. Always check each pedal’s voltage, polarity and current requirement before connecting it to any power supply. This helps prevent damage and ensures reliable operation.
