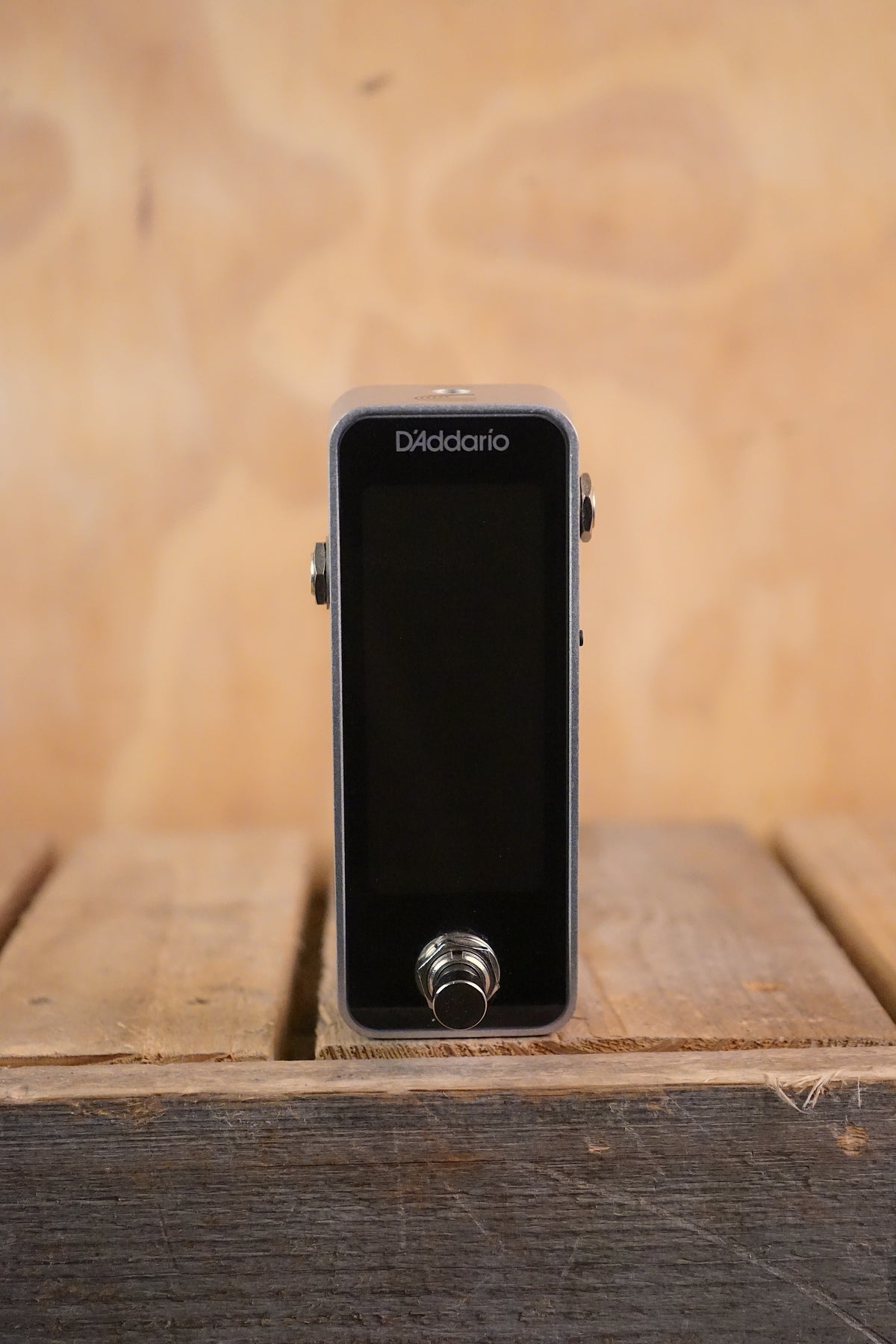

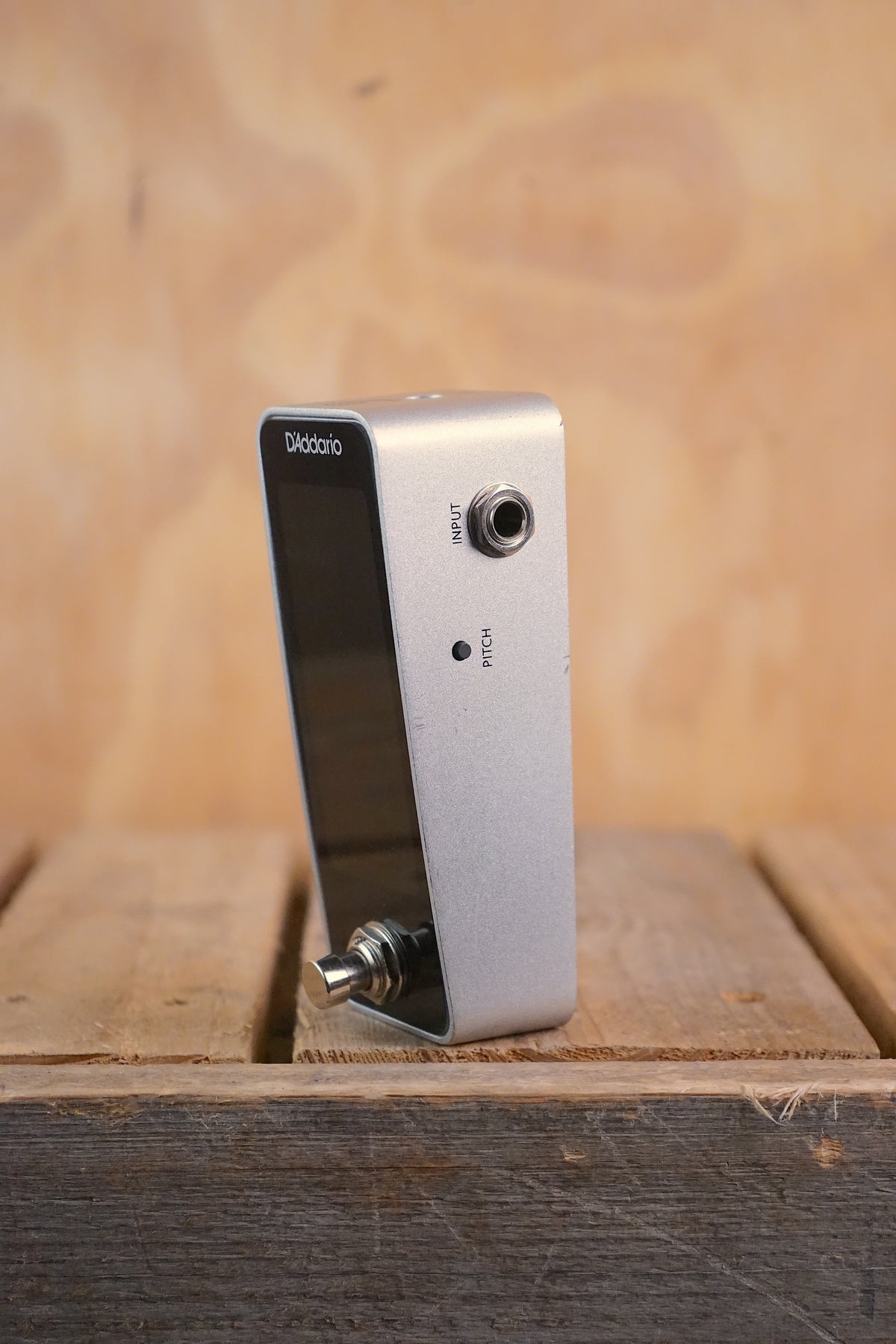

D’Addario PW-CT-20 Chromatic Pedal Tuner – Used

Quick Product Summary

The D’Addario PW-CT-20 Chromatic Pedal Tuner combines fast, accurate tuning with a large full-colour display and rugged pedalboard-ready construction.

This used example is in Good condition, with cosmetic signs of previous ownership and normal pedalboard use. Its 32-bit processor provides rapid note detection, while ±0.5-cent accuracy and a wide calibration range make it a practical choice for guitar, bass and other amplified instruments.

What Makes the D’Addario PW-CT-20 Stand Out?

Fast, Accurate Tuning

A 32-bit processor provides quick note recognition, while accuracy of ±0.5 cent makes the PW-CT-20 precise enough for live, rehearsal and recording applications.

Clear Full-Colour Display

The vertical colour display clearly shows whether a note is sharp, flat or in tune, making it easy to read from a standing position and under changing stage lighting.

Wide Calibration Range

Reference pitch can be adjusted from 415Hz to 475Hz, providing useful flexibility when working with alternative reference pitches or other musicians and instruments.

True-Bypass Signal Path

True-bypass wiring removes the tuner circuit from the signal path when disengaged, making it straightforward to integrate into a wide variety of pedalboards.

Who Is It For?

The D’Addario PW-CT-20 is ideal for guitarists and bassists looking for a simple, accurate and highly visible pedal tuner.

Its rugged enclosure and clear display make it particularly well suited to live musicians, while its wide calibration range and precise response are equally useful for rehearsal and studio work.

At A Glance

Feature	Details
Brand	D’Addario
Model	PW-CT-20
Product Type	Chromatic Pedal Tuner
Condition	Used – Good
Processor	32-Bit
Accuracy	±0.5 Cent
Calibration Range	415–475Hz
Standard Reference	A4 = 440Hz
Display	Full-Colour Vertical
Bypass	True Bypass
Power	9V Battery or 9V DC
Power Supply	Not Included

Condition Overview

Condition Grade: Good

This D’Addario pedal tuner is in good used condition, with cosmetic signs of previous ownership and normal pedalboard use.

What’s Included?

• D’Addario PW-CT-20 Chromatic Pedal Tuner

• No power supply included

Technical Specifications

Specification	Details
Model	PW-CT-20
Product Type	Chromatic Pedal Tuner
Processor	32-Bit
Tuning Accuracy	±0.5 Cent
Reference Pitch	A4 = 440Hz
Calibration Range	A4 = 415–475Hz
Display	Full-Colour Vertical Display
Input	1 x 1/4" Jack
Output	1 x 1/4" Jack
Bypass	True Bypass
Current Draw – Bypass	Approx. 27mA
Current Draw – Tuner / No Signal	Approx. 40mA
Current Draw – In Tune	Approx. 44mA
Maximum Listed Tuning Draw	Approx. 56mA
Battery Operation	1 x 9V Battery
External Power	9V DC
Recommended Supply Capacity	300mA
Dimensions	Approx. 71.1 x 58.4 x 147.3mm
Weight	Approx. 0.78 lbs
Enclosure	Aluminium

Power Requirements

The D’Addario PW-CT-20 can be powered using a standard 9V battery or a suitable 9V DC power supply.

D’Addario specifies a 9V DC, 300mA power supply for external operation.

No power supply is included with this used tuner.

FAQs

How accurate is the D’Addario PW-CT-20?

The tuner is rated to ±0.5 cent, providing precise tuning for live, rehearsal and studio use.

Is it a chromatic tuner?

Yes. The PW-CT-20 is a chromatic tuner, so it recognises all twelve notes rather than being restricted to standard guitar tuning.

Is it suitable for bass?

Yes. D’Addario recommends the pedal for both guitar and bass guitar.

What is the standard reference pitch?

The default reference pitch is A4 = 440Hz.

Can the reference pitch be changed?

Yes. The calibration range can be adjusted between 415Hz and 475Hz.

Does it have a colour display?

Yes. It features a large full-colour vertical display designed for easy viewing on a pedalboard.

How does the display show tuning?

The display indicates whether the incoming note is sharp or flat and provides clear visual confirmation when the note reaches the correct pitch.

Does it use true bypass?

Yes. The PW-CT-20 features true-bypass wiring.

Can it mute the signal while tuning?

When the tuner is engaged, it allows the instrument to be tuned without sending the normal performance signal through to the amplifier.

Can it run from a battery?

Yes. It supports a standard 9V battery.

What external power does it require?

D’Addario specifies a 9V DC power supply rated at 300mA.

Is the enclosure metal?

Yes. The PW-CT-20 uses a rugged aluminium enclosure designed for pedalboard use.

Is it suitable for live performance?

Yes. The bright vertical display, fast response and floor-mounted footswitch design make it particularly suitable for stage use.

Is a power supply included?

No. No power supply is included with this used tuner.

What condition is this example in?

This example is graded Good, with cosmetic signs of previous use consistent with a pre-owned pedal tuner.
