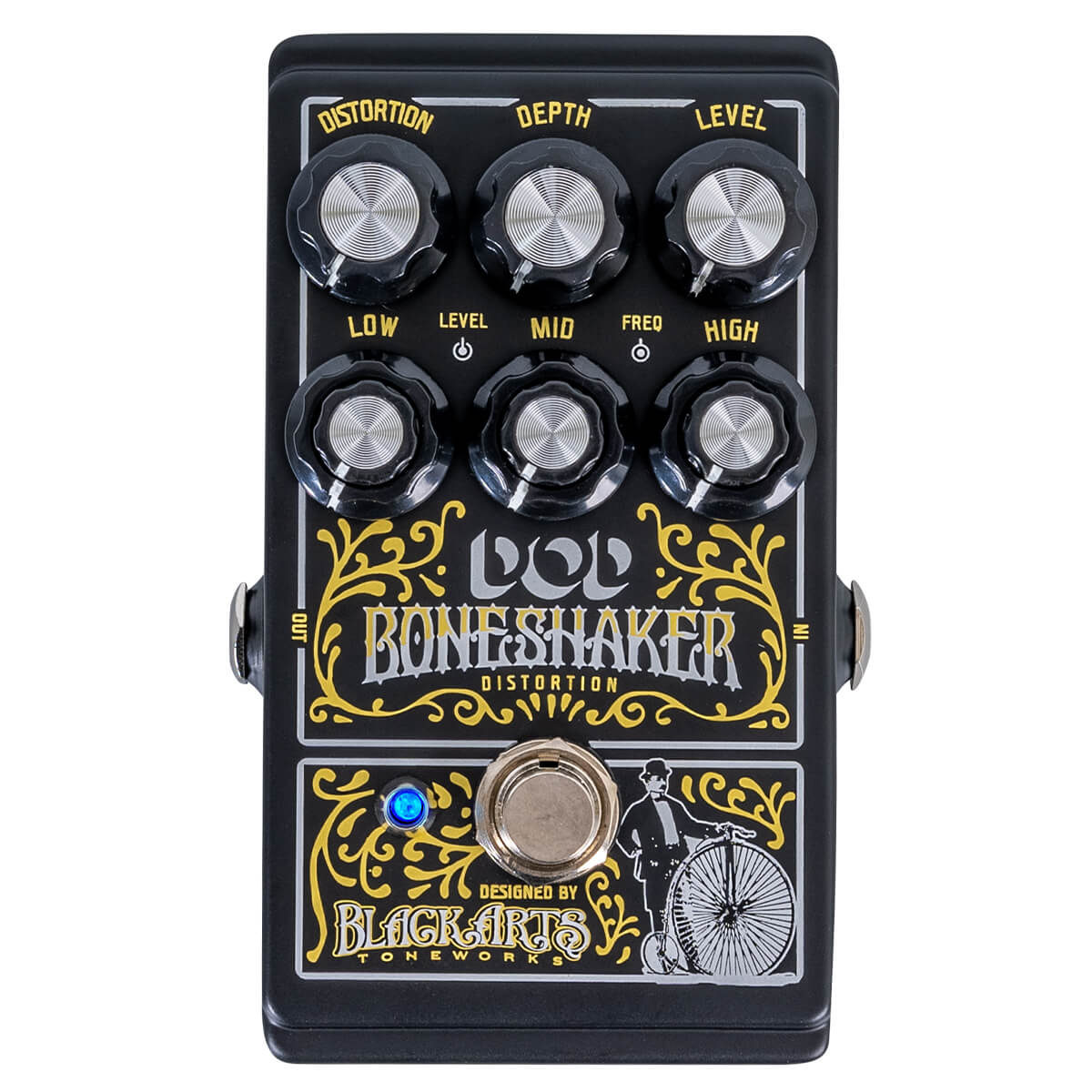

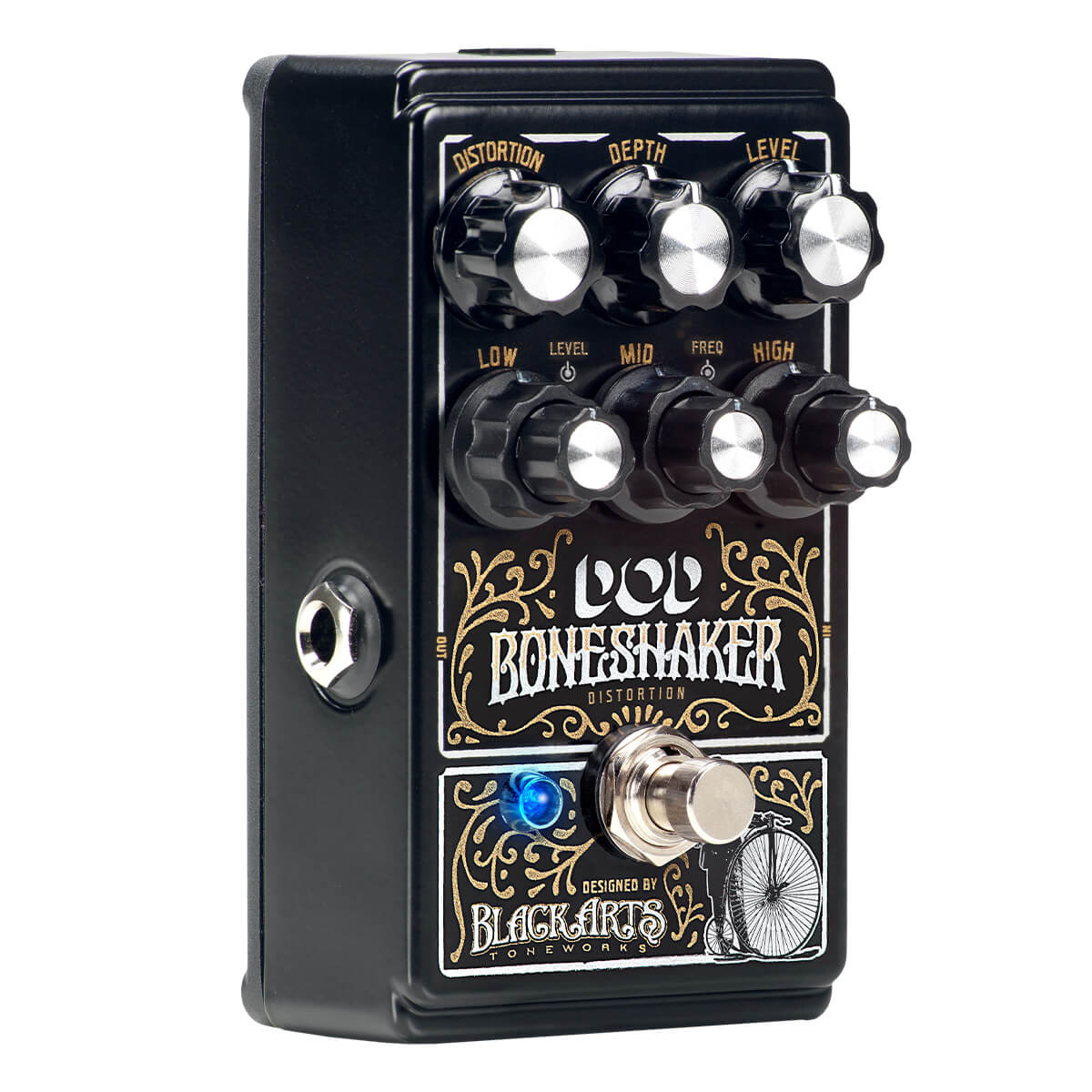

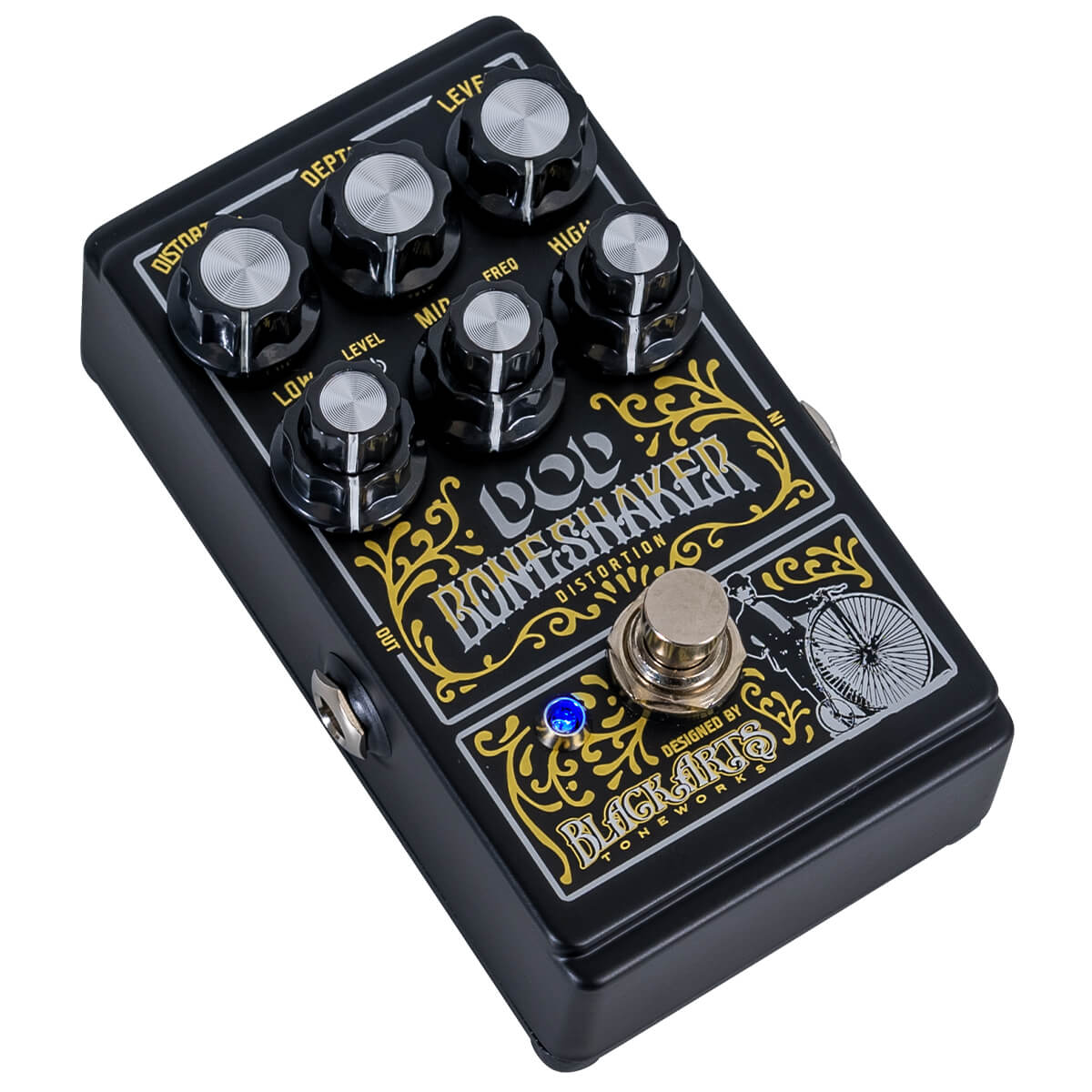

DOD Boneshaker Dirty Boost & EQ Guitar Effects Pedal

The DOD Boneshaker Dirty Boost & EQ is a powerful distortion and boost pedal developed in collaboration with Black Arts Toneworks, designed for players who want heavy gain with unusually precise control over the frequency spectrum.

Alongside dedicated Distortion, Depth and Level controls, the Boneshaker features a versatile 3-band semi-parametric EQ. Each Low, Mid and High band has its own boost/cut control and adjustable centre frequency, letting you shape exactly where the pedal adds weight, punch and definition.

Originally conceived with extended-range guitars, baritones and bass firmly in mind, the Boneshaker is equally effective with standard electric guitar. Use it as the main source of distortion, push an already-driven amplifier harder or reshape another fuzz or distortion so it cuts through the mix.

At A Glance

Feature	Details
Brand	DOD
Model	Boneshaker
Product Type	Dirty Boost / Distortion & EQ Pedal
Condition	New
Circuit Design	Black Arts Toneworks / Mark Wentz
Main Controls	Distortion, Depth, Level
EQ	3-Band Semi-Parametric
Low EQ	Level + Adjustable Frequency
Mid EQ	Level + Adjustable Frequency
High EQ	Level + Adjustable Frequency
Best For	Guitar, baritone, extended-range guitar and bass
Bypass	True Bypass
Current Draw	Approx. 20mA
Power	9V DC Centre Negative / 9V Battery
Main Appeal	Heavy distortion with exceptionally detailed EQ control

What Makes The DOD Boneshaker Special?

Most distortion pedals give you a single Tone control or, at most, a conventional three-band EQ.

The Boneshaker goes considerably further by giving the Low, Mid and High bands their own adjustable centre frequencies as well as independent boost/cut controls. This means you can decide not only how much bass, midrange or treble you want, but also exactly where those adjustments take place.

That flexibility makes the Boneshaker especially useful with low tunings, baritone guitars, extended-range instruments and bass, where controlling low-frequency weight without sacrificing definition can make a major difference.

Distortion Control

The Distortion control determines the amount of gain applied to your signal.

Lower settings can be used for dirty boost and gritty drive tones, while increasing Distortion produces progressively more saturation.

It works particularly well for:

• Heavy rhythm guitar
• Low tunings
• Doom and sludge
• Alternative rock
• Aggressive bass tones
• Pushing an already-driven amplifier
• Stacking with fuzz and distortion pedals

Depth Control

The Depth control adjusts the low-frequency growl of the distortion circuit.

This is particularly useful with:

• Baritone guitars
• Seven and eight-string guitars
• Drop tunings
• Bass guitar
• Large, low-register riffs

Increase Depth when you want more weight and rumble, or reduce it when you need a tighter low end that leaves more space for the rest of the band.

Level Control

The Level control sets the overall output volume.

This gives the Boneshaker enough flexibility to function as:

• Your main distortion sound
• A dirty boost
• A solo level boost
• A front-end boost for a valve amplifier
• A way of pushing another gain pedal harder

3-Band Semi-Parametric EQ

The Boneshaker's EQ is its defining feature.

Each frequency range has two controls: one selects the centre frequency and the other determines how much that frequency is boosted or cut.

Low

Adjusts the amount of low-frequency boost or cut.

Low Frequency

Selects the centre frequency affected by the Low control.

This allows much more precise low-end shaping than a standard Bass control.

Mid

Controls how much the selected midrange frequency is boosted or cut.

Boost the mids to help heavy guitar tones cut through a mix or reduce selected frequencies for a more scooped sound.

Mid Frequency

Selects which part of the midrange is affected.

This makes it particularly useful for matching the Boneshaker to different guitars, pickups, cabinets and band arrangements.

High

Adjusts the amount of high-frequency boost or cut.

Use it to add attack and presence or soften overly bright distortion.

High Frequency

Selects the centre frequency affected by the High control.

Together, these controls give the Boneshaker an unusually detailed level of tonal control for a compact distortion pedal.

Designed For Heavy & Extended-Range Instruments

Black Arts Toneworks developed the Boneshaker circuit with extended-range instruments in mind.

Seven-string guitars, baritones and bass guitars can produce considerably more low-frequency energy than a conventional six-string guitar. A conventional distortion circuit can sometimes turn these frequencies into an undefined wall of gain.

The Boneshaker's Depth control and adjustable EQ let you decide where that low-end weight sits, helping you retain impact while keeping individual notes and riffs more defined.

Perfect For Gain Stacking

The Boneshaker does not have to be used by itself.

Its detailed EQ makes it particularly effective for shaping another overdrive, distortion or fuzz.

Use it to:

• Tighten the low end of a fuzz
• Add mids to help another pedal cut through
• Remove harsh upper frequencies
• Push an amplifier harder
• Add extra saturation to an existing dirty channel
• Shape a stacked gain sound around your instrument

Who Is It For?

The DOD Boneshaker is particularly well suited to:

• Rock
• Alternative
• Doom
• Sludge
• Stoner rock
• Metal
• Noise rock
• Psychedelic music
• Baritone guitar
• Seven and eight-string guitar
• Drop-tuned guitar
• Bass guitar
• Players stacking fuzz and distortion
• Guitarists who want precise EQ control from a drive pedal

Why Choose A Semi-Parametric EQ Distortion Pedal?

A conventional tone control changes a broad section of the frequency spectrum.

A semi-parametric EQ gives you much more precision because you can choose which frequency you want to adjust before deciding whether to boost or cut it.

For heavy distortion this can be especially useful.

If the sound is muddy, you can target the problematic low or low-mid frequency rather than simply removing bass from the entire signal. If the guitar disappears in the mix, you can boost a specific midrange area rather than making the whole sound brighter.

This makes the Boneshaker useful not only as a distortion pedal but also as a powerful gain-stage tone-shaping tool.

How It Compares

Boneshaker vs Conventional Distortion Pedal

Most distortion pedals provide Gain, Tone and Level controls.

The Boneshaker adds Depth plus a full three-band semi-parametric EQ, giving you significantly more control over how the distortion interacts with your instrument and amplifier.

Boneshaker vs Graphic EQ + Distortion

A graphic EQ gives you several fixed frequency bands.

The Boneshaker instead allows you to sweep the centre frequency of its Low, Mid and High bands, making it easier to target specific tonal areas while keeping the pedal compact.

Boneshaker With Bass & Baritone

The Boneshaker's adjustable low-frequency EQ and dedicated Depth control make it particularly useful for instruments that extend below the range of a conventional six-string guitar.

You can retain low-end weight while shaping the frequencies that otherwise become muddy under heavy distortion.

What's Included?

• DOD Boneshaker Dirty Boost & EQ Guitar Effects Pedal

No power supply included.

Technical Specifications

Specification	Details
Brand	DOD
Model	Boneshaker
Product Type	Dirty Boost / Distortion Pedal
Circuit Design	Black Arts Toneworks
Main Controls	Distortion, Depth, Level
Low EQ Controls	Low, Low Frequency
Mid EQ Controls	Mid, Mid Frequency
High EQ Controls	High, High Frequency
EQ Type	3-Band Semi-Parametric
Input	1 x 1/4" TS Instrument
Input Impedance	470kΩ
Output	1 x 1/4" TS Instrument
Output Impedance	100Ω
Bypass	True Bypass
Status Indicator	Blue LED
Chassis	All Metal
Current Draw	Approx. 20mA
Power	9V DC / 9V Alkaline Battery
External Power Polarity	Centre Negative
Height	5.71cm
Width	6.68cm
Length	11.88cm
Weight	Approx. 0.453kg
Condition	New

Power Requirements

The DOD Boneshaker can be powered by a 9V alkaline battery or a compatible regulated 9V DC centre-negative power supply.

Current draw is approximately 20mA.

No external power supply is included.

FAQs

What does the DOD Boneshaker do?

The Boneshaker combines distortion and dirty boost with a three-band semi-parametric EQ for detailed tone shaping.

Who designed the DOD Boneshaker?

The circuit was developed in collaboration with Black Arts Toneworks, with DOD crediting pedal designer Mark Wentz.

Is the Boneshaker an overdrive or distortion pedal?

It can cover dirty boost and overdrive-style applications, but its gain range and voicing also make it suitable as a full distortion pedal.

What does the Depth control do?

Depth increases or decreases the low-frequency growl of the distortion, making it especially useful with extended-range guitars, baritones and bass.

What is a semi-parametric EQ?

A semi-parametric EQ lets you select the centre frequency of an EQ band and then choose how much that frequency is boosted or cut.

How many EQ bands does the Boneshaker have?

Three: Low, Mid and High.

Can I adjust the frequency of each EQ band?

Yes. Low, Mid and High each have their own adjustable centre-frequency control.

Is the Boneshaker good for seven-string and eight-string guitars?

Yes. The circuit was specifically developed with extended-range instruments in mind.

Is it suitable for baritone guitar?

Yes. Its Depth control and adjustable low-frequency EQ make it particularly useful for baritone guitar.

Can I use the Boneshaker with bass?

Yes. Its low-frequency control and semi-parametric EQ make it a strong choice for distorted bass tones.

Can I stack the Boneshaker with fuzz?

Yes. DOD specifically highlights its ability to shape fuzz and other gain sounds so they sit more effectively in a mix.

Can it push an already overdriven amplifier?

Yes. The Boneshaker can be used as a dirty boost to push the front end of an amplifier further into saturation.

Does it have true bypass?

Yes. The DOD Boneshaker uses true bypass switching.

Can it run from a battery?

Yes. It can operate from a standard 9V alkaline battery.

What power supply does it require?

Use a compatible regulated 9V DC centre-negative power supply.

Is a power supply included?

No. A compatible external power supply is not included.
