JOYO R-09 Vision Dual Modulation Pedal – Used

Quick Product Summary

The JOYO R-09 Vision is a highly versatile dual modulation pedal that combines two independent effects engines within a single enclosure. Each side provides nine different modulation effects, allowing everything from traditional chorus, phaser and tremolo through to rotary, vibrato, octave, stutter and more experimental textures.

This used example is in Good condition, showing visible signs of previous ownership and regular pedalboard use. With stereo connectivity, series or parallel routing and independent tap-tempo functionality, the Vision offers an impressive amount of creative modulation control from one pedal.

What Makes the JOYO Vision Special?

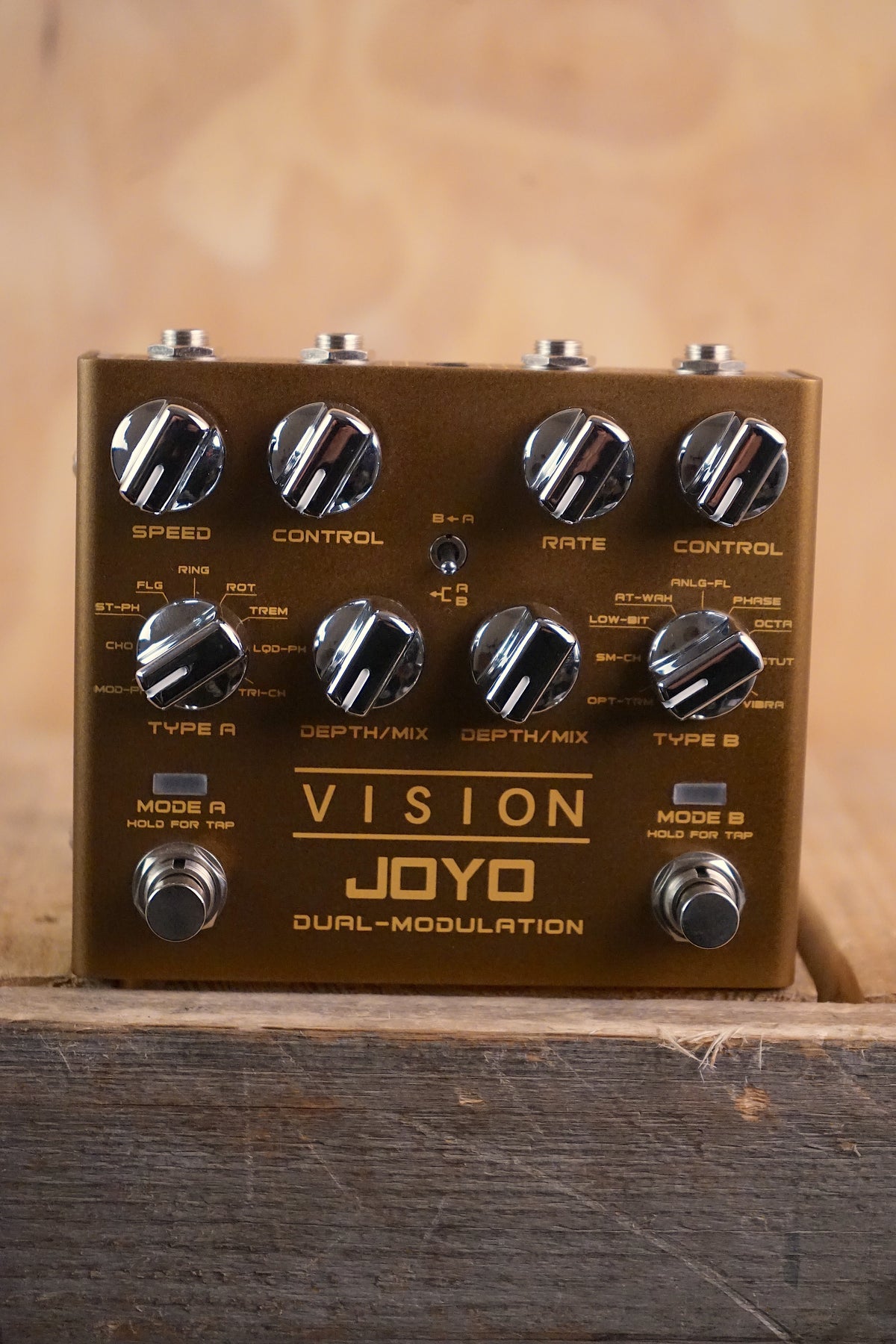

The Vision effectively places two separate modulation pedals in one enclosure. Mode A and Mode B each offer nine selectable effects with their own speed, control and depth/mix adjustment, allowing either side to be used independently or both simultaneously.

A central routing switch lets the two engines operate in series or parallel, opening up a much wider range of combined textures. Independent tap tempo also allows modulation speeds to be matched quickly during performance, while stereo inputs and outputs make the Vision particularly effective in wider two-amp or recording setups.

Who Is It For?

The JOYO Vision is ideal for guitarists, bassists and keyboard players who want several modulation effects without filling a pedalboard with individual chorus, phaser, flanger, tremolo and vibrato pedals.

It is particularly well suited to ambient, alternative, indie, funk, psychedelic and experimental styles, while its more conventional modulation modes also make it useful for classic rock, blues and pop.

At A Glance

Feature	Details
Effect Type	Dual Modulation
Condition	Used – Good
Modulation Engines	2
Effects Per Engine	9
Total Effect Types	18
Routing	Series / Parallel
Tap Tempo	Independent Per Engine
Stereo I/O	Yes
Bypass	True Bypass
Processing	24-bit / 44.1kHz
Power	9V DC

Condition Overview

Condition Grade: Good

This pedal is in good used condition, with visible cosmetic signs of previous ownership and normal pedalboard use.

It remains a solid working example suitable for rehearsal, recording and live performance.

What’s Included?

• JOYO R-09 Vision Dual Modulation Pedal

• No power supply included

Technical Specifications

Specification	Details
Model	R-09 Vision
Effect Type	Dual Modulation
Mode A Effects	Modulated Phaser, Chorus, Stereo Phaser, Flanger, Ring Modulator, Rotary, Tremolo, Liquid Phaser, Tri-Chorus
Mode B Effects	Optical Tremolo, Small Chorus, Low-Bit, Auto-Wah, Analogue Flanger, Phaser, Octave, Stutter, Vibrato
Mode A Controls	Speed, Control, Depth/Mix
Mode B Controls	Rate, Control, Depth/Mix
Routing	Series or Parallel
Tap Tempo	Independent for A and B
Inputs	2 x 1/4"
Outputs	2 x 1/4"
Stereo Operation	Yes
Sample Rate	44.1kHz
Bit Depth	24-bit
Input Impedance	1 MΩ
Output Impedance	100Ω
Bypass	True Bypass
Ambience Light Modes	Sync, Always, Off
Power	9V DC
Polarity	Centre Negative
Current Draw	Approx. 170mA
Battery Operation	No
Dimensions	Approx. 130 x 110 x 50mm
Weight	Approx. 425g

Power Requirements

The JOYO R-09 Vision requires a suitable regulated 9V DC centre-negative power supply capable of supplying at least 170mA.

The pedal does not support battery operation.

No power supply is included with this used pedal.

FAQs

How many effects does the JOYO Vision have?

It provides 18 modulation effects in total, with nine available on Mode A and nine on Mode B.

Can both effects engines be used at the same time?

Yes. Mode A and Mode B can run simultaneously.

Can the two effects be routed differently?

Yes. The Vision allows the two modulation engines to operate in either series or parallel.

Does it have chorus?

Yes. Several chorus-style sounds are included, including standard Chorus, Small Chorus and Tri-Chorus.

Does it include phaser and flanger effects?

Yes. Multiple phaser and flanger variations are available across the two engines.

Does it have tremolo?

Yes. Both conventional Tremolo and Optical Tremolo effects are included.

Can it create more unusual modulation sounds?

Yes. The Vision also provides Ring Modulator, Low-Bit, Auto-Wah, Octave, Stutter and Vibrato effects.

Does it have tap tempo?

Yes. Each modulation engine supports independent tap-tempo control.

Can it operate in stereo?

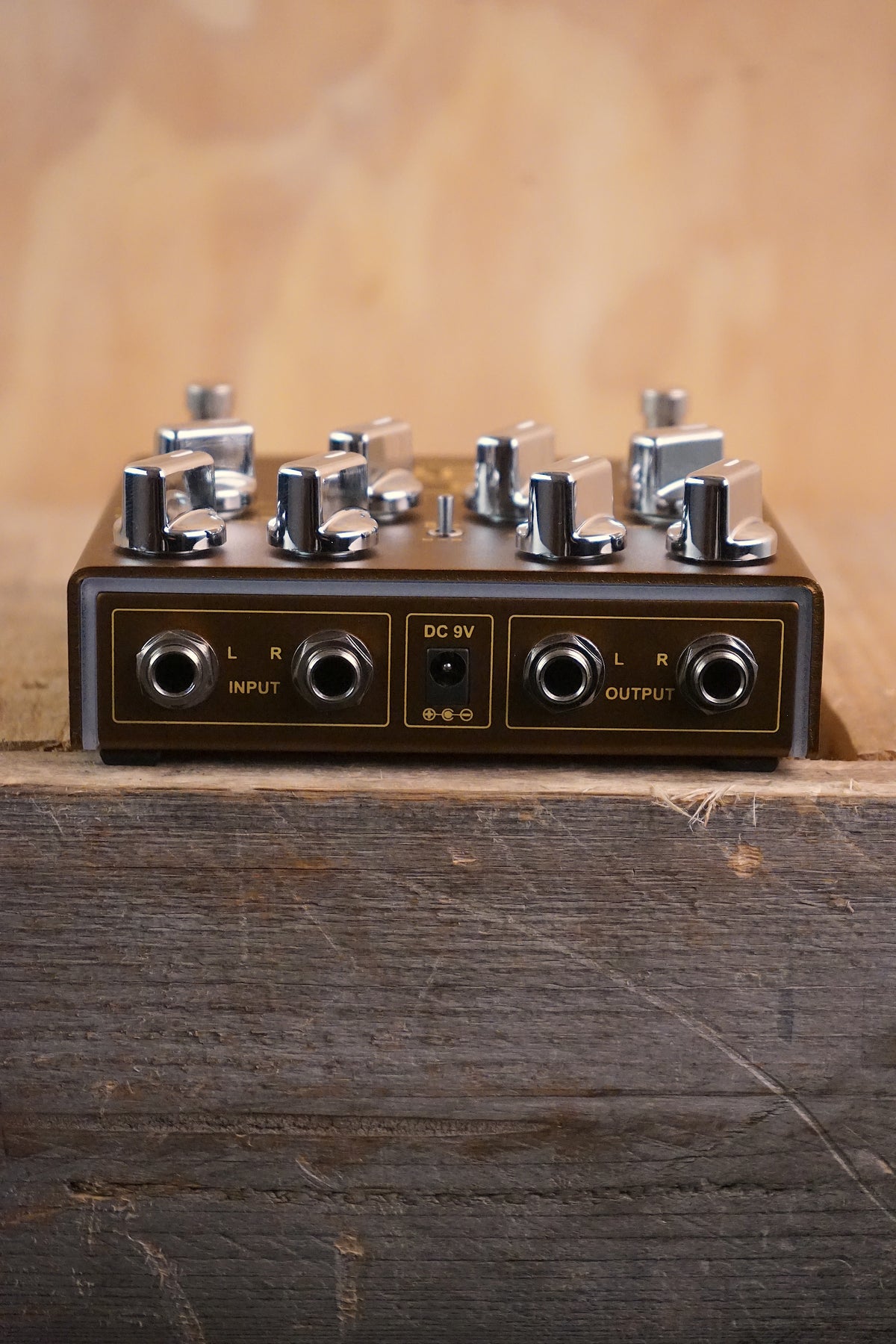

Yes. The Vision features two inputs and two outputs for stereo operation.

Can it also be used in mono?

Yes. A conventional mono guitar setup can be connected using the left input and output.

Does it use true bypass?

Yes. The JOYO Vision uses true bypass switching.

Can it be used with bass or keyboards?

Yes. Its modulation effects can be used with guitar, bass, keyboards and other compatible instruments.

Can it run from a battery?

No. The Vision requires external 9V DC power.

Is a power supply included?

No. No power supply is included with this used pedal.

What condition is this example in?

This example is graded Good, with visible signs of previous use consistent with a pre-owned effects pedal.
