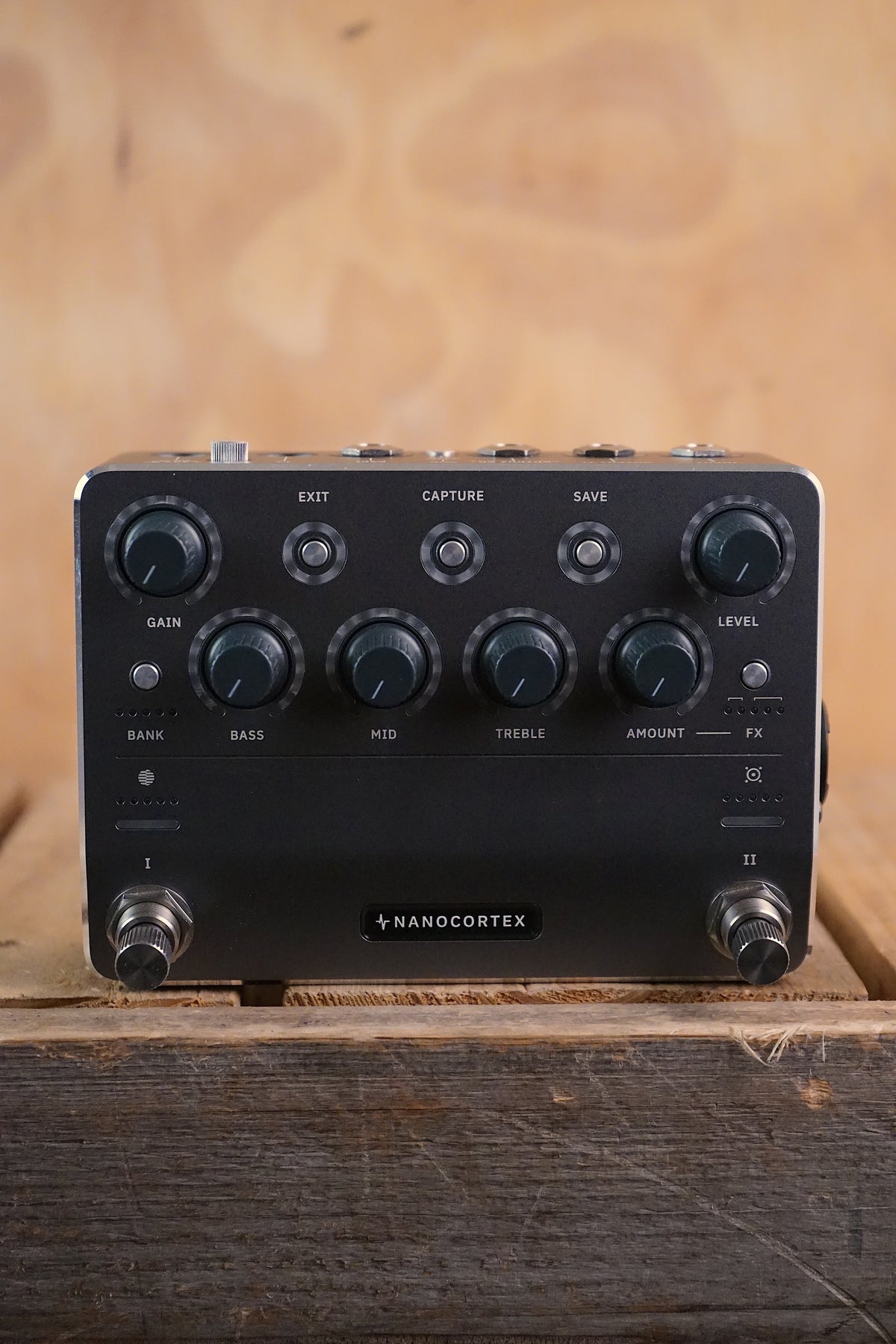

Neural DSP Nano Cortex Amp Modeler & Capture Pedal – Used

Quick Product Summary

The Neural DSP Nano Cortex brings the core power of Neural DSP’s Cortex platform into a compact, pedalboard-friendly unit. It can capture and reproduce the sonic character of amplifiers, cabinets and overdrive pedals while also providing effects, impulse-response loading, preset storage and direct recording functionality.

This used example is in Good condition, showing visible signs of previous ownership and regular use. With stereo outputs, headphone monitoring, MIDI and expression control, Bluetooth connectivity and USB audio, the Nano Cortex can serve as the centre of a compact live, recording or practice rig.

What Makes the Neural DSP Nano Cortex Special?

At the heart of the Nano Cortex is Neural Capture, Neural DSP’s technology for learning and recreating the response of physical amplifiers, cabinets and compatible overdrive pedals. You can create your own captures or access a huge library of community-created sounds through Cortex Cloud.

Current Nano Cortex software also provides 64 preset locations, five effects slots and IR loading, allowing complete signal chains to be created around a Neural Capture. Bluetooth connectivity provides integration with the Cortex Cloud app, while MIDI and expression control make the Nano Cortex suitable for more advanced pedalboard systems.

Who Is It For?

The Nano Cortex is ideal for guitarists and bassists looking for professional amp and cabinet sounds in a compact floor unit.

It is particularly suited to direct-to-PA rigs, pedalboards, home recording, fly rigs and silent practice setups, as well as players who want to capture favourite amplifiers and overdrive pedals for use away from the original equipment.

At A Glance

Feature	Details
Product Type	Amp Modeler / Capture Processor
Condition	Used – Good
Technology	Neural Capture
Preset Capacity	64
Capture Slots	25
Effect Slots	5
IR Slots	5
User IR Storage	Up to 256
Stereo Outputs	Yes
Headphone Output	Yes
MIDI / Expression	Yes
Bluetooth	Yes
USB Audio	Yes

Condition Overview

Condition Grade: Good

This Nano Cortex is in good used condition, with visible cosmetic signs of previous ownership and normal floor-based use.

It remains a strong working example suitable for rehearsal, recording, home practice and live performance.

What’s Included?

• Neural DSP Nano Cortex

• No power supply included

Technical Specifications

Specification	Details
Product Type	Digital Amp / Cab / Effects Processor
Modeling Technology	Neural Capture
Preset Capacity	64
Capture Storage	25 Slots Across 5 Banks
IR Loader Slots	5
Factory IRs	10
User IR Capacity	Up to 256
Effect Slots	5

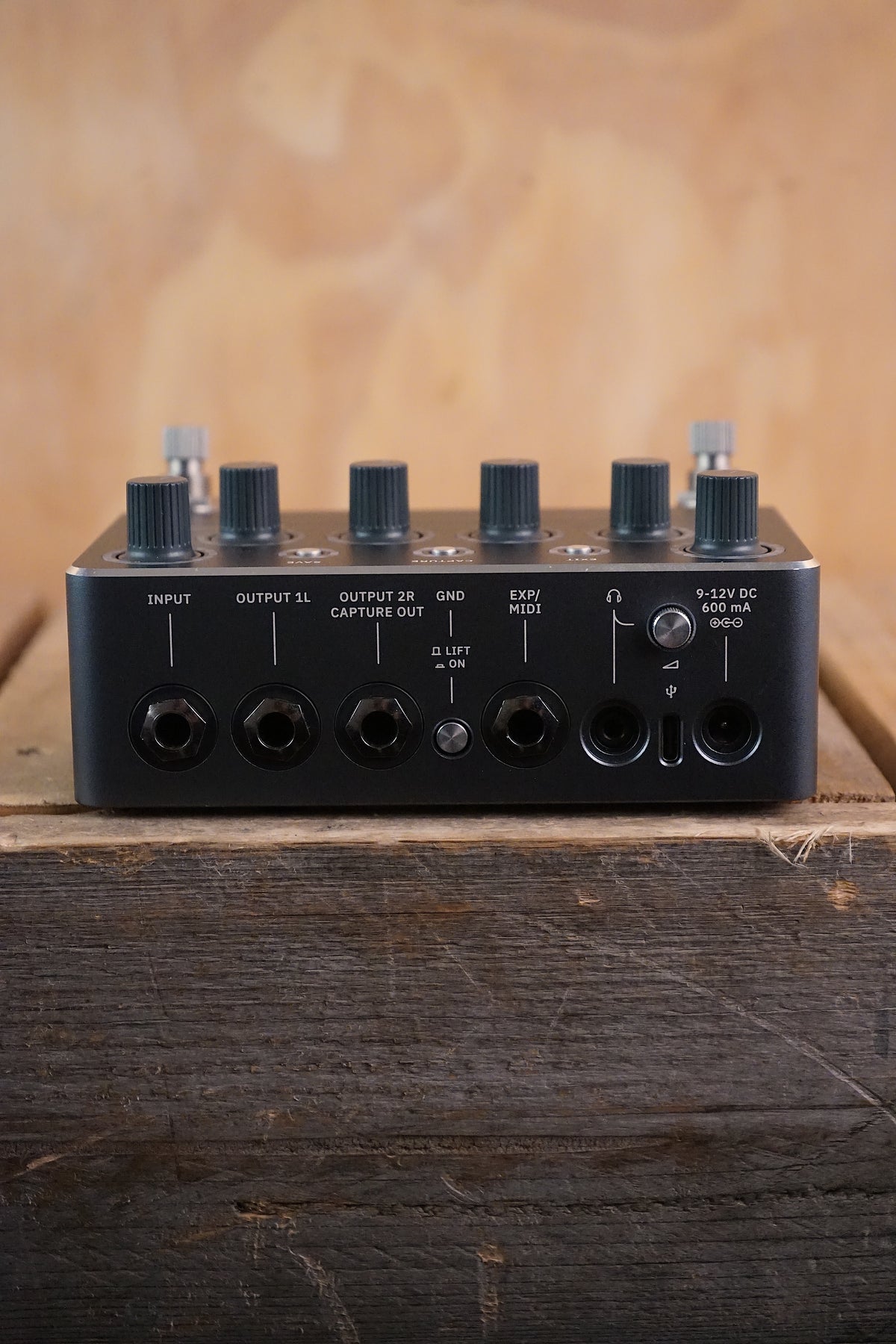

Instrument Input	1 x 1/4" TRS
Instrument Input Impedance	1 MΩ
Capture Input	XLR / 1/4" Combo
Capture Input Boost	+26dB
Outputs	2 x 1/4" TRS
Output 2	Also Functions as Capture Out
Headphone Output	3.5mm Stereo
Expression / MIDI	1 x 1/4" TRS
MIDI Type	TRS Type A
USB	USB-C
USB Audio	4 Inputs / 3 Outputs
USB Sample Rate	48kHz
Bluetooth	Yes
Ground Lift	Yes
Footswitches	2 Stomp / Rotary Footswitches
Main Controls	Gain, Bass, Mid, Treble, Amount, Level
Construction	Anodised Aluminium Unibody
Dimensions	Approx. 144 x 103 x 62mm
Weight	Approx. 1.36 lbs

Power Requirements

The Neural DSP Nano Cortex can be powered in two ways:

• 9–12V DC centre-negative power supply capable of supplying at least 600mA

• USB-C power at 5V / 1.5A or greater

A standard low-current 9V pedal supply should not be assumed to provide sufficient current.

No external power supply is included with this used Nano Cortex.

FAQs

What is the Neural DSP Nano Cortex?

The Nano Cortex is a compact amp, cabinet and effects processor built around Neural DSP’s Neural Capture technology.

What is Neural Capture?

Neural Capture analyses the response of compatible physical equipment and creates a digital recreation that can be loaded and used within the Cortex platform.

Can it capture a guitar amplifier?

Yes. Compatible amplifiers can be captured using the Nano Cortex and the appropriate microphone, load box or other connection method depending on the amplifier setup.

Can it capture overdrive pedals?

Yes. Compatible overdrive pedals can be connected directly to the Capture input during the capture process.

Can it capture cabinets?

Yes. Cabinet and complete amp-and-cab setups can be captured with an appropriate microphone and connection arrangement.

How many presets can it store?

Current Nano Cortex software provides 64 preset slots.

How many effects can be used?

The current signal architecture provides five effect slots, which can be used separately or combined within a preset.

Can I load my own impulse responses?

Yes. User IRs can be uploaded through the Cortex ecosystem, with storage for up to 256 user impulse responses.

Does it work with Cortex Cloud?

Yes. Bluetooth connectivity allows the Nano Cortex to pair with the Cortex Cloud app for deeper preset editing, capture management and access to community-created content.

Does it support MIDI?

Yes. The EXP/MIDI connection supports TRS Type A MIDI for compatible external control.

Can I connect an expression pedal?

Yes. The EXP/MIDI input can also be configured for compatible expression-pedal control.

Can it connect directly to a PA?

Yes. The stereo TRS outputs can feed a suitable PA, mixer, FRFR cabinet, studio monitor system or other compatible equipment.

Does it have a headphone output?

Yes. A dedicated 3.5mm stereo headphone output and headphone level control are provided for silent practice and monitoring.

Can it be used as an audio interface?

Yes. USB-C provides 4-in/3-out USB audio at 48kHz, allowing dry and processed signals to be recorded with a compatible computer.

Can it record a dry DI and processed signal at the same time?

Yes. The USB routing allows dry input and processed signals to be recorded simultaneously.

Can it run from USB-C power?

Yes. A compliant 5V / 1.5A USB-C power source can power the Nano Cortex.

Is a power supply included?

No. No power supply is included with this used Nano Cortex.

What condition is this example in?

This example is graded Good, with visible signs of previous use consistent with a pre-owned floor processor.
