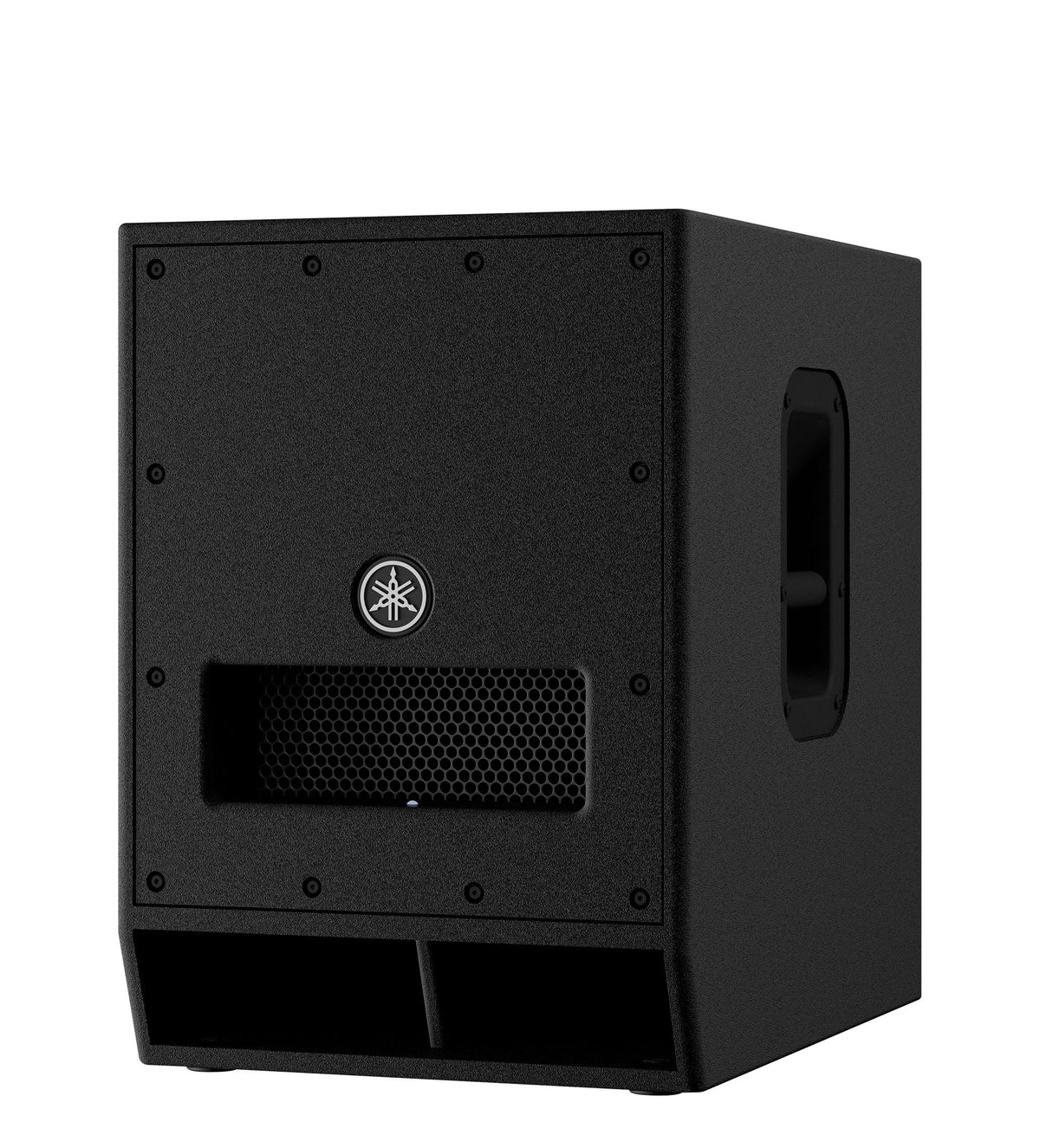

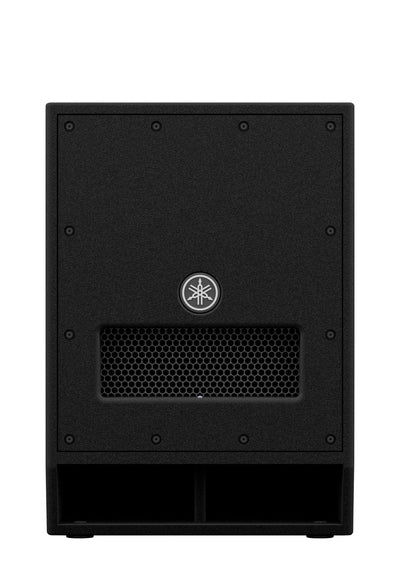

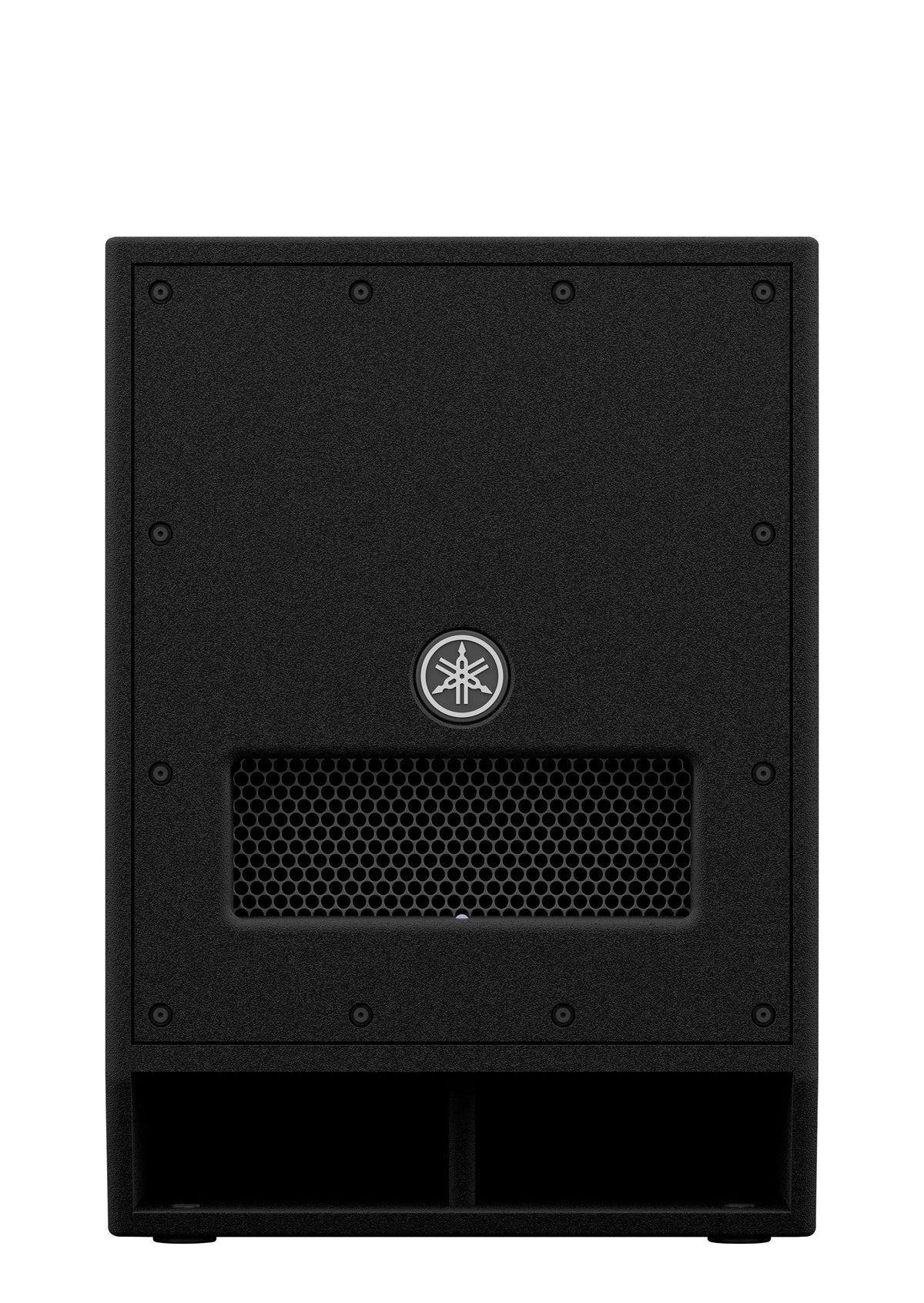

Yamaha DXS12 MKII 12” Active Subwoofer EX-DISPLAY

This item is currently on display in our showroom. Please contact us on 01216431685 for more details. Sold with 2 years Yamaha warranty as new!

This Yamaha DXS12 MKII is being offered as an ex-display model, providing an excellent opportunity to acquire professional Yamaha PA equipment at a reduced price.

Due to the size and weight of this professional active subwoofer, we are unable to offer delivery or courier shipping for this item.

Customers can collect the subwoofer directly from our Fair Deal Music showroom in Birmingham, where our knowledgeable team will be happy to assist with collection and answer any questions about the product.

We recommend ensuring you have suitable transport available, as the DXS12 MKII weighs approximately 30kg and features a substantial professional-grade cabinet.

As an ex-display unit, it may show minor cosmetic signs of handling or showroom use.

Detailed Features & Benefits

Powerful 1020W Class-D Amplification

At the heart of the Yamaha DXS12 MKII is a high-efficiency Class-D amplifier delivering 1020W of dynamic power and 800W continuous output. Capable of producing an impressive 134dB maximum SPL, this powerful amplification system provides the headroom needed for energetic live performances, dance music and demanding PA applications. Despite its relatively compact footprint, the DXS12 MKII delivers substantial low-frequency output with excellent clarity and definition.

High-Performance 12-Inch Woofer

The specially designed 12-inch low-frequency driver features a substantial 2.5-inch voice coil and is housed within an acoustically optimised band-pass enclosure. This combination produces tight, controlled bass with excellent impact, making kick drums, bass guitars and electronic music feel powerful and defined. With a frequency response extending down to 42Hz, the DXS12 MKII adds depth and authority to almost any professional PA system.

Advanced D-XSUB Bass Processing

Yamaha's innovative D-XSUB digital signal processing gives users greater flexibility over the character and performance of their low frequencies. Three selectable modes allow the subwoofer to adapt to different musical styles and environments. NORMAL provides balanced bass reproduction, BOOST delivers a tighter and more focused low-end response, while XTENDED LF extends the bass response for additional depth and impact. This versatility makes the DXS12 MKII suitable for everything from acoustic performances to high-energy DJ sets.

Cardioid Mode for Professional Bass Control

When used in a compatible multi-subwoofer arrangement, the DXS12 MKII's cardioid functionality helps control the direction of low-frequency energy. By reducing unwanted bass behind the system and focusing more output towards the audience, cardioid operation can help minimise excessive low-frequency build-up on stage. This is particularly beneficial for live bands, professional venues and sound engineers looking for cleaner stage monitoring conditions.

Flexible Crossover Settings

With selectable crossover frequencies of 80Hz, 100Hz and 120Hz, the Yamaha DXS12 MKII can be integrated with a wide variety of full-range PA speakers. These settings allow users to optimise the balance between the subwoofer and their main speakers, creating a cohesive, well-defined sound system with smooth low-frequency reproduction.

Rugged Plywood Cabinet

Built for professional sound reinforcement, the DXS12 MKII features a durable plywood enclosure with a protective black polyurea coating. The carefully engineered cabinet helps minimise unwanted resonance while standing up to the demands of regular transport, installation and live performance. Its compact design makes it particularly appealing to mobile entertainers and venues where space is limited.

Versatile Setup & Connectivity

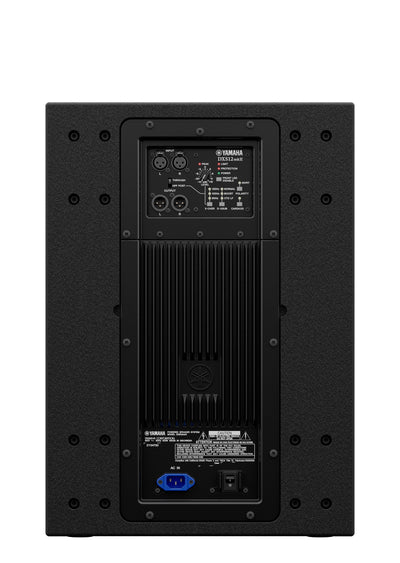

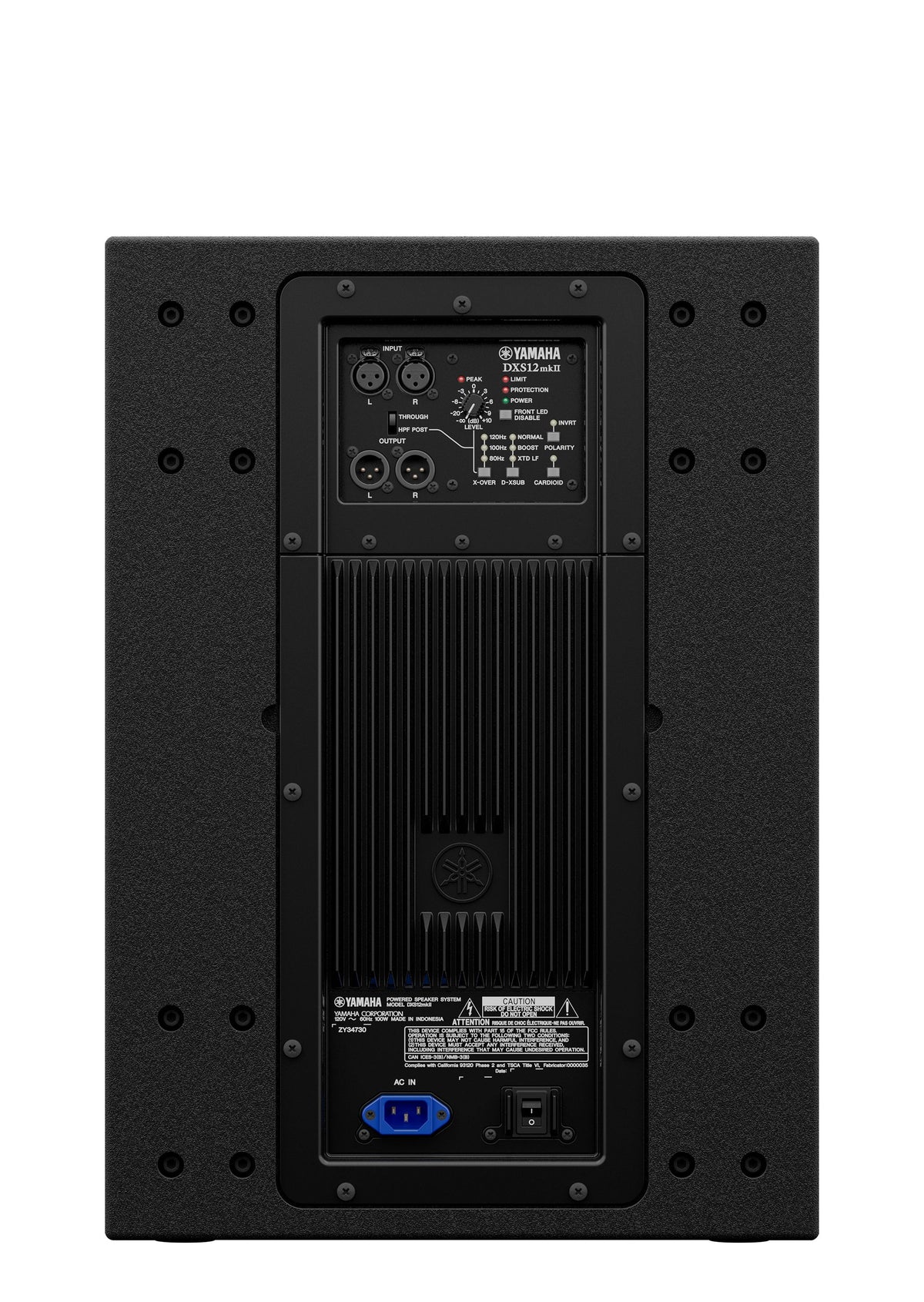

The DXS12 MKII features dual XLR inputs and outputs for straightforward integration into professional audio systems. A combination speaker pole socket accommodates both standard 35mm poles and threaded M20 poles, allowing compatible full-range speakers to be positioned directly above the subwoofer. This practical arrangement helps create a compact and efficient PA setup.

Product Specifications

Fair Deal Music Expert Verdict

The Yamaha DXS12 MKII is a seriously impressive active subwoofer that combines substantial low-frequency output with the precision and reliability expected from Yamaha's professional audio range.

Its powerful 1020W amplification, punchy 12-inch driver and advanced D-XSUB processing make it an excellent solution for anyone looking to add genuine depth and impact to their PA system without investing in a much larger enclosure.

We particularly like the flexible crossover options and cardioid functionality, which make the DXS12 MKII equally appealing to mobile DJs and professional sound engineers. The durable plywood cabinet and practical pole-mounting options further reinforce its credentials as a hardworking live sound solution.

As an ex-display model, this Yamaha DXS12 MKII represents a fantastic opportunity to secure professional-quality bass performance at excellent value.
